Author Topic: CredSSP policy change - no RDP possible  (Read 6410 times)
0 Members and 0 Guests are viewing this topic.
hudesigns
Audio Loudspeaker
*
Offline Offline

Posts: 82


View Profile Email
« on: May 09, 2018, 02:31:22 pm »

There is some CredSSP policy defaults change in May 8, 2018 Win10 update. This change may cause remote desktop login to fail. Of course only PCs that have been updated are affected.

Zheng
Logged

XXHighEnd PC -> I5-4460 (4 cores), @800Mhz, 24GB, Windows 10 Pro 64 bit build 10586.0 - Windows system, XXHE and XXHEdata on M.2 SSD on MoBo - Other temp folders on 2.5" internal SSD / XXHighEnd 2.10c, music on LAN / Engine#4 Adaptive Mode / Q1/-/3/4/5 = 14/-/1/1/1 / Q1Factor = 1 / ClockRes = 1ms / SFS = 20.19  (max 60) / Memory = Straight Contiguous / Include Garbage Collect / not Invert / Phase Alignment Off / Playerprio = Low / ThreadPrio = Realtime / Scheme = Core 1-3 / UnAttended / Stop Desktop, Remaining, WASAPI and W10 services / Keep LAN - Not Persist / WallPaper Off / OSD Off / Running Time Off / Minimize OS / XTweaks : Balanced Load = 49 / Nervous Rate = 10 / Cool when Idle = 1 / Provide Stable Power = 1 / Utilize Cores always = 1 / Custom Filter second High 705600-> USB3 from MoBo -> Modified USB3 "Y" cable -> 32/384 async USB DAC iFi iDAC2 (in bit-perfect NOS mode) powered by battery--->

Setup 1: Fisher 80 mono preamplifiers -> 8417 (in triode mode) push pull mono amps -> Bi-wire with Naim NAC A5 speaker cable for woofer and military grade silver alloy cable to tweeter -> Linn Kan II speakers

Setup 2: Audio Research SP-3 preamplifier -> 45 (globe) single ended mono amps -> Altec 604e speakers
acg
Audio Addict
***
Offline Offline

Posts: 730


View Profile
« Reply #1 on: May 10, 2018, 04:44:36 am »

There is some CredSSP policy defaults change in May 8, 2018 Win10 update. This change may cause remote desktop login to fail. Of course only PCs that have been updated are affected.

Zheng

Yes, it caused my RDC to fail...had to change the policy back to "vulnerable" to keep it working.
Logged

Audio PC
Stealth Mach II with Xeon E5 2698 v4 20 Core 2GHz  with Hyperthreading On [40 cores]/ 32GB Ram / RAM-OS / mobo USB port

XXHighEnd 2.09 RAM-OS (W14393 RAM)
Engine#4 Adaptive Mode / Buffer 4096 / Q1/3/4/5 = 14/1/1/1 / xQ1 = 1 / Processor Core Appointment Scheme = Core 1-3 / PlayerPrio = Low / ThreadPrio = RealTime / ClockRes = 1ms / Not Switch during playback = off / Xtweaks Balanced Load = 43 / Nervous Rate = 100 / Cool when idle = 1 / Provide stable power = 0 / Utilize cores always = 1 / Time Stability = Stable / Time Performance Index = Optimal / SFS 0.90MB Max 120MB / Straight Contiguous / Include Garbage Collect = on / Start Playback during conversion = off / Do not start playback at all = off / Copy to XX-drive by standard = on / Always clear Proxy before Playback = on / Stop Remaining Desktop Services = on / Stop Desktop Services = on / Stop Remaining Services = on / Stop WASAPI Services = on / Stop W10 Services = off / Keep LAN Services = on / Persist = off / Use Remote Desktop = on/ Arc Predict / Minimize OS = on / Peak Extend = off / Unattended

Audio Chain
Stealth MachII PC >> Lush USB 1.5m >> NOS1a G3 B75, Driver v1.0.4 (4ms) >> Placette Active Linestage >> 6 way active horn speakers (Single Ended Triodes)
PeterSt
Administrator
High Grade Audiophile
*****
Offline Offline

Posts: 15283



View Profile Email
« Reply #2 on: May 10, 2018, 09:07:16 am »

Hi guys,

What do we exactly notice of this ? how do we solve it ?
Of course I'm asking on behalf of (near) future issues for others with this.

Thanks !
Peter
Logged

For the Stealth III LPS PC :
W10-14393.0 - Oct 31, 2018 (2.10)
XXHighEnd Mach III Stealth LPS PC -> Xeon Scalable 14/28 core with Hyperthreading On (set to 10/20 cores) @~660MHz, 48GB, Windows 10 Pro 64 bit build 14393.0 from RAM, music on LAN / Engine#4 Adaptive Mode / Q1/-/3/4/5 = 30/-/1/1/1/ Q1Factor = 10 / Dev.Buffer = 4096 / ClockRes = 15ms / Memory = Straight Contiguous / Include Garbage Collect / SFS = 140.19  (max 140.19) / not Invert / Phase Alignment Off / Playerprio = Low / ThreadPrio = Realtime / Scheme = Core 3-5 / Not Switch Processors during Playback = Off/ Playback Drive none (see OS from RAM) / UnAttended (Just Start) / Always Copy to XX Drive (see OS from RAM) / Stop Desktop, Remaining, WASAPI and W10 services / Use Remote Desktop / Keep LAN - Not Persist / WallPaper On / OSD Off (!) / Running Time Off / Minimize OS / XTweaks : Balanced Load = 35 / Nervous Rate = 10 / Cool when Idle = n.a / Provide Stable Power = 0 / Utilize Cores always = 1 / Time Performance Index = Optimal / Time Stability = Stable / *Arc Prediction Filtering (16x)* / Always Clear Proxy before Playback = On -> USB3 from MoBo -> Lush^2*A:B-W-Y-R, B:B-W-R* USB 1m00 -> Phisolator 24/768 Phasure NOS1a/G3 75B (BNC Out) async USB DAC, Driver v1.0.4b (16ms) -> B'ASS Current Amplifier -> *Blaxius^2 A:B-R, B:B-R* Interlink -> Orelo MKII Active Open Baffle Horn Speakers.
Removed Switching Supplies from everywhere (also from the PC).

For a general PC :
W10-10586.0 - May 2016 (2.05+)
*XXHighEnd PC -> I7 3930k with Hyperthreading On (12 cores)* @~500MHz, 16GB, Windows 10 Pro 64 bit build 10586.0 from RAM, music on LAN / Engine#4 Adaptive Mode / Q1/-/3/4/5 = 14/-/1/1/1 / Q1Factor = 1 / Dev.Buffer = 4096 / ClockRes = 1ms / Memory = Straight Contiguous / Include Garbage Collect / SFS = 0.10  (max 60) / not Invert / Phase Alignment Off / Playerprio = Low / ThreadPrio = Realtime / Scheme = Core 3-5 / Not Switch Processors during Playback = Off/ Playback Drive none (see OS from RAM) / UnAttended (Just Start) / Always Copy to XX Drive (see OS from RAM) / All Services Off / Keep LAN - Not Persist / WallPaper On / OSD On / Running Time Off / Minimize OS / XTweaks : Balanced Load = *43* / Nervous Rate = 1 / Cool when Idle = 1 / Provide Stable Power = 1 / Utilize Cores always = 1 / Time Performance Index = *Optimal* / Time Stability = *Stable* / Custom Filter *Low* 705600 / -> USB3 *from MoBo* -> Clairixa USB 15cm -> Intona Isolator -> Clairixa USB 1m80 -> 24/768 Phasure NOS1a 75B (BNC Out) async USB DAC, Driver v1.0.4b (4ms) -> Blaxius BNC interlink *-> B'ASS Current Amplifier /w Level4 -> Blaxius Interlink* -> Orelo MKII Active Open Baffle Horn Speakers.
Removed Switching Supplies from everywhere.

Global Moderator
acg
Audio Addict
***
Offline Offline

Posts: 730


View Profile
« Reply #3 on: May 10, 2018, 09:12:50 am »

Type "Group Policy" into the W10 search box and open up "Edit Group Policy".

In the left pane "Computer Configuration" then "Administrative Templates" then "System" then "Credentials Delegation" then in the right pane double-click "Encryption Oracle Remediation" and a new window will open.  In the bottom left pane on this window set "Protection Level" to "Vulnerable" and then ok out of everything.

That should do it.
Logged

Audio PC
Stealth Mach II with Xeon E5 2698 v4 20 Core 2GHz  with Hyperthreading On [40 cores]/ 32GB Ram / RAM-OS / mobo USB port

XXHighEnd 2.09 RAM-OS (W14393 RAM)
Engine#4 Adaptive Mode / Buffer 4096 / Q1/3/4/5 = 14/1/1/1 / xQ1 = 1 / Processor Core Appointment Scheme = Core 1-3 / PlayerPrio = Low / ThreadPrio = RealTime / ClockRes = 1ms / Not Switch during playback = off / Xtweaks Balanced Load = 43 / Nervous Rate = 100 / Cool when idle = 1 / Provide stable power = 0 / Utilize cores always = 1 / Time Stability = Stable / Time Performance Index = Optimal / SFS 0.90MB Max 120MB / Straight Contiguous / Include Garbage Collect = on / Start Playback during conversion = off / Do not start playback at all = off / Copy to XX-drive by standard = on / Always clear Proxy before Playback = on / Stop Remaining Desktop Services = on / Stop Desktop Services = on / Stop Remaining Services = on / Stop WASAPI Services = on / Stop W10 Services = off / Keep LAN Services = on / Persist = off / Use Remote Desktop = on/ Arc Predict / Minimize OS = on / Peak Extend = off / Unattended

Audio Chain
Stealth MachII PC >> Lush USB 1.5m >> NOS1a G3 B75, Driver v1.0.4 (4ms) >> Placette Active Linestage >> 6 way active horn speakers (Single Ended Triodes)
PeterSt
Administrator
High Grade Audiophile
*****
Offline Offline

Posts: 15283



View Profile Email
« Reply #4 on: May 10, 2018, 09:18:28 am »

Great, Anthony. Thanks.
Can you please elaborate on how this issue expresses itself ?
It could even be more important to know the exhibit than knowing how to solve it. So ... at some stage (could be a year after today) people receive a W10 update and suddenly ... [...] ?

Thank you again !
Peter
Logged

For the Stealth III LPS PC :
W10-14393.0 - Oct 31, 2018 (2.10)
XXHighEnd Mach III Stealth LPS PC -> Xeon Scalable 14/28 core with Hyperthreading On (set to 10/20 cores) @~660MHz, 48GB, Windows 10 Pro 64 bit build 14393.0 from RAM, music on LAN / Engine#4 Adaptive Mode / Q1/-/3/4/5 = 30/-/1/1/1/ Q1Factor = 10 / Dev.Buffer = 4096 / ClockRes = 15ms / Memory = Straight Contiguous / Include Garbage Collect / SFS = 140.19  (max 140.19) / not Invert / Phase Alignment Off / Playerprio = Low / ThreadPrio = Realtime / Scheme = Core 3-5 / Not Switch Processors during Playback = Off/ Playback Drive none (see OS from RAM) / UnAttended (Just Start) / Always Copy to XX Drive (see OS from RAM) / Stop Desktop, Remaining, WASAPI and W10 services / Use Remote Desktop / Keep LAN - Not Persist / WallPaper On / OSD Off (!) / Running Time Off / Minimize OS / XTweaks : Balanced Load = 35 / Nervous Rate = 10 / Cool when Idle = n.a / Provide Stable Power = 0 / Utilize Cores always = 1 / Time Performance Index = Optimal / Time Stability = Stable / *Arc Prediction Filtering (16x)* / Always Clear Proxy before Playback = On -> USB3 from MoBo -> Lush^2*A:B-W-Y-R, B:B-W-R* USB 1m00 -> Phisolator 24/768 Phasure NOS1a/G3 75B (BNC Out) async USB DAC, Driver v1.0.4b (16ms) -> B'ASS Current Amplifier -> *Blaxius^2 A:B-R, B:B-R* Interlink -> Orelo MKII Active Open Baffle Horn Speakers.
Removed Switching Supplies from everywhere (also from the PC).

For a general PC :
W10-10586.0 - May 2016 (2.05+)
*XXHighEnd PC -> I7 3930k with Hyperthreading On (12 cores)* @~500MHz, 16GB, Windows 10 Pro 64 bit build 10586.0 from RAM, music on LAN / Engine#4 Adaptive Mode / Q1/-/3/4/5 = 14/-/1/1/1 / Q1Factor = 1 / Dev.Buffer = 4096 / ClockRes = 1ms / Memory = Straight Contiguous / Include Garbage Collect / SFS = 0.10  (max 60) / not Invert / Phase Alignment Off / Playerprio = Low / ThreadPrio = Realtime / Scheme = Core 3-5 / Not Switch Processors during Playback = Off/ Playback Drive none (see OS from RAM) / UnAttended (Just Start) / Always Copy to XX Drive (see OS from RAM) / All Services Off / Keep LAN - Not Persist / WallPaper On / OSD On / Running Time Off / Minimize OS / XTweaks : Balanced Load = *43* / Nervous Rate = 1 / Cool when Idle = 1 / Provide Stable Power = 1 / Utilize Cores always = 1 / Time Performance Index = *Optimal* / Time Stability = *Stable* / Custom Filter *Low* 705600 / -> USB3 *from MoBo* -> Clairixa USB 15cm -> Intona Isolator -> Clairixa USB 1m80 -> 24/768 Phasure NOS1a 75B (BNC Out) async USB DAC, Driver v1.0.4b (4ms) -> Blaxius BNC interlink *-> B'ASS Current Amplifier /w Level4 -> Blaxius Interlink* -> Orelo MKII Active Open Baffle Horn Speakers.
Removed Switching Supplies from everywhere.

Global Moderator
acg
Audio Addict
***
Offline Offline

Posts: 730


View Profile
« Reply #5 on: May 10, 2018, 10:12:36 am »

It is a policy change with the May 8 windows update.  All they changed was the default setting to a more secure one for such connections.  It affects RDC by RDC simply not working in our case, a failure to authenticate...instead an error box comes up saying something about CredSSP and an "authentication error" or some such thing.  Change the policy back to "vulnerable" as I posted earlier and it will all work again.
Logged

Audio PC
Stealth Mach II with Xeon E5 2698 v4 20 Core 2GHz  with Hyperthreading On [40 cores]/ 32GB Ram / RAM-OS / mobo USB port

XXHighEnd 2.09 RAM-OS (W14393 RAM)
Engine#4 Adaptive Mode / Buffer 4096 / Q1/3/4/5 = 14/1/1/1 / xQ1 = 1 / Processor Core Appointment Scheme = Core 1-3 / PlayerPrio = Low / ThreadPrio = RealTime / ClockRes = 1ms / Not Switch during playback = off / Xtweaks Balanced Load = 43 / Nervous Rate = 100 / Cool when idle = 1 / Provide stable power = 0 / Utilize cores always = 1 / Time Stability = Stable / Time Performance Index = Optimal / SFS 0.90MB Max 120MB / Straight Contiguous / Include Garbage Collect = on / Start Playback during conversion = off / Do not start playback at all = off / Copy to XX-drive by standard = on / Always clear Proxy before Playback = on / Stop Remaining Desktop Services = on / Stop Desktop Services = on / Stop Remaining Services = on / Stop WASAPI Services = on / Stop W10 Services = off / Keep LAN Services = on / Persist = off / Use Remote Desktop = on/ Arc Predict / Minimize OS = on / Peak Extend = off / Unattended

Audio Chain
Stealth MachII PC >> Lush USB 1.5m >> NOS1a G3 B75, Driver v1.0.4 (4ms) >> Placette Active Linestage >> 6 way active horn speakers (Single Ended Triodes)
PeterSt
Administrator
High Grade Audiophile
*****
Offline Offline

Posts: 15283



View Profile Email
« Reply #6 on: May 10, 2018, 11:00:29 am »

OK, clear. Thank you, Anthony.

Regards,
Peter
Logged

For the Stealth III LPS PC :
W10-14393.0 - Oct 31, 2018 (2.10)
XXHighEnd Mach III Stealth LPS PC -> Xeon Scalable 14/28 core with Hyperthreading On (set to 10/20 cores) @~660MHz, 48GB, Windows 10 Pro 64 bit build 14393.0 from RAM, music on LAN / Engine#4 Adaptive Mode / Q1/-/3/4/5 = 30/-/1/1/1/ Q1Factor = 10 / Dev.Buffer = 4096 / ClockRes = 15ms / Memory = Straight Contiguous / Include Garbage Collect / SFS = 140.19  (max 140.19) / not Invert / Phase Alignment Off / Playerprio = Low / ThreadPrio = Realtime / Scheme = Core 3-5 / Not Switch Processors during Playback = Off/ Playback Drive none (see OS from RAM) / UnAttended (Just Start) / Always Copy to XX Drive (see OS from RAM) / Stop Desktop, Remaining, WASAPI and W10 services / Use Remote Desktop / Keep LAN - Not Persist / WallPaper On / OSD Off (!) / Running Time Off / Minimize OS / XTweaks : Balanced Load = 35 / Nervous Rate = 10 / Cool when Idle = n.a / Provide Stable Power = 0 / Utilize Cores always = 1 / Time Performance Index = Optimal / Time Stability = Stable / *Arc Prediction Filtering (16x)* / Always Clear Proxy before Playback = On -> USB3 from MoBo -> Lush^2*A:B-W-Y-R, B:B-W-R* USB 1m00 -> Phisolator 24/768 Phasure NOS1a/G3 75B (BNC Out) async USB DAC, Driver v1.0.4b (16ms) -> B'ASS Current Amplifier -> *Blaxius^2 A:B-R, B:B-R* Interlink -> Orelo MKII Active Open Baffle Horn Speakers.
Removed Switching Supplies from everywhere (also from the PC).

For a general PC :
W10-10586.0 - May 2016 (2.05+)
*XXHighEnd PC -> I7 3930k with Hyperthreading On (12 cores)* @~500MHz, 16GB, Windows 10 Pro 64 bit build 10586.0 from RAM, music on LAN / Engine#4 Adaptive Mode / Q1/-/3/4/5 = 14/-/1/1/1 / Q1Factor = 1 / Dev.Buffer = 4096 / ClockRes = 1ms / Memory = Straight Contiguous / Include Garbage Collect / SFS = 0.10  (max 60) / not Invert / Phase Alignment Off / Playerprio = Low / ThreadPrio = Realtime / Scheme = Core 3-5 / Not Switch Processors during Playback = Off/ Playback Drive none (see OS from RAM) / UnAttended (Just Start) / Always Copy to XX Drive (see OS from RAM) / All Services Off / Keep LAN - Not Persist / WallPaper On / OSD On / Running Time Off / Minimize OS / XTweaks : Balanced Load = *43* / Nervous Rate = 1 / Cool when Idle = 1 / Provide Stable Power = 1 / Utilize Cores always = 1 / Time Performance Index = *Optimal* / Time Stability = *Stable* / Custom Filter *Low* 705600 / -> USB3 *from MoBo* -> Clairixa USB 15cm -> Intona Isolator -> Clairixa USB 1m80 -> 24/768 Phasure NOS1a 75B (BNC Out) async USB DAC, Driver v1.0.4b (4ms) -> Blaxius BNC interlink *-> B'ASS Current Amplifier /w Level4 -> Blaxius Interlink* -> Orelo MKII Active Open Baffle Horn Speakers.
Removed Switching Supplies from everywhere.

Global Moderator
arvind
Audio Enthusiast
**
Offline Offline

Posts: 471


View Profile
« Reply #7 on: May 10, 2018, 11:43:42 am »

Hi guys,

I don’t update the Win 10 on the Audio PC but I had the same problem with Windows 7 updating in my music server. I have been unable to connect the music server to Audio PC via RDP since yesterday.

I will try the solution mentioned by Anthony on my Win 7 music server. Hope it works?

Will post results.

Best regards,

Arvind
Logged

W10-14393.0 RAM OS / Mach III LPS 14/28/XXHE 2.10c/Engine#4/Adaptive Mode/16x /Arc Predict/Q= 30/1/1/1/xQ=10/Device Buffer:4096/PA= Off/Minimise OS/PE=off/Unattended/Stop All Services/SFS=140.19/140.19(max)/ClockRes= 15ms/Straight Contiguous/Music on NAS/Lush^2 USB cable A:B-W-Y-R; B: B-W-R/Phasure NOS 1a/75b/G3 USB DAC. Driver version 1.04/Driver Buffer 16ms. OSD text = Off
arvind
Audio Enthusiast
**
Offline Offline

Posts: 471


View Profile
« Reply #8 on: May 10, 2018, 01:26:38 pm »

Hi Anthony,

Thank you very much, it worked on my music server. Got the RDP connection back on.

Best regards,

Arvind
Logged

W10-14393.0 RAM OS / Mach III LPS 14/28/XXHE 2.10c/Engine#4/Adaptive Mode/16x /Arc Predict/Q= 30/1/1/1/xQ=10/Device Buffer:4096/PA= Off/Minimise OS/PE=off/Unattended/Stop All Services/SFS=140.19/140.19(max)/ClockRes= 15ms/Straight Contiguous/Music on NAS/Lush^2 USB cable A:B-W-Y-R; B: B-W-R/Phasure NOS 1a/75b/G3 USB DAC. Driver version 1.04/Driver Buffer 16ms. OSD text = Off
hudesigns
Audio Loudspeaker
*
Offline Offline

Posts: 82


View Profile Email
« Reply #9 on: May 10, 2018, 04:04:05 pm »

Quote
What do we exactly notice of this ? how do we solve it ?
Of course I'm asking on behalf of (near) future issues for others with this.

Hi Peter,
It would be ideal to find a solution that does NOT require to change group policy to "vulnerable". I think it will require some work on the host PC (mostly audio PC with specific older Win10 builds) so that the client PC will not have to fall back to a more vintage and vulnerable state.

Best,
Zheng
Logged

XXHighEnd PC -> I5-4460 (4 cores), @800Mhz, 24GB, Windows 10 Pro 64 bit build 10586.0 - Windows system, XXHE and XXHEdata on M.2 SSD on MoBo - Other temp folders on 2.5" internal SSD / XXHighEnd 2.10c, music on LAN / Engine#4 Adaptive Mode / Q1/-/3/4/5 = 14/-/1/1/1 / Q1Factor = 1 / ClockRes = 1ms / SFS = 20.19  (max 60) / Memory = Straight Contiguous / Include Garbage Collect / not Invert / Phase Alignment Off / Playerprio = Low / ThreadPrio = Realtime / Scheme = Core 1-3 / UnAttended / Stop Desktop, Remaining, WASAPI and W10 services / Keep LAN - Not Persist / WallPaper Off / OSD Off / Running Time Off / Minimize OS / XTweaks : Balanced Load = 49 / Nervous Rate = 10 / Cool when Idle = 1 / Provide Stable Power = 1 / Utilize Cores always = 1 / Custom Filter second High 705600-> USB3 from MoBo -> Modified USB3 "Y" cable -> 32/384 async USB DAC iFi iDAC2 (in bit-perfect NOS mode) powered by battery--->

Setup 1: Fisher 80 mono preamplifiers -> 8417 (in triode mode) push pull mono amps -> Bi-wire with Naim NAC A5 speaker cable for woofer and military grade silver alloy cable to tweeter -> Linn Kan II speakers

Setup 2: Audio Research SP-3 preamplifier -> 45 (globe) single ended mono amps -> Altec 604e speakers
PeterSt
Administrator
High Grade Audiophile
*****
Offline Offline

Posts: 15283



View Profile Email
« Reply #10 on: May 10, 2018, 05:43:37 pm »


Quote
so that the client PC will not have to fall back to a more vintage and vulnerable state.

Hi Zheng,

Somehow I read your post as a contradictio in terminis ?

Regards,
Peter
Logged

For the Stealth III LPS PC :
W10-14393.0 - Oct 31, 2018 (2.10)
XXHighEnd Mach III Stealth LPS PC -> Xeon Scalable 14/28 core with Hyperthreading On (set to 10/20 cores) @~660MHz, 48GB, Windows 10 Pro 64 bit build 14393.0 from RAM, music on LAN / Engine#4 Adaptive Mode / Q1/-/3/4/5 = 30/-/1/1/1/ Q1Factor = 10 / Dev.Buffer = 4096 / ClockRes = 15ms / Memory = Straight Contiguous / Include Garbage Collect / SFS = 140.19  (max 140.19) / not Invert / Phase Alignment Off / Playerprio = Low / ThreadPrio = Realtime / Scheme = Core 3-5 / Not Switch Processors during Playback = Off/ Playback Drive none (see OS from RAM) / UnAttended (Just Start) / Always Copy to XX Drive (see OS from RAM) / Stop Desktop, Remaining, WASAPI and W10 services / Use Remote Desktop / Keep LAN - Not Persist / WallPaper On / OSD Off (!) / Running Time Off / Minimize OS / XTweaks : Balanced Load = 35 / Nervous Rate = 10 / Cool when Idle = n.a / Provide Stable Power = 0 / Utilize Cores always = 1 / Time Performance Index = Optimal / Time Stability = Stable / *Arc Prediction Filtering (16x)* / Always Clear Proxy before Playback = On -> USB3 from MoBo -> Lush^2*A:B-W-Y-R, B:B-W-R* USB 1m00 -> Phisolator 24/768 Phasure NOS1a/G3 75B (BNC Out) async USB DAC, Driver v1.0.4b (16ms) -> B'ASS Current Amplifier -> *Blaxius^2 A:B-R, B:B-R* Interlink -> Orelo MKII Active Open Baffle Horn Speakers.
Removed Switching Supplies from everywhere (also from the PC).

For a general PC :
W10-10586.0 - May 2016 (2.05+)
*XXHighEnd PC -> I7 3930k with Hyperthreading On (12 cores)* @~500MHz, 16GB, Windows 10 Pro 64 bit build 10586.0 from RAM, music on LAN / Engine#4 Adaptive Mode / Q1/-/3/4/5 = 14/-/1/1/1 / Q1Factor = 1 / Dev.Buffer = 4096 / ClockRes = 1ms / Memory = Straight Contiguous / Include Garbage Collect / SFS = 0.10  (max 60) / not Invert / Phase Alignment Off / Playerprio = Low / ThreadPrio = Realtime / Scheme = Core 3-5 / Not Switch Processors during Playback = Off/ Playback Drive none (see OS from RAM) / UnAttended (Just Start) / Always Copy to XX Drive (see OS from RAM) / All Services Off / Keep LAN - Not Persist / WallPaper On / OSD On / Running Time Off / Minimize OS / XTweaks : Balanced Load = *43* / Nervous Rate = 1 / Cool when Idle = 1 / Provide Stable Power = 1 / Utilize Cores always = 1 / Time Performance Index = *Optimal* / Time Stability = *Stable* / Custom Filter *Low* 705600 / -> USB3 *from MoBo* -> Clairixa USB 15cm -> Intona Isolator -> Clairixa USB 1m80 -> 24/768 Phasure NOS1a 75B (BNC Out) async USB DAC, Driver v1.0.4b (4ms) -> Blaxius BNC interlink *-> B'ASS Current Amplifier /w Level4 -> Blaxius Interlink* -> Orelo MKII Active Open Baffle Horn Speakers.
Removed Switching Supplies from everywhere.

Global Moderator
acg
Audio Addict
***
Offline Offline

Posts: 730


View Profile
« Reply #11 on: May 10, 2018, 11:30:49 pm »

Hi Anthony,

Thank you very much, it worked on my music server. Got the RDP connection back on.

Best regards,

Arvind

Good to hear Arvind.

My MusicServer is connected to the internet but I use XXHE to make sure it does not update the OS so this May 8 update has not affected it.  When I am casual listening in my office I will RDC into the MusicServer from another (work) computer that does automatically update and thus was the one that was affected and the one that I had to reset the Group Policy.

So if your MusicServer does not update (thanks to XXHE settings) then the only place a problem should occur is on the windows machine that is used to RDC to the MusicServer.
Logged

Audio PC
Stealth Mach II with Xeon E5 2698 v4 20 Core 2GHz  with Hyperthreading On [40 cores]/ 32GB Ram / RAM-OS / mobo USB port

XXHighEnd 2.09 RAM-OS (W14393 RAM)
Engine#4 Adaptive Mode / Buffer 4096 / Q1/3/4/5 = 14/1/1/1 / xQ1 = 1 / Processor Core Appointment Scheme = Core 1-3 / PlayerPrio = Low / ThreadPrio = RealTime / ClockRes = 1ms / Not Switch during playback = off / Xtweaks Balanced Load = 43 / Nervous Rate = 100 / Cool when idle = 1 / Provide stable power = 0 / Utilize cores always = 1 / Time Stability = Stable / Time Performance Index = Optimal / SFS 0.90MB Max 120MB / Straight Contiguous / Include Garbage Collect = on / Start Playback during conversion = off / Do not start playback at all = off / Copy to XX-drive by standard = on / Always clear Proxy before Playback = on / Stop Remaining Desktop Services = on / Stop Desktop Services = on / Stop Remaining Services = on / Stop WASAPI Services = on / Stop W10 Services = off / Keep LAN Services = on / Persist = off / Use Remote Desktop = on/ Arc Predict / Minimize OS = on / Peak Extend = off / Unattended

Audio Chain
Stealth MachII PC >> Lush USB 1.5m >> NOS1a G3 B75, Driver v1.0.4 (4ms) >> Placette Active Linestage >> 6 way active horn speakers (Single Ended Triodes)
PeterSt
Administrator
High Grade Audiophile
*****
Offline Offline

Posts: 15283



View Profile Email
« Reply #12 on: May 11, 2018, 04:55:52 am »

OK, so while the vulnerability exists for each OS, each OS also receives upgrades for it (I suppose not XP Wink). Good to know !
Man, 6 months back or so I had to install SP1 for a W7 machine (which controls the Audio PC over here) while for all this time I never ever applied any upgrade (KB) to it. I suppose I wouldn't know where to go without this information. OK, Google is your friend, but still.

Thank you for sharing this, Zheng.
Peter
Logged

For the Stealth III LPS PC :
W10-14393.0 - Oct 31, 2018 (2.10)
XXHighEnd Mach III Stealth LPS PC -> Xeon Scalable 14/28 core with Hyperthreading On (set to 10/20 cores) @~660MHz, 48GB, Windows 10 Pro 64 bit build 14393.0 from RAM, music on LAN / Engine#4 Adaptive Mode / Q1/-/3/4/5 = 30/-/1/1/1/ Q1Factor = 10 / Dev.Buffer = 4096 / ClockRes = 15ms / Memory = Straight Contiguous / Include Garbage Collect / SFS = 140.19  (max 140.19) / not Invert / Phase Alignment Off / Playerprio = Low / ThreadPrio = Realtime / Scheme = Core 3-5 / Not Switch Processors during Playback = Off/ Playback Drive none (see OS from RAM) / UnAttended (Just Start) / Always Copy to XX Drive (see OS from RAM) / Stop Desktop, Remaining, WASAPI and W10 services / Use Remote Desktop / Keep LAN - Not Persist / WallPaper On / OSD Off (!) / Running Time Off / Minimize OS / XTweaks : Balanced Load = 35 / Nervous Rate = 10 / Cool when Idle = n.a / Provide Stable Power = 0 / Utilize Cores always = 1 / Time Performance Index = Optimal / Time Stability = Stable / *Arc Prediction Filtering (16x)* / Always Clear Proxy before Playback = On -> USB3 from MoBo -> Lush^2*A:B-W-Y-R, B:B-W-R* USB 1m00 -> Phisolator 24/768 Phasure NOS1a/G3 75B (BNC Out) async USB DAC, Driver v1.0.4b (16ms) -> B'ASS Current Amplifier -> *Blaxius^2 A:B-R, B:B-R* Interlink -> Orelo MKII Active Open Baffle Horn Speakers.
Removed Switching Supplies from everywhere (also from the PC).

For a general PC :
W10-10586.0 - May 2016 (2.05+)
*XXHighEnd PC -> I7 3930k with Hyperthreading On (12 cores)* @~500MHz, 16GB, Windows 10 Pro 64 bit build 10586.0 from RAM, music on LAN / Engine#4 Adaptive Mode / Q1/-/3/4/5 = 14/-/1/1/1 / Q1Factor = 1 / Dev.Buffer = 4096 / ClockRes = 1ms / Memory = Straight Contiguous / Include Garbage Collect / SFS = 0.10  (max 60) / not Invert / Phase Alignment Off / Playerprio = Low / ThreadPrio = Realtime / Scheme = Core 3-5 / Not Switch Processors during Playback = Off/ Playback Drive none (see OS from RAM) / UnAttended (Just Start) / Always Copy to XX Drive (see OS from RAM) / All Services Off / Keep LAN - Not Persist / WallPaper On / OSD On / Running Time Off / Minimize OS / XTweaks : Balanced Load = *43* / Nervous Rate = 1 / Cool when Idle = 1 / Provide Stable Power = 1 / Utilize Cores always = 1 / Time Performance Index = *Optimal* / Time Stability = *Stable* / Custom Filter *Low* 705600 / -> USB3 *from MoBo* -> Clairixa USB 15cm -> Intona Isolator -> Clairixa USB 1m80 -> 24/768 Phasure NOS1a 75B (BNC Out) async USB DAC, Driver v1.0.4b (4ms) -> Blaxius BNC interlink *-> B'ASS Current Amplifier /w Level4 -> Blaxius Interlink* -> Orelo MKII Active Open Baffle Horn Speakers.
Removed Switching Supplies from everywhere.

Global Moderator
manisandher
Crazy Audiophile
****
Offline Offline

Posts: 2043

from-first-principles.com


View Profile WWW Email
« Reply #13 on: May 11, 2018, 07:27:42 am »

Type "Group Policy" into the W10 search box and open up "Edit Group Policy".

In the left pane "Computer Configuration" then "Administrative Templates" then "System" then "Credentials Delegation" then in the right pane double-click "Encryption Oracle Remediation" and a new window will open.  In the bottom left pane on this window set "Protection Level" to "Vulnerable" and then ok out of everything.

This worked perfectly. Thanks Anthony.

Mani.
Logged

Audio PC: Phasure Mach II *with clock upgrade* / Win 14393.0 on RAM-OS / controlled by RDC, no GPU card installed / connected directly to music server
XXHighEnd: 2.10 / Minimize OS / Engine#4 Adaptive / DB=4096 / Q1=30 / xQ1=40 / Q3,4,5=1 / SFS=5.19 / XTweaks = 52, 10, 0, 0, 1 / Straight Contiguous / Clock Resolution = 15ms / Scheme 3-5 (low/realtime) / 8x Arc Prediction (switch #5 'up/off') / Unattended
Main System: mobo USB3 port -> Lush^2 -> Phasure NOS1a B75 G3 -> Thöress/Elrog 300B mono amps -> Tune Audio Anima horn speakers
Office System: Lush -> Phasure NOS1a G3 -> BD-Design BD30-SPR mono amps -> Tune Audio Marvel horn speakers
juanpmar
Crazy Audiophile
****
Offline Offline

Posts: 1230


View Profile Email
« Reply #14 on: May 12, 2018, 12:58:32 pm »

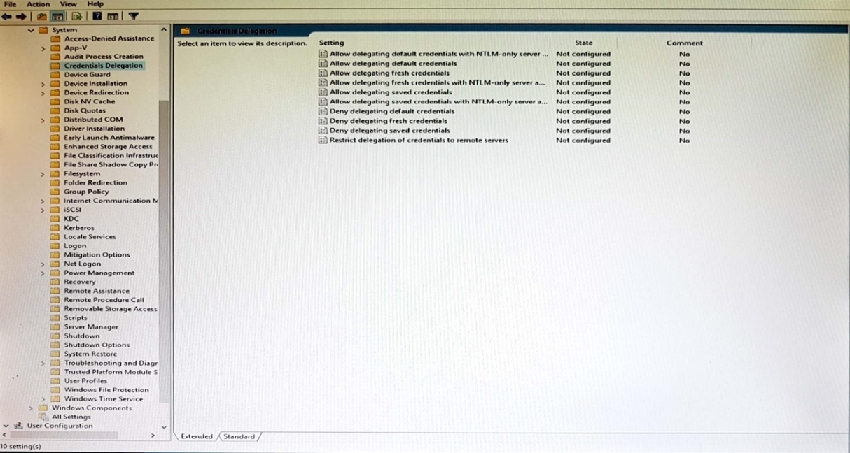

Hi, I need some help. I can't find "Encryption Oracle Remediation". Please take a look to the picture sorry for the quality but I took it with my phone because I don't want to connect the Audio Pc to Internet.

Juan


* NuevoDocumento 2018-05-12_1526122434507.jpg (243.72 KB, 850x453 - viewed 183 times.)
Logged

Audio Pc: Processor i7 970: 3200MHz (reduced to 1668MHz), 6+6 cores/ RAM Corsair DDR3, 24Gb, 1333MHz/ Mb Asus X58 Sabertooth/ OS and XXHE in Peter's RAM-Disk / The CPU fan is the only one in the Audio Pc: NF-S12A (600rpm/6.7db)/ No graphic card/ Power supply: Seasonic SS-400FL2, fanless.

Configuration and Updates in HOW I'VE BUILT MY NEW PC...http://www.phasure.com/index.php?topic=1673.0

XXHighEnd: 2.10. Windows 10 Pro 64 bit build 14393.0 from RAM, music on LAN/ KS:Phasure NOS1 Out 4.0/ #4 Engine/ Adaptive Mode/ Q1=30 Q3=1, Q4=1, Q5=1, xQ1=40/ Dev.Buffer: 4096/ ClockRes: 15ms/ Straight Contiguous/ SFS: 5.19 (max 120)/ Not Invert/ Phase Alignment Off/ Allow format change/ Decode HDCD/ Playerprio: Low/ ThreadPrio: Real Time/ Scheme: Core 3-5/ UnAttended/ Not Switch during Playback Off/ Playback Drive none/ UnAttended/ Include Garbage Collect/ Copy to XX Drive by standard/ Always clear Proxy before Playback/ Stop Desktop Services/ Stop Remaining Services/ Stop All Services: Off/ Keep LAN Services: On - Persist: Off/ Use Remote Desktop/ Minimize OS/ XTweaks : Balanced Load 52/ Nervous Rate 10/ Cool when Idle -/ Provide Stable Power 0/ Utilize Cores always 1/ Time Performance Index: Optimal / Time Stability: Stable / Arc Prediction.

Music Server PC (W10) totally silent with OS (W10) in SSD and music inside in SSDs - RDC > Ethernet Gigabyte cable 3m > Audio Pc > 1m USB Lush cable directly from the USB3.0 in the motherboard > PHASURE NOS1a-75B-G3 (Driver v1.0.4) 16ms > Blaxius BNC interconnects > Genelec 1037B 3-Way Active speakers with BNC inputs
