PeterSt
|
 |
« on: February 14, 2010, 11:40:48 am » |
|
I can't get special mode with my M-Audio Transit (USB, TAS1020B). The lowest Q1 setting without cracks is at 3.
Wait for the next version. All is increadibly more "refined". So, steps in between Q1 values are way smaller. And again, you just can choose Special Mode there. ... Which of course doesn't guarantee that you will be without cracks ... Also I can't play KS/WASAPI at 24/96, but that's in every player - M-Audio drivers suck! Why ? what is the message with Engine#3 (WASAPI) ? |
|
|
|
|
Logged
|
For the Stealth III LPS PC :
W10-14393.0 - July 17, 2021 (2.11)
XXHighEnd Mach III Stealth LPS PC -> Xeon Scalable 14/28 core with Hyperthreading On (set to 14/28 cores in BIOS and set to 10/20 cores via Boot Menu) @~660MHz, 48GB, Windows 10 Pro 64 bit build 14393.0 from RAM, music on LAN / Engine#4 Adaptive Mode / Q1/-/3/4/5 = 14/-/0/0/*1*/ Q1Factor = *4* / Dev.Buffer = 4096 / ClockRes = *10ms* / Memory = Straight Contiguous / Include Garbage Collect / SFS = *10.13* (max 10.13) / not Invert / Phase Alignment Off / Playerprio = Low / ThreadPrio = Realtime / Scheme = Core 3-5 / Not Switch Processors during Playback = Off/ Playback Drive none (see OS from RAM) / UnAttended (Just Start) / Always Copy to XX Drive (see OS from RAM) / Stop Desktop, Remaining, WASAPI and W10 services / Use Remote Desktop / Keep LAN - Not Persist / WallPaper On / OSD Off (!) / Running Time Off / Minimize OS / XTweaks : Balanced Load = *62* / Nervous Rate = *1* / Cool when Idle = n.a / Provide Stable Power = 1 / Utilize Cores always = 1 / Time Performance Index = Optimal / Time Stability = Stable / Custom Filtering *Low* (16x) / Always Clear Proxy before Playback = On -> USB3 from MoBo -> Lush^3
A: W-Y-R-G, B: *W-G* USB 1m00 -> Phisolator 24/768 Phasure NOS1a/G3 75B (BNC Out) async USB DAC, Driver v1.0.4b (16ms) -> B'ASS Current Amplifier -> Blaxius*^2.5* A:B-G, B:B-G Interlink -> Orelo MKII Active Open Baffle Horn Speakers. ET^2 Ethernet from Mach III to Music Server PC (RDC Control).
Removed Switching Supplies from everywhere (also from the PC).
For a general PC :
W10-10586.0 - May 2016 (2.05+)
*XXHighEnd PC -> I7 3930k with Hyperthreading On (12 cores)* @~500MHz, 16GB, Windows 10 Pro 64 bit build 10586.0 from RAM, music on LAN / Engine#4 Adaptive Mode / Q1/-/3/4/5 = 14/-/1/1/1 / Q1Factor = 1 / Dev.Buffer = 4096 / ClockRes = 1ms / Memory = Straight Contiguous / Include Garbage Collect / SFS = 0.10 (max 60) / not Invert / Phase Alignment Off / Playerprio = Low / ThreadPrio = Realtime / Scheme = Core 3-5 / Not Switch Processors during Playback = Off/ Playback Drive none (see OS from RAM) / UnAttended (Just Start) / Always Copy to XX Drive (see OS from RAM) / All Services Off / Keep LAN - Not Persist / WallPaper On / OSD On / Running Time Off / Minimize OS / XTweaks : Balanced Load = *43* / Nervous Rate = 1 / Cool when Idle = 1 / Provide Stable Power = 1 / Utilize Cores always = 1 / Time Performance Index = *Optimal* / Time Stability = *Stable* / Custom Filter *Low* 705600 / -> USB3 *from MoBo* -> Clairixa USB 15cm -> Intona Isolator -> Clairixa USB 1m80 -> 24/768 Phasure NOS1a 75B (BNC Out) async USB DAC, Driver v1.0.4b (4ms) -> Blaxius BNC interlink *-> B'ASS Current Amplifier /w Level4 -> Blaxius Interlink* -> Orelo MKII Active Open Baffle Horn Speakers.
Removed Switching Supplies from everywhere.
Global Moderator
|
|
|
|
Marcin_gps
|
|
« Reply #1 on: February 14, 2010, 12:48:44 pm » |
|
ENDPOINT CREATE FAILED -> The DAC does not accept this byte sequence;
Try switching DAC Needs from 32 to 24 (or the other way around)
and then I get "Device cannot play"
Tried 32 and 24, either way is the same. DAC is 24bits 96kHz
Note, that ASIO works flawless at 24/96...
BTW, I'm back to Q1=3, Q2,Q3,Q4,Q5=0
With manisandher's settings (Q1/Q2/Q3/Q4/Q5 = 3/9/15/5/10) it plays muffled, without energy and proper attack. Also the soundstage is withdrew. Even my girlfriend says so :D It is good for someone who uses very bright systems, with metallic, harsh highs. That would definatelly help to smooth the sound. It works similar to audiophile power cords and cables, but if you need true imaging, I'd stay with Q2,Q3,Q4,Q5 at 0.
|
|
|
|
|
Logged
|
|
|
|
|
Marcin_gps
|
|
« Reply #2 on: February 14, 2010, 12:51:45 pm » |
|
Peter, I don't know if that helps you, but Empirical Audio Offramp Turbo is basically modified M-audio Transit. In previous version it even used m-audio drivers. As far as I know Steve from Empirical Audio replaced this with driverless firmware from CEntrance.
|
|
|
|
|
Logged
|
|
|
|
|
PeterSt
|
|
« Reply #3 on: February 14, 2010, 01:00:29 pm » |
|
ENDPOINT CREATE FAILED You left out the most important : that sequence of numbers which follows in a message. But, also tell exactly what you are trying to play when the message accordingly shows (don't forget to mention Double etc.). |
|
|
|
|
Logged
|
For the Stealth III LPS PC :
W10-14393.0 - July 17, 2021 (2.11)
XXHighEnd Mach III Stealth LPS PC -> Xeon Scalable 14/28 core with Hyperthreading On (set to 14/28 cores in BIOS and set to 10/20 cores via Boot Menu) @~660MHz, 48GB, Windows 10 Pro 64 bit build 14393.0 from RAM, music on LAN / Engine#4 Adaptive Mode / Q1/-/3/4/5 = 14/-/0/0/*1*/ Q1Factor = *4* / Dev.Buffer = 4096 / ClockRes = *10ms* / Memory = Straight Contiguous / Include Garbage Collect / SFS = *10.13* (max 10.13) / not Invert / Phase Alignment Off / Playerprio = Low / ThreadPrio = Realtime / Scheme = Core 3-5 / Not Switch Processors during Playback = Off/ Playback Drive none (see OS from RAM) / UnAttended (Just Start) / Always Copy to XX Drive (see OS from RAM) / Stop Desktop, Remaining, WASAPI and W10 services / Use Remote Desktop / Keep LAN - Not Persist / WallPaper On / OSD Off (!) / Running Time Off / Minimize OS / XTweaks : Balanced Load = *62* / Nervous Rate = *1* / Cool when Idle = n.a / Provide Stable Power = 1 / Utilize Cores always = 1 / Time Performance Index = Optimal / Time Stability = Stable / Custom Filtering *Low* (16x) / Always Clear Proxy before Playback = On -> USB3 from MoBo -> Lush^3
A: W-Y-R-G, B: *W-G* USB 1m00 -> Phisolator 24/768 Phasure NOS1a/G3 75B (BNC Out) async USB DAC, Driver v1.0.4b (16ms) -> B'ASS Current Amplifier -> Blaxius*^2.5* A:B-G, B:B-G Interlink -> Orelo MKII Active Open Baffle Horn Speakers. ET^2 Ethernet from Mach III to Music Server PC (RDC Control).
Removed Switching Supplies from everywhere (also from the PC).
For a general PC :
W10-10586.0 - May 2016 (2.05+)
*XXHighEnd PC -> I7 3930k with Hyperthreading On (12 cores)* @~500MHz, 16GB, Windows 10 Pro 64 bit build 10586.0 from RAM, music on LAN / Engine#4 Adaptive Mode / Q1/-/3/4/5 = 14/-/1/1/1 / Q1Factor = 1 / Dev.Buffer = 4096 / ClockRes = 1ms / Memory = Straight Contiguous / Include Garbage Collect / SFS = 0.10 (max 60) / not Invert / Phase Alignment Off / Playerprio = Low / ThreadPrio = Realtime / Scheme = Core 3-5 / Not Switch Processors during Playback = Off/ Playback Drive none (see OS from RAM) / UnAttended (Just Start) / Always Copy to XX Drive (see OS from RAM) / All Services Off / Keep LAN - Not Persist / WallPaper On / OSD On / Running Time Off / Minimize OS / XTweaks : Balanced Load = *43* / Nervous Rate = 1 / Cool when Idle = 1 / Provide Stable Power = 1 / Utilize Cores always = 1 / Time Performance Index = *Optimal* / Time Stability = *Stable* / Custom Filter *Low* 705600 / -> USB3 *from MoBo* -> Clairixa USB 15cm -> Intona Isolator -> Clairixa USB 1m80 -> 24/768 Phasure NOS1a 75B (BNC Out) async USB DAC, Driver v1.0.4b (4ms) -> Blaxius BNC interlink *-> B'ASS Current Amplifier /w Level4 -> Blaxius Interlink* -> Orelo MKII Active Open Baffle Horn Speakers.
Removed Switching Supplies from everywhere.
Global Moderator
|
|
|
|
boleary
|
|
« Reply #4 on: February 14, 2010, 01:18:55 pm » |
|

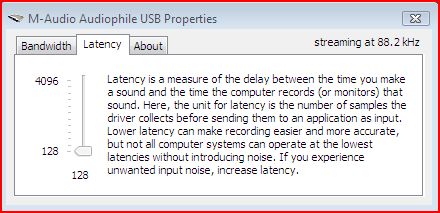

With my M-Audio Audiophile USB I am able to adjust the latency. Marcin, are you able to do the same? By setting it to its lowest point I am now able to set q1 to 1, though special mode still doesn't appear in the X3PB file. Below that I get distortion. Yesterday, without realizing, the latency was at the highest setting and I had to set Q1 to 7. I am able to play 24/96 here with no problem. Okay, not being too techy, I have only skimmed through the posts about latency and buffer size cause, until now, kernel streaming just sounded wrong. It now sounds quite wonderful but very different from engine 3 (I still need more time to work through "preferences"). So could someone breifly explain what it is about latency, buffer size and sound quality that I just don't really understand. I guess I could go back and try to figure it out, but a brief explanation might be easier.....  Thanks. |
|
|
|
Logged
|
XX2.07/MB: ASRock Extreme 4M , i7-3930K @ 0.5GHz/ RAM-OS W10586/32 Gigs 1600 DDR3/ Clarixa usb cable /Q1,3,4,5 = *14*/1/1/*1* / *Q1Factor = 1* / Peak Extension: Off/Dev.Buffer = 4096 / ClockRes = *.5ms* / Straight Contiguous / SFS = *.02,/ Do Nothing With Cover Art / not Invert / *(Phase Alignment Off / Playerprio = Low / ThreadPrio = Real Time / Scheme = 3-5 / UnAttended (Just Start) / *All* Services Off except LAN & RDC/ Persist off/No OSD / No Running Time / Minimize OS / Boost on/XTweaks : Balanced Load = *40* / Nervous Rate = 1/ Cool when Idle = NA / Provide Stable Power = 0 / Utilize Cores always = 1 / Time Performance Index = Best/ Time Stability = On/ No Up-sampling/R-2R DAC
|
|
|
|
Marcin_gps
|
|
« Reply #5 on: February 14, 2010, 01:32:19 pm » |
|
ENDPOINT CREATE FAILED You left out the most important : that sequence of numbers which follows in a message. But, also tell exactly what you are trying to play when the message accordingly shows (don't forget to mention Double etc.). I'm trying to play 24/96 wav. I try one more time later and give you info about the numbers With my M-Audio Audiophile USB I am able to adjust the latency. Marcin, are you able to do the same? By setting it to its lowest point I am now able to set q1 to 1, though special mode still doesn't appear in the X3PB file. Below that I get distortion. Yesterday, without realizing, the latency was at the highest setting and I had to set Q1 to 7. I am able to play 24/96 here with no problem. Okay, not being too techy, I have only skimmed through the posts about latency and buffer size cause, until now, kernel streaming just sounded wrong. It now sounds quite wonderful but very different from engine 3 (I still need more time to work through "preferences"). So could someone breifly explain what it is about latency, buffer size and sound quality that I just don't really understand. I guess I could go back and try to figure it out, but a brief explanation might be easier..... Thanks. In my M-Audio Transit the buffer size in drivers options doesn't affect KS a all. The lowest Q1 setting for KS is at 3 for me. Lower I get distortions. |
|
|
|
|
Logged
|
|
|
|
|
manisandher
|
|
« Reply #6 on: February 14, 2010, 01:48:53 pm » |
|
With manisandher's settings (Q1/Q2/Q3/Q4/Q5 = 3/9/15/5/10) it plays muffled, without energy and proper attack. Also the soundstage is withdrew. Even my girlfriend says so :D It is good for someone who uses very bright systems, with metallic, harsh highs. That would definatelly help to smooth the sound. It works similar to audiophile power cords and cables, but if you need true imaging, I'd stay with Q2,Q3,Q4,Q5 at 0. Not sure what you're implying here. That my system is bright, with metallic harsh highs??? You must be kidding. I think I've always been at pains to state that any results that I'm getting are valid for my system only. When you start using QAP with a NOS 24/176.4 DAC, you may find that your current system is actually flat and lifeless... Mani. |
|
|
|
|
Logged
|
Main System:
Phasure Mach III (Win 14393.0 on RAM-OS / controlled by RDC, / connected directly to music server / XXHighEnd 2.11 / Minimize OS / Engine#4 Adaptive / DB=4096 / Q1=10 / xQ1=15 / Q3,4,5=1 / SFS=4.00 / XTweaks = 34, 10, 0, 0, 0 / Straight Contiguous / Clock Resolution = 15ms / Scheme 3-5 (low/realtime) / 8x Arc Prediction / switch #5 'up/off' / Unattended) mobo USB3 port -> Lush^3 -> Phasure NOS1a B75 G3 -> 8m Blaxius^2 -> First Watt F5 mono amps -> Tune Audio Anima horn speakers
Office System:
Phasure Stealth II -> Lush^2 -> RME ADI-2 Pro FS R -> Neurochrome 286 mono amps -> Tune Audio Marvel horn speakers
|
|
|
|
PeterSt
|
|
« Reply #7 on: February 14, 2010, 01:59:52 pm » |
|
Easy guys. This stuff works differently for everybody. I'm sure Marcin had this in mind when he wrote what he wrote, and sure is not implying that my - or your system is (too) bright.
And otherwise we should always blame his girlfriend. Haha.
|
|
|
|
|
Logged
|
For the Stealth III LPS PC :
W10-14393.0 - July 17, 2021 (2.11)
XXHighEnd Mach III Stealth LPS PC -> Xeon Scalable 14/28 core with Hyperthreading On (set to 14/28 cores in BIOS and set to 10/20 cores via Boot Menu) @~660MHz, 48GB, Windows 10 Pro 64 bit build 14393.0 from RAM, music on LAN / Engine#4 Adaptive Mode / Q1/-/3/4/5 = 14/-/0/0/*1*/ Q1Factor = *4* / Dev.Buffer = 4096 / ClockRes = *10ms* / Memory = Straight Contiguous / Include Garbage Collect / SFS = *10.13* (max 10.13) / not Invert / Phase Alignment Off / Playerprio = Low / ThreadPrio = Realtime / Scheme = Core 3-5 / Not Switch Processors during Playback = Off/ Playback Drive none (see OS from RAM) / UnAttended (Just Start) / Always Copy to XX Drive (see OS from RAM) / Stop Desktop, Remaining, WASAPI and W10 services / Use Remote Desktop / Keep LAN - Not Persist / WallPaper On / OSD Off (!) / Running Time Off / Minimize OS / XTweaks : Balanced Load = *62* / Nervous Rate = *1* / Cool when Idle = n.a / Provide Stable Power = 1 / Utilize Cores always = 1 / Time Performance Index = Optimal / Time Stability = Stable / Custom Filtering *Low* (16x) / Always Clear Proxy before Playback = On -> USB3 from MoBo -> Lush^3
A: W-Y-R-G, B: *W-G* USB 1m00 -> Phisolator 24/768 Phasure NOS1a/G3 75B (BNC Out) async USB DAC, Driver v1.0.4b (16ms) -> B'ASS Current Amplifier -> Blaxius*^2.5* A:B-G, B:B-G Interlink -> Orelo MKII Active Open Baffle Horn Speakers. ET^2 Ethernet from Mach III to Music Server PC (RDC Control).
Removed Switching Supplies from everywhere (also from the PC).
For a general PC :
W10-10586.0 - May 2016 (2.05+)
*XXHighEnd PC -> I7 3930k with Hyperthreading On (12 cores)* @~500MHz, 16GB, Windows 10 Pro 64 bit build 10586.0 from RAM, music on LAN / Engine#4 Adaptive Mode / Q1/-/3/4/5 = 14/-/1/1/1 / Q1Factor = 1 / Dev.Buffer = 4096 / ClockRes = 1ms / Memory = Straight Contiguous / Include Garbage Collect / SFS = 0.10 (max 60) / not Invert / Phase Alignment Off / Playerprio = Low / ThreadPrio = Realtime / Scheme = Core 3-5 / Not Switch Processors during Playback = Off/ Playback Drive none (see OS from RAM) / UnAttended (Just Start) / Always Copy to XX Drive (see OS from RAM) / All Services Off / Keep LAN - Not Persist / WallPaper On / OSD On / Running Time Off / Minimize OS / XTweaks : Balanced Load = *43* / Nervous Rate = 1 / Cool when Idle = 1 / Provide Stable Power = 1 / Utilize Cores always = 1 / Time Performance Index = *Optimal* / Time Stability = *Stable* / Custom Filter *Low* 705600 / -> USB3 *from MoBo* -> Clairixa USB 15cm -> Intona Isolator -> Clairixa USB 1m80 -> 24/768 Phasure NOS1a 75B (BNC Out) async USB DAC, Driver v1.0.4b (4ms) -> Blaxius BNC interlink *-> B'ASS Current Amplifier /w Level4 -> Blaxius Interlink* -> Orelo MKII Active Open Baffle Horn Speakers.
Removed Switching Supplies from everywhere.
Global Moderator
|
|
|
|
Marcin_gps
|
|
« Reply #8 on: February 14, 2010, 02:09:24 pm » |
|
It's my opinion based on my system and preferences For me, your settings sound too smooth. For jazz and classics great, for rock - not specially. |
|
|
|
|
Logged
|
|
|
|
|
manisandher
|
|
« Reply #9 on: February 14, 2010, 06:01:48 pm » |
|
For me, your settings sound too smooth. This is absolutely fine by me - I would be amazed if my settings sounded good with a setup such as yours. It is good for someone who uses very bright systems, with metallic, harsh highs. Well, no matter what Peter thinks, there is a definite implication here... and a somewhat arrogant one at that. Nuff said... Mani. |
|
|
|
|
Logged
|
Main System:
Phasure Mach III (Win 14393.0 on RAM-OS / controlled by RDC, / connected directly to music server / XXHighEnd 2.11 / Minimize OS / Engine#4 Adaptive / DB=4096 / Q1=10 / xQ1=15 / Q3,4,5=1 / SFS=4.00 / XTweaks = 34, 10, 0, 0, 0 / Straight Contiguous / Clock Resolution = 15ms / Scheme 3-5 (low/realtime) / 8x Arc Prediction / switch #5 'up/off' / Unattended) mobo USB3 port -> Lush^3 -> Phasure NOS1a B75 G3 -> 8m Blaxius^2 -> First Watt F5 mono amps -> Tune Audio Anima horn speakers
Office System:
Phasure Stealth II -> Lush^2 -> RME ADI-2 Pro FS R -> Neurochrome 286 mono amps -> Tune Audio Marvel horn speakers
|
|
|
|
GerardA
|
|
« Reply #10 on: February 14, 2010, 11:53:25 pm » |
|
Quote from: Marcin_gps
It is good for someone who uses very bright systems, with metallic, harsh highs. Well my system is like that when the source gives it to me... |
|
|
|
|
Logged
|
asrock ->intel 6700/4GB/Samsung 850 SSD/Win 10() Pro /XXHE 2.09 Special (32) Clock: max ,SFS: 4 MC, Q1 = 14, Q2,3,4,5=0,0,0,2 Quad AP, No Invert / Playerprio = Belownormal / ThreadPrio = Realtime / Scheme = 3 / Mixed contigious / Unattended -> Minidsp 2x4HD (IIR and FIR)-> Mivoc AM80 / 300B / gainclone -> TDL TL/Seas Excell/ScanSpeak
|
|
|
Josef
Audio Loudspeaker
 Offline
Posts: 157
|
|
« Reply #11 on: February 16, 2010, 09:27:18 pm » |
|
Hi Marcin,
I also have Offramp and KS works great!
Not sure if this helps you, but I have Transit set to 16/44 _both_ in M-Audio panel _and_ in Control Panel. For some reason Control Panel always resets the card to 24/44 after reboot or plugging the USB cable in/out and I have to manually switch it to 16/44 otherwise some software (eg Media Player Home Cinema for movies) does not produce sound at all.
I see you are trying to play 24/96 wav - I never tried that as my DAC is 16/44 only (Audio Note) so I can't help you there but 16/44 definitely works in both WASAPI & KS...
Cheers,
Josef
|
|
|
|
|
Logged
|
|
|
|
|
PeterSt
|
|
« Reply #12 on: February 17, 2010, 07:49:27 am » |
|
I also have Offramp and KS works great! Interesting ... This means (regarding the rest of your post Josef) that what I always call "24 bit only" (like I would for the OffRamp) only counts for WASAPI. So, it would be a WASAPI bug that it can't address such a device with 16 bits. I mean, if KS can ... But did you indeed denote your DAC as 16/44.1 in the Settings Area ? and if not, how is your DAC Needs setting ? Thank you, Peter |
|
|
|
|
Logged
|
For the Stealth III LPS PC :
W10-14393.0 - July 17, 2021 (2.11)
XXHighEnd Mach III Stealth LPS PC -> Xeon Scalable 14/28 core with Hyperthreading On (set to 14/28 cores in BIOS and set to 10/20 cores via Boot Menu) @~660MHz, 48GB, Windows 10 Pro 64 bit build 14393.0 from RAM, music on LAN / Engine#4 Adaptive Mode / Q1/-/3/4/5 = 14/-/0/0/*1*/ Q1Factor = *4* / Dev.Buffer = 4096 / ClockRes = *10ms* / Memory = Straight Contiguous / Include Garbage Collect / SFS = *10.13* (max 10.13) / not Invert / Phase Alignment Off / Playerprio = Low / ThreadPrio = Realtime / Scheme = Core 3-5 / Not Switch Processors during Playback = Off/ Playback Drive none (see OS from RAM) / UnAttended (Just Start) / Always Copy to XX Drive (see OS from RAM) / Stop Desktop, Remaining, WASAPI and W10 services / Use Remote Desktop / Keep LAN - Not Persist / WallPaper On / OSD Off (!) / Running Time Off / Minimize OS / XTweaks : Balanced Load = *62* / Nervous Rate = *1* / Cool when Idle = n.a / Provide Stable Power = 1 / Utilize Cores always = 1 / Time Performance Index = Optimal / Time Stability = Stable / Custom Filtering *Low* (16x) / Always Clear Proxy before Playback = On -> USB3 from MoBo -> Lush^3
A: W-Y-R-G, B: *W-G* USB 1m00 -> Phisolator 24/768 Phasure NOS1a/G3 75B (BNC Out) async USB DAC, Driver v1.0.4b (16ms) -> B'ASS Current Amplifier -> Blaxius*^2.5* A:B-G, B:B-G Interlink -> Orelo MKII Active Open Baffle Horn Speakers. ET^2 Ethernet from Mach III to Music Server PC (RDC Control).
Removed Switching Supplies from everywhere (also from the PC).
For a general PC :
W10-10586.0 - May 2016 (2.05+)
*XXHighEnd PC -> I7 3930k with Hyperthreading On (12 cores)* @~500MHz, 16GB, Windows 10 Pro 64 bit build 10586.0 from RAM, music on LAN / Engine#4 Adaptive Mode / Q1/-/3/4/5 = 14/-/1/1/1 / Q1Factor = 1 / Dev.Buffer = 4096 / ClockRes = 1ms / Memory = Straight Contiguous / Include Garbage Collect / SFS = 0.10 (max 60) / not Invert / Phase Alignment Off / Playerprio = Low / ThreadPrio = Realtime / Scheme = Core 3-5 / Not Switch Processors during Playback = Off/ Playback Drive none (see OS from RAM) / UnAttended (Just Start) / Always Copy to XX Drive (see OS from RAM) / All Services Off / Keep LAN - Not Persist / WallPaper On / OSD On / Running Time Off / Minimize OS / XTweaks : Balanced Load = *43* / Nervous Rate = 1 / Cool when Idle = 1 / Provide Stable Power = 1 / Utilize Cores always = 1 / Time Performance Index = *Optimal* / Time Stability = *Stable* / Custom Filter *Low* 705600 / -> USB3 *from MoBo* -> Clairixa USB 15cm -> Intona Isolator -> Clairixa USB 1m80 -> 24/768 Phasure NOS1a 75B (BNC Out) async USB DAC, Driver v1.0.4b (4ms) -> Blaxius BNC interlink *-> B'ASS Current Amplifier /w Level4 -> Blaxius Interlink* -> Orelo MKII Active Open Baffle Horn Speakers.
Removed Switching Supplies from everywhere.
Global Moderator
|
|
|
Josef
Audio Loudspeaker
Offline
Posts: 157
|
|
« Reply #13 on: February 17, 2010, 03:44:38 pm » |
|
Hi Peter,
>But did you indeed denote your DAC as 16/44.1 in the Settings Area?
Yes.
Not sure if this helps you but AFAIK keep in mind that Off-ramp comes in different varieties: I have the initial v1 ('old') version which was based on Transit chip (same as in M-Audio Transit USB converter, although sound is drastically better with Off-ramp (I have both so could compare:) ).
Newer Off ramp (v3 definitely, v2 not sure) is based on a different chip which does not need/use M-Audio drivers. Maybe '24-bit' issue only applies to that version?
Cheers,
Josef
|
|
|
|
|
Logged
|
|
|
|
|
PeterSt
|
|
« Reply #14 on: February 17, 2010, 04:04:56 pm » |
|
Ah, thanks. I was talking about V3 (CEntrance based IIRC).
|
|
|
|
|
Logged
|
For the Stealth III LPS PC :
W10-14393.0 - July 17, 2021 (2.11)
XXHighEnd Mach III Stealth LPS PC -> Xeon Scalable 14/28 core with Hyperthreading On (set to 14/28 cores in BIOS and set to 10/20 cores via Boot Menu) @~660MHz, 48GB, Windows 10 Pro 64 bit build 14393.0 from RAM, music on LAN / Engine#4 Adaptive Mode / Q1/-/3/4/5 = 14/-/0/0/*1*/ Q1Factor = *4* / Dev.Buffer = 4096 / ClockRes = *10ms* / Memory = Straight Contiguous / Include Garbage Collect / SFS = *10.13* (max 10.13) / not Invert / Phase Alignment Off / Playerprio = Low / ThreadPrio = Realtime / Scheme = Core 3-5 / Not Switch Processors during Playback = Off/ Playback Drive none (see OS from RAM) / UnAttended (Just Start) / Always Copy to XX Drive (see OS from RAM) / Stop Desktop, Remaining, WASAPI and W10 services / Use Remote Desktop / Keep LAN - Not Persist / WallPaper On / OSD Off (!) / Running Time Off / Minimize OS / XTweaks : Balanced Load = *62* / Nervous Rate = *1* / Cool when Idle = n.a / Provide Stable Power = 1 / Utilize Cores always = 1 / Time Performance Index = Optimal / Time Stability = Stable / Custom Filtering *Low* (16x) / Always Clear Proxy before Playback = On -> USB3 from MoBo -> Lush^3
A: W-Y-R-G, B: *W-G* USB 1m00 -> Phisolator 24/768 Phasure NOS1a/G3 75B (BNC Out) async USB DAC, Driver v1.0.4b (16ms) -> B'ASS Current Amplifier -> Blaxius*^2.5* A:B-G, B:B-G Interlink -> Orelo MKII Active Open Baffle Horn Speakers. ET^2 Ethernet from Mach III to Music Server PC (RDC Control).
Removed Switching Supplies from everywhere (also from the PC).
For a general PC :
W10-10586.0 - May 2016 (2.05+)
*XXHighEnd PC -> I7 3930k with Hyperthreading On (12 cores)* @~500MHz, 16GB, Windows 10 Pro 64 bit build 10586.0 from RAM, music on LAN / Engine#4 Adaptive Mode / Q1/-/3/4/5 = 14/-/1/1/1 / Q1Factor = 1 / Dev.Buffer = 4096 / ClockRes = 1ms / Memory = Straight Contiguous / Include Garbage Collect / SFS = 0.10 (max 60) / not Invert / Phase Alignment Off / Playerprio = Low / ThreadPrio = Realtime / Scheme = Core 3-5 / Not Switch Processors during Playback = Off/ Playback Drive none (see OS from RAM) / UnAttended (Just Start) / Always Copy to XX Drive (see OS from RAM) / All Services Off / Keep LAN - Not Persist / WallPaper On / OSD On / Running Time Off / Minimize OS / XTweaks : Balanced Load = *43* / Nervous Rate = 1 / Cool when Idle = 1 / Provide Stable Power = 1 / Utilize Cores always = 1 / Time Performance Index = *Optimal* / Time Stability = *Stable* / Custom Filter *Low* 705600 / -> USB3 *from MoBo* -> Clairixa USB 15cm -> Intona Isolator -> Clairixa USB 1m80 -> 24/768 Phasure NOS1a 75B (BNC Out) async USB DAC, Driver v1.0.4b (4ms) -> Blaxius BNC interlink *-> B'ASS Current Amplifier /w Level4 -> Blaxius Interlink* -> Orelo MKII Active Open Baffle Horn Speakers.
Removed Switching Supplies from everywhere.
Global Moderator
|
|
|
|
