Author Topic: Advice needed  (Read 17206 times)
0 Members and 1 Guest are viewing this topic.
wimck
Audio Loudspeaker
*
Offline Offline

Posts: 26


View Profile
« on: June 30, 2011, 01:53:08 pm »

Hello all!

I'm using XXhighend for a while now and think I can handle a lot to make it work ok.
But...the latest versions I did' t get to work proper so I'm using 09-z3 again.
But once in a while I have a little gap. Found out that my CPU was just orking on 2200Mhz although it has to be able to work on 2800Mhz.
So I changed bios settings and it seem more stable now. But stil I have gaps sometimes, even in unattended mode.

Made me think of getting a faster CPU.
My system at this moment is a Gigabyte GA-MA785GMT-UD2H with a Athlon II X2 240e, 3 Gb RAM and still Windows XP. The machine is used only for XXhighend.
My idea is to change the CPU, add some more RAM and install W7.

The CPU is was thinking of is the AMD Phenom II X4 955 or even the AMD Phenom II X6 1090T
Is it a smart move to put these CPU's on the " old " MB?
Please give me advices what to do to get rid of the gaps!





Logged

Windows 7 Ultimate 64bit SP1 and XXHighEnd on SSD - music on spinning disk @SATAII - Athlon II dual core 2,9Ghz - Engine#4 -Adaptive Mode - Q1/2/3/4/5 = 1/0/0/0/0 - Buffer 1024 - MIxed Contiguous - SFS 20 - Playerprio Low - ThreadPrio Real Time - All Services Off

PC -> M2Tech EVO -> 10 m Canare digiflex Gold II -> TagMcLaren AV192 / 2x250MR -> VS Unifield3 -> my ears
PeterSt
Administrator
High Grade Audiophile
*****
Offline Offline

Posts: 16827



View Profile Email
« Reply #1 on: June 30, 2011, 03:25:11 pm »

Hi Wim,

Only about the gaps from my side :

Can you get rid of them by lowering the Split File Size ?
And do you use Mixed Contiguous Memory Mode ?
Does setting Processor Core Appointment Scheme-3 help ?

And do you have a fast disk connection ? (like internal SATAII)

Peter
Logged

For the Stealth III LPS PC :
W10-14393.0 - July 17, 2021 (2.11)
XXHighEnd Mach III Stealth LPS PC -> Xeon Scalable 14/28 core with Hyperthreading On (set to 14/28 cores in BIOS and set to 10/20 cores via Boot Menu) @~660MHz, 48GB, Windows 10 Pro 64 bit build 14393.0 from RAM, music on LAN / Engine#4 Adaptive Mode / Q1/-/3/4/5 = 14/-/0/0/*1*/ Q1Factor = *4* / Dev.Buffer = 4096 / ClockRes = *10ms* / Memory = Straight Contiguous / Include Garbage Collect / SFS = *10.13*  (max 10.13) / not Invert / Phase Alignment Off / Playerprio = Low / ThreadPrio = Realtime / Scheme = Core 3-5 / Not Switch Processors during Playback = Off/ Playback Drive none (see OS from RAM) / UnAttended (Just Start) / Always Copy to XX Drive (see OS from RAM) / Stop Desktop, Remaining, WASAPI and W10 services / Use Remote Desktop / Keep LAN - Not Persist / WallPaper On / OSD Off (!) / Running Time Off / Minimize OS / XTweaks : Balanced Load = *62* / Nervous Rate = *1* / Cool when Idle = n.a / Provide Stable Power = 1 / Utilize Cores always = 1 / Time Performance Index = Optimal / Time Stability = Stable / Custom Filtering *Low* (16x) / Always Clear Proxy before Playback = On -> USB3 from MoBo -> Lush^3
A: W-Y-R-G, B: *W-G* USB 1m00 -> Phisolator 24/768 Phasure NOS1a/G3 75B (BNC Out) async USB DAC, Driver v1.0.4b (16ms) -> B'ASS Current Amplifier -> Blaxius*^2.5* A:B-G, B:B-G Interlink -> Orelo MKII Active Open Baffle Horn Speakers. ET^2 Ethernet from Mach III to Music Server PC (RDC Control).
Removed Switching Supplies from everywhere (also from the PC).

For a general PC :
W10-10586.0 - May 2016 (2.05+)
*XXHighEnd PC -> I7 3930k with Hyperthreading On (12 cores)* @~500MHz, 16GB, Windows 10 Pro 64 bit build 10586.0 from RAM, music on LAN / Engine#4 Adaptive Mode / Q1/-/3/4/5 = 14/-/1/1/1 / Q1Factor = 1 / Dev.Buffer = 4096 / ClockRes = 1ms / Memory = Straight Contiguous / Include Garbage Collect / SFS = 0.10  (max 60) / not Invert / Phase Alignment Off / Playerprio = Low / ThreadPrio = Realtime / Scheme = Core 3-5 / Not Switch Processors during Playback = Off/ Playback Drive none (see OS from RAM) / UnAttended (Just Start) / Always Copy to XX Drive (see OS from RAM) / All Services Off / Keep LAN - Not Persist / WallPaper On / OSD On / Running Time Off / Minimize OS / XTweaks : Balanced Load = *43* / Nervous Rate = 1 / Cool when Idle = 1 / Provide Stable Power = 1 / Utilize Cores always = 1 / Time Performance Index = *Optimal* / Time Stability = *Stable* / Custom Filter *Low* 705600 / -> USB3 *from MoBo* -> Clairixa USB 15cm -> Intona Isolator -> Clairixa USB 1m80 -> 24/768 Phasure NOS1a 75B (BNC Out) async USB DAC, Driver v1.0.4b (4ms) -> Blaxius BNC interlink *-> B'ASS Current Amplifier /w Level4 -> Blaxius Interlink* -> Orelo MKII Active Open Baffle Horn Speakers.
Removed Switching Supplies from everywhere.

Global Moderator
wimck
Audio Loudspeaker
*
Offline Offline

Posts: 26


View Profile
« Reply #2 on: June 30, 2011, 04:20:44 pm »

Hi Peter,

I have tried SFS from 12 to 200
And do you mean if I used Mixed Contiguous Mode when using 09-z5?  It's not in 09-z3, isn' t it?
In 09-z5 I did indeed

My setting at this moment are:
device: KS:HIFACE Kernel Streaming >>#wave
Engine: #4 engine
KS Mode: Special
Processor Core Appointment Scheme : 3
SFS: 50


and, yes I have SATAII connections to the harddisks!  But is that important with unattended play?
Logged

Windows 7 Ultimate 64bit SP1 and XXHighEnd on SSD - music on spinning disk @SATAII - Athlon II dual core 2,9Ghz - Engine#4 -Adaptive Mode - Q1/2/3/4/5 = 1/0/0/0/0 - Buffer 1024 - MIxed Contiguous - SFS 20 - Playerprio Low - ThreadPrio Real Time - All Services Off

PC -> M2Tech EVO -> 10 m Canare digiflex Gold II -> TagMcLaren AV192 / 2x250MR -> VS Unifield3 -> my ears
PeterSt
Administrator
High Grade Audiophile
*****
Offline Offline

Posts: 16827



View Profile Email
« Reply #3 on: June 30, 2011, 05:23:22 pm »

If you have gaps ... yes. Something is not fast enough in your system. It shouldn't be the cpu ...

Assuming 16/44.1 is the input - what is your output sample rate ?

If you start TaskManager and bring the cpu graph forward, can you recognize that the gaps occur at the peaks occuring ? And if not precisely on the peaks, when ?
Logged

For the Stealth III LPS PC :
W10-14393.0 - July 17, 2021 (2.11)
XXHighEnd Mach III Stealth LPS PC -> Xeon Scalable 14/28 core with Hyperthreading On (set to 14/28 cores in BIOS and set to 10/20 cores via Boot Menu) @~660MHz, 48GB, Windows 10 Pro 64 bit build 14393.0 from RAM, music on LAN / Engine#4 Adaptive Mode / Q1/-/3/4/5 = 14/-/0/0/*1*/ Q1Factor = *4* / Dev.Buffer = 4096 / ClockRes = *10ms* / Memory = Straight Contiguous / Include Garbage Collect / SFS = *10.13*  (max 10.13) / not Invert / Phase Alignment Off / Playerprio = Low / ThreadPrio = Realtime / Scheme = Core 3-5 / Not Switch Processors during Playback = Off/ Playback Drive none (see OS from RAM) / UnAttended (Just Start) / Always Copy to XX Drive (see OS from RAM) / Stop Desktop, Remaining, WASAPI and W10 services / Use Remote Desktop / Keep LAN - Not Persist / WallPaper On / OSD Off (!) / Running Time Off / Minimize OS / XTweaks : Balanced Load = *62* / Nervous Rate = *1* / Cool when Idle = n.a / Provide Stable Power = 1 / Utilize Cores always = 1 / Time Performance Index = Optimal / Time Stability = Stable / Custom Filtering *Low* (16x) / Always Clear Proxy before Playback = On -> USB3 from MoBo -> Lush^3
A: W-Y-R-G, B: *W-G* USB 1m00 -> Phisolator 24/768 Phasure NOS1a/G3 75B (BNC Out) async USB DAC, Driver v1.0.4b (16ms) -> B'ASS Current Amplifier -> Blaxius*^2.5* A:B-G, B:B-G Interlink -> Orelo MKII Active Open Baffle Horn Speakers. ET^2 Ethernet from Mach III to Music Server PC (RDC Control).
Removed Switching Supplies from everywhere (also from the PC).

For a general PC :
W10-10586.0 - May 2016 (2.05+)
*XXHighEnd PC -> I7 3930k with Hyperthreading On (12 cores)* @~500MHz, 16GB, Windows 10 Pro 64 bit build 10586.0 from RAM, music on LAN / Engine#4 Adaptive Mode / Q1/-/3/4/5 = 14/-/1/1/1 / Q1Factor = 1 / Dev.Buffer = 4096 / ClockRes = 1ms / Memory = Straight Contiguous / Include Garbage Collect / SFS = 0.10  (max 60) / not Invert / Phase Alignment Off / Playerprio = Low / ThreadPrio = Realtime / Scheme = Core 3-5 / Not Switch Processors during Playback = Off/ Playback Drive none (see OS from RAM) / UnAttended (Just Start) / Always Copy to XX Drive (see OS from RAM) / All Services Off / Keep LAN - Not Persist / WallPaper On / OSD On / Running Time Off / Minimize OS / XTweaks : Balanced Load = *43* / Nervous Rate = 1 / Cool when Idle = 1 / Provide Stable Power = 1 / Utilize Cores always = 1 / Time Performance Index = *Optimal* / Time Stability = *Stable* / Custom Filter *Low* 705600 / -> USB3 *from MoBo* -> Clairixa USB 15cm -> Intona Isolator -> Clairixa USB 1m80 -> 24/768 Phasure NOS1a 75B (BNC Out) async USB DAC, Driver v1.0.4b (4ms) -> Blaxius BNC interlink *-> B'ASS Current Amplifier /w Level4 -> Blaxius Interlink* -> Orelo MKII Active Open Baffle Horn Speakers.
Removed Switching Supplies from everywhere.

Global Moderator
wimck
Audio Loudspeaker
*
Offline Offline

Posts: 26


View Profile
« Reply #4 on: July 01, 2011, 06:46:42 pm »

After playing several albums gappless a gap occurs in the middle of a track of 12 min and the CPU graph of the taskmanager shows a peak of just 50%.
SFS: 12, unattended play
So that makes clear it isn't the CPU!
Logged

Windows 7 Ultimate 64bit SP1 and XXHighEnd on SSD - music on spinning disk @SATAII - Athlon II dual core 2,9Ghz - Engine#4 -Adaptive Mode - Q1/2/3/4/5 = 1/0/0/0/0 - Buffer 1024 - MIxed Contiguous - SFS 20 - Playerprio Low - ThreadPrio Real Time - All Services Off

PC -> M2Tech EVO -> 10 m Canare digiflex Gold II -> TagMcLaren AV192 / 2x250MR -> VS Unifield3 -> my ears
wimck
Audio Loudspeaker
*
Offline Offline

Posts: 26


View Profile
« Reply #5 on: July 01, 2011, 06:50:39 pm »

oh, 16/44.1 is the in and output sample rate
Logged

Windows 7 Ultimate 64bit SP1 and XXHighEnd on SSD - music on spinning disk @SATAII - Athlon II dual core 2,9Ghz - Engine#4 -Adaptive Mode - Q1/2/3/4/5 = 1/0/0/0/0 - Buffer 1024 - MIxed Contiguous - SFS 20 - Playerprio Low - ThreadPrio Real Time - All Services Off

PC -> M2Tech EVO -> 10 m Canare digiflex Gold II -> TagMcLaren AV192 / 2x250MR -> VS Unifield3 -> my ears
PeterSt
Administrator
High Grade Audiophile
*****
Offline Offline

Posts: 16827



View Profile Email
« Reply #6 on: July 01, 2011, 09:20:11 pm »

Quote
So that makes clear it isn't the CPU!

Oh ?

1. How many cpu graphs do you see in there ?

2. How long does this last aproximately ?
Logged

For the Stealth III LPS PC :
W10-14393.0 - July 17, 2021 (2.11)
XXHighEnd Mach III Stealth LPS PC -> Xeon Scalable 14/28 core with Hyperthreading On (set to 14/28 cores in BIOS and set to 10/20 cores via Boot Menu) @~660MHz, 48GB, Windows 10 Pro 64 bit build 14393.0 from RAM, music on LAN / Engine#4 Adaptive Mode / Q1/-/3/4/5 = 14/-/0/0/*1*/ Q1Factor = *4* / Dev.Buffer = 4096 / ClockRes = *10ms* / Memory = Straight Contiguous / Include Garbage Collect / SFS = *10.13*  (max 10.13) / not Invert / Phase Alignment Off / Playerprio = Low / ThreadPrio = Realtime / Scheme = Core 3-5 / Not Switch Processors during Playback = Off/ Playback Drive none (see OS from RAM) / UnAttended (Just Start) / Always Copy to XX Drive (see OS from RAM) / Stop Desktop, Remaining, WASAPI and W10 services / Use Remote Desktop / Keep LAN - Not Persist / WallPaper On / OSD Off (!) / Running Time Off / Minimize OS / XTweaks : Balanced Load = *62* / Nervous Rate = *1* / Cool when Idle = n.a / Provide Stable Power = 1 / Utilize Cores always = 1 / Time Performance Index = Optimal / Time Stability = Stable / Custom Filtering *Low* (16x) / Always Clear Proxy before Playback = On -> USB3 from MoBo -> Lush^3
A: W-Y-R-G, B: *W-G* USB 1m00 -> Phisolator 24/768 Phasure NOS1a/G3 75B (BNC Out) async USB DAC, Driver v1.0.4b (16ms) -> B'ASS Current Amplifier -> Blaxius*^2.5* A:B-G, B:B-G Interlink -> Orelo MKII Active Open Baffle Horn Speakers. ET^2 Ethernet from Mach III to Music Server PC (RDC Control).
Removed Switching Supplies from everywhere (also from the PC).

For a general PC :
W10-10586.0 - May 2016 (2.05+)
*XXHighEnd PC -> I7 3930k with Hyperthreading On (12 cores)* @~500MHz, 16GB, Windows 10 Pro 64 bit build 10586.0 from RAM, music on LAN / Engine#4 Adaptive Mode / Q1/-/3/4/5 = 14/-/1/1/1 / Q1Factor = 1 / Dev.Buffer = 4096 / ClockRes = 1ms / Memory = Straight Contiguous / Include Garbage Collect / SFS = 0.10  (max 60) / not Invert / Phase Alignment Off / Playerprio = Low / ThreadPrio = Realtime / Scheme = Core 3-5 / Not Switch Processors during Playback = Off/ Playback Drive none (see OS from RAM) / UnAttended (Just Start) / Always Copy to XX Drive (see OS from RAM) / All Services Off / Keep LAN - Not Persist / WallPaper On / OSD On / Running Time Off / Minimize OS / XTweaks : Balanced Load = *43* / Nervous Rate = 1 / Cool when Idle = 1 / Provide Stable Power = 1 / Utilize Cores always = 1 / Time Performance Index = *Optimal* / Time Stability = *Stable* / Custom Filter *Low* 705600 / -> USB3 *from MoBo* -> Clairixa USB 15cm -> Intona Isolator -> Clairixa USB 1m80 -> 24/768 Phasure NOS1a 75B (BNC Out) async USB DAC, Driver v1.0.4b (4ms) -> Blaxius BNC interlink *-> B'ASS Current Amplifier /w Level4 -> Blaxius Interlink* -> Orelo MKII Active Open Baffle Horn Speakers.
Removed Switching Supplies from everywhere.

Global Moderator
wimck
Audio Loudspeaker
*
Offline Offline

Posts: 26


View Profile
« Reply #7 on: July 02, 2011, 09:17:40 am »

Only one graph shown....you mean there are two cores?
So the "!"  had to be "?"  It's not easy for a dummie  scratching

While playing music I had the taskmanager open and when a gap occured I had a look what happens on the graph!

Is it possible to log what happens with the CPU (cores)?
Logged

Windows 7 Ultimate 64bit SP1 and XXHighEnd on SSD - music on spinning disk @SATAII - Athlon II dual core 2,9Ghz - Engine#4 -Adaptive Mode - Q1/2/3/4/5 = 1/0/0/0/0 - Buffer 1024 - MIxed Contiguous - SFS 20 - Playerprio Low - ThreadPrio Real Time - All Services Off

PC -> M2Tech EVO -> 10 m Canare digiflex Gold II -> TagMcLaren AV192 / 2x250MR -> VS Unifield3 -> my ears
PeterSt
Administrator
High Grade Audiophile
*****
Offline Offline

Posts: 16827



View Profile Email
« Reply #8 on: July 02, 2011, 09:26:34 am »

Yes, I think you have two cores - and active.

In XP you can choose in TaskManager whether the individual cores are shown, or whether they are shown summed. You will have it summed. I think you can set that under View somewhere.

Once you see the both cores, you will see that one is going to 100%. But, this is normal ! Fact is : the faster the cpu, the shorter this takes. That's why the question "how long does it last". When too long - things will not have been prepared in time, and you'll have a gap.

Logging is possible, but not for a "normal person" like you. It's not necessary either because looking at it in real time will tell (me, through your eyes) enough.

Peter
Logged

For the Stealth III LPS PC :
W10-14393.0 - July 17, 2021 (2.11)
XXHighEnd Mach III Stealth LPS PC -> Xeon Scalable 14/28 core with Hyperthreading On (set to 14/28 cores in BIOS and set to 10/20 cores via Boot Menu) @~660MHz, 48GB, Windows 10 Pro 64 bit build 14393.0 from RAM, music on LAN / Engine#4 Adaptive Mode / Q1/-/3/4/5 = 14/-/0/0/*1*/ Q1Factor = *4* / Dev.Buffer = 4096 / ClockRes = *10ms* / Memory = Straight Contiguous / Include Garbage Collect / SFS = *10.13*  (max 10.13) / not Invert / Phase Alignment Off / Playerprio = Low / ThreadPrio = Realtime / Scheme = Core 3-5 / Not Switch Processors during Playback = Off/ Playback Drive none (see OS from RAM) / UnAttended (Just Start) / Always Copy to XX Drive (see OS from RAM) / Stop Desktop, Remaining, WASAPI and W10 services / Use Remote Desktop / Keep LAN - Not Persist / WallPaper On / OSD Off (!) / Running Time Off / Minimize OS / XTweaks : Balanced Load = *62* / Nervous Rate = *1* / Cool when Idle = n.a / Provide Stable Power = 1 / Utilize Cores always = 1 / Time Performance Index = Optimal / Time Stability = Stable / Custom Filtering *Low* (16x) / Always Clear Proxy before Playback = On -> USB3 from MoBo -> Lush^3
A: W-Y-R-G, B: *W-G* USB 1m00 -> Phisolator 24/768 Phasure NOS1a/G3 75B (BNC Out) async USB DAC, Driver v1.0.4b (16ms) -> B'ASS Current Amplifier -> Blaxius*^2.5* A:B-G, B:B-G Interlink -> Orelo MKII Active Open Baffle Horn Speakers. ET^2 Ethernet from Mach III to Music Server PC (RDC Control).
Removed Switching Supplies from everywhere (also from the PC).

For a general PC :
W10-10586.0 - May 2016 (2.05+)
*XXHighEnd PC -> I7 3930k with Hyperthreading On (12 cores)* @~500MHz, 16GB, Windows 10 Pro 64 bit build 10586.0 from RAM, music on LAN / Engine#4 Adaptive Mode / Q1/-/3/4/5 = 14/-/1/1/1 / Q1Factor = 1 / Dev.Buffer = 4096 / ClockRes = 1ms / Memory = Straight Contiguous / Include Garbage Collect / SFS = 0.10  (max 60) / not Invert / Phase Alignment Off / Playerprio = Low / ThreadPrio = Realtime / Scheme = Core 3-5 / Not Switch Processors during Playback = Off/ Playback Drive none (see OS from RAM) / UnAttended (Just Start) / Always Copy to XX Drive (see OS from RAM) / All Services Off / Keep LAN - Not Persist / WallPaper On / OSD On / Running Time Off / Minimize OS / XTweaks : Balanced Load = *43* / Nervous Rate = 1 / Cool when Idle = 1 / Provide Stable Power = 1 / Utilize Cores always = 1 / Time Performance Index = *Optimal* / Time Stability = *Stable* / Custom Filter *Low* 705600 / -> USB3 *from MoBo* -> Clairixa USB 15cm -> Intona Isolator -> Clairixa USB 1m80 -> 24/768 Phasure NOS1a 75B (BNC Out) async USB DAC, Driver v1.0.4b (4ms) -> Blaxius BNC interlink *-> B'ASS Current Amplifier /w Level4 -> Blaxius Interlink* -> Orelo MKII Active Open Baffle Horn Speakers.
Removed Switching Supplies from everywhere.

Global Moderator
wimck
Audio Loudspeaker
*
Offline Offline

Posts: 26


View Profile
« Reply #9 on: July 03, 2011, 04:04:28 pm »

today I had several gaps in one album at the beginning of the long tracks and one occured at a track of normal tength (6 min)

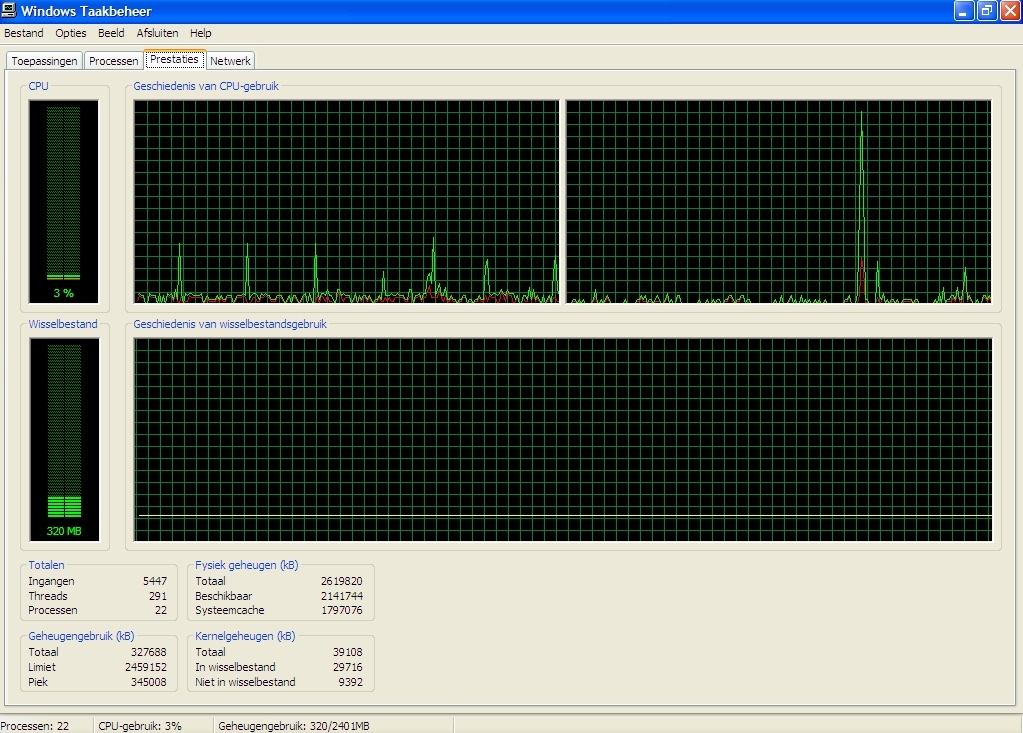

With every gap almost the same view on the taskmanager.

Thanks so far Peter!



* gap2.jpg (429.06 KB, 1023x733 - viewed 926 times.)

* gap3.jpg (416.26 KB, 1010x734 - viewed 801 times.)
Logged

Windows 7 Ultimate 64bit SP1 and XXHighEnd on SSD - music on spinning disk @SATAII - Athlon II dual core 2,9Ghz - Engine#4 -Adaptive Mode - Q1/2/3/4/5 = 1/0/0/0/0 - Buffer 1024 - MIxed Contiguous - SFS 20 - Playerprio Low - ThreadPrio Real Time - All Services Off

PC -> M2Tech EVO -> 10 m Canare digiflex Gold II -> TagMcLaren AV192 / 2x250MR -> VS Unifield3 -> my ears
PeterSt
Administrator
High Grade Audiophile
*****
Offline Offline

Posts: 16827



View Profile Email
« Reply #10 on: July 04, 2011, 10:03:03 am »

Hi Wim,

No, I don't think this is the CPU. But what then ?
HiFace related ?

Maybe using Adaptive Mode changes things ?

Anyway, I now have the feeling it may be about slow disk I/O. No real reason, but if it's not the cpu it should be that. Posting the XX, X3 and X3PB log files from a session will probably tell a lot (switch on logging at the bottom of the Settings Area, and obtain the log files from the TemporaryData folder under your XX folder).

At posting the log files (as attachment please), try to tell what exactly happened throught the session concerned. I'll have some pointers then.

Thanks a lot,
Peter

Logged

For the Stealth III LPS PC :
W10-14393.0 - July 17, 2021 (2.11)
XXHighEnd Mach III Stealth LPS PC -> Xeon Scalable 14/28 core with Hyperthreading On (set to 14/28 cores in BIOS and set to 10/20 cores via Boot Menu) @~660MHz, 48GB, Windows 10 Pro 64 bit build 14393.0 from RAM, music on LAN / Engine#4 Adaptive Mode / Q1/-/3/4/5 = 14/-/0/0/*1*/ Q1Factor = *4* / Dev.Buffer = 4096 / ClockRes = *10ms* / Memory = Straight Contiguous / Include Garbage Collect / SFS = *10.13*  (max 10.13) / not Invert / Phase Alignment Off / Playerprio = Low / ThreadPrio = Realtime / Scheme = Core 3-5 / Not Switch Processors during Playback = Off/ Playback Drive none (see OS from RAM) / UnAttended (Just Start) / Always Copy to XX Drive (see OS from RAM) / Stop Desktop, Remaining, WASAPI and W10 services / Use Remote Desktop / Keep LAN - Not Persist / WallPaper On / OSD Off (!) / Running Time Off / Minimize OS / XTweaks : Balanced Load = *62* / Nervous Rate = *1* / Cool when Idle = n.a / Provide Stable Power = 1 / Utilize Cores always = 1 / Time Performance Index = Optimal / Time Stability = Stable / Custom Filtering *Low* (16x) / Always Clear Proxy before Playback = On -> USB3 from MoBo -> Lush^3
A: W-Y-R-G, B: *W-G* USB 1m00 -> Phisolator 24/768 Phasure NOS1a/G3 75B (BNC Out) async USB DAC, Driver v1.0.4b (16ms) -> B'ASS Current Amplifier -> Blaxius*^2.5* A:B-G, B:B-G Interlink -> Orelo MKII Active Open Baffle Horn Speakers. ET^2 Ethernet from Mach III to Music Server PC (RDC Control).
Removed Switching Supplies from everywhere (also from the PC).

For a general PC :
W10-10586.0 - May 2016 (2.05+)
*XXHighEnd PC -> I7 3930k with Hyperthreading On (12 cores)* @~500MHz, 16GB, Windows 10 Pro 64 bit build 10586.0 from RAM, music on LAN / Engine#4 Adaptive Mode / Q1/-/3/4/5 = 14/-/1/1/1 / Q1Factor = 1 / Dev.Buffer = 4096 / ClockRes = 1ms / Memory = Straight Contiguous / Include Garbage Collect / SFS = 0.10  (max 60) / not Invert / Phase Alignment Off / Playerprio = Low / ThreadPrio = Realtime / Scheme = Core 3-5 / Not Switch Processors during Playback = Off/ Playback Drive none (see OS from RAM) / UnAttended (Just Start) / Always Copy to XX Drive (see OS from RAM) / All Services Off / Keep LAN - Not Persist / WallPaper On / OSD On / Running Time Off / Minimize OS / XTweaks : Balanced Load = *43* / Nervous Rate = 1 / Cool when Idle = 1 / Provide Stable Power = 1 / Utilize Cores always = 1 / Time Performance Index = *Optimal* / Time Stability = *Stable* / Custom Filter *Low* 705600 / -> USB3 *from MoBo* -> Clairixa USB 15cm -> Intona Isolator -> Clairixa USB 1m80 -> 24/768 Phasure NOS1a 75B (BNC Out) async USB DAC, Driver v1.0.4b (4ms) -> Blaxius BNC interlink *-> B'ASS Current Amplifier /w Level4 -> Blaxius Interlink* -> Orelo MKII Active Open Baffle Horn Speakers.
Removed Switching Supplies from everywhere.

Global Moderator
wimck
Audio Loudspeaker
*
Offline Offline

Posts: 26


View Profile
« Reply #11 on: July 07, 2011, 09:48:16 am »

Hi Peter,

The adaptive mode has given me a couple of evenings without one gap! good

But...reading a lot more last days and your message about the slow disk I/0 made me think about my setup.
I have OS, XXHighend and the albums on one "slow" (5400 rpm) spinning disk which is splitted in a C: and D: partition.
I now understand this isn't the right way to get gappless play, one disk has to do all the work.

So next step is a new (faster) disk for OS/XXHighend.

But what to buy?  a fast spinning disk or a SSD?

With the information I found last day's I prefer a SSD.
Found out there's a new vertex3 disk which has a max data transfer of about 500 Mb/s read and write.
My today's system can't use this all but it's a future proof buy.






Logged

Windows 7 Ultimate 64bit SP1 and XXHighEnd on SSD - music on spinning disk @SATAII - Athlon II dual core 2,9Ghz - Engine#4 -Adaptive Mode - Q1/2/3/4/5 = 1/0/0/0/0 - Buffer 1024 - MIxed Contiguous - SFS 20 - Playerprio Low - ThreadPrio Real Time - All Services Off

PC -> M2Tech EVO -> 10 m Canare digiflex Gold II -> TagMcLaren AV192 / 2x250MR -> VS Unifield3 -> my ears
PeterSt
Administrator
High Grade Audiophile
*****
Offline Offline

Posts: 16827



View Profile Email
« Reply #12 on: July 07, 2011, 01:12:06 pm »

If you prefer an SSD I would first put the OS on that.
Next I'd put XX on it (you can also do this without the OS being on there).
Then I'd set "Always Copy to XX Drive" (Settings).

Then you will be playing from the SSD always.


But good you made progress !
