Author Topic: Cannot restart WASAPI Services  (Read 14365 times)
0 Members and 0 Guests are viewing this topic.
AlainGr
Audio Addict
***
Offline Offline

Posts: 1130

Music for life

alain_gregoire@hotmail.com
View Profile Email
« Reply #15 on: October 01, 2012, 09:24:40 pm »

Peter,

I remember having the same problem when using the Remote Desktop Connection (with Blue Tooth but I am not sure if the Blue Tooth connection has something to do with this...).

In RDC -> Options ->  Local resources (this is a litteral translation from French) -> Parameters... Verify if the Audio parameters are set correctly. After I checked the first choice, I was able to use WASAPI and I Was Happy Wink

Not sure if this is the source of the problem, but...

Alain
Logged

Desktop with ASUS Sabertooth X79 motherboard,Intel 3930k 6 cores (+ 6) at 1.2 GHZ,32GB ram 1333Mhz,Win 10 pro build 14386 64 bit with no updates,OS + XXHE on external Sata III SSD (Esata), music (WAV) on external 5200 rpm drive through network, OS MInimized, XX with engine 4 adaptive,4096 (buffer size), CPU with scheme 3,Player = Low,Thread = RealTime, Q1 = 14,Q345 = 1,1,1,Q1x=1,Clock res = (variable),Stop Desktop Services,Stop Remaining Services,Stop Wasapi,,LAN on,persist = on,all OSD off,SFS = 2,PE off,PA off, Arc Prediction,x16 Upsample, Straight Contiguous,Lush USB  cable,Phasure NOS1a DAC,Meitner PA-6 preamp, Spectral Audio DMA-180  Power Amp, Tannoy System 15 DMT II, Tannoy St-100 supertweeters, Tannoy TS2.12 subwoofers (2). * On hiatus for a while...
manisandher
Crazy Audiophile
****
Offline Offline

Posts: 2037

from-first-principles.com


View Profile WWW Email
« Reply #16 on: October 02, 2012, 12:59:14 pm »

CRACKED... but not solved!

Alain, thanks for your help... it didn't solve the problem but certainly led me in the right direction.

WASAPI works absolutely perfectly if the PC is booted in 'normal OS' and is accessed locally, i.e. monitor and keyboard/mouse connected directly to PC.

WASAPI does not work if the PC is accessed via bluetooth RDC. (It may well work via LAN RDC, but I haven't tested this yet.)

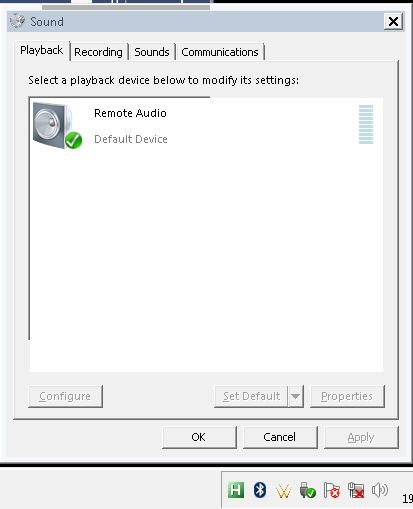

The two screenshots below were taken via the two diffferent access means. Absolutely no other parameters in W7 were changed.

Thanks again Alain.

Mani.


* WDM Local.JPG (42.21 KB, 425x504 - viewed 490 times.)

* WDM Remote.JPG (32.11 KB, 424x502 - viewed 360 times.)
Logged

Audio PC: Phasure Mach II *with clock upgrade* / Win 14393.0 on RAM-OS / controlled by RDC, no GPU card installed / connected directly to music server
XXHighEnd: 2.10 / Minimize OS / Engine#4 Adaptive / DB=4096 / *trying*: Q1=30 / xQ1=40 / Q3,4,5=1 / SFS=5.19 / XTweaks = 52, 10, 0, 0, 1 / Straight Contiguous / Clock Resolution = 15ms / Scheme 3-5 (low/realtime) / 8x Arc Prediction (switch #5 'up/off') / Unattended
Main System: mobo USB3 port -> Lush -> Phasure NOS1a B75 G3 -> First Watt F5-cloned mono amps -> Tune Audio Anima horn speakers
Office System: Lush -> Phasure NOS1a G3 -> BD-Design BD30-SPR mono amps -> Tune Audio Marvel horn speakers
manisandher
Crazy Audiophile
****
Offline Offline

Posts: 2037

from-first-principles.com


View Profile WWW Email
« Reply #17 on: October 02, 2012, 01:09:06 pm »

Cracked and solved!

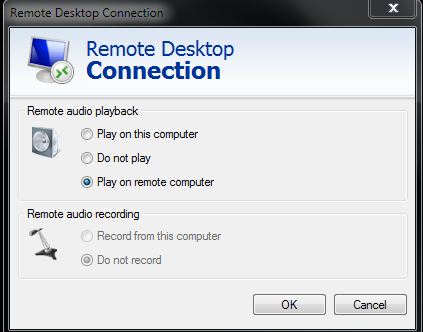

In your RDC connection, you have to select 'Play on Remote Computer'. This solves the problem.

All credit to Alain.

Mani.


* Remote WASAPI.JPG (29.91 KB, 423x332 - viewed 371 times.)
Logged

Audio PC: Phasure Mach II *with clock upgrade* / Win 14393.0 on RAM-OS / controlled by RDC, no GPU card installed / connected directly to music server
XXHighEnd: 2.10 / Minimize OS / Engine#4 Adaptive / DB=4096 / *trying*: Q1=30 / xQ1=40 / Q3,4,5=1 / SFS=5.19 / XTweaks = 52, 10, 0, 0, 1 / Straight Contiguous / Clock Resolution = 15ms / Scheme 3-5 (low/realtime) / 8x Arc Prediction (switch #5 'up/off') / Unattended
Main System: mobo USB3 port -> Lush -> Phasure NOS1a B75 G3 -> First Watt F5-cloned mono amps -> Tune Audio Anima horn speakers
Office System: Lush -> Phasure NOS1a G3 -> BD-Design BD30-SPR mono amps -> Tune Audio Marvel horn speakers
PeterSt
Administrator
High Grade Audiophile
*****
Offline Offline

Posts: 15223



View Profile Email
« Reply #18 on: October 02, 2012, 01:46:18 pm »

Yes, this can be very confusing and I am not even sure whether the below is 100% correct :

When the audio PC has WASAPI activated, but look at it through the RDC connection (say, the laptop), the speaker icon has a red cross implying no audio devices are there (well, in my case, and in your case Mani, I think one was left, so no red cross in your case I assume). While most certainly knowing how this works (including that setting you luckily found) I still don't get it much; it seems to tell that you will not be able to produce sound (KS not taken into account) from the laptop itself. You think like this, because you see that icon changing (just active on the audio PC - not active *anymore* when you hop over to the laptop. And well, it would be true, because through that RDC screen you can't go anywhere. But put it to the taskbar and you can ... (only then you look at the laptop itself).

But what's next ? (and I never really tried to think of it) ...
Now you apply that setting as Mani had it (abusively). So, now I must be able to play from the laptop. But how ? Nothing like a NOS1 (or whatever) will be seen there. Or ? and if not, what then ? Looking at the Audio PC's screen certainly nothing will be there. But what will we see looking at the laptop screen ? the NOS1 (etc.) after all ? The laptop mobo's sound device only ? or ...

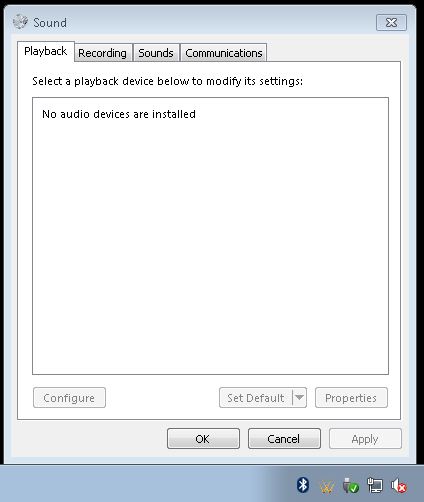

No, we will see the below picture which shows on the audio PC (and what we see at the laptop). It is Mani's own picture. Ah, no red cross, because despite nothing is actually there, that remote audio device is there. But, what is it ? What is it played through ? I can imagine the laptops loudspeakers only and through the onboard (mobo) D/A. But maybe if you click that entry things can be configured differently (see the "default device" underneath it).


* NOS1 not showing in Manage Audio Devices.JPG (31.24 KB, 413x509 - viewed 269 times.)
Logged

For the Stealth III LPS PC :
W10-14393.0 - August 18, 2018 (2.10)
XXHighEnd Mach *III* Stealth LPS PC -> *Xeon Scalable 14/28 core* with Hyperthreading On (*set to 10/20 cores*) @~660MHz, 48GB, Windows 10 Pro 64 bit build 14393.0 from RAM, music on LAN / Engine#4 Adaptive Mode / Q1/-/3/4/5 = 30/-/1/1/1/ Q1Factor = 10 / Dev.Buffer = 4096 / ClockRes = 15ms / Memory = Straight Contiguous / Include Garbage Collect / SFS = *140.19*  (max 140.19) / not Invert / Phase Alignment Off / Playerprio = Low / ThreadPrio = Realtime / Scheme = Core 3-5 / Not Switch Processors during Playback = Off/ Playback Drive none (see OS from RAM) / UnAttended (Just Start) / Always Copy to XX Drive (see OS from RAM) / Stop Desktop, Remaining, WASAPI and W10 services / Use Remote Desktop / Keep LAN - Not Persist / WallPaper On / OSD Off (!) / Running Time Off / Minimize OS / XTweaks : Balanced Load = *35* / Nervous Rate = 10 / Cool when Idle = n.a / Provide Stable Power = 0 / Utilize Cores always = 1 / Time Performance Index = Optimal / Time Stability = Stable / *Arc Prediction Filtering (16x)* / Always Clear Proxy before Playback = On -> USB3 from MoBo -> *Lush^2 A: B-W & Y-R, B: B-W* USB 1m00 -> Phisolator 24/768 Phasure NOS1a/G3 75B (BNC Out) async USB DAC, Driver v1.0.4b (16ms) -> B'ASS Current Amplifier -> Blaxius Interlink -> Orelo MKII Active Open Baffle Horn Speakers.
Removed Switching Supplies from everywhere (also from the PC).

For a general PC :
W10-10586.0 - May 2016 (2.05+)
*XXHighEnd PC -> I7 3930k with Hyperthreading On (12 cores)* @~500MHz, 16GB, Windows 10 Pro 64 bit build 10586.0 from RAM, music on LAN / Engine#4 Adaptive Mode / Q1/-/3/4/5 = 14/-/1/1/1 / Q1Factor = 1 / Dev.Buffer = 4096 / ClockRes = 1ms / Memory = Straight Contiguous / Include Garbage Collect / SFS = 0.10  (max 60) / not Invert / Phase Alignment Off / Playerprio = Low / ThreadPrio = Realtime / Scheme = Core 3-5 / Not Switch Processors during Playback = Off/ Playback Drive none (see OS from RAM) / UnAttended (Just Start) / Always Copy to XX Drive (see OS from RAM) / All Services Off / Keep LAN - Not Persist / WallPaper On / OSD On / Running Time Off / Minimize OS / XTweaks : Balanced Load = *43* / Nervous Rate = 1 / Cool when Idle = 1 / Provide Stable Power = 1 / Utilize Cores always = 1 / Time Performance Index = *Optimal* / Time Stability = *Stable* / Custom Filter *Low* 705600 / -> USB3 *from MoBo* -> Clairixa USB 15cm -> Intona Isolator -> Clairixa USB 1m80 -> 24/768 Phasure NOS1a 75B (BNC Out) async USB DAC, Driver v1.0.4b (4ms) -> Blaxius BNC interlink *-> B'ASS Current Amplifier /w Level4 -> Blaxius Interlink* -> Orelo MKII Active Open Baffle Horn Speakers.
Removed Switching Supplies from everywhere.

Global Moderator
PeterSt
Administrator
High Grade Audiophile
*****
Offline Offline

Posts: 15223



View Profile Email
« Reply #19 on: October 02, 2012, 01:51:59 pm »

This one is similar but maybe more braindamaging :

When you find the remote keyboard from MS (so, not from XXHighEnd), you can start it on the Audio PC but you can just as well start it on the laptop. Both work out the same. But, now hop over to the tablet. Of course both will STILL work the same. But being with your nose above the tablet, try to figure out how in the world this can work out the same ...
Logged

For the Stealth III LPS PC :
W10-14393.0 - August 18, 2018 (2.10)
XXHighEnd Mach *III* Stealth LPS PC -> *Xeon Scalable 14/28 core* with Hyperthreading On (*set to 10/20 cores*) @~660MHz, 48GB, Windows 10 Pro 64 bit build 14393.0 from RAM, music on LAN / Engine#4 Adaptive Mode / Q1/-/3/4/5 = 30/-/1/1/1/ Q1Factor = 10 / Dev.Buffer = 4096 / ClockRes = 15ms / Memory = Straight Contiguous / Include Garbage Collect / SFS = *140.19*  (max 140.19) / not Invert / Phase Alignment Off / Playerprio = Low / ThreadPrio = Realtime / Scheme = Core 3-5 / Not Switch Processors during Playback = Off/ Playback Drive none (see OS from RAM) / UnAttended (Just Start) / Always Copy to XX Drive (see OS from RAM) / Stop Desktop, Remaining, WASAPI and W10 services / Use Remote Desktop / Keep LAN - Not Persist / WallPaper On / OSD Off (!) / Running Time Off / Minimize OS / XTweaks : Balanced Load = *35* / Nervous Rate = 10 / Cool when Idle = n.a / Provide Stable Power = 0 / Utilize Cores always = 1 / Time Performance Index = Optimal / Time Stability = Stable / *Arc Prediction Filtering (16x)* / Always Clear Proxy before Playback = On -> USB3 from MoBo -> *Lush^2 A: B-W & Y-R, B: B-W* USB 1m00 -> Phisolator 24/768 Phasure NOS1a/G3 75B (BNC Out) async USB DAC, Driver v1.0.4b (16ms) -> B'ASS Current Amplifier -> Blaxius Interlink -> Orelo MKII Active Open Baffle Horn Speakers.
Removed Switching Supplies from everywhere (also from the PC).

For a general PC :
W10-10586.0 - May 2016 (2.05+)
*XXHighEnd PC -> I7 3930k with Hyperthreading On (12 cores)* @~500MHz, 16GB, Windows 10 Pro 64 bit build 10586.0 from RAM, music on LAN / Engine#4 Adaptive Mode / Q1/-/3/4/5 = 14/-/1/1/1 / Q1Factor = 1 / Dev.Buffer = 4096 / ClockRes = 1ms / Memory = Straight Contiguous / Include Garbage Collect / SFS = 0.10  (max 60) / not Invert / Phase Alignment Off / Playerprio = Low / ThreadPrio = Realtime / Scheme = Core 3-5 / Not Switch Processors during Playback = Off/ Playback Drive none (see OS from RAM) / UnAttended (Just Start) / Always Copy to XX Drive (see OS from RAM) / All Services Off / Keep LAN - Not Persist / WallPaper On / OSD On / Running Time Off / Minimize OS / XTweaks : Balanced Load = *43* / Nervous Rate = 1 / Cool when Idle = 1 / Provide Stable Power = 1 / Utilize Cores always = 1 / Time Performance Index = *Optimal* / Time Stability = *Stable* / Custom Filter *Low* 705600 / -> USB3 *from MoBo* -> Clairixa USB 15cm -> Intona Isolator -> Clairixa USB 1m80 -> 24/768 Phasure NOS1a 75B (BNC Out) async USB DAC, Driver v1.0.4b (4ms) -> Blaxius BNC interlink *-> B'ASS Current Amplifier /w Level4 -> Blaxius Interlink* -> Orelo MKII Active Open Baffle Horn Speakers.
Removed Switching Supplies from everywhere.

Global Moderator
AlainGr
Audio Addict
***
Offline Offline

Posts: 1130

Music for life

alain_gregoire@hotmail.com
View Profile Email
« Reply #20 on: October 02, 2012, 02:30:15 pm »

Cracked and solved!

In your RDC connection, you have to select 'Play on Remote Computer'. This solves the problem.

All credit to Alain.

Mani.
Hi Mani,

I am glad I could point in the right direction ... And that you were able to select the right option. I should have written "third" instead of "first". My bad unhappy

Alain
Logged

Desktop with ASUS Sabertooth X79 motherboard,Intel 3930k 6 cores (+ 6) at 1.2 GHZ,32GB ram 1333Mhz,Win 10 pro build 14386 64 bit with no updates,OS + XXHE on external Sata III SSD (Esata), music (WAV) on external 5200 rpm drive through network, OS MInimized, XX with engine 4 adaptive,4096 (buffer size), CPU with scheme 3,Player = Low,Thread = RealTime, Q1 = 14,Q345 = 1,1,1,Q1x=1,Clock res = (variable),Stop Desktop Services,Stop Remaining Services,Stop Wasapi,,LAN on,persist = on,all OSD off,SFS = 2,PE off,PA off, Arc Prediction,x16 Upsample, Straight Contiguous,Lush USB  cable,Phasure NOS1a DAC,Meitner PA-6 preamp, Spectral Audio DMA-180  Power Amp, Tannoy System 15 DMT II, Tannoy St-100 supertweeters, Tannoy TS2.12 subwoofers (2). * On hiatus for a while...
manisandher
Crazy Audiophile
****
Offline Offline

Posts: 2037

from-first-principles.com


View Profile WWW Email
« Reply #21 on: October 02, 2012, 02:39:23 pm »

I'm having problems getting any sound out of the NOS1 with HQPlayer. Weirdly, a test tone in W7's 'Manage Audio Devices' plays perfectly out of the NOS1.

I have the device in the NOS1's USB panel set to 'Stereo' (not 4.0) and the relevant switch on the NOS1 in the correct 'up' position.

It could well be a configuration issue with HQPlayer. Everything seems to be working fine - the track details show and the timer runs exactly as it should, but there's no sound out of the NOS1. It's strange because the HQPlayer/NOS1 combo used to work fine 6-9 months ago. But I guess a lot has changed since then with HQPlayer (and maybe the NOS1 driver too?). I'll contact Jussi at some point and see if he has any thoughts.

Mani.
Logged

Audio PC: Phasure Mach II *with clock upgrade* / Win 14393.0 on RAM-OS / controlled by RDC, no GPU card installed / connected directly to music server
XXHighEnd: 2.10 / Minimize OS / Engine#4 Adaptive / DB=4096 / *trying*: Q1=30 / xQ1=40 / Q3,4,5=1 / SFS=5.19 / XTweaks = 52, 10, 0, 0, 1 / Straight Contiguous / Clock Resolution = 15ms / Scheme 3-5 (low/realtime) / 8x Arc Prediction (switch #5 'up/off') / Unattended
Main System: mobo USB3 port -> Lush -> Phasure NOS1a B75 G3 -> First Watt F5-cloned mono amps -> Tune Audio Anima horn speakers
Office System: Lush -> Phasure NOS1a G3 -> BD-Design BD30-SPR mono amps -> Tune Audio Marvel horn speakers
PeterSt
Administrator
High Grade Audiophile
*****
Offline Offline

Posts: 15223



View Profile Email
« Reply #22 on: October 02, 2012, 02:42:06 pm »

Mani,

Not that I can see how it relates (but theoretically it can) - choose Stereo Reduced.
Also, choose the first option available where you choose the devices in HQPlayer. So, IIRC you will see two stereo pairs; use the first (I am not sure why but I know that works).

Otherwise, maybe just use XXHighEnd first ? in that case, switch off Is NOS1 to mimic all properly.

Peter
Logged

For the Stealth III LPS PC :
W10-14393.0 - August 18, 2018 (2.10)
XXHighEnd Mach *III* Stealth LPS PC -> *Xeon Scalable 14/28 core* with Hyperthreading On (*set to 10/20 cores*) @~660MHz, 48GB, Windows 10 Pro 64 bit build 14393.0 from RAM, music on LAN / Engine#4 Adaptive Mode / Q1/-/3/4/5 = 30/-/1/1/1/ Q1Factor = 10 / Dev.Buffer = 4096 / ClockRes = 15ms / Memory = Straight Contiguous / Include Garbage Collect / SFS = *140.19*  (max 140.19) / not Invert / Phase Alignment Off / Playerprio = Low / ThreadPrio = Realtime / Scheme = Core 3-5 / Not Switch Processors during Playback = Off/ Playback Drive none (see OS from RAM) / UnAttended (Just Start) / Always Copy to XX Drive (see OS from RAM) / Stop Desktop, Remaining, WASAPI and W10 services / Use Remote Desktop / Keep LAN - Not Persist / WallPaper On / OSD Off (!) / Running Time Off / Minimize OS / XTweaks : Balanced Load = *35* / Nervous Rate = 10 / Cool when Idle = n.a / Provide Stable Power = 0 / Utilize Cores always = 1 / Time Performance Index = Optimal / Time Stability = Stable / *Arc Prediction Filtering (16x)* / Always Clear Proxy before Playback = On -> USB3 from MoBo -> *Lush^2 A: B-W & Y-R, B: B-W* USB 1m00 -> Phisolator 24/768 Phasure NOS1a/G3 75B (BNC Out) async USB DAC, Driver v1.0.4b (16ms) -> B'ASS Current Amplifier -> Blaxius Interlink -> Orelo MKII Active Open Baffle Horn Speakers.
Removed Switching Supplies from everywhere (also from the PC).

For a general PC :
W10-10586.0 - May 2016 (2.05+)
*XXHighEnd PC -> I7 3930k with Hyperthreading On (12 cores)* @~500MHz, 16GB, Windows 10 Pro 64 bit build 10586.0 from RAM, music on LAN / Engine#4 Adaptive Mode / Q1/-/3/4/5 = 14/-/1/1/1 / Q1Factor = 1 / Dev.Buffer = 4096 / ClockRes = 1ms / Memory = Straight Contiguous / Include Garbage Collect / SFS = 0.10  (max 60) / not Invert / Phase Alignment Off / Playerprio = Low / ThreadPrio = Realtime / Scheme = Core 3-5 / Not Switch Processors during Playback = Off/ Playback Drive none (see OS from RAM) / UnAttended (Just Start) / Always Copy to XX Drive (see OS from RAM) / All Services Off / Keep LAN - Not Persist / WallPaper On / OSD On / Running Time Off / Minimize OS / XTweaks : Balanced Load = *43* / Nervous Rate = 1 / Cool when Idle = 1 / Provide Stable Power = 1 / Utilize Cores always = 1 / Time Performance Index = *Optimal* / Time Stability = *Stable* / Custom Filter *Low* 705600 / -> USB3 *from MoBo* -> Clairixa USB 15cm -> Intona Isolator -> Clairixa USB 1m80 -> 24/768 Phasure NOS1a 75B (BNC Out) async USB DAC, Driver v1.0.4b (4ms) -> Blaxius BNC interlink *-> B'ASS Current Amplifier /w Level4 -> Blaxius Interlink* -> Orelo MKII Active Open Baffle Horn Speakers.
Removed Switching Supplies from everywhere.

Global Moderator
Gerard
Audio Addict
***
Offline Offline

Posts: 1063


WWG1WGA


View Profile
« Reply #23 on: October 02, 2012, 02:43:07 pm »

I'm having problems getting any sound out of the NOS1 with HQPlayer. Weirdly, a test tone in W7's 'Manage Audio Devices' plays perfectly out of the NOS1.

I have the device in the NOS1's USB panel set to 'Stereo' (not 4.0) and the relevant switch on the NOS1 in the correct 'up' position.

It could well be a configuration issue with HQPlayer. Everything seems to be working fine - the track details show and the timer runs exactly as it should, but there's no sound out of the NOS1. It's strange because the HQPlayer/NOS1 combo used to work fine 6-9 months ago. But I guess a lot has changed since then with HQPlayer (and maybe the NOS1 driver too?). I'll contact Jussi at some point and see if he has any thoughts.

Mani.

Mani,

Maybe try to set XX first to 16\44 and play a song for a few seconds. After that try again.

Just a wild guess

 Happy
Logged

Januari 2017 XX 2.05
OriginAE x11v Home build HTCP ~ Asus x79 mobo 3930K 12 core underclock 500 MHz,
16GB, *Windows 10 Pro 64 bit build 14393.0* *from RAM*, music on music server / Engine#4 Adaptive Mode / Q1/-/3/4/5 = 14/-/1/1/1 / Q1Factor = 1 / Dev.Buffer = 4096 / ClockRes = 1ms / Memory = Straight Contiguous / Include Garbage Collect / SFS = *0.10*  (max 60) / not Invert / Phase Alignment Off / Playerprio = Low / ThreadPrio = Realtime / Scheme = Core *3-5* / Not Switch Processors during Playback = Off/ Playback Drive *none* (see OS from RAM) / UnAttended (Just Start) / Always Copy to XX Drive (see OS from RAM) / All Services Off / Keep LAN - Not Persist / WallPaper On / OSD On / Running Time Off / Minimize OS / XTweaks : Balanced Load = *43* / Nervous Rate = 1 / Cool when Idle = 1 / Provide Stable Power = 1 / Utilize Cores always = 1 / Time Performance Index = Not the best (OS from RAM issue) / Time Stability = Off (OS from RAM issue) / Custom Filter Mid 705600 / -> USB3 (Silverstone both sides isolated = Sw#3 of NOS1a = Up) -> *Clairixa USB 15cm* -> Intona Isolator -> Clairixa USB 0.70m -> 24/768 Phasure NOS1a 75B (BNC Out) async USB DAC, Driver v1.0.4b (4ms) -> Blaxius BNC interlink ->> Metrum Amps ->> Metrum Acoustics ESL Open Baffle.
PeterSt
Administrator
High Grade Audiophile
*****
Offline Offline

Posts: 15223



View Profile Email
« Reply #24 on: October 02, 2012, 02:45:12 pm »

Wink
Logged

For the Stealth III LPS PC :
W10-14393.0 - August 18, 2018 (2.10)
XXHighEnd Mach *III* Stealth LPS PC -> *Xeon Scalable 14/28 core* with Hyperthreading On (*set to 10/20 cores*) @~660MHz, 48GB, Windows 10 Pro 64 bit build 14393.0 from RAM, music on LAN / Engine#4 Adaptive Mode / Q1/-/3/4/5 = 30/-/1/1/1/ Q1Factor = 10 / Dev.Buffer = 4096 / ClockRes = 15ms / Memory = Straight Contiguous / Include Garbage Collect / SFS = *140.19*  (max 140.19) / not Invert / Phase Alignment Off / Playerprio = Low / ThreadPrio = Realtime / Scheme = Core 3-5 / Not Switch Processors during Playback = Off/ Playback Drive none (see OS from RAM) / UnAttended (Just Start) / Always Copy to XX Drive (see OS from RAM) / Stop Desktop, Remaining, WASAPI and W10 services / Use Remote Desktop / Keep LAN - Not Persist / WallPaper On / OSD Off (!) / Running Time Off / Minimize OS / XTweaks : Balanced Load = *35* / Nervous Rate = 10 / Cool when Idle = n.a / Provide Stable Power = 0 / Utilize Cores always = 1 / Time Performance Index = Optimal / Time Stability = Stable / *Arc Prediction Filtering (16x)* / Always Clear Proxy before Playback = On -> USB3 from MoBo -> *Lush^2 A: B-W & Y-R, B: B-W* USB 1m00 -> Phisolator 24/768 Phasure NOS1a/G3 75B (BNC Out) async USB DAC, Driver v1.0.4b (16ms) -> B'ASS Current Amplifier -> Blaxius Interlink -> Orelo MKII Active Open Baffle Horn Speakers.
Removed Switching Supplies from everywhere (also from the PC).

For a general PC :
W10-10586.0 - May 2016 (2.05+)
*XXHighEnd PC -> I7 3930k with Hyperthreading On (12 cores)* @~500MHz, 16GB, Windows 10 Pro 64 bit build 10586.0 from RAM, music on LAN / Engine#4 Adaptive Mode / Q1/-/3/4/5 = 14/-/1/1/1 / Q1Factor = 1 / Dev.Buffer = 4096 / ClockRes = 1ms / Memory = Straight Contiguous / Include Garbage Collect / SFS = 0.10  (max 60) / not Invert / Phase Alignment Off / Playerprio = Low / ThreadPrio = Realtime / Scheme = Core 3-5 / Not Switch Processors during Playback = Off/ Playback Drive none (see OS from RAM) / UnAttended (Just Start) / Always Copy to XX Drive (see OS from RAM) / All Services Off / Keep LAN - Not Persist / WallPaper On / OSD On / Running Time Off / Minimize OS / XTweaks : Balanced Load = *43* / Nervous Rate = 1 / Cool when Idle = 1 / Provide Stable Power = 1 / Utilize Cores always = 1 / Time Performance Index = *Optimal* / Time Stability = *Stable* / Custom Filter *Low* 705600 / -> USB3 *from MoBo* -> Clairixa USB 15cm -> Intona Isolator -> Clairixa USB 1m80 -> 24/768 Phasure NOS1a 75B (BNC Out) async USB DAC, Driver v1.0.4b (4ms) -> Blaxius BNC interlink *-> B'ASS Current Amplifier /w Level4 -> Blaxius Interlink* -> Orelo MKII Active Open Baffle Horn Speakers.
Removed Switching Supplies from everywhere.

Global Moderator
PeterSt
Administrator
High Grade Audiophile
*****
Offline Offline

Posts: 15223



View Profile Email
« Reply #25 on: October 02, 2012, 02:46:59 pm »

Quote
Otherwise, maybe just use XXHighEnd first ? in that case, switch off Is NOS1 to mimic all properly.

And when you're sitting down tomorrow to post that your NOS1 is broken in some channel, think about this post.

Haha.
Logged

For the Stealth III LPS PC :
W10-14393.0 - August 18, 2018 (2.10)
XXHighEnd Mach *III* Stealth LPS PC -> *Xeon Scalable 14/28 core* with Hyperthreading On (*set to 10/20 cores*) @~660MHz, 48GB, Windows 10 Pro 64 bit build 14393.0 from RAM, music on LAN / Engine#4 Adaptive Mode / Q1/-/3/4/5 = 30/-/1/1/1/ Q1Factor = 10 / Dev.Buffer = 4096 / ClockRes = 15ms / Memory = Straight Contiguous / Include Garbage Collect / SFS = *140.19*  (max 140.19) / not Invert / Phase Alignment Off / Playerprio = Low / ThreadPrio = Realtime / Scheme = Core 3-5 / Not Switch Processors during Playback = Off/ Playback Drive none (see OS from RAM) / UnAttended (Just Start) / Always Copy to XX Drive (see OS from RAM) / Stop Desktop, Remaining, WASAPI and W10 services / Use Remote Desktop / Keep LAN - Not Persist / WallPaper On / OSD Off (!) / Running Time Off / Minimize OS / XTweaks : Balanced Load = *35* / Nervous Rate = 10 / Cool when Idle = n.a / Provide Stable Power = 0 / Utilize Cores always = 1 / Time Performance Index = Optimal / Time Stability = Stable / *Arc Prediction Filtering (16x)* / Always Clear Proxy before Playback = On -> USB3 from MoBo -> *Lush^2 A: B-W & Y-R, B: B-W* USB 1m00 -> Phisolator 24/768 Phasure NOS1a/G3 75B (BNC Out) async USB DAC, Driver v1.0.4b (16ms) -> B'ASS Current Amplifier -> Blaxius Interlink -> Orelo MKII Active Open Baffle Horn Speakers.
Removed Switching Supplies from everywhere (also from the PC).

For a general PC :
W10-10586.0 - May 2016 (2.05+)
*XXHighEnd PC -> I7 3930k with Hyperthreading On (12 cores)* @~500MHz, 16GB, Windows 10 Pro 64 bit build 10586.0 from RAM, music on LAN / Engine#4 Adaptive Mode / Q1/-/3/4/5 = 14/-/1/1/1 / Q1Factor = 1 / Dev.Buffer = 4096 / ClockRes = 1ms / Memory = Straight Contiguous / Include Garbage Collect / SFS = 0.10  (max 60) / not Invert / Phase Alignment Off / Playerprio = Low / ThreadPrio = Realtime / Scheme = Core 3-5 / Not Switch Processors during Playback = Off/ Playback Drive none (see OS from RAM) / UnAttended (Just Start) / Always Copy to XX Drive (see OS from RAM) / All Services Off / Keep LAN - Not Persist / WallPaper On / OSD On / Running Time Off / Minimize OS / XTweaks : Balanced Load = *43* / Nervous Rate = 1 / Cool when Idle = 1 / Provide Stable Power = 1 / Utilize Cores always = 1 / Time Performance Index = *Optimal* / Time Stability = *Stable* / Custom Filter *Low* 705600 / -> USB3 *from MoBo* -> Clairixa USB 15cm -> Intona Isolator -> Clairixa USB 1m80 -> 24/768 Phasure NOS1a 75B (BNC Out) async USB DAC, Driver v1.0.4b (4ms) -> Blaxius BNC interlink *-> B'ASS Current Amplifier /w Level4 -> Blaxius Interlink* -> Orelo MKII Active Open Baffle Horn Speakers.
Removed Switching Supplies from everywhere.

Global Moderator
manisandher
Crazy Audiophile
****
Offline Offline

Posts: 2037

from-first-principles.com


View Profile WWW Email
« Reply #26 on: October 02, 2012, 04:35:27 pm »

Thanks for the ideas guys.

Well, it's not an HQPlayer issue. I'm not getting any sound out of the NOS1 with XX either! Neither Engine#3 nor Engine#4! Again, everything seems to be working OK, the clock is counting and the slider is moving (in Attended, of course). But no sound out of the NOS1. Yes, there are two Engine#3 NOS1 devices and two Engine#4 NOS1 devices. Non give any sound out of the NOS1.

Peter have I got the latest USB driver? It says:
- driver version: 1.0.1
- build type: release
- interface version: 2.0

(But you sent it to me ages ago as v1.0.2.)

I could load the Mytek driver and see if I can get some sound out of the Mytek DAC, but I'd rather get the NOS1 working properly first.

Mani.
Logged

Audio PC: Phasure Mach II *with clock upgrade* / Win 14393.0 on RAM-OS / controlled by RDC, no GPU card installed / connected directly to music server
XXHighEnd: 2.10 / Minimize OS / Engine#4 Adaptive / DB=4096 / *trying*: Q1=30 / xQ1=40 / Q3,4,5=1 / SFS=5.19 / XTweaks = 52, 10, 0, 0, 1 / Straight Contiguous / Clock Resolution = 15ms / Scheme 3-5 (low/realtime) / 8x Arc Prediction (switch #5 'up/off') / Unattended
Main System: mobo USB3 port -> Lush -> Phasure NOS1a B75 G3 -> First Watt F5-cloned mono amps -> Tune Audio Anima horn speakers
Office System: Lush -> Phasure NOS1a G3 -> BD-Design BD30-SPR mono amps -> Tune Audio Marvel horn speakers
manisandher
Crazy Audiophile
****
Offline Offline

Posts: 2037

from-first-principles.com


View Profile WWW Email
« Reply #27 on: October 02, 2012, 04:58:06 pm »

OK, it's nothing to do with the NOS1 either. I'm getting the exact same behaviour with the mobo soundcard.

Will continue experimenting...

Mani.
Logged

Audio PC: Phasure Mach II *with clock upgrade* / Win 14393.0 on RAM-OS / controlled by RDC, no GPU card installed / connected directly to music server
XXHighEnd: 2.10 / Minimize OS / Engine#4 Adaptive / DB=4096 / *trying*: Q1=30 / xQ1=40 / Q3,4,5=1 / SFS=5.19 / XTweaks = 52, 10, 0, 0, 1 / Straight Contiguous / Clock Resolution = 15ms / Scheme 3-5 (low/realtime) / 8x Arc Prediction (switch #5 'up/off') / Unattended
Main System: mobo USB3 port -> Lush -> Phasure NOS1a B75 G3 -> First Watt F5-cloned mono amps -> Tune Audio Anima horn speakers
Office System: Lush -> Phasure NOS1a G3 -> BD-Design BD30-SPR mono amps -> Tune Audio Marvel horn speakers
PeterSt
Administrator
High Grade Audiophile
*****
Offline Offline

Posts: 15223



View Profile Email
« Reply #28 on: October 02, 2012, 05:06:19 pm »

Quote
I'm not getting any sound out of the NOS1 with XX either!

Ah, good. That is one day earlier than I expected.
wacko
Logged

For the Stealth III LPS PC :
W10-14393.0 - August 18, 2018 (2.10)
XXHighEnd Mach *III* Stealth LPS PC -> *Xeon Scalable 14/28 core* with Hyperthreading On (*set to 10/20 cores*) @~660MHz, 48GB, Windows 10 Pro 64 bit build 14393.0 from RAM, music on LAN / Engine#4 Adaptive Mode / Q1/-/3/4/5 = 30/-/1/1/1/ Q1Factor = 10 / Dev.Buffer = 4096 / ClockRes = 15ms / Memory = Straight Contiguous / Include Garbage Collect / SFS = *140.19*  (max 140.19) / not Invert / Phase Alignment Off / Playerprio = Low / ThreadPrio = Realtime / Scheme = Core 3-5 / Not Switch Processors during Playback = Off/ Playback Drive none (see OS from RAM) / UnAttended (Just Start) / Always Copy to XX Drive (see OS from RAM) / Stop Desktop, Remaining, WASAPI and W10 services / Use Remote Desktop / Keep LAN - Not Persist / WallPaper On / OSD Off (!) / Running Time Off / Minimize OS / XTweaks : Balanced Load = *35* / Nervous Rate = 10 / Cool when Idle = n.a / Provide Stable Power = 0 / Utilize Cores always = 1 / Time Performance Index = Optimal / Time Stability = Stable / *Arc Prediction Filtering (16x)* / Always Clear Proxy before Playback = On -> USB3 from MoBo -> *Lush^2 A: B-W & Y-R, B: B-W* USB 1m00 -> Phisolator 24/768 Phasure NOS1a/G3 75B (BNC Out) async USB DAC, Driver v1.0.4b (16ms) -> B'ASS Current Amplifier -> Blaxius Interlink -> Orelo MKII Active Open Baffle Horn Speakers.
Removed Switching Supplies from everywhere (also from the PC).

For a general PC :
W10-10586.0 - May 2016 (2.05+)
*XXHighEnd PC -> I7 3930k with Hyperthreading On (12 cores)* @~500MHz, 16GB, Windows 10 Pro 64 bit build 10586.0 from RAM, music on LAN / Engine#4 Adaptive Mode / Q1/-/3/4/5 = 14/-/1/1/1 / Q1Factor = 1 / Dev.Buffer = 4096 / ClockRes = 1ms / Memory = Straight Contiguous / Include Garbage Collect / SFS = 0.10  (max 60) / not Invert / Phase Alignment Off / Playerprio = Low / ThreadPrio = Realtime / Scheme = Core 3-5 / Not Switch Processors during Playback = Off/ Playback Drive none (see OS from RAM) / UnAttended (Just Start) / Always Copy to XX Drive (see OS from RAM) / All Services Off / Keep LAN - Not Persist / WallPaper On / OSD On / Running Time Off / Minimize OS / XTweaks : Balanced Load = *43* / Nervous Rate = 1 / Cool when Idle = 1 / Provide Stable Power = 1 / Utilize Cores always = 1 / Time Performance Index = *Optimal* / Time Stability = *Stable* / Custom Filter *Low* 705600 / -> USB3 *from MoBo* -> Clairixa USB 15cm -> Intona Isolator -> Clairixa USB 1m80 -> 24/768 Phasure NOS1a 75B (BNC Out) async USB DAC, Driver v1.0.4b (4ms) -> Blaxius BNC interlink *-> B'ASS Current Amplifier /w Level4 -> Blaxius Interlink* -> Orelo MKII Active Open Baffle Horn Speakers.
Removed Switching Supplies from everywhere.

Global Moderator
boleary
Crazy Audiophile
****
Offline Offline

Posts: 1231


View Profile Email
« Reply #29 on: October 02, 2012, 05:36:13 pm »

Hey Mani where is your Windows volume? Turn it up if you are not in minimized mode.
Logged

XX2.07/MB: ASRock Extreme 4M , i7-3930K @ 0.5GHz/ RAM-OS W10586/32 Gigs 1600 DDR3/ Clarixa usb cable  /Q1,3,4,5 = *14*/1/1/*1* / *Q1Factor = 1* / Peak Extension: Off/Dev.Buffer = 4096 / ClockRes = *.5ms* / Straight Contiguous / SFS = *.02,/ Do Nothing With Cover Art / not Invert / *(Phase Alignment Off  / Playerprio = Low / ThreadPrio = Real Time / Scheme = 3-5 / UnAttended (Just Start) / *All* Services Off except LAN & RDC/ Persist off/No OSD / No Running Time / Minimize OS / Boost on/XTweaks : Balanced Load = *40* / Nervous Rate = 1/ Cool when Idle = NA / Provide Stable Power = 0 / Utilize Cores always = 1 / Time Performance Index = Best/ Time Stability = On/ No Up-sampling/R-2R DAC
