Author Topic: Cannot restart WASAPI Services  (Read 14366 times)
0 Members and 0 Guests are viewing this topic.
manisandher
Crazy Audiophile
****
Offline Offline

Posts: 2037

from-first-principles.com


View Profile WWW Email
« on: September 19, 2012, 10:54:12 am »

Here's my understanding. If 'Stop WASAPI Services' is engaged in the Settings Area, then there will be no WASAPI services available during 'Minimize OS' mode... However, these WASAPI services should restart when XX takes the OS back to normal.

But WASAPI services do not come back in normal OS mode.

Why am I even bothered about this when KS is clearly superior. Well, I'd like to try feeding the NOS1 from HQPlayer. In order to do this, I need WASAPI services.

Am I doing something wrong or is there a bug in XX?

Mani.


* Services & OSD.JPG (27.33 KB, 428x289 - viewed 557 times.)
Logged

Audio PC: Phasure Mach II *with clock upgrade* / Win 14393.0 on RAM-OS / controlled by RDC, no GPU card installed / connected directly to music server
XXHighEnd: 2.10 / Minimize OS / Engine#4 Adaptive / DB=4096 / *trying*: Q1=30 / xQ1=40 / Q3,4,5=1 / SFS=5.19 / XTweaks = 52, 10, 0, 0, 1 / Straight Contiguous / Clock Resolution = 15ms / Scheme 3-5 (low/realtime) / 8x Arc Prediction (switch #5 'up/off') / Unattended
Main System: mobo USB3 port -> Lush -> Phasure NOS1a B75 G3 -> First Watt F5-cloned mono amps -> Tune Audio Anima horn speakers
Office System: Lush -> Phasure NOS1a G3 -> BD-Design BD30-SPR mono amps -> Tune Audio Marvel horn speakers
manisandher
Crazy Audiophile
****
Offline Offline

Posts: 2037

from-first-principles.com


View Profile WWW Email
« Reply #1 on: September 19, 2012, 11:21:33 am »

CORRECTION:

I'm not sure if it's the WASAPI services themselves cannot be restarted or if it's just the NOS1 that cannot be used in WASAPI mode.

I currently don't have any other audio devices active in my 'new' 3770K PC. I'll activate the onboard audio device and see if I can use it in WASAPI mode.

Mani.
Logged

Audio PC: Phasure Mach II *with clock upgrade* / Win 14393.0 on RAM-OS / controlled by RDC, no GPU card installed / connected directly to music server
XXHighEnd: 2.10 / Minimize OS / Engine#4 Adaptive / DB=4096 / *trying*: Q1=30 / xQ1=40 / Q3,4,5=1 / SFS=5.19 / XTweaks = 52, 10, 0, 0, 1 / Straight Contiguous / Clock Resolution = 15ms / Scheme 3-5 (low/realtime) / 8x Arc Prediction (switch #5 'up/off') / Unattended
Main System: mobo USB3 port -> Lush -> Phasure NOS1a B75 G3 -> First Watt F5-cloned mono amps -> Tune Audio Anima horn speakers
Office System: Lush -> Phasure NOS1a G3 -> BD-Design BD30-SPR mono amps -> Tune Audio Marvel horn speakers
PeterSt
Administrator
High Grade Audiophile
*****
Offline Offline

Posts: 15223



View Profile Email
« Reply #2 on: September 19, 2012, 11:30:32 am »

Mani,

Shouldn't be related to the NOS1 ...

Just to be sure, this is the procedure to activate it :

a. You start out with all disabled in Minimized OS.
b. Reboot into normal;
c. Activate WASAPI;
d. Reboot into Minimized.

Then it should work.
If you, for instance, put c. in between a. and b., something which I needed often because otherwise I might forget it after b. - things may go wrong and I exactly never dared to try that.

More examples were reported of things going strange here, and I think it was Paul who for the life of him never was able to shut OFF WASAPI anymore. Until a fresh OS install.

HTH ...
Peter

Logged

For the Stealth III LPS PC :
W10-14393.0 - August 18, 2018 (2.10)
XXHighEnd Mach *III* Stealth LPS PC -> *Xeon Scalable 14/28 core* with Hyperthreading On (*set to 10/20 cores*) @~660MHz, 48GB, Windows 10 Pro 64 bit build 14393.0 from RAM, music on LAN / Engine#4 Adaptive Mode / Q1/-/3/4/5 = 30/-/1/1/1/ Q1Factor = 10 / Dev.Buffer = 4096 / ClockRes = 15ms / Memory = Straight Contiguous / Include Garbage Collect / SFS = *140.19*  (max 140.19) / not Invert / Phase Alignment Off / Playerprio = Low / ThreadPrio = Realtime / Scheme = Core 3-5 / Not Switch Processors during Playback = Off/ Playback Drive none (see OS from RAM) / UnAttended (Just Start) / Always Copy to XX Drive (see OS from RAM) / Stop Desktop, Remaining, WASAPI and W10 services / Use Remote Desktop / Keep LAN - Not Persist / WallPaper On / OSD Off (!) / Running Time Off / Minimize OS / XTweaks : Balanced Load = *35* / Nervous Rate = 10 / Cool when Idle = n.a / Provide Stable Power = 0 / Utilize Cores always = 1 / Time Performance Index = Optimal / Time Stability = Stable / *Arc Prediction Filtering (16x)* / Always Clear Proxy before Playback = On -> USB3 from MoBo -> *Lush^2 A: B-W & Y-R, B: B-W* USB 1m00 -> Phisolator 24/768 Phasure NOS1a/G3 75B (BNC Out) async USB DAC, Driver v1.0.4b (16ms) -> B'ASS Current Amplifier -> Blaxius Interlink -> Orelo MKII Active Open Baffle Horn Speakers.
Removed Switching Supplies from everywhere (also from the PC).

For a general PC :
W10-10586.0 - May 2016 (2.05+)
*XXHighEnd PC -> I7 3930k with Hyperthreading On (12 cores)* @~500MHz, 16GB, Windows 10 Pro 64 bit build 10586.0 from RAM, music on LAN / Engine#4 Adaptive Mode / Q1/-/3/4/5 = 14/-/1/1/1 / Q1Factor = 1 / Dev.Buffer = 4096 / ClockRes = 1ms / Memory = Straight Contiguous / Include Garbage Collect / SFS = 0.10  (max 60) / not Invert / Phase Alignment Off / Playerprio = Low / ThreadPrio = Realtime / Scheme = Core 3-5 / Not Switch Processors during Playback = Off/ Playback Drive none (see OS from RAM) / UnAttended (Just Start) / Always Copy to XX Drive (see OS from RAM) / All Services Off / Keep LAN - Not Persist / WallPaper On / OSD On / Running Time Off / Minimize OS / XTweaks : Balanced Load = *43* / Nervous Rate = 1 / Cool when Idle = 1 / Provide Stable Power = 1 / Utilize Cores always = 1 / Time Performance Index = *Optimal* / Time Stability = *Stable* / Custom Filter *Low* 705600 / -> USB3 *from MoBo* -> Clairixa USB 15cm -> Intona Isolator -> Clairixa USB 1m80 -> 24/768 Phasure NOS1a 75B (BNC Out) async USB DAC, Driver v1.0.4b (4ms) -> Blaxius BNC interlink *-> B'ASS Current Amplifier /w Level4 -> Blaxius Interlink* -> Orelo MKII Active Open Baffle Horn Speakers.
Removed Switching Supplies from everywhere.

Global Moderator
manisandher
Crazy Audiophile
****
Offline Offline

Posts: 2037

from-first-principles.com


View Profile WWW Email
« Reply #3 on: September 19, 2012, 03:27:40 pm »

Right, WASAPI services work in Minimize OS mode no problem. But neither W7 nor HQPlayer recognize the NOS1 as a WASAPI device. XX recognizes the NOS1 OK, but only as a KS device, not a WASAPI device.

Am I being really thick somewhere?

Mani.

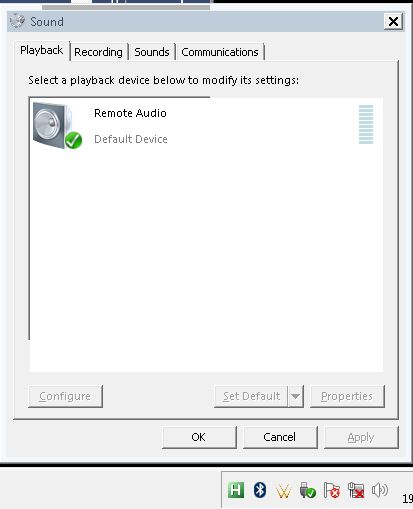

* NOS1 not showing in Manage Audio Devices.JPG (31.24 KB, 413x509 - viewed 532 times.)

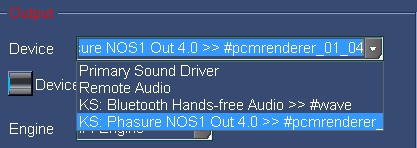

* NOS1 not showing as WASAPI device in XX.jpg (27.28 KB, 417x148 - viewed 457 times.)
Logged

Audio PC: Phasure Mach II *with clock upgrade* / Win 14393.0 on RAM-OS / controlled by RDC, no GPU card installed / connected directly to music server
XXHighEnd: 2.10 / Minimize OS / Engine#4 Adaptive / DB=4096 / *trying*: Q1=30 / xQ1=40 / Q3,4,5=1 / SFS=5.19 / XTweaks = 52, 10, 0, 0, 1 / Straight Contiguous / Clock Resolution = 15ms / Scheme 3-5 (low/realtime) / 8x Arc Prediction (switch #5 'up/off') / Unattended
Main System: mobo USB3 port -> Lush -> Phasure NOS1a B75 G3 -> First Watt F5-cloned mono amps -> Tune Audio Anima horn speakers
Office System: Lush -> Phasure NOS1a G3 -> BD-Design BD30-SPR mono amps -> Tune Audio Marvel horn speakers
PeterSt
Administrator
High Grade Audiophile
*****
Offline Offline

Posts: 15223



View Profile Email
« Reply #4 on: September 19, 2012, 04:15:40 pm »

Theoretically you can have disabled it while "Show disabled devices" (similar) is not ticked ...
Logged

For the Stealth III LPS PC :
W10-14393.0 - August 18, 2018 (2.10)
XXHighEnd Mach *III* Stealth LPS PC -> *Xeon Scalable 14/28 core* with Hyperthreading On (*set to 10/20 cores*) @~660MHz, 48GB, Windows 10 Pro 64 bit build 14393.0 from RAM, music on LAN / Engine#4 Adaptive Mode / Q1/-/3/4/5 = 30/-/1/1/1/ Q1Factor = 10 / Dev.Buffer = 4096 / ClockRes = 15ms / Memory = Straight Contiguous / Include Garbage Collect / SFS = *140.19*  (max 140.19) / not Invert / Phase Alignment Off / Playerprio = Low / ThreadPrio = Realtime / Scheme = Core 3-5 / Not Switch Processors during Playback = Off/ Playback Drive none (see OS from RAM) / UnAttended (Just Start) / Always Copy to XX Drive (see OS from RAM) / Stop Desktop, Remaining, WASAPI and W10 services / Use Remote Desktop / Keep LAN - Not Persist / WallPaper On / OSD Off (!) / Running Time Off / Minimize OS / XTweaks : Balanced Load = *35* / Nervous Rate = 10 / Cool when Idle = n.a / Provide Stable Power = 0 / Utilize Cores always = 1 / Time Performance Index = Optimal / Time Stability = Stable / *Arc Prediction Filtering (16x)* / Always Clear Proxy before Playback = On -> USB3 from MoBo -> *Lush^2 A: B-W & Y-R, B: B-W* USB 1m00 -> Phisolator 24/768 Phasure NOS1a/G3 75B (BNC Out) async USB DAC, Driver v1.0.4b (16ms) -> B'ASS Current Amplifier -> Blaxius Interlink -> Orelo MKII Active Open Baffle Horn Speakers.
Removed Switching Supplies from everywhere (also from the PC).

For a general PC :
W10-10586.0 - May 2016 (2.05+)
*XXHighEnd PC -> I7 3930k with Hyperthreading On (12 cores)* @~500MHz, 16GB, Windows 10 Pro 64 bit build 10586.0 from RAM, music on LAN / Engine#4 Adaptive Mode / Q1/-/3/4/5 = 14/-/1/1/1 / Q1Factor = 1 / Dev.Buffer = 4096 / ClockRes = 1ms / Memory = Straight Contiguous / Include Garbage Collect / SFS = 0.10  (max 60) / not Invert / Phase Alignment Off / Playerprio = Low / ThreadPrio = Realtime / Scheme = Core 3-5 / Not Switch Processors during Playback = Off/ Playback Drive none (see OS from RAM) / UnAttended (Just Start) / Always Copy to XX Drive (see OS from RAM) / All Services Off / Keep LAN - Not Persist / WallPaper On / OSD On / Running Time Off / Minimize OS / XTweaks : Balanced Load = *43* / Nervous Rate = 1 / Cool when Idle = 1 / Provide Stable Power = 1 / Utilize Cores always = 1 / Time Performance Index = *Optimal* / Time Stability = *Stable* / Custom Filter *Low* 705600 / -> USB3 *from MoBo* -> Clairixa USB 15cm -> Intona Isolator -> Clairixa USB 1m80 -> 24/768 Phasure NOS1a 75B (BNC Out) async USB DAC, Driver v1.0.4b (4ms) -> Blaxius BNC interlink *-> B'ASS Current Amplifier /w Level4 -> Blaxius Interlink* -> Orelo MKII Active Open Baffle Horn Speakers.
Removed Switching Supplies from everywhere.

Global Moderator
manisandher
Crazy Audiophile
****
Offline Offline

Posts: 2037

from-first-principles.com


View Profile WWW Email
« Reply #5 on: September 19, 2012, 05:27:08 pm »

Sorry Peter, where is 'Show disabled devices'?

Mani.
Logged

Audio PC: Phasure Mach II *with clock upgrade* / Win 14393.0 on RAM-OS / controlled by RDC, no GPU card installed / connected directly to music server
XXHighEnd: 2.10 / Minimize OS / Engine#4 Adaptive / DB=4096 / *trying*: Q1=30 / xQ1=40 / Q3,4,5=1 / SFS=5.19 / XTweaks = 52, 10, 0, 0, 1 / Straight Contiguous / Clock Resolution = 15ms / Scheme 3-5 (low/realtime) / 8x Arc Prediction (switch #5 'up/off') / Unattended
Main System: mobo USB3 port -> Lush -> Phasure NOS1a B75 G3 -> First Watt F5-cloned mono amps -> Tune Audio Anima horn speakers
Office System: Lush -> Phasure NOS1a G3 -> BD-Design BD30-SPR mono amps -> Tune Audio Marvel horn speakers
PeterSt
Administrator
High Grade Audiophile
*****
Offline Offline

Posts: 15223



View Profile Email
« Reply #6 on: September 19, 2012, 05:56:12 pm »

Yea, a bit strange if you don't know;
Rightclick on one of the devices and then the menu is there.

Btw, I now wonder what happens when all are disabled and this option is not On. Then there is no device to select ...
Ha, I'm not the only one implying a bug here or there.

But what I now also see accidentally, is that my own WDM NOS1 device (WASAPI) is disabled. Did *I* do that ??
I wonder.

Peter

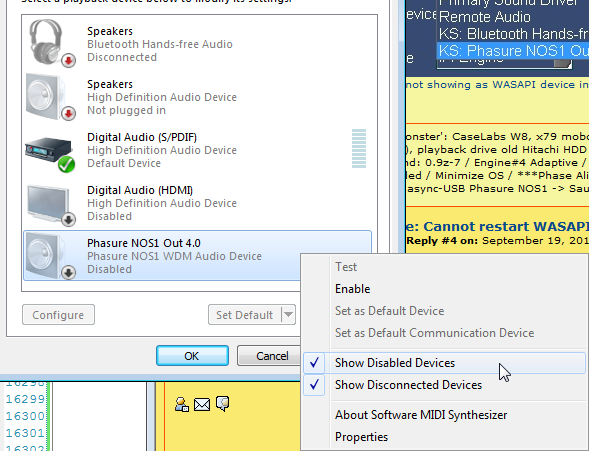

* Mani01.png (77.65 KB, 589x451 - viewed 522 times.)
Logged

For the Stealth III LPS PC :
W10-14393.0 - August 18, 2018 (2.10)
XXHighEnd Mach *III* Stealth LPS PC -> *Xeon Scalable 14/28 core* with Hyperthreading On (*set to 10/20 cores*) @~660MHz, 48GB, Windows 10 Pro 64 bit build 14393.0 from RAM, music on LAN / Engine#4 Adaptive Mode / Q1/-/3/4/5 = 30/-/1/1/1/ Q1Factor = 10 / Dev.Buffer = 4096 / ClockRes = 15ms / Memory = Straight Contiguous / Include Garbage Collect / SFS = *140.19*  (max 140.19) / not Invert / Phase Alignment Off / Playerprio = Low / ThreadPrio = Realtime / Scheme = Core 3-5 / Not Switch Processors during Playback = Off/ Playback Drive none (see OS from RAM) / UnAttended (Just Start) / Always Copy to XX Drive (see OS from RAM) / Stop Desktop, Remaining, WASAPI and W10 services / Use Remote Desktop / Keep LAN - Not Persist / WallPaper On / OSD Off (!) / Running Time Off / Minimize OS / XTweaks : Balanced Load = *35* / Nervous Rate = 10 / Cool when Idle = n.a / Provide Stable Power = 0 / Utilize Cores always = 1 / Time Performance Index = Optimal / Time Stability = Stable / *Arc Prediction Filtering (16x)* / Always Clear Proxy before Playback = On -> USB3 from MoBo -> *Lush^2 A: B-W & Y-R, B: B-W* USB 1m00 -> Phisolator 24/768 Phasure NOS1a/G3 75B (BNC Out) async USB DAC, Driver v1.0.4b (16ms) -> B'ASS Current Amplifier -> Blaxius Interlink -> Orelo MKII Active Open Baffle Horn Speakers.
Removed Switching Supplies from everywhere (also from the PC).

For a general PC :
W10-10586.0 - May 2016 (2.05+)
*XXHighEnd PC -> I7 3930k with Hyperthreading On (12 cores)* @~500MHz, 16GB, Windows 10 Pro 64 bit build 10586.0 from RAM, music on LAN / Engine#4 Adaptive Mode / Q1/-/3/4/5 = 14/-/1/1/1 / Q1Factor = 1 / Dev.Buffer = 4096 / ClockRes = 1ms / Memory = Straight Contiguous / Include Garbage Collect / SFS = 0.10  (max 60) / not Invert / Phase Alignment Off / Playerprio = Low / ThreadPrio = Realtime / Scheme = Core 3-5 / Not Switch Processors during Playback = Off/ Playback Drive none (see OS from RAM) / UnAttended (Just Start) / Always Copy to XX Drive (see OS from RAM) / All Services Off / Keep LAN - Not Persist / WallPaper On / OSD On / Running Time Off / Minimize OS / XTweaks : Balanced Load = *43* / Nervous Rate = 1 / Cool when Idle = 1 / Provide Stable Power = 1 / Utilize Cores always = 1 / Time Performance Index = *Optimal* / Time Stability = *Stable* / Custom Filter *Low* 705600 / -> USB3 *from MoBo* -> Clairixa USB 15cm -> Intona Isolator -> Clairixa USB 1m80 -> 24/768 Phasure NOS1a 75B (BNC Out) async USB DAC, Driver v1.0.4b (4ms) -> Blaxius BNC interlink *-> B'ASS Current Amplifier /w Level4 -> Blaxius Interlink* -> Orelo MKII Active Open Baffle Horn Speakers.
Removed Switching Supplies from everywhere.

Global Moderator
manisandher
Crazy Audiophile
****
Offline Offline

Posts: 2037

from-first-principles.com


View Profile WWW Email
« Reply #7 on: September 19, 2012, 06:24:01 pm »

OK thanks.

But it still doesn't find the NOS1. I think I may have set something in the BIOS that is stopping audio devices being detected. I'll explore when I have more time.

Mani.

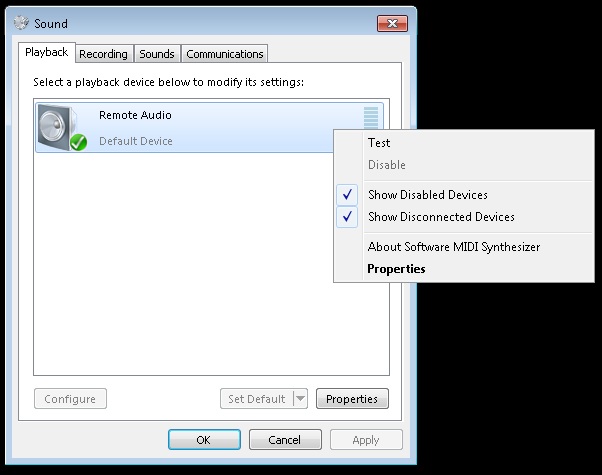

* Show disabled devices.jpg (52.49 KB, 602x475 - viewed 513 times.)
Logged

Audio PC: Phasure Mach II *with clock upgrade* / Win 14393.0 on RAM-OS / controlled by RDC, no GPU card installed / connected directly to music server
XXHighEnd: 2.10 / Minimize OS / Engine#4 Adaptive / DB=4096 / *trying*: Q1=30 / xQ1=40 / Q3,4,5=1 / SFS=5.19 / XTweaks = 52, 10, 0, 0, 1 / Straight Contiguous / Clock Resolution = 15ms / Scheme 3-5 (low/realtime) / 8x Arc Prediction (switch #5 'up/off') / Unattended
Main System: mobo USB3 port -> Lush -> Phasure NOS1a B75 G3 -> First Watt F5-cloned mono amps -> Tune Audio Anima horn speakers
Office System: Lush -> Phasure NOS1a G3 -> BD-Design BD30-SPR mono amps -> Tune Audio Marvel horn speakers
PeterSt
Administrator
High Grade Audiophile
*****
Offline Offline

Posts: 15223



View Profile Email
« Reply #8 on: September 19, 2012, 06:39:13 pm »

Or uninstall the NOS1 driver and reinstall it ?

Maybe one other thing which springs to my mind :
The driver sure lets itself install in Minimized OS Mode. But I now wonder what can happen when you plug it into an USB port while in Minimized Mode (it will install the driver for that port when not used before !!) while you next go to Normal Mode. Nah, I'm thinking too wild now ...
Logged

For the Stealth III LPS PC :
W10-14393.0 - August 18, 2018 (2.10)
XXHighEnd Mach *III* Stealth LPS PC -> *Xeon Scalable 14/28 core* with Hyperthreading On (*set to 10/20 cores*) @~660MHz, 48GB, Windows 10 Pro 64 bit build 14393.0 from RAM, music on LAN / Engine#4 Adaptive Mode / Q1/-/3/4/5 = 30/-/1/1/1/ Q1Factor = 10 / Dev.Buffer = 4096 / ClockRes = 15ms / Memory = Straight Contiguous / Include Garbage Collect / SFS = *140.19*  (max 140.19) / not Invert / Phase Alignment Off / Playerprio = Low / ThreadPrio = Realtime / Scheme = Core 3-5 / Not Switch Processors during Playback = Off/ Playback Drive none (see OS from RAM) / UnAttended (Just Start) / Always Copy to XX Drive (see OS from RAM) / Stop Desktop, Remaining, WASAPI and W10 services / Use Remote Desktop / Keep LAN - Not Persist / WallPaper On / OSD Off (!) / Running Time Off / Minimize OS / XTweaks : Balanced Load = *35* / Nervous Rate = 10 / Cool when Idle = n.a / Provide Stable Power = 0 / Utilize Cores always = 1 / Time Performance Index = Optimal / Time Stability = Stable / *Arc Prediction Filtering (16x)* / Always Clear Proxy before Playback = On -> USB3 from MoBo -> *Lush^2 A: B-W & Y-R, B: B-W* USB 1m00 -> Phisolator 24/768 Phasure NOS1a/G3 75B (BNC Out) async USB DAC, Driver v1.0.4b (16ms) -> B'ASS Current Amplifier -> Blaxius Interlink -> Orelo MKII Active Open Baffle Horn Speakers.
Removed Switching Supplies from everywhere (also from the PC).

For a general PC :
W10-10586.0 - May 2016 (2.05+)
*XXHighEnd PC -> I7 3930k with Hyperthreading On (12 cores)* @~500MHz, 16GB, Windows 10 Pro 64 bit build 10586.0 from RAM, music on LAN / Engine#4 Adaptive Mode / Q1/-/3/4/5 = 14/-/1/1/1 / Q1Factor = 1 / Dev.Buffer = 4096 / ClockRes = 1ms / Memory = Straight Contiguous / Include Garbage Collect / SFS = 0.10  (max 60) / not Invert / Phase Alignment Off / Playerprio = Low / ThreadPrio = Realtime / Scheme = Core 3-5 / Not Switch Processors during Playback = Off/ Playback Drive none (see OS from RAM) / UnAttended (Just Start) / Always Copy to XX Drive (see OS from RAM) / All Services Off / Keep LAN - Not Persist / WallPaper On / OSD On / Running Time Off / Minimize OS / XTweaks : Balanced Load = *43* / Nervous Rate = 1 / Cool when Idle = 1 / Provide Stable Power = 1 / Utilize Cores always = 1 / Time Performance Index = *Optimal* / Time Stability = *Stable* / Custom Filter *Low* 705600 / -> USB3 *from MoBo* -> Clairixa USB 15cm -> Intona Isolator -> Clairixa USB 1m80 -> 24/768 Phasure NOS1a 75B (BNC Out) async USB DAC, Driver v1.0.4b (4ms) -> Blaxius BNC interlink *-> B'ASS Current Amplifier /w Level4 -> Blaxius Interlink* -> Orelo MKII Active Open Baffle Horn Speakers.
Removed Switching Supplies from everywhere.

Global Moderator
manisandher
Crazy Audiophile
****
Offline Offline

Posts: 2037

from-first-principles.com


View Profile WWW Email
« Reply #9 on: September 19, 2012, 06:45:45 pm »

Well maybe this sheds some light on the situation. The audio devices are there, but are not being detected by WASAPI?

Mani.

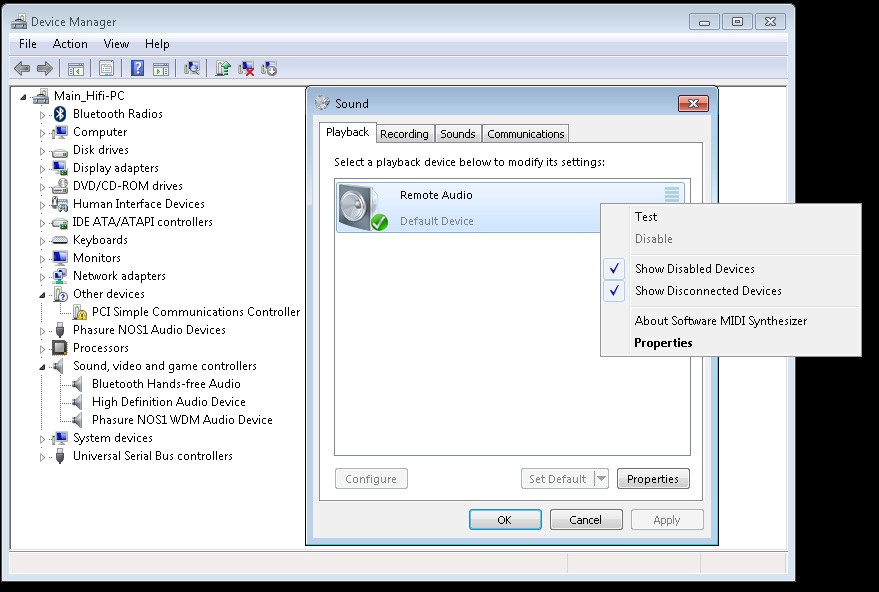

* Audio devices are there.jpg (125.65 KB, 879x592 - viewed 524 times.)
Logged

Audio PC: Phasure Mach II *with clock upgrade* / Win 14393.0 on RAM-OS / controlled by RDC, no GPU card installed / connected directly to music server
XXHighEnd: 2.10 / Minimize OS / Engine#4 Adaptive / DB=4096 / *trying*: Q1=30 / xQ1=40 / Q3,4,5=1 / SFS=5.19 / XTweaks = 52, 10, 0, 0, 1 / Straight Contiguous / Clock Resolution = 15ms / Scheme 3-5 (low/realtime) / 8x Arc Prediction (switch #5 'up/off') / Unattended
Main System: mobo USB3 port -> Lush -> Phasure NOS1a B75 G3 -> First Watt F5-cloned mono amps -> Tune Audio Anima horn speakers
Office System: Lush -> Phasure NOS1a G3 -> BD-Design BD30-SPR mono amps -> Tune Audio Marvel horn speakers
PeterSt
Administrator
High Grade Audiophile
*****
Offline Offline

Posts: 15223



View Profile Email
« Reply #10 on: September 20, 2012, 08:35:46 am »

Quote
Right, WASAPI services work in Minimize OS mode no problem.

Too simple to provide the solution, but still an attempt :
If you boot into normal and next switch Off only the Desktop Services, reboot into Minimized ... does it work then ? If Yes, then reboot into normal, switch Off the other stuff (but not WASAPI) and retry.
Seems dumb, but it could "reset" things this way.

Please notice that oficially this just works (I use it all the time myself at watching movies).

Peter
Logged

For the Stealth III LPS PC :
W10-14393.0 - August 18, 2018 (2.10)
XXHighEnd Mach *III* Stealth LPS PC -> *Xeon Scalable 14/28 core* with Hyperthreading On (*set to 10/20 cores*) @~660MHz, 48GB, Windows 10 Pro 64 bit build 14393.0 from RAM, music on LAN / Engine#4 Adaptive Mode / Q1/-/3/4/5 = 30/-/1/1/1/ Q1Factor = 10 / Dev.Buffer = 4096 / ClockRes = 15ms / Memory = Straight Contiguous / Include Garbage Collect / SFS = *140.19*  (max 140.19) / not Invert / Phase Alignment Off / Playerprio = Low / ThreadPrio = Realtime / Scheme = Core 3-5 / Not Switch Processors during Playback = Off/ Playback Drive none (see OS from RAM) / UnAttended (Just Start) / Always Copy to XX Drive (see OS from RAM) / Stop Desktop, Remaining, WASAPI and W10 services / Use Remote Desktop / Keep LAN - Not Persist / WallPaper On / OSD Off (!) / Running Time Off / Minimize OS / XTweaks : Balanced Load = *35* / Nervous Rate = 10 / Cool when Idle = n.a / Provide Stable Power = 0 / Utilize Cores always = 1 / Time Performance Index = Optimal / Time Stability = Stable / *Arc Prediction Filtering (16x)* / Always Clear Proxy before Playback = On -> USB3 from MoBo -> *Lush^2 A: B-W & Y-R, B: B-W* USB 1m00 -> Phisolator 24/768 Phasure NOS1a/G3 75B (BNC Out) async USB DAC, Driver v1.0.4b (16ms) -> B'ASS Current Amplifier -> Blaxius Interlink -> Orelo MKII Active Open Baffle Horn Speakers.
Removed Switching Supplies from everywhere (also from the PC).

For a general PC :
W10-10586.0 - May 2016 (2.05+)
*XXHighEnd PC -> I7 3930k with Hyperthreading On (12 cores)* @~500MHz, 16GB, Windows 10 Pro 64 bit build 10586.0 from RAM, music on LAN / Engine#4 Adaptive Mode / Q1/-/3/4/5 = 14/-/1/1/1 / Q1Factor = 1 / Dev.Buffer = 4096 / ClockRes = 1ms / Memory = Straight Contiguous / Include Garbage Collect / SFS = 0.10  (max 60) / not Invert / Phase Alignment Off / Playerprio = Low / ThreadPrio = Realtime / Scheme = Core 3-5 / Not Switch Processors during Playback = Off/ Playback Drive none (see OS from RAM) / UnAttended (Just Start) / Always Copy to XX Drive (see OS from RAM) / All Services Off / Keep LAN - Not Persist / WallPaper On / OSD On / Running Time Off / Minimize OS / XTweaks : Balanced Load = *43* / Nervous Rate = 1 / Cool when Idle = 1 / Provide Stable Power = 1 / Utilize Cores always = 1 / Time Performance Index = *Optimal* / Time Stability = *Stable* / Custom Filter *Low* 705600 / -> USB3 *from MoBo* -> Clairixa USB 15cm -> Intona Isolator -> Clairixa USB 1m80 -> 24/768 Phasure NOS1a 75B (BNC Out) async USB DAC, Driver v1.0.4b (4ms) -> Blaxius BNC interlink *-> B'ASS Current Amplifier /w Level4 -> Blaxius Interlink* -> Orelo MKII Active Open Baffle Horn Speakers.
Removed Switching Supplies from everywhere.

Global Moderator
manisandher
Crazy Audiophile
****
Offline Offline

Posts: 2037

from-first-principles.com


View Profile WWW Email
« Reply #11 on: October 01, 2012, 06:38:47 pm »

Hi Peter, just tried your suggestion and unfortunately it doesn't work.

I still can't see the NOS1 as a WASAPI device either in W7's 'Manage Audio Devices' or in HQPlayer. But it's listed in W7's Device Manager as a WDM audio device.

Strange uh? Any more ideas?

Mani.
Logged

Audio PC: Phasure Mach II *with clock upgrade* / Win 14393.0 on RAM-OS / controlled by RDC, no GPU card installed / connected directly to music server
XXHighEnd: 2.10 / Minimize OS / Engine#4 Adaptive / DB=4096 / *trying*: Q1=30 / xQ1=40 / Q3,4,5=1 / SFS=5.19 / XTweaks = 52, 10, 0, 0, 1 / Straight Contiguous / Clock Resolution = 15ms / Scheme 3-5 (low/realtime) / 8x Arc Prediction (switch #5 'up/off') / Unattended
Main System: mobo USB3 port -> Lush -> Phasure NOS1a B75 G3 -> First Watt F5-cloned mono amps -> Tune Audio Anima horn speakers
Office System: Lush -> Phasure NOS1a G3 -> BD-Design BD30-SPR mono amps -> Tune Audio Marvel horn speakers
PeterSt
Administrator
High Grade Audiophile
*****
Offline Offline

Posts: 15223



View Profile Email
« Reply #12 on: October 01, 2012, 06:52:16 pm »

Okay, what about uninstalling your xxx device's driver (man, I forgot How it's called, but what you use for DSD playback). If you never installed that, never mind. But it seems logical to me that you did. And now I know a couple ot things about that and its driver ...

When you uninstall it, take care that it all went OK.

It could even be that you attempted to install it, but that it failed half-way (and that you now are unable to uninstall it).

Can I be in the proper direction ?

Peter
Logged

For the Stealth III LPS PC :
W10-14393.0 - August 18, 2018 (2.10)
XXHighEnd Mach *III* Stealth LPS PC -> *Xeon Scalable 14/28 core* with Hyperthreading On (*set to 10/20 cores*) @~660MHz, 48GB, Windows 10 Pro 64 bit build 14393.0 from RAM, music on LAN / Engine#4 Adaptive Mode / Q1/-/3/4/5 = 30/-/1/1/1/ Q1Factor = 10 / Dev.Buffer = 4096 / ClockRes = 15ms / Memory = Straight Contiguous / Include Garbage Collect / SFS = *140.19*  (max 140.19) / not Invert / Phase Alignment Off / Playerprio = Low / ThreadPrio = Realtime / Scheme = Core 3-5 / Not Switch Processors during Playback = Off/ Playback Drive none (see OS from RAM) / UnAttended (Just Start) / Always Copy to XX Drive (see OS from RAM) / Stop Desktop, Remaining, WASAPI and W10 services / Use Remote Desktop / Keep LAN - Not Persist / WallPaper On / OSD Off (!) / Running Time Off / Minimize OS / XTweaks : Balanced Load = *35* / Nervous Rate = 10 / Cool when Idle = n.a / Provide Stable Power = 0 / Utilize Cores always = 1 / Time Performance Index = Optimal / Time Stability = Stable / *Arc Prediction Filtering (16x)* / Always Clear Proxy before Playback = On -> USB3 from MoBo -> *Lush^2 A: B-W & Y-R, B: B-W* USB 1m00 -> Phisolator 24/768 Phasure NOS1a/G3 75B (BNC Out) async USB DAC, Driver v1.0.4b (16ms) -> B'ASS Current Amplifier -> Blaxius Interlink -> Orelo MKII Active Open Baffle Horn Speakers.
Removed Switching Supplies from everywhere (also from the PC).

For a general PC :
W10-10586.0 - May 2016 (2.05+)
*XXHighEnd PC -> I7 3930k with Hyperthreading On (12 cores)* @~500MHz, 16GB, Windows 10 Pro 64 bit build 10586.0 from RAM, music on LAN / Engine#4 Adaptive Mode / Q1/-/3/4/5 = 14/-/1/1/1 / Q1Factor = 1 / Dev.Buffer = 4096 / ClockRes = 1ms / Memory = Straight Contiguous / Include Garbage Collect / SFS = 0.10  (max 60) / not Invert / Phase Alignment Off / Playerprio = Low / ThreadPrio = Realtime / Scheme = Core 3-5 / Not Switch Processors during Playback = Off/ Playback Drive none (see OS from RAM) / UnAttended (Just Start) / Always Copy to XX Drive (see OS from RAM) / All Services Off / Keep LAN - Not Persist / WallPaper On / OSD On / Running Time Off / Minimize OS / XTweaks : Balanced Load = *43* / Nervous Rate = 1 / Cool when Idle = 1 / Provide Stable Power = 1 / Utilize Cores always = 1 / Time Performance Index = *Optimal* / Time Stability = *Stable* / Custom Filter *Low* 705600 / -> USB3 *from MoBo* -> Clairixa USB 15cm -> Intona Isolator -> Clairixa USB 1m80 -> 24/768 Phasure NOS1a 75B (BNC Out) async USB DAC, Driver v1.0.4b (4ms) -> Blaxius BNC interlink *-> B'ASS Current Amplifier /w Level4 -> Blaxius Interlink* -> Orelo MKII Active Open Baffle Horn Speakers.
Removed Switching Supplies from everywhere.

Global Moderator
manisandher
Crazy Audiophile
****
Offline Offline

Posts: 2037

from-first-principles.com


View Profile WWW Email
« Reply #13 on: October 01, 2012, 07:06:03 pm »

Nah... I've never installed the Mytek driver on this newly built PC.

So just to be clear, I'm simply trying to use the NOS1 as a WASAPI device either in HQPlayer or XX. But although it shows in W7's Device Manager, it doesn't in either of the players, or indeed in the W7's Audio Device Manager.

I'll try to post some more screen shots to help us get to the bottom of things.

It makes me wonder how other people are using non-NOS1 DACs in 'Minimize OS' mode...

Mani.
Logged

Audio PC: Phasure Mach II *with clock upgrade* / Win 14393.0 on RAM-OS / controlled by RDC, no GPU card installed / connected directly to music server
XXHighEnd: 2.10 / Minimize OS / Engine#4 Adaptive / DB=4096 / *trying*: Q1=30 / xQ1=40 / Q3,4,5=1 / SFS=5.19 / XTweaks = 52, 10, 0, 0, 1 / Straight Contiguous / Clock Resolution = 15ms / Scheme 3-5 (low/realtime) / 8x Arc Prediction (switch #5 'up/off') / Unattended
Main System: mobo USB3 port -> Lush -> Phasure NOS1a B75 G3 -> First Watt F5-cloned mono amps -> Tune Audio Anima horn speakers
Office System: Lush -> Phasure NOS1a G3 -> BD-Design BD30-SPR mono amps -> Tune Audio Marvel horn speakers
CoenP
Audio Addict
***
Offline Offline

Posts: 810


View Profile Email
« Reply #14 on: October 01, 2012, 09:22:10 pm »

No problems here with the realtec audiocodec of the mobo. Plays pure ENGINE #3 @ unattended (but on "maximised OS"). Nice tight sound.

Very NON-NOS1  Wink

Maybe you should try the codec on your mobo too if this works at all on your pc.

regards, Coen

p.s. did you check all BIOS settings? Maybe there is some interaction between os and mobo.
Logged

Audio PC: XXHE PC v1 with RAMdisk w.o. videocard and 1 of 2 cpu fans + BRIX/USB3 storage musicserver. Power cable PE not connected, together with nos1 and poweramp in separate "audio" powerstrip.

Lush 1m, Phasure NOS1a-75B G3 USB (buf 16 ms)-> Blaxius ->SE EL95 (0,8W triode) + cheap link to Abaqus plateamps> biwired QED cable-> Bastanis Mandala Duo (upgraded).

[other sources: TD124/3009SII-i/Grace F9/lounge LCR phono; Rega Planet 1997 vintage]
Pages: [1] 2 3  All
  Print

Jump to:

Powered by MySQL Powered by PHP Powered by SMF 1.1 RC2 | SMF © 2001-2005, Lewis Media Valid XHTML 1.0! Valid CSS!
Page created in 0.08 seconds with 19 queries.
