Author Topic: RAMDISC/W8/W7 Questions  (Read 9041 times)
0 Members and 1 Guest are viewing this topic.
boleary
Crazy Audiophile
****
Offline Offline

Posts: 1233


View Profile Email
« on: February 08, 2013, 05:03:37 pm »

Am anticipating having the time to set up some RAMDISC drives this weekend. Currently I have a 3tb drive with W8 loaded on a 60 gig partition and W7 and all music in the other partition. Questions:

1. When creating a RAMDISC partition to put XX on can I just copy/paste my current 9Z-8-1a folder from my 60 gig W8 partition into the RAMDISC partition or do I need to reinstall XX into  a new folder on the RAMDISC?

2. Will I be able to use the XX/Ramdisc drive, assuming I 'm also using a RAMDISC playback drive, in either W8 or W7 or will drive letters change and, therefore, be a problem when I switch between OS's? Hope this makes sense.
Logged

XX2.07/MB: ASRock Extreme 4M , i7-3930K @ 0.5GHz/ RAM-OS W10586/32 Gigs 1600 DDR3/ Clarixa usb cable  /Q1,3,4,5 = *14*/1/1/*1* / *Q1Factor = 1* / Peak Extension: Off/Dev.Buffer = 4096 / ClockRes = *.5ms* / Straight Contiguous / SFS = *.02,/ Do Nothing With Cover Art / not Invert / *(Phase Alignment Off  / Playerprio = Low / ThreadPrio = Real Time / Scheme = 3-5 / UnAttended (Just Start) / *All* Services Off except LAN & RDC/ Persist off/No OSD / No Running Time / Minimize OS / Boost on/XTweaks : Balanced Load = *40* / Nervous Rate = 1/ Cool when Idle = NA / Provide Stable Power = 0 / Utilize Cores always = 1 / Time Performance Index = Best/ Time Stability = On/ No Up-sampling/R-2R DAC
PeterSt
Administrator
High Grade Audiophile
*****
Offline Offline

Posts: 16827



View Profile Email
« Reply #1 on: February 08, 2013, 05:14:40 pm »

You can copy XXHighEnd to the root, I think. I myself use an additional folder for it though.
You must also copy the (consistent) XXData folder to the root of the RAMDisk (actually : what you denoted in Settings for your XXData folder of course).

Anticipate driver letters changing (well, opposed to how you have it on the hdd) but this will logically follow from what you see. So, denote the new drive letter in the Playback Drive setting.
Since you will be able to determine the driver letter(s) yourself, you will get it done to your likings; having it all the same in both OSes can be done (but a bit depending what's attached to either OS of course).

I would not put my XX folder and XXData on the same source accessible from both OSes. You can, but since both need different settings, you will fall in that pitfall at some stage. Better have them both different, but this is up to you.

In either case you copy whatever the source is to the RAMDisk after boot up.

Peter
Logged

For the Stealth III LPS PC :
W10-14393.0 - July 17, 2021 (2.11)
XXHighEnd Mach III Stealth LPS PC -> Xeon Scalable 14/28 core with Hyperthreading On (set to 14/28 cores in BIOS and set to 10/20 cores via Boot Menu) @~660MHz, 48GB, Windows 10 Pro 64 bit build 14393.0 from RAM, music on LAN / Engine#4 Adaptive Mode / Q1/-/3/4/5 = 14/-/0/0/*1*/ Q1Factor = *4* / Dev.Buffer = 4096 / ClockRes = *10ms* / Memory = Straight Contiguous / Include Garbage Collect / SFS = *10.13*  (max 10.13) / not Invert / Phase Alignment Off / Playerprio = Low / ThreadPrio = Realtime / Scheme = Core 3-5 / Not Switch Processors during Playback = Off/ Playback Drive none (see OS from RAM) / UnAttended (Just Start) / Always Copy to XX Drive (see OS from RAM) / Stop Desktop, Remaining, WASAPI and W10 services / Use Remote Desktop / Keep LAN - Not Persist / WallPaper On / OSD Off (!) / Running Time Off / Minimize OS / XTweaks : Balanced Load = *62* / Nervous Rate = *1* / Cool when Idle = n.a / Provide Stable Power = 1 / Utilize Cores always = 1 / Time Performance Index = Optimal / Time Stability = Stable / Custom Filtering *Low* (16x) / Always Clear Proxy before Playback = On -> USB3 from MoBo -> Lush^3
A: W-Y-R-G, B: *W-G* USB 1m00 -> Phisolator 24/768 Phasure NOS1a/G3 75B (BNC Out) async USB DAC, Driver v1.0.4b (16ms) -> B'ASS Current Amplifier -> Blaxius*^2.5* A:B-G, B:B-G Interlink -> Orelo MKII Active Open Baffle Horn Speakers. ET^2 Ethernet from Mach III to Music Server PC (RDC Control).
Removed Switching Supplies from everywhere (also from the PC).

For a general PC :
W10-10586.0 - May 2016 (2.05+)
*XXHighEnd PC -> I7 3930k with Hyperthreading On (12 cores)* @~500MHz, 16GB, Windows 10 Pro 64 bit build 10586.0 from RAM, music on LAN / Engine#4 Adaptive Mode / Q1/-/3/4/5 = 14/-/1/1/1 / Q1Factor = 1 / Dev.Buffer = 4096 / ClockRes = 1ms / Memory = Straight Contiguous / Include Garbage Collect / SFS = 0.10  (max 60) / not Invert / Phase Alignment Off / Playerprio = Low / ThreadPrio = Realtime / Scheme = Core 3-5 / Not Switch Processors during Playback = Off/ Playback Drive none (see OS from RAM) / UnAttended (Just Start) / Always Copy to XX Drive (see OS from RAM) / All Services Off / Keep LAN - Not Persist / WallPaper On / OSD On / Running Time Off / Minimize OS / XTweaks : Balanced Load = *43* / Nervous Rate = 1 / Cool when Idle = 1 / Provide Stable Power = 1 / Utilize Cores always = 1 / Time Performance Index = *Optimal* / Time Stability = *Stable* / Custom Filter *Low* 705600 / -> USB3 *from MoBo* -> Clairixa USB 15cm -> Intona Isolator -> Clairixa USB 1m80 -> 24/768 Phasure NOS1a 75B (BNC Out) async USB DAC, Driver v1.0.4b (4ms) -> Blaxius BNC interlink *-> B'ASS Current Amplifier /w Level4 -> Blaxius Interlink* -> Orelo MKII Active Open Baffle Horn Speakers.
Removed Switching Supplies from everywhere.

Global Moderator
phantomax
Audio Loudspeaker
*
Offline Offline

Posts: 163


View Profile
« Reply #2 on: February 15, 2013, 11:51:04 am »

Hello Peter

I have a problem with the IMdisks configuration or with the XXHE setup. I am not sure. The question is that when I clear the playlist, the music charged in the Playback drive remains on it. Besides that, the same happens in the XXHE folder in such a way that it fills progressively the two folders. Only when I shut down the program the folders go empty again. Is this normal? I have never detected it before. This happens in unattended mode. In attended seems to work OK.
Besides that, and although I don't know if it is related, when I minimize the XXHE interface it doesn't go to the taskbar and I need to call the program again and kill one of the two instances running.

Maxi
Logged

Audio PC -> AsRock Z79 intel i-3 4170  @~800MHz, 16GB, Windows 10 64 bit build 14393.0 from RAM, DIY Linear Power Supply. music on LAN /
Engine#4 Special Mode/Q1/-/3/4/5=*30*/-/*1*/*1*/*1*/ Q1Factor = *5* / Dev.Buffer = 1024 /ClockRes = *15ms* /Memory = Straight Contiguous / Include Garbage Collect /
SFS = *0,69*  (max 0,69 / Phase Invert / Phase Alignment Off / Playerprio = Low / ThreadPrio = Realtime / Scheme = Core 1-3 / Not Switch Processors during Playback = Off/ Playback
Drive none (see OS from RAM) / UnAttended (Just Start) / Always Copy to XX Drive (see OS from RAM) / Stop Desktop, Remaining, WASAPI and W10 services / Use Remote Desktop / Keep LAN - Not Persist / WallPaper On / *OSD Off* / Running Time Off / Minimize OS / XTweaks : Balanced Load = 35 / Nervous Rate = 10 / Cool when Idle = n.a / Provide Stable Power = 1 / Utilize Cores always = 1 / Time Performance Index = Not the best / Time Stability = not stable / *Custom Filtering low for 176400* / Always Clear Proxy before Playbck = On -> Modified Audiotrak Prodigy HD2 internal soundcard with analog tube buffer (Broskie cathode follower) -> Passive biamplification: Canary Audio CA-301 MkII for highs- mids and Counterpoint SA-100 for lows -> Audiovector M-3 Super / modified Musical Fidelity X-3 (6h6p tubes) -> Grado 1000 headphones.
AlainGr
Audio Addict
***
Offline Offline

Posts: 1130

Music for life

alain_gregoire@hotmail.com
View Profile Email
« Reply #3 on: February 15, 2013, 12:45:27 pm »

Hi Maxi,

Do you enter something under the "Image File" window ?

Alain

Edit: Sorry, I mean when you want to mount a virtual drive with Imdisk, do you enter something under the "Image file" field ?
Logged

Desktop with ASUS Sabertooth X79 motherboard,Intel 3930k 6 cores (+ 6) at 1.2 GHZ,32GB ram 1333Mhz,Win 10 pro build 14386 64 bit with no updates,OS + XXHE on external Sata III SSD (Esata), music (WAV) on external 5200 rpm drive through network, OS MInimized, XX with engine 4 adaptive,4096 (buffer size), CPU with scheme 3,Player = Low,Thread = RealTime, Q1 = 14,Q345 = 1,1,1,Q1x=1,Clock res = (variable),Stop Desktop Services,Stop Remaining Services,Stop Wasapi,,LAN on,persist = on,all OSD off,SFS = 2,PE off,PA off, Arc Prediction,x16 Upsample, Straight Contiguous,Lush USB  cable,Phasure NOS1a DAC,Meitner PA-6 preamp, Spectral Audio DMA-180  Power Amp, Tannoy System 15 DMT II, Tannoy St-100 supertweeters, Tannoy TS2.12 subwoofers (2). * On hiatus for a while...
AlainGr
Audio Addict
***
Offline Offline

Posts: 1130

Music for life

alain_gregoire@hotmail.com
View Profile Email
« Reply #4 on: February 15, 2013, 01:02:27 pm »

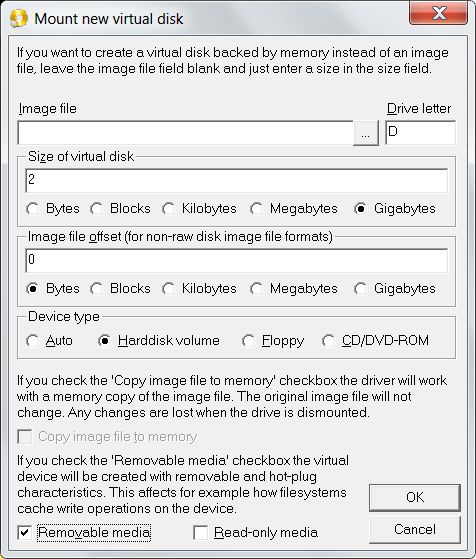

Here is how I define a virtual disk with Imdisk...

In this case, I want to create a 2GB virtual drive. I define it as a harddisk volume. The drive letter will be "D:", provided that it is available, otherwise I can specify another letter.

In the lower left end of the window, you can see that I checked "Removable Media", as it allows it to be formatted like a USB key, so I can use the ExFat type of formatting...

I haven't experienced the behavior you describe, but it does not mean that you are doing something wrong... I use this with W7 and W8 and all seems to work fine up to now...

Alain


* Clipboard01.jpg (69.71 KB, 476x559 - viewed 731 times.)
Logged

Desktop with ASUS Sabertooth X79 motherboard,Intel 3930k 6 cores (+ 6) at 1.2 GHZ,32GB ram 1333Mhz,Win 10 pro build 14386 64 bit with no updates,OS + XXHE on external Sata III SSD (Esata), music (WAV) on external 5200 rpm drive through network, OS MInimized, XX with engine 4 adaptive,4096 (buffer size), CPU with scheme 3,Player = Low,Thread = RealTime, Q1 = 14,Q345 = 1,1,1,Q1x=1,Clock res = (variable),Stop Desktop Services,Stop Remaining Services,Stop Wasapi,,LAN on,persist = on,all OSD off,SFS = 2,PE off,PA off, Arc Prediction,x16 Upsample, Straight Contiguous,Lush USB  cable,Phasure NOS1a DAC,Meitner PA-6 preamp, Spectral Audio DMA-180  Power Amp, Tannoy System 15 DMT II, Tannoy St-100 supertweeters, Tannoy TS2.12 subwoofers (2). * On hiatus for a while...
AlainGr
Audio Addict
***
Offline Offline

Posts: 1130

Music for life

alain_gregoire@hotmail.com
View Profile Email
« Reply #5 on: February 15, 2013, 01:09:30 pm »

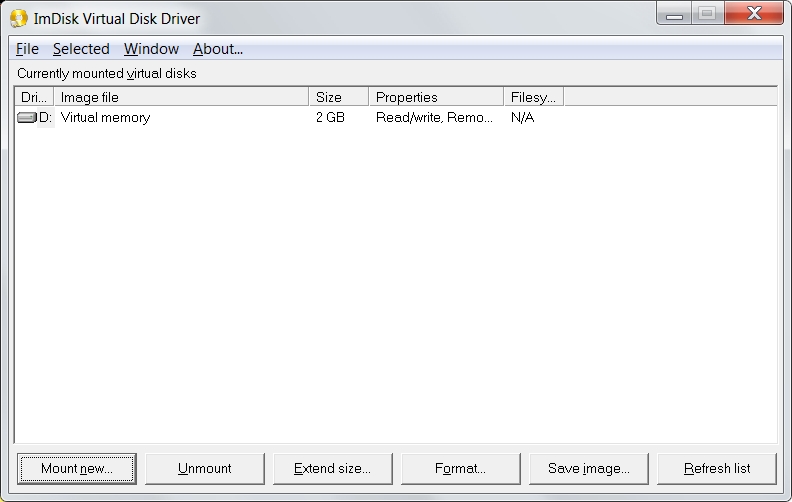

This is how it appears after I am done (press "OK")...


* clipboard2.jpg (90.14 KB, 792x502 - viewed 725 times.)
Logged

Desktop with ASUS Sabertooth X79 motherboard,Intel 3930k 6 cores (+ 6) at 1.2 GHZ,32GB ram 1333Mhz,Win 10 pro build 14386 64 bit with no updates,OS + XXHE on external Sata III SSD (Esata), music (WAV) on external 5200 rpm drive through network, OS MInimized, XX with engine 4 adaptive,4096 (buffer size), CPU with scheme 3,Player = Low,Thread = RealTime, Q1 = 14,Q345 = 1,1,1,Q1x=1,Clock res = (variable),Stop Desktop Services,Stop Remaining Services,Stop Wasapi,,LAN on,persist = on,all OSD off,SFS = 2,PE off,PA off, Arc Prediction,x16 Upsample, Straight Contiguous,Lush USB  cable,Phasure NOS1a DAC,Meitner PA-6 preamp, Spectral Audio DMA-180  Power Amp, Tannoy System 15 DMT II, Tannoy St-100 supertweeters, Tannoy TS2.12 subwoofers (2). * On hiatus for a while...
phantomax
Audio Loudspeaker
*
Offline Offline

Posts: 163


View Profile
« Reply #6 on: February 15, 2013, 01:13:26 pm »

Hi Alan,

No, I didn't write anything in the image field but I left auto ticked and I didn't tick removable so I'll try your settings.

Thank you!
Logged

Audio PC -> AsRock Z79 intel i-3 4170  @~800MHz, 16GB, Windows 10 64 bit build 14393.0 from RAM, DIY Linear Power Supply. music on LAN /
Engine#4 Special Mode/Q1/-/3/4/5=*30*/-/*1*/*1*/*1*/ Q1Factor = *5* / Dev.Buffer = 1024 /ClockRes = *15ms* /Memory = Straight Contiguous / Include Garbage Collect /
SFS = *0,69*  (max 0,69 / Phase Invert / Phase Alignment Off / Playerprio = Low / ThreadPrio = Realtime / Scheme = Core 1-3 / Not Switch Processors during Playback = Off/ Playback
Drive none (see OS from RAM) / UnAttended (Just Start) / Always Copy to XX Drive (see OS from RAM) / Stop Desktop, Remaining, WASAPI and W10 services / Use Remote Desktop / Keep LAN - Not Persist / WallPaper On / *OSD Off* / Running Time Off / Minimize OS / XTweaks : Balanced Load = 35 / Nervous Rate = 10 / Cool when Idle = n.a / Provide Stable Power = 1 / Utilize Cores always = 1 / Time Performance Index = Not the best / Time Stability = not stable / *Custom Filtering low for 176400* / Always Clear Proxy before Playbck = On -> Modified Audiotrak Prodigy HD2 internal soundcard with analog tube buffer (Broskie cathode follower) -> Passive biamplification: Canary Audio CA-301 MkII for highs- mids and Counterpoint SA-100 for lows -> Audiovector M-3 Super / modified Musical Fidelity X-3 (6h6p tubes) -> Grado 1000 headphones.
Jud
Audio Enthusiast
**
Offline Offline

Posts: 292


View Profile
« Reply #7 on: February 15, 2013, 01:53:04 pm »

You can copy XXHighEnd to the root, I think. I myself use an additional folder for it though.
You must also copy the (consistent) XXData folder to the root of the RAMDisk (actually : what you denoted in Settings for your XXData folder of course).

[snip]

I would not put my XX folder and XXData on the same source accessible from both OSes. You can, but since both need different settings, you will fall in that pitfall at some stage. Better have them both different, but this is up to you.

In either case you copy whatever the source is to the RAMDisk after boot up.

Peter


Humm, maybe this is something to do with different RAMdisk software or just that I used fresh installs of W7 and W8 with RAMdisks already created - I installed XXHE directly to a RAMdisk in each OS, rather than copying from somewhere else.  So each XXHE is free to have its own settings, not deriving them from elsewhere.
Logged

Win 7 64-bit; i7-950@3.07GHz; 16GB RAM; OS on SATA 6GB/s SSD; AIFF files on external FW HDD; XXHE and Playback Drive on separate RAMdisks; no page file; Audioquest Dragonfly DAC/preamp; PSE Studio IV amp; Pioneer SP-BS22-LR bookshelf speakers or Etymotic Research ER-4P in-ear monitors.  XXHE 0.9z-8-3a settings for the moment: Peak Extend; Arc Prediction; Redbook files upsampled 2x; KS Adaptive Mode; Phase Alignment off; buffer=512; Straight Contiguous; Playerprio=Low; ThreadPrio=RealTime; Unattended; OS minimized; all services off; Q1=17, factor=2; SFS=2.1; XXTweaks=Ultimate; Time Performance Index=Not the best.
PeterSt
Administrator
High Grade Audiophile
*****
Offline Offline

Posts: 16827



View Profile Email
« Reply #8 on: February 15, 2013, 02:08:05 pm »

The question is that when I clear the playlist, the music charged in the Playback drive remains on it. Besides that, the same happens in the XXHE folder in such a way that it fills progressively the two folders. Only when I shut down the program the folders go empty again. Is this normal?

Yes, and it always has been so. Use the [ C ] button to clear these things from "disk".

Quote
Besides that, and although I don't know if it is related, when I minimize the XXHE interface it doesn't go to the taskbar and I need to call the program again and kill one of the two instances running.

I have seen this too, but not always. This is a W8 problem and can happen to any program, as far as I have seen it. I am fairly sure I already saw that before I started to use that W7 shell, but I can't gurantee that ...
Btw, not even Alt-tab will show the program; very annoying.

Regards,
Peter
Logged

For the Stealth III LPS PC :
W10-14393.0 - July 17, 2021 (2.11)
XXHighEnd Mach III Stealth LPS PC -> Xeon Scalable 14/28 core with Hyperthreading On (set to 14/28 cores in BIOS and set to 10/20 cores via Boot Menu) @~660MHz, 48GB, Windows 10 Pro 64 bit build 14393.0 from RAM, music on LAN / Engine#4 Adaptive Mode / Q1/-/3/4/5 = 14/-/0/0/*1*/ Q1Factor = *4* / Dev.Buffer = 4096 / ClockRes = *10ms* / Memory = Straight Contiguous / Include Garbage Collect / SFS = *10.13*  (max 10.13) / not Invert / Phase Alignment Off / Playerprio = Low / ThreadPrio = Realtime / Scheme = Core 3-5 / Not Switch Processors during Playback = Off/ Playback Drive none (see OS from RAM) / UnAttended (Just Start) / Always Copy to XX Drive (see OS from RAM) / Stop Desktop, Remaining, WASAPI and W10 services / Use Remote Desktop / Keep LAN - Not Persist / WallPaper On / OSD Off (!) / Running Time Off / Minimize OS / XTweaks : Balanced Load = *62* / Nervous Rate = *1* / Cool when Idle = n.a / Provide Stable Power = 1 / Utilize Cores always = 1 / Time Performance Index = Optimal / Time Stability = Stable / Custom Filtering *Low* (16x) / Always Clear Proxy before Playback = On -> USB3 from MoBo -> Lush^3
A: W-Y-R-G, B: *W-G* USB 1m00 -> Phisolator 24/768 Phasure NOS1a/G3 75B (BNC Out) async USB DAC, Driver v1.0.4b (16ms) -> B'ASS Current Amplifier -> Blaxius*^2.5* A:B-G, B:B-G Interlink -> Orelo MKII Active Open Baffle Horn Speakers. ET^2 Ethernet from Mach III to Music Server PC (RDC Control).
Removed Switching Supplies from everywhere (also from the PC).

For a general PC :
W10-10586.0 - May 2016 (2.05+)
*XXHighEnd PC -> I7 3930k with Hyperthreading On (12 cores)* @~500MHz, 16GB, Windows 10 Pro 64 bit build 10586.0 from RAM, music on LAN / Engine#4 Adaptive Mode / Q1/-/3/4/5 = 14/-/1/1/1 / Q1Factor = 1 / Dev.Buffer = 4096 / ClockRes = 1ms / Memory = Straight Contiguous / Include Garbage Collect / SFS = 0.10  (max 60) / not Invert / Phase Alignment Off / Playerprio = Low / ThreadPrio = Realtime / Scheme = Core 3-5 / Not Switch Processors during Playback = Off/ Playback Drive none (see OS from RAM) / UnAttended (Just Start) / Always Copy to XX Drive (see OS from RAM) / All Services Off / Keep LAN - Not Persist / WallPaper On / OSD On / Running Time Off / Minimize OS / XTweaks : Balanced Load = *43* / Nervous Rate = 1 / Cool when Idle = 1 / Provide Stable Power = 1 / Utilize Cores always = 1 / Time Performance Index = *Optimal* / Time Stability = *Stable* / Custom Filter *Low* 705600 / -> USB3 *from MoBo* -> Clairixa USB 15cm -> Intona Isolator -> Clairixa USB 1m80 -> 24/768 Phasure NOS1a 75B (BNC Out) async USB DAC, Driver v1.0.4b (4ms) -> Blaxius BNC interlink *-> B'ASS Current Amplifier /w Level4 -> Blaxius Interlink* -> Orelo MKII Active Open Baffle Horn Speakers.
Removed Switching Supplies from everywhere.

Global Moderator
