Author Topic: XXHighEnd PC BIOS Settings  (Read 33975 times)
0 Members and 0 Guests are viewing this topic.
PeterSt
Administrator
High Grade Audiophile
*****
Offline Offline

Posts: 15418



View Profile Email
« on: February 07, 2014, 05:41:07 pm »

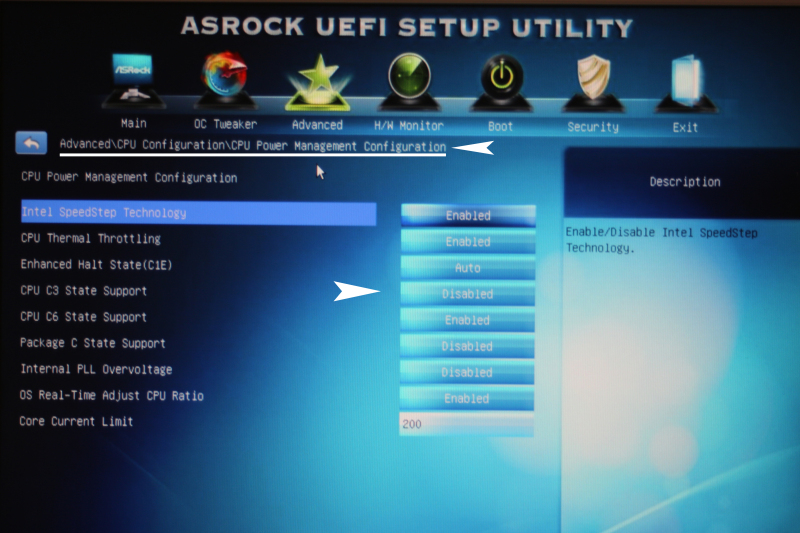

Below you'll find screenshots which will tell you how so set all the BIOS settings for your XXHighEnd PC;
They are Windows 8 (SQ) oriented hence are not optimized for Windows 7 (notice that explicit Windows 7 optimization just wasn't sorted out (yet) for the latest XXHighEnd 1.186 version and that this does not tell all is wrong as such for Windows 7 (we use the same settings for Windows 7 here).

Keep in mind : Changing one of the advised settings to "your own" is OK, but the audio performance will degrade by it by guarantee and you can not see that. Of course this is not really about all the settings, but you'll get the hunch.

When a remark is to be made about certain settings you will find these *under* the screenshots.

Generally you can watch for the settings at the white arrows only; the others are default and don't need changes.

You go into the BIOS screens by means of (re)booting the PC and frequently press down the Del key.

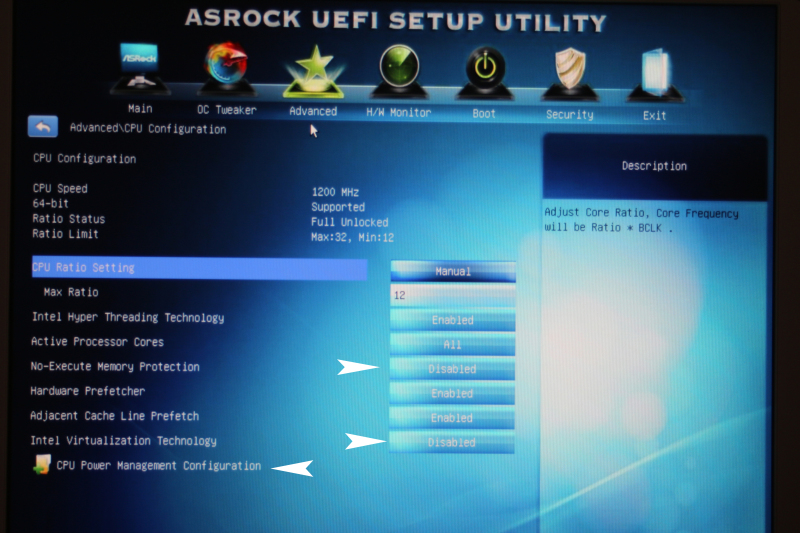

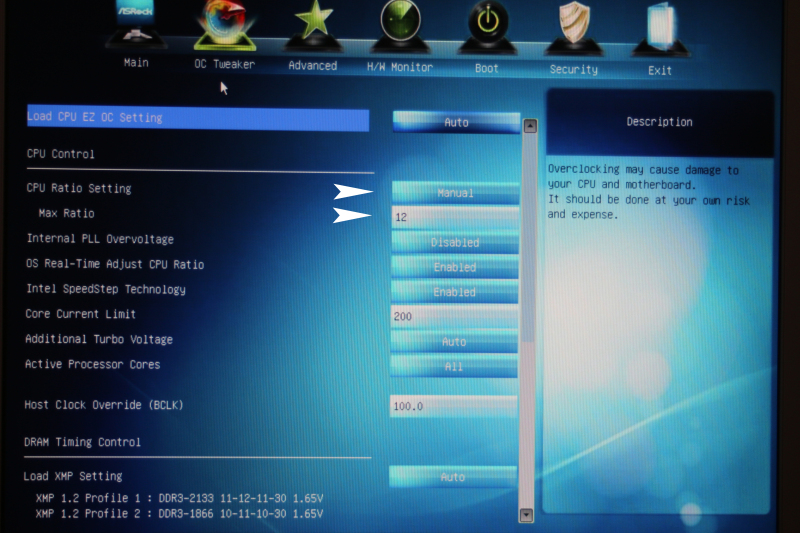

Overclocking : See the "Max Ratio" which is set to 12 here;
Watch out : The normal value for this will be "Auto" where you now see "Manual" and this equals a Ratio of 32 (or 34 depending on the processor) which shows up by default when the "Manual" setting is selected. Careful though, because a "Manual" setting of 32 (or 34 depending on the default) is not the same as the "Auto" setting. Now notice : As soon as the "Manual" setting is selected, no TurboBoost will be in order; This is just a general remark (and we don't want that), but good to know because your system will be slower of it.

What we do is UNDERclocking per means of the ratio of 12 which relates to XXHighEnd XTweaks setting of "Use Settings" and from top to bottom the values : 43, 100, 1, 1, 1. See here for Windows 8 :


Once booted into Minimized OS your processor will run at 430Mhz now (0.43GHz). Mind the consistency with the XTweaks settings.

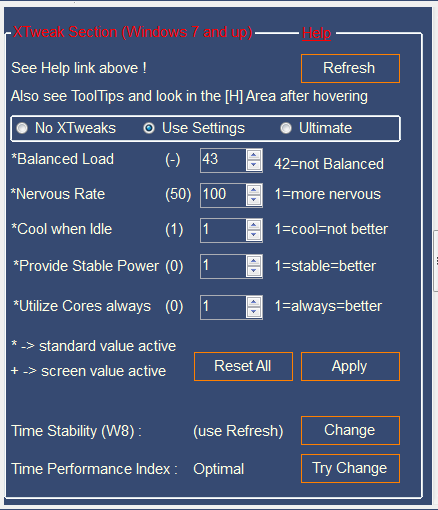

Or for Windows 7 :


Winsows 7 will run at 500MHz (0.5GHz) with these XTweaks settings.
Notice : For Windows 7 it is possible to go as low as 168MHz but this is *not* for the better and with such a setting the processor will run 10C/18F more hot compared to what's considered normal here (40C/104F).

Alternatively you can set XTweaks to "Ultimate" for Windows 7 which is considered slightly worse for SQ but now the processor will run close to 1200MHz with a thus faster response.


The Ratio can be set to e.g. 40 for the actual OVERclocking and then your processor will run at 4Ghz (while normal is 3.2GHz or 3.4GHz) which still will be okay for the cooling you will see more about below (see "Cooling :").
Watch out : When the BIOS has been reset, while being in the BIOS the system runs in the hottest mode; this coincides with the fans running at high speeds (again see Cooling more below) with the notion that this is OK. BUT : Do not lower the revs of the fans, then reboot (the lower revs become active only then) to next look into the BIOS for ages without at least setting the "Manual" (picture above) because all then heats up fast.












Notice : Normally this is not needed to set to Yes; however, when you want to boot from either of the removable bays, without setting this to Yes the booting will not be possible.
Mever mind warning messages about boot speed when you set this to Yes, because you won't notice a thing of it (so you just as well can set it to Yes before you forget about this later and look for the culprit at the system not wanting to boot (from a removable bay).






Watch out : While these are both disabled, it assumes a PCIe USB3 card for USB connections. Without that the *both* can not be shut off, or you won't have active USB connections (and can't connect your NOS1 when in order).

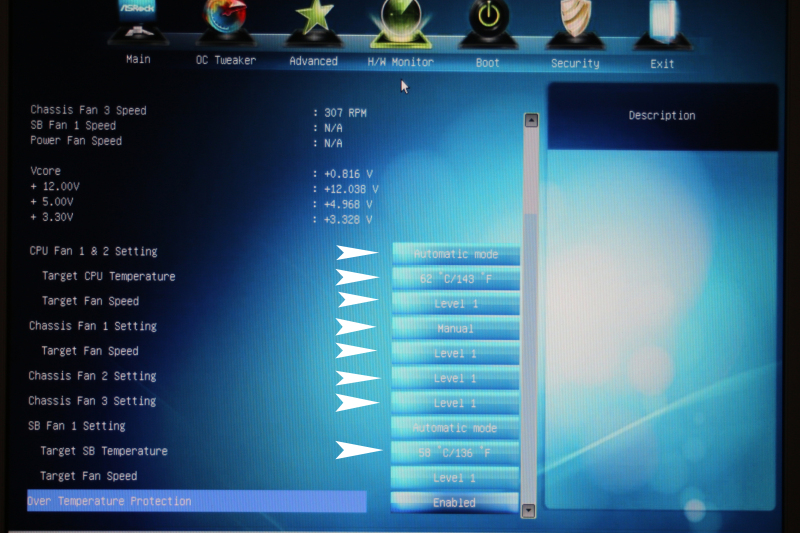

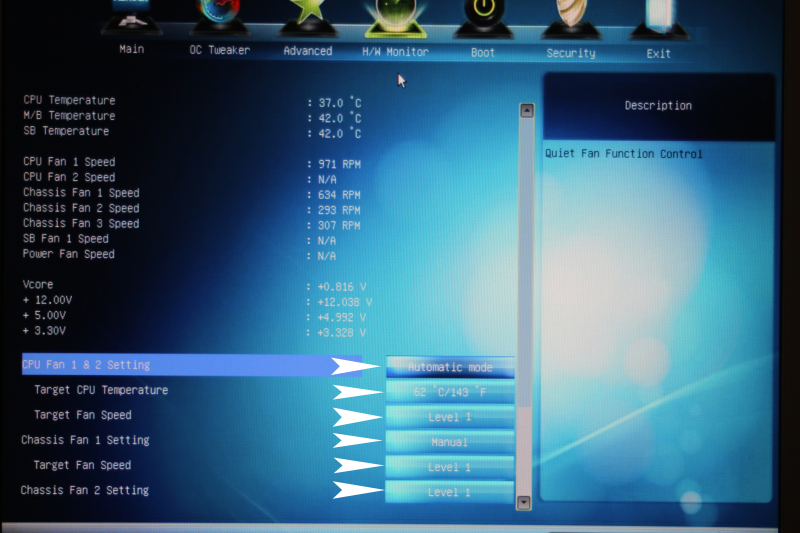

Cooling : The settings you see here (plus the below ones !) relate to the necessary cooling of the system; the settings you see assume normal operation hence not "overclocked". See for that "Overclocking" more above.
All sliders can be all the way to the left for complete silent operation (also note the fan control knob(s) on the back of the PC which can be turned all the way to the left) if only the frequency Ratio (see under Overclocking) is set to Manual and not higher than 32/34. But anyway watch the temperature in this "H/W Monitor" because all also depends on the ambient temperature;
Try to keep the processor's temperature under 52C/126F for better longivety while it sure is allowed to be higher (but elsewhere in the BIOS settings we limit it to 62C/144F).

Watch out : No fan settings or other in this screen (and the below one) will take effect immediately; this counts for all changed settings in the BIOS; only after a reboot they take effect. This, for example, means that when you set the fans too low with a too high cpu Ratio (overclocked) after a reboot things may run (too) hot right away (this goes real fast, like within seconds).
This is nothing to be afraid of, if you only realize that changes take effect only after a reboot.

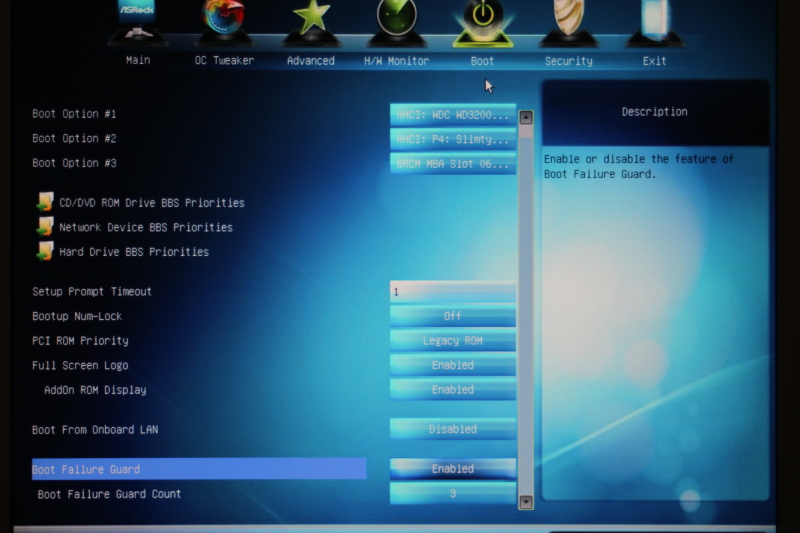

"Manual" : Here you see which of your "boot devices" will be used first for booting, hence which will be your OS (version) when more are available. Would you click on the first option (where the "P4" shows) you will change whatever pops up and what you choose as the first boot device.
The importance of this : Supposed you have your internally assembled 2.5" drive still there but want to try another OS in e.g. the 2.5" bay, you can put the hdd with it in there, boot, go into the BIOS and select that hdd in the 2.5" bay.
Notice : The third "folder" option (yellow icon) you see there, allows to choose boot devices in the first place and when you just put in that other hdd in one of the removable bays you may need to click on that "Hard Drive BBS Priorities" option to make it appear in the list the white arrow points at.




When done, click Exit in the main bar at the top, choose "Save" and after that the system will boot normally.
« Last Edit: February 09, 2014, 02:37:25 pm by PeterSt » Logged

For the Stealth III LPS PC :
W10-14393.0 - Oct 31, 2018 (2.10)
XXHighEnd Mach III Stealth LPS PC -> Xeon Scalable 14/28 core with Hyperthreading On (set to 10/20 cores) @~660MHz, 48GB, Windows 10 Pro 64 bit build 14393.0 from RAM, music on LAN / Engine#4 Adaptive Mode / Q1/-/3/4/5 = 30/-/1/1/1/ Q1Factor = 10 / Dev.Buffer = 4096 / ClockRes = 15ms / Memory = Straight Contiguous / Include Garbage Collect / SFS = 140.19  (max 140.19) / not Invert / Phase Alignment Off / Playerprio = Low / ThreadPrio = Realtime / Scheme = Core 3-5 / Not Switch Processors during Playback = Off/ Playback Drive none (see OS from RAM) / UnAttended (Just Start) / Always Copy to XX Drive (see OS from RAM) / Stop Desktop, Remaining, WASAPI and W10 services / Use Remote Desktop / Keep LAN - Not Persist / WallPaper On / OSD Off (!) / Running Time Off / Minimize OS / XTweaks : Balanced Load = 35 / Nervous Rate = 10 / Cool when Idle = n.a / Provide Stable Power = 0 / Utilize Cores always = 1 / Time Performance Index = Optimal / Time Stability = Stable / *Arc Prediction Filtering (16x)* / Always Clear Proxy before Playback = On -> USB3 from MoBo -> Lush^2*A:B-W-Y-R, B:B-W-R* USB 1m00 -> Phisolator 24/768 Phasure NOS1a/G3 75B (BNC Out) async USB DAC, Driver v1.0.4b (16ms) -> B'ASS Current Amplifier -> *Blaxius^2 A:B-R, B:B-R* Interlink -> Orelo MKII Active Open Baffle Horn Speakers.
Removed Switching Supplies from everywhere (also from the PC).

For a general PC :
W10-10586.0 - May 2016 (2.05+)
*XXHighEnd PC -> I7 3930k with Hyperthreading On (12 cores)* @~500MHz, 16GB, Windows 10 Pro 64 bit build 10586.0 from RAM, music on LAN / Engine#4 Adaptive Mode / Q1/-/3/4/5 = 14/-/1/1/1 / Q1Factor = 1 / Dev.Buffer = 4096 / ClockRes = 1ms / Memory = Straight Contiguous / Include Garbage Collect / SFS = 0.10  (max 60) / not Invert / Phase Alignment Off / Playerprio = Low / ThreadPrio = Realtime / Scheme = Core 3-5 / Not Switch Processors during Playback = Off/ Playback Drive none (see OS from RAM) / UnAttended (Just Start) / Always Copy to XX Drive (see OS from RAM) / All Services Off / Keep LAN - Not Persist / WallPaper On / OSD On / Running Time Off / Minimize OS / XTweaks : Balanced Load = *43* / Nervous Rate = 1 / Cool when Idle = 1 / Provide Stable Power = 1 / Utilize Cores always = 1 / Time Performance Index = *Optimal* / Time Stability = *Stable* / Custom Filter *Low* 705600 / -> USB3 *from MoBo* -> Clairixa USB 15cm -> Intona Isolator -> Clairixa USB 1m80 -> 24/768 Phasure NOS1a 75B (BNC Out) async USB DAC, Driver v1.0.4b (4ms) -> Blaxius BNC interlink *-> B'ASS Current Amplifier /w Level4 -> Blaxius Interlink* -> Orelo MKII Active Open Baffle Horn Speakers.
Removed Switching Supplies from everywhere.

Global Moderator
boleary
Crazy Audiophile
****
Offline Offline

Posts: 1231


View Profile Email
« Reply #1 on: February 07, 2014, 07:08:00 pm »

Can't tell you how long I've been waiting for this! Thanks, Peter.
Logged

XX2.07/MB: ASRock Extreme 4M , i7-3930K @ 0.5GHz/ RAM-OS W10586/32 Gigs 1600 DDR3/ Clarixa usb cable  /Q1,3,4,5 = *14*/1/1/*1* / *Q1Factor = 1* / Peak Extension: Off/Dev.Buffer = 4096 / ClockRes = *.5ms* / Straight Contiguous / SFS = *.02,/ Do Nothing With Cover Art / not Invert / *(Phase Alignment Off  / Playerprio = Low / ThreadPrio = Real Time / Scheme = 3-5 / UnAttended (Just Start) / *All* Services Off except LAN & RDC/ Persist off/No OSD / No Running Time / Minimize OS / Boost on/XTweaks : Balanced Load = *40* / Nervous Rate = 1/ Cool when Idle = NA / Provide Stable Power = 0 / Utilize Cores always = 1 / Time Performance Index = Best/ Time Stability = On/ No Up-sampling/R-2R DAC
acg
Audio Addict
***
Offline Offline

Posts: 734


View Profile
« Reply #2 on: February 08, 2014, 03:52:50 am »

Hi Peter,

A fair bit of effort on your part to do this and I am sure that many will appreciate it.

Is there a reason that you are running an old version of the BIOS?  I notice you are using P2.10 but the current version is P3.0.

A couple of extra things that I had turned off in the Southbridge section:
  • Onboard audio
  • Onboard Debug Port LED

Also in the ACPI Config page I had disabled "Suspend to Ram" because I have disabled hibernation and sleep in windows8.

Are you intending to provide further instruction about underclocking the cpu to piggyback these BIOS settings Peter?

Thanks once again.

Regards,

Anthony
Logged

Audio PC
Stealth Mach II with Xeon E5 2698 v4 20 Core 2GHz  with Hyperthreading On [40 cores]/ 32GB Ram / RAM-OS / mobo USB port

XXHighEnd 2.09 RAM-OS (W14393 RAM)
Engine#4 Adaptive Mode / Buffer 4096 / Q1/3/4/5 = 14/1/1/1 / xQ1 = 1 / Processor Core Appointment Scheme = Core 1-3 / PlayerPrio = Low / ThreadPrio = RealTime / ClockRes = 1ms / Not Switch during playback = off / Xtweaks Balanced Load = 43 / Nervous Rate = 100 / Cool when idle = 1 / Provide stable power = 0 / Utilize cores always = 1 / Time Stability = Stable / Time Performance Index = Optimal / SFS 0.90MB Max 120MB / Straight Contiguous / Include Garbage Collect = on / Start Playback during conversion = off / Do not start playback at all = off / Copy to XX-drive by standard = on / Always clear Proxy before Playback = on / Stop Remaining Desktop Services = on / Stop Desktop Services = on / Stop Remaining Services = on / Stop WASAPI Services = on / Stop W10 Services = off / Keep LAN Services = on / Persist = off / Use Remote Desktop = on/ Arc Predict / Minimize OS = on / Peak Extend = off / Unattended

Audio Chain
Stealth MachII PC >> Lush USB 1.5m >> NOS1a G3 B75, Driver v1.0.4 (4ms) >> Placette Active Linestage >> 6 way active horn speakers (Single Ended Triodes)
PeterSt
Administrator
High Grade Audiophile
*****
Offline Offline

Posts: 15418



View Profile Email
« Reply #3 on: February 08, 2014, 10:53:02 am »

Hey Anthony,

Quote
Is there a reason that you are running an old version of the BIOS?  I notice you are using P2.10 but the current version is P3.0.

I think we're a couple of versions further than 3.0 but it's no problem.

I use 2.10 just because I don't upgrade to each new version; see no reason for it either. A bit fuzzy it is though that a new customer would receive 3.x while that's just n the mobo and it can't be downgraded (I actually never tried, but often this won't work). This, while older customers received 2.x for sure (can even be 1.x which is not suitable for W8 officially).
So it's a choice and it should be "readable" for everyone.

Quote
•Onboard audio

No. Why ? because then you will be confronted with some nice Windows sounds in Normal OS - at least at startup of Windows 8. Remember, no preamp so this is not funny.
So what I do is making the one left audio digital device default for WDM (which is active in Normal OS) and now the windows sounds go to there.
In Device Manager I disable all the on-board sound devices but that one.

But please notice :
You are one of the few (to be counted on one hand) who actually knows a few things about Windows and PC's while the PC is sort of explicitly meant for those who don't know a thing about it all. So it shouldn't be too complicated. Thus, already my small remark about disabling sound devices in Device Manager would drive those people crazy and it needs another guide. It really does, because when the PC is shipped this is all arranged for, while this XXHighEnd PC section actually (and finally) has been made for those who accidentally reset their BIOS or needed to reinstall etc.
So there is SO much more to lay out that I actually will never have time for it. But the start is there now.

And all doesn't imply that guys like you are not allowed to ask / interfere / have better ideas and options. I only hope it is clear that such discussions are not to be understood really by the n00bs although it would help (them) if they would. It all needs baby steps and that is for a good reason.

Quote
•Onboard Debug Port LED

Maybe a good idea. Not sure, because not sure what it can bring when people have problems. Off = Off.

Quote

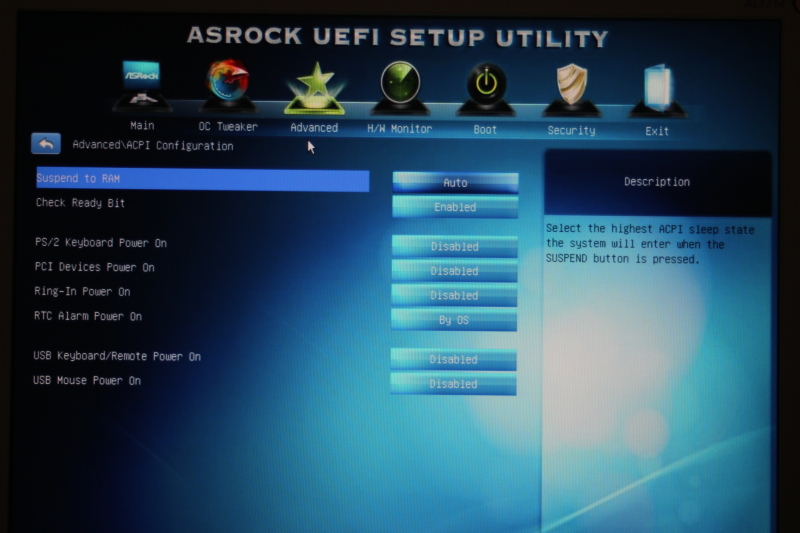

Also in the ACPI Config page I had disabled "Suspend to Ram" because I have disabled hibernation and sleep in windows8.

Should be a good one. Why ? because the PC is shipped like this (one of the ~500 subjects of OS changes Wink).
But now it needs a guide for that again ... haha

Envision that list of 500 subjects of changes and hand that to someone who first asks "what's Explorer ?". Really.
So now you also know why I spent so much time on fabricating a "restore" possibility (which could be downloaded from here). Works, but unfinished project at this time ...

Quote
Are you intending to provide further instruction about underclocking the cpu to piggyback these BIOS settings Peter?

Now I am not sure what you are referring to;
What's described is all it needs, BUT it doesn't incorporate tuning memory voltage etc. if that is what you mean. But since I am not doing that myself either, it now is a consistent set of (here) well working settings.
Although you can't see it, don't underestimate what the settings in this consistent set do to the OS, with the notice that it is more than e.g. detaching the DVDROM drive (etc.). So that too is not in the instructions, since it would only be too inconvenient (I have it attached myself just the same).
So again, many more things can be done and it can't harm to mention them, if only people don't get obsessed by now *wanting* it while not being able to. This really is in order you know. Just ask people how they see others rave about W8 while they are on W7 and don't know where to go. They really (really !!) ask for buying a new PC only for that. But, create that OS disk and a day of instructions and that's also fine.

Thanks !
Peter
Logged

For the Stealth III LPS PC :
W10-14393.0 - Oct 31, 2018 (2.10)
XXHighEnd Mach III Stealth LPS PC -> Xeon Scalable 14/28 core with Hyperthreading On (set to 10/20 cores) @~660MHz, 48GB, Windows 10 Pro 64 bit build 14393.0 from RAM, music on LAN / Engine#4 Adaptive Mode / Q1/-/3/4/5 = 30/-/1/1/1/ Q1Factor = 10 / Dev.Buffer = 4096 / ClockRes = 15ms / Memory = Straight Contiguous / Include Garbage Collect / SFS = 140.19  (max 140.19) / not Invert / Phase Alignment Off / Playerprio = Low / ThreadPrio = Realtime / Scheme = Core 3-5 / Not Switch Processors during Playback = Off/ Playback Drive none (see OS from RAM) / UnAttended (Just Start) / Always Copy to XX Drive (see OS from RAM) / Stop Desktop, Remaining, WASAPI and W10 services / Use Remote Desktop / Keep LAN - Not Persist / WallPaper On / OSD Off (!) / Running Time Off / Minimize OS / XTweaks : Balanced Load = 35 / Nervous Rate = 10 / Cool when Idle = n.a / Provide Stable Power = 0 / Utilize Cores always = 1 / Time Performance Index = Optimal / Time Stability = Stable / *Arc Prediction Filtering (16x)* / Always Clear Proxy before Playback = On -> USB3 from MoBo -> Lush^2*A:B-W-Y-R, B:B-W-R* USB 1m00 -> Phisolator 24/768 Phasure NOS1a/G3 75B (BNC Out) async USB DAC, Driver v1.0.4b (16ms) -> B'ASS Current Amplifier -> *Blaxius^2 A:B-R, B:B-R* Interlink -> Orelo MKII Active Open Baffle Horn Speakers.
Removed Switching Supplies from everywhere (also from the PC).

For a general PC :
W10-10586.0 - May 2016 (2.05+)
*XXHighEnd PC -> I7 3930k with Hyperthreading On (12 cores)* @~500MHz, 16GB, Windows 10 Pro 64 bit build 10586.0 from RAM, music on LAN / Engine#4 Adaptive Mode / Q1/-/3/4/5 = 14/-/1/1/1 / Q1Factor = 1 / Dev.Buffer = 4096 / ClockRes = 1ms / Memory = Straight Contiguous / Include Garbage Collect / SFS = 0.10  (max 60) / not Invert / Phase Alignment Off / Playerprio = Low / ThreadPrio = Realtime / Scheme = Core 3-5 / Not Switch Processors during Playback = Off/ Playback Drive none (see OS from RAM) / UnAttended (Just Start) / Always Copy to XX Drive (see OS from RAM) / All Services Off / Keep LAN - Not Persist / WallPaper On / OSD On / Running Time Off / Minimize OS / XTweaks : Balanced Load = *43* / Nervous Rate = 1 / Cool when Idle = 1 / Provide Stable Power = 1 / Utilize Cores always = 1 / Time Performance Index = *Optimal* / Time Stability = *Stable* / Custom Filter *Low* 705600 / -> USB3 *from MoBo* -> Clairixa USB 15cm -> Intona Isolator -> Clairixa USB 1m80 -> 24/768 Phasure NOS1a 75B (BNC Out) async USB DAC, Driver v1.0.4b (4ms) -> Blaxius BNC interlink *-> B'ASS Current Amplifier /w Level4 -> Blaxius Interlink* -> Orelo MKII Active Open Baffle Horn Speakers.
Removed Switching Supplies from everywhere.

Global Moderator
PeterSt
Administrator
High Grade Audiophile
*****
Offline Offline

Posts: 15418



View Profile Email
« Reply #4 on: February 08, 2014, 11:06:29 am »

For those interested and who already looked at the BIOS screens : I added a screenshot of the XTweaks settings for Windows 8.
Logged

For the Stealth III LPS PC :
W10-14393.0 - Oct 31, 2018 (2.10)
XXHighEnd Mach III Stealth LPS PC -> Xeon Scalable 14/28 core with Hyperthreading On (set to 10/20 cores) @~660MHz, 48GB, Windows 10 Pro 64 bit build 14393.0 from RAM, music on LAN / Engine#4 Adaptive Mode / Q1/-/3/4/5 = 30/-/1/1/1/ Q1Factor = 10 / Dev.Buffer = 4096 / ClockRes = 15ms / Memory = Straight Contiguous / Include Garbage Collect / SFS = 140.19  (max 140.19) / not Invert / Phase Alignment Off / Playerprio = Low / ThreadPrio = Realtime / Scheme = Core 3-5 / Not Switch Processors during Playback = Off/ Playback Drive none (see OS from RAM) / UnAttended (Just Start) / Always Copy to XX Drive (see OS from RAM) / Stop Desktop, Remaining, WASAPI and W10 services / Use Remote Desktop / Keep LAN - Not Persist / WallPaper On / OSD Off (!) / Running Time Off / Minimize OS / XTweaks : Balanced Load = 35 / Nervous Rate = 10 / Cool when Idle = n.a / Provide Stable Power = 0 / Utilize Cores always = 1 / Time Performance Index = Optimal / Time Stability = Stable / *Arc Prediction Filtering (16x)* / Always Clear Proxy before Playback = On -> USB3 from MoBo -> Lush^2*A:B-W-Y-R, B:B-W-R* USB 1m00 -> Phisolator 24/768 Phasure NOS1a/G3 75B (BNC Out) async USB DAC, Driver v1.0.4b (16ms) -> B'ASS Current Amplifier -> *Blaxius^2 A:B-R, B:B-R* Interlink -> Orelo MKII Active Open Baffle Horn Speakers.
Removed Switching Supplies from everywhere (also from the PC).

For a general PC :
W10-10586.0 - May 2016 (2.05+)
*XXHighEnd PC -> I7 3930k with Hyperthreading On (12 cores)* @~500MHz, 16GB, Windows 10 Pro 64 bit build 10586.0 from RAM, music on LAN / Engine#4 Adaptive Mode / Q1/-/3/4/5 = 14/-/1/1/1 / Q1Factor = 1 / Dev.Buffer = 4096 / ClockRes = 1ms / Memory = Straight Contiguous / Include Garbage Collect / SFS = 0.10  (max 60) / not Invert / Phase Alignment Off / Playerprio = Low / ThreadPrio = Realtime / Scheme = Core 3-5 / Not Switch Processors during Playback = Off/ Playback Drive none (see OS from RAM) / UnAttended (Just Start) / Always Copy to XX Drive (see OS from RAM) / All Services Off / Keep LAN - Not Persist / WallPaper On / OSD On / Running Time Off / Minimize OS / XTweaks : Balanced Load = *43* / Nervous Rate = 1 / Cool when Idle = 1 / Provide Stable Power = 1 / Utilize Cores always = 1 / Time Performance Index = *Optimal* / Time Stability = *Stable* / Custom Filter *Low* 705600 / -> USB3 *from MoBo* -> Clairixa USB 15cm -> Intona Isolator -> Clairixa USB 1m80 -> 24/768 Phasure NOS1a 75B (BNC Out) async USB DAC, Driver v1.0.4b (4ms) -> Blaxius BNC interlink *-> B'ASS Current Amplifier /w Level4 -> Blaxius Interlink* -> Orelo MKII Active Open Baffle Horn Speakers.
Removed Switching Supplies from everywhere.

Global Moderator
AlainGr
Audio Addict
***
Offline Offline

Posts: 1130

Music for life

alain_gregoire@hotmail.com
View Profile Email
« Reply #5 on: February 08, 2014, 12:42:08 pm »

Peter,

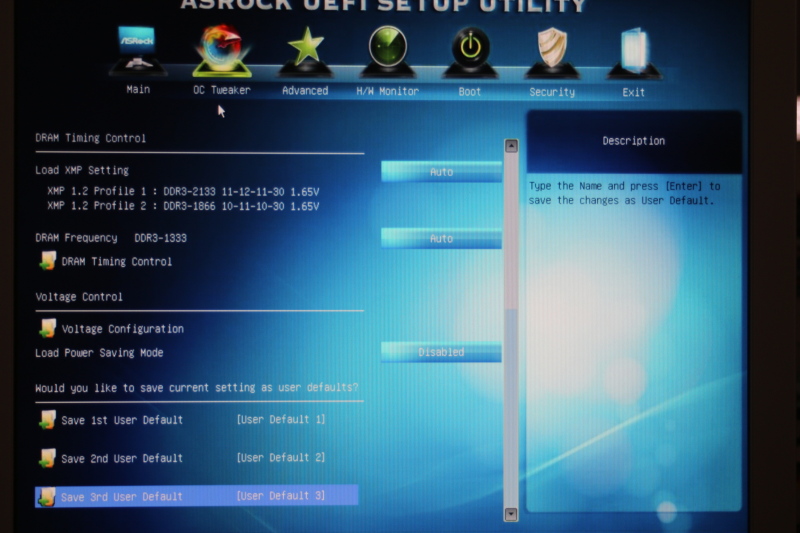

Do you use the XMP mode or do you leave the memory in its native mode (I mean native speed) ?

Thanks Happy

Alain
Logged

Desktop with ASUS Sabertooth X79 motherboard,Intel 3930k 6 cores (+ 6) at 1.2 GHZ,32GB ram 1333Mhz,Win 10 pro build 14386 64 bit with no updates,OS + XXHE on external Sata III SSD (Esata), music (WAV) on external 5200 rpm drive through network, OS MInimized, XX with engine 4 adaptive,4096 (buffer size), CPU with scheme 3,Player = Low,Thread = RealTime, Q1 = 14,Q345 = 1,1,1,Q1x=1,Clock res = (variable),Stop Desktop Services,Stop Remaining Services,Stop Wasapi,,LAN on,persist = on,all OSD off,SFS = 2,PE off,PA off, Arc Prediction,x16 Upsample, Straight Contiguous,Lush USB  cable,Phasure NOS1a DAC,Meitner PA-6 preamp, Spectral Audio DMA-180  Power Amp, Tannoy System 15 DMT II, Tannoy St-100 supertweeters, Tannoy TS2.12 subwoofers (2). * On hiatus for a while...
PeterSt
Administrator
High Grade Audiophile
*****
Offline Offline

Posts: 15418



View Profile Email
« Reply #6 on: February 08, 2014, 12:54:24 pm »

"Native speed" Alain.
Peter
Logged

For the Stealth III LPS PC :
W10-14393.0 - Oct 31, 2018 (2.10)
XXHighEnd Mach III Stealth LPS PC -> Xeon Scalable 14/28 core with Hyperthreading On (set to 10/20 cores) @~660MHz, 48GB, Windows 10 Pro 64 bit build 14393.0 from RAM, music on LAN / Engine#4 Adaptive Mode / Q1/-/3/4/5 = 30/-/1/1/1/ Q1Factor = 10 / Dev.Buffer = 4096 / ClockRes = 15ms / Memory = Straight Contiguous / Include Garbage Collect / SFS = 140.19  (max 140.19) / not Invert / Phase Alignment Off / Playerprio = Low / ThreadPrio = Realtime / Scheme = Core 3-5 / Not Switch Processors during Playback = Off/ Playback Drive none (see OS from RAM) / UnAttended (Just Start) / Always Copy to XX Drive (see OS from RAM) / Stop Desktop, Remaining, WASAPI and W10 services / Use Remote Desktop / Keep LAN - Not Persist / WallPaper On / OSD Off (!) / Running Time Off / Minimize OS / XTweaks : Balanced Load = 35 / Nervous Rate = 10 / Cool when Idle = n.a / Provide Stable Power = 0 / Utilize Cores always = 1 / Time Performance Index = Optimal / Time Stability = Stable / *Arc Prediction Filtering (16x)* / Always Clear Proxy before Playback = On -> USB3 from MoBo -> Lush^2*A:B-W-Y-R, B:B-W-R* USB 1m00 -> Phisolator 24/768 Phasure NOS1a/G3 75B (BNC Out) async USB DAC, Driver v1.0.4b (16ms) -> B'ASS Current Amplifier -> *Blaxius^2 A:B-R, B:B-R* Interlink -> Orelo MKII Active Open Baffle Horn Speakers.
Removed Switching Supplies from everywhere (also from the PC).

For a general PC :
W10-10586.0 - May 2016 (2.05+)
*XXHighEnd PC -> I7 3930k with Hyperthreading On (12 cores)* @~500MHz, 16GB, Windows 10 Pro 64 bit build 10586.0 from RAM, music on LAN / Engine#4 Adaptive Mode / Q1/-/3/4/5 = 14/-/1/1/1 / Q1Factor = 1 / Dev.Buffer = 4096 / ClockRes = 1ms / Memory = Straight Contiguous / Include Garbage Collect / SFS = 0.10  (max 60) / not Invert / Phase Alignment Off / Playerprio = Low / ThreadPrio = Realtime / Scheme = Core 3-5 / Not Switch Processors during Playback = Off/ Playback Drive none (see OS from RAM) / UnAttended (Just Start) / Always Copy to XX Drive (see OS from RAM) / All Services Off / Keep LAN - Not Persist / WallPaper On / OSD On / Running Time Off / Minimize OS / XTweaks : Balanced Load = *43* / Nervous Rate = 1 / Cool when Idle = 1 / Provide Stable Power = 1 / Utilize Cores always = 1 / Time Performance Index = *Optimal* / Time Stability = *Stable* / Custom Filter *Low* 705600 / -> USB3 *from MoBo* -> Clairixa USB 15cm -> Intona Isolator -> Clairixa USB 1m80 -> 24/768 Phasure NOS1a 75B (BNC Out) async USB DAC, Driver v1.0.4b (4ms) -> Blaxius BNC interlink *-> B'ASS Current Amplifier /w Level4 -> Blaxius Interlink* -> Orelo MKII Active Open Baffle Horn Speakers.
Removed Switching Supplies from everywhere.

Global Moderator
PeterSt
Administrator
High Grade Audiophile
*****
Offline Offline

Posts: 15418



View Profile Email
« Reply #7 on: February 09, 2014, 02:38:23 pm »

In the first post I have added XTweaks settings exlplicitly for Windows 7 (see new screen shot).
Logged

For the Stealth III LPS PC :
W10-14393.0 - Oct 31, 2018 (2.10)
XXHighEnd Mach III Stealth LPS PC -> Xeon Scalable 14/28 core with Hyperthreading On (set to 10/20 cores) @~660MHz, 48GB, Windows 10 Pro 64 bit build 14393.0 from RAM, music on LAN / Engine#4 Adaptive Mode / Q1/-/3/4/5 = 30/-/1/1/1/ Q1Factor = 10 / Dev.Buffer = 4096 / ClockRes = 15ms / Memory = Straight Contiguous / Include Garbage Collect / SFS = 140.19  (max 140.19) / not Invert / Phase Alignment Off / Playerprio = Low / ThreadPrio = Realtime / Scheme = Core 3-5 / Not Switch Processors during Playback = Off/ Playback Drive none (see OS from RAM) / UnAttended (Just Start) / Always Copy to XX Drive (see OS from RAM) / Stop Desktop, Remaining, WASAPI and W10 services / Use Remote Desktop / Keep LAN - Not Persist / WallPaper On / OSD Off (!) / Running Time Off / Minimize OS / XTweaks : Balanced Load = 35 / Nervous Rate = 10 / Cool when Idle = n.a / Provide Stable Power = 0 / Utilize Cores always = 1 / Time Performance Index = Optimal / Time Stability = Stable / *Arc Prediction Filtering (16x)* / Always Clear Proxy before Playback = On -> USB3 from MoBo -> Lush^2*A:B-W-Y-R, B:B-W-R* USB 1m00 -> Phisolator 24/768 Phasure NOS1a/G3 75B (BNC Out) async USB DAC, Driver v1.0.4b (16ms) -> B'ASS Current Amplifier -> *Blaxius^2 A:B-R, B:B-R* Interlink -> Orelo MKII Active Open Baffle Horn Speakers.
Removed Switching Supplies from everywhere (also from the PC).

For a general PC :
W10-10586.0 - May 2016 (2.05+)
*XXHighEnd PC -> I7 3930k with Hyperthreading On (12 cores)* @~500MHz, 16GB, Windows 10 Pro 64 bit build 10586.0 from RAM, music on LAN / Engine#4 Adaptive Mode / Q1/-/3/4/5 = 14/-/1/1/1 / Q1Factor = 1 / Dev.Buffer = 4096 / ClockRes = 1ms / Memory = Straight Contiguous / Include Garbage Collect / SFS = 0.10  (max 60) / not Invert / Phase Alignment Off / Playerprio = Low / ThreadPrio = Realtime / Scheme = Core 3-5 / Not Switch Processors during Playback = Off/ Playback Drive none (see OS from RAM) / UnAttended (Just Start) / Always Copy to XX Drive (see OS from RAM) / All Services Off / Keep LAN - Not Persist / WallPaper On / OSD On / Running Time Off / Minimize OS / XTweaks : Balanced Load = *43* / Nervous Rate = 1 / Cool when Idle = 1 / Provide Stable Power = 1 / Utilize Cores always = 1 / Time Performance Index = *Optimal* / Time Stability = *Stable* / Custom Filter *Low* 705600 / -> USB3 *from MoBo* -> Clairixa USB 15cm -> Intona Isolator -> Clairixa USB 1m80 -> 24/768 Phasure NOS1a 75B (BNC Out) async USB DAC, Driver v1.0.4b (4ms) -> Blaxius BNC interlink *-> B'ASS Current Amplifier /w Level4 -> Blaxius Interlink* -> Orelo MKII Active Open Baffle Horn Speakers.
Removed Switching Supplies from everywhere.

Global Moderator
Robert
Audio Enthusiast
**
Offline Offline

Posts: 382


View Profile Email
« Reply #8 on: May 20, 2015, 01:36:09 am »

Would these settings you have used in your i73930k Bios work in my new i7 4790k, 4ghz, 4core processor?

Mine is set to auto currently as per factory. What would you suggest?

Robert
Logged

Intel I7, 4790k, 4/8 core, 32g ram, W10, Pro64, Ver 14393, No updates, Hyperthreading On @~800MHz, Bios settings adjusted
XXhighend Ver 2.10 Ram OS, Settings:Q1/-/3/4/5 = *30*/-/*1*/*1*/*1*/ Q1Factor = *5* / Dev.Buffer = 4096 / ClockRes = *15ms* / Memory = Straight Contiguous / Include Garbage Collect / SFS = *.69*  (max .69) / Disable Cracks Off / not Invert / Phase Alignment Off / Playerprio = Low / ThreadPrio = Realtime / Scheme = Core 3-4 / Not Switch Processors during Playback = Off/ UnAttended / Stop Desktop, Remaining, WASAPI and W10 services / Don't use Remote Desktop / Keep LAN - Not Persist / WallPaper Off / *OSD Off* / Running Time Off / Minimize OS / XTweaks : Balanced Load = 35 / Nervous Rate = 10 / Cool when Idle = 1 / Provide Stable Power = 0 / Utilize Cores always = 1 / Time Performance Index = Optimal / Time Stability = Stable / *Arc Prediction Filter*
Music on LAN, Phasure Lush USB cable
Oppo 205 UDP Pre/Dac
Nordost Heimdall II interconnects, Nordost Heimdall II Power Cords, Audioquest power cords
Chriquet Active Electronic 2 way Crossover 80hz
Unity Audio Boulder MKI Active Monitors x 2, JLAudio 12 Subs x 2
PeterSt
Administrator
High Grade Audiophile
*****
Offline Offline

Posts: 15418



View Profile Email
« Reply #9 on: May 20, 2015, 08:07:55 am »

Hi Robert,

Really hard to tell. But if your MoBo is the same brand (ASRock) you can at least try it and with that MoBo all is harmless to try (if you stick to the proposed settings).

Peter
Logged

For the Stealth III LPS PC :
W10-14393.0 - Oct 31, 2018 (2.10)
XXHighEnd Mach III Stealth LPS PC -> Xeon Scalable 14/28 core with Hyperthreading On (set to 10/20 cores) @~660MHz, 48GB, Windows 10 Pro 64 bit build 14393.0 from RAM, music on LAN / Engine#4 Adaptive Mode / Q1/-/3/4/5 = 30/-/1/1/1/ Q1Factor = 10 / Dev.Buffer = 4096 / ClockRes = 15ms / Memory = Straight Contiguous / Include Garbage Collect / SFS = 140.19  (max 140.19) / not Invert / Phase Alignment Off / Playerprio = Low / ThreadPrio = Realtime / Scheme = Core 3-5 / Not Switch Processors during Playback = Off/ Playback Drive none (see OS from RAM) / UnAttended (Just Start) / Always Copy to XX Drive (see OS from RAM) / Stop Desktop, Remaining, WASAPI and W10 services / Use Remote Desktop / Keep LAN - Not Persist / WallPaper On / OSD Off (!) / Running Time Off / Minimize OS / XTweaks : Balanced Load = 35 / Nervous Rate = 10 / Cool when Idle = n.a / Provide Stable Power = 0 / Utilize Cores always = 1 / Time Performance Index = Optimal / Time Stability = Stable / *Arc Prediction Filtering (16x)* / Always Clear Proxy before Playback = On -> USB3 from MoBo -> Lush^2*A:B-W-Y-R, B:B-W-R* USB 1m00 -> Phisolator 24/768 Phasure NOS1a/G3 75B (BNC Out) async USB DAC, Driver v1.0.4b (16ms) -> B'ASS Current Amplifier -> *Blaxius^2 A:B-R, B:B-R* Interlink -> Orelo MKII Active Open Baffle Horn Speakers.
Removed Switching Supplies from everywhere (also from the PC).

For a general PC :
W10-10586.0 - May 2016 (2.05+)
*XXHighEnd PC -> I7 3930k with Hyperthreading On (12 cores)* @~500MHz, 16GB, Windows 10 Pro 64 bit build 10586.0 from RAM, music on LAN / Engine#4 Adaptive Mode / Q1/-/3/4/5 = 14/-/1/1/1 / Q1Factor = 1 / Dev.Buffer = 4096 / ClockRes = 1ms / Memory = Straight Contiguous / Include Garbage Collect / SFS = 0.10  (max 60) / not Invert / Phase Alignment Off / Playerprio = Low / ThreadPrio = Realtime / Scheme = Core 3-5 / Not Switch Processors during Playback = Off/ Playback Drive none (see OS from RAM) / UnAttended (Just Start) / Always Copy to XX Drive (see OS from RAM) / All Services Off / Keep LAN - Not Persist / WallPaper On / OSD On / Running Time Off / Minimize OS / XTweaks : Balanced Load = *43* / Nervous Rate = 1 / Cool when Idle = 1 / Provide Stable Power = 1 / Utilize Cores always = 1 / Time Performance Index = *Optimal* / Time Stability = *Stable* / Custom Filter *Low* 705600 / -> USB3 *from MoBo* -> Clairixa USB 15cm -> Intona Isolator -> Clairixa USB 1m80 -> 24/768 Phasure NOS1a 75B (BNC Out) async USB DAC, Driver v1.0.4b (4ms) -> Blaxius BNC interlink *-> B'ASS Current Amplifier /w Level4 -> Blaxius Interlink* -> Orelo MKII Active Open Baffle Horn Speakers.
Removed Switching Supplies from everywhere.

Global Moderator
hudesigns
Audio Loudspeaker
*
Offline Offline

Posts: 85


View Profile Email
« Reply #10 on: March 20, 2018, 08:31:30 pm »

Hi Peter,
Baby steps form me  Happy
I use Asrock Z97 extreme MB with Windows 10. Could you tell me the above tweaks in BIOS are still relevant. Or you can give me an updated suggestions.
Best,
Zheng
Logged

XXHighEnd PC -> I5-4460 (4 cores), @800Mhz, 24GB, Windows 10 Pro 64 bit build 10586.0 - Windows system, XXHE and XXHEdata on M.2 SSD on MoBo - Other temp folders on 2.5" internal SSD / XXHighEnd 2.10c, music on LAN / Engine#4 Adaptive Mode / Buffer = 1024 / Q1/-/3/4/5 = 11/-/1/1/1 / Q1Factor = 1 / ClockRes = 1ms / SFS = 5.19  (max 60) / Memory = Straight Contiguous / Include Garbage Collect / not Invert / Phase Alignment Off / Playerprio = Low / ThreadPrio = Realtime / Scheme = Core 1-3 / UnAttended / Stop Desktop, Remaining, WASAPI and W10 services / Keep LAN - Not Persist / WallPaper Off / OSD Off / Running Time Off / Minimize OS / XTweaks : Balanced Load = 49 / Nervous Rate = 10 / Cool when Idle = 1 / Provide Stable Power = 1 / Utilize Cores always = 1 / Custom Filter second High 705600-> USB3 from MoBo -> Modified USB3 "Y" cable -> 32/384 async USB DAC iFi iDAC2 (in bit-perfect NOS mode) powered by battery--->

Setup 1: Fisher 80 mono preamplifiers -> 8417 (in triode mode) push pull mono amps -> Bi-wire with Naim NAC A5 speaker cable for woofer and military grade silver alloy cable to tweeter -> Linn Kan II speakers

Setup 2: Audio Research SP-3 preamplifier -> 45 (globe) single ended mono amps -> Altec 604e speakers
PeterSt
Administrator
High Grade Audiophile
*****
Offline Offline

Posts: 15418



View Profile Email
« Reply #11 on: March 21, 2018, 08:06:57 am »

Hello Zheng,

I'd say that all the settings will just apply to your Z97.
They were never changed (also not over here internally).

Of course it is ~ two years ago that we formally shipped this PC but I don't think we would have changed settings anyway (no new thoughts on the matters of concern).

Best regards,
Peter
Logged

For the Stealth III LPS PC :
W10-14393.0 - Oct 31, 2018 (2.10)
XXHighEnd Mach III Stealth LPS PC -> Xeon Scalable 14/28 core with Hyperthreading On (set to 10/20 cores) @~660MHz, 48GB, Windows 10 Pro 64 bit build 14393.0 from RAM, music on LAN / Engine#4 Adaptive Mode / Q1/-/3/4/5 = 30/-/1/1/1/ Q1Factor = 10 / Dev.Buffer = 4096 / ClockRes = 15ms / Memory = Straight Contiguous / Include Garbage Collect / SFS = 140.19  (max 140.19) / not Invert / Phase Alignment Off / Playerprio = Low / ThreadPrio = Realtime / Scheme = Core 3-5 / Not Switch Processors during Playback = Off/ Playback Drive none (see OS from RAM) / UnAttended (Just Start) / Always Copy to XX Drive (see OS from RAM) / Stop Desktop, Remaining, WASAPI and W10 services / Use Remote Desktop / Keep LAN - Not Persist / WallPaper On / OSD Off (!) / Running Time Off / Minimize OS / XTweaks : Balanced Load = 35 / Nervous Rate = 10 / Cool when Idle = n.a / Provide Stable Power = 0 / Utilize Cores always = 1 / Time Performance Index = Optimal / Time Stability = Stable / *Arc Prediction Filtering (16x)* / Always Clear Proxy before Playback = On -> USB3 from MoBo -> Lush^2*A:B-W-Y-R, B:B-W-R* USB 1m00 -> Phisolator 24/768 Phasure NOS1a/G3 75B (BNC Out) async USB DAC, Driver v1.0.4b (16ms) -> B'ASS Current Amplifier -> *Blaxius^2 A:B-R, B:B-R* Interlink -> Orelo MKII Active Open Baffle Horn Speakers.
Removed Switching Supplies from everywhere (also from the PC).

For a general PC :
W10-10586.0 - May 2016 (2.05+)
*XXHighEnd PC -> I7 3930k with Hyperthreading On (12 cores)* @~500MHz, 16GB, Windows 10 Pro 64 bit build 10586.0 from RAM, music on LAN / Engine#4 Adaptive Mode / Q1/-/3/4/5 = 14/-/1/1/1 / Q1Factor = 1 / Dev.Buffer = 4096 / ClockRes = 1ms / Memory = Straight Contiguous / Include Garbage Collect / SFS = 0.10  (max 60) / not Invert / Phase Alignment Off / Playerprio = Low / ThreadPrio = Realtime / Scheme = Core 3-5 / Not Switch Processors during Playback = Off/ Playback Drive none (see OS from RAM) / UnAttended (Just Start) / Always Copy to XX Drive (see OS from RAM) / All Services Off / Keep LAN - Not Persist / WallPaper On / OSD On / Running Time Off / Minimize OS / XTweaks : Balanced Load = *43* / Nervous Rate = 1 / Cool when Idle = 1 / Provide Stable Power = 1 / Utilize Cores always = 1 / Time Performance Index = *Optimal* / Time Stability = *Stable* / Custom Filter *Low* 705600 / -> USB3 *from MoBo* -> Clairixa USB 15cm -> Intona Isolator -> Clairixa USB 1m80 -> 24/768 Phasure NOS1a 75B (BNC Out) async USB DAC, Driver v1.0.4b (4ms) -> Blaxius BNC interlink *-> B'ASS Current Amplifier /w Level4 -> Blaxius Interlink* -> Orelo MKII Active Open Baffle Horn Speakers.
Removed Switching Supplies from everywhere.

Global Moderator
hudesigns
Audio Loudspeaker
*
Offline Offline

Posts: 85


View Profile Email
« Reply #12 on: March 21, 2018, 04:49:59 pm »

I finished modifying BIOS based on your recommended settings as close as possible. In places my BIOS screens are somewhat different but same in principle. Now my machine is running at around 1200mhz (more room to go down a bit, still need to try) and memories chips at 1333mhz. One single CPU fan is on "silence" mode which only turns a few seconds at boot but otherwise totally stationary. it is pretty silent. It sounds better. Happy
Logged

XXHighEnd PC -> I5-4460 (4 cores), @800Mhz, 24GB, Windows 10 Pro 64 bit build 10586.0 - Windows system, XXHE and XXHEdata on M.2 SSD on MoBo - Other temp folders on 2.5" internal SSD / XXHighEnd 2.10c, music on LAN / Engine#4 Adaptive Mode / Buffer = 1024 / Q1/-/3/4/5 = 11/-/1/1/1 / Q1Factor = 1 / ClockRes = 1ms / SFS = 5.19  (max 60) / Memory = Straight Contiguous / Include Garbage Collect / not Invert / Phase Alignment Off / Playerprio = Low / ThreadPrio = Realtime / Scheme = Core 1-3 / UnAttended / Stop Desktop, Remaining, WASAPI and W10 services / Keep LAN - Not Persist / WallPaper Off / OSD Off / Running Time Off / Minimize OS / XTweaks : Balanced Load = 49 / Nervous Rate = 10 / Cool when Idle = 1 / Provide Stable Power = 1 / Utilize Cores always = 1 / Custom Filter second High 705600-> USB3 from MoBo -> Modified USB3 "Y" cable -> 32/384 async USB DAC iFi iDAC2 (in bit-perfect NOS mode) powered by battery--->

Setup 1: Fisher 80 mono preamplifiers -> 8417 (in triode mode) push pull mono amps -> Bi-wire with Naim NAC A5 speaker cable for woofer and military grade silver alloy cable to tweeter -> Linn Kan II speakers

Setup 2: Audio Research SP-3 preamplifier -> 45 (globe) single ended mono amps -> Altec 604e speakers
Jack
Audio Loudspeaker
*
Offline Offline

Posts: 105

Information is not Knowledge.....Music is the best


View Profile WWW Email
« Reply #13 on: March 21, 2018, 07:42:36 pm »

OK
So let me get this straight, we buy a Ferrari & tune it to run like a mini? The prime reason, to run cooler? To reduce power consumption (which of course will reduce temp) or....
Jack
Logged

Peter's latest version & settings - Win10/64 - Octo core PC  - 32gig RAM - NOS1 Mourinho Edition - BD Amps & filters - BD Inspired Horns - Comfy leather armchair with tablet remote control
Robert
Audio Enthusiast
**
Offline Offline

Posts: 382


View Profile Email
« Reply #14 on: March 21, 2018, 09:59:47 pm »

Jack, its all about better sound!!!!! Try it, unfortunately it takes time to prove but it works.
Logged

Intel I7, 4790k, 4/8 core, 32g ram, W10, Pro64, Ver 14393, No updates, Hyperthreading On @~800MHz, Bios settings adjusted
XXhighend Ver 2.10 Ram OS, Settings:Q1/-/3/4/5 = *30*/-/*1*/*1*/*1*/ Q1Factor = *5* / Dev.Buffer = 4096 / ClockRes = *15ms* / Memory = Straight Contiguous / Include Garbage Collect / SFS = *.69*  (max .69) / Disable Cracks Off / not Invert / Phase Alignment Off / Playerprio = Low / ThreadPrio = Realtime / Scheme = Core 3-4 / Not Switch Processors during Playback = Off/ UnAttended / Stop Desktop, Remaining, WASAPI and W10 services / Don't use Remote Desktop / Keep LAN - Not Persist / WallPaper Off / *OSD Off* / Running Time Off / Minimize OS / XTweaks : Balanced Load = 35 / Nervous Rate = 10 / Cool when Idle = 1 / Provide Stable Power = 0 / Utilize Cores always = 1 / Time Performance Index = Optimal / Time Stability = Stable / *Arc Prediction Filter*
Music on LAN, Phasure Lush USB cable
Oppo 205 UDP Pre/Dac
Nordost Heimdall II interconnects, Nordost Heimdall II Power Cords, Audioquest power cords
Chriquet Active Electronic 2 way Crossover 80hz
Unity Audio Boulder MKI Active Monitors x 2, JLAudio 12 Subs x 2
Pages: [1] 2  All
  Print

Jump to:

Powered by MySQL Powered by PHP Powered by SMF 1.1 RC2 | SMF © 2001-2005, Lewis Media Valid XHTML 1.0! Valid CSS!
Page created in 0.062 seconds with 19 queries.
