Author Topic: Mach II XXHighEnd PC with Linear Power Supply  (Read 57965 times)
0 Members and 0 Guests are viewing this topic.
PeterSt
Administrator
High Grade Audiophile
*****
Offline Offline

Posts: 15242



View Profile Email
« on: May 15, 2016, 10:15:44 am »

May 25, 2016 (last edited June 9, 2016)

This first post has been rewritten so it is clear right from the start what this is all about. Regarding this aspect, please notice that the first responses only had for context the second picture below, and no text at all.

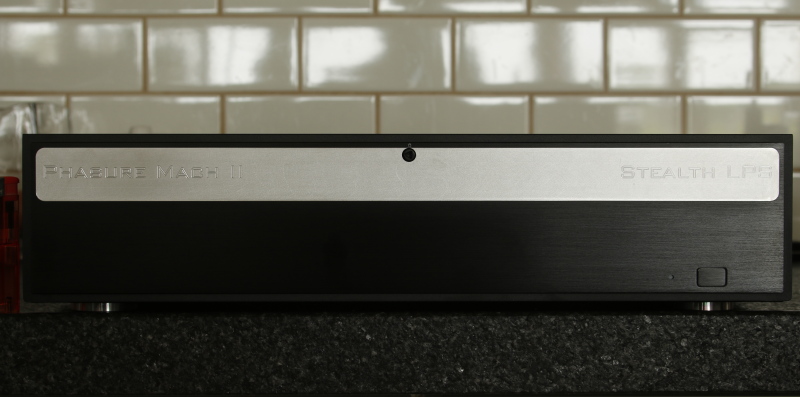

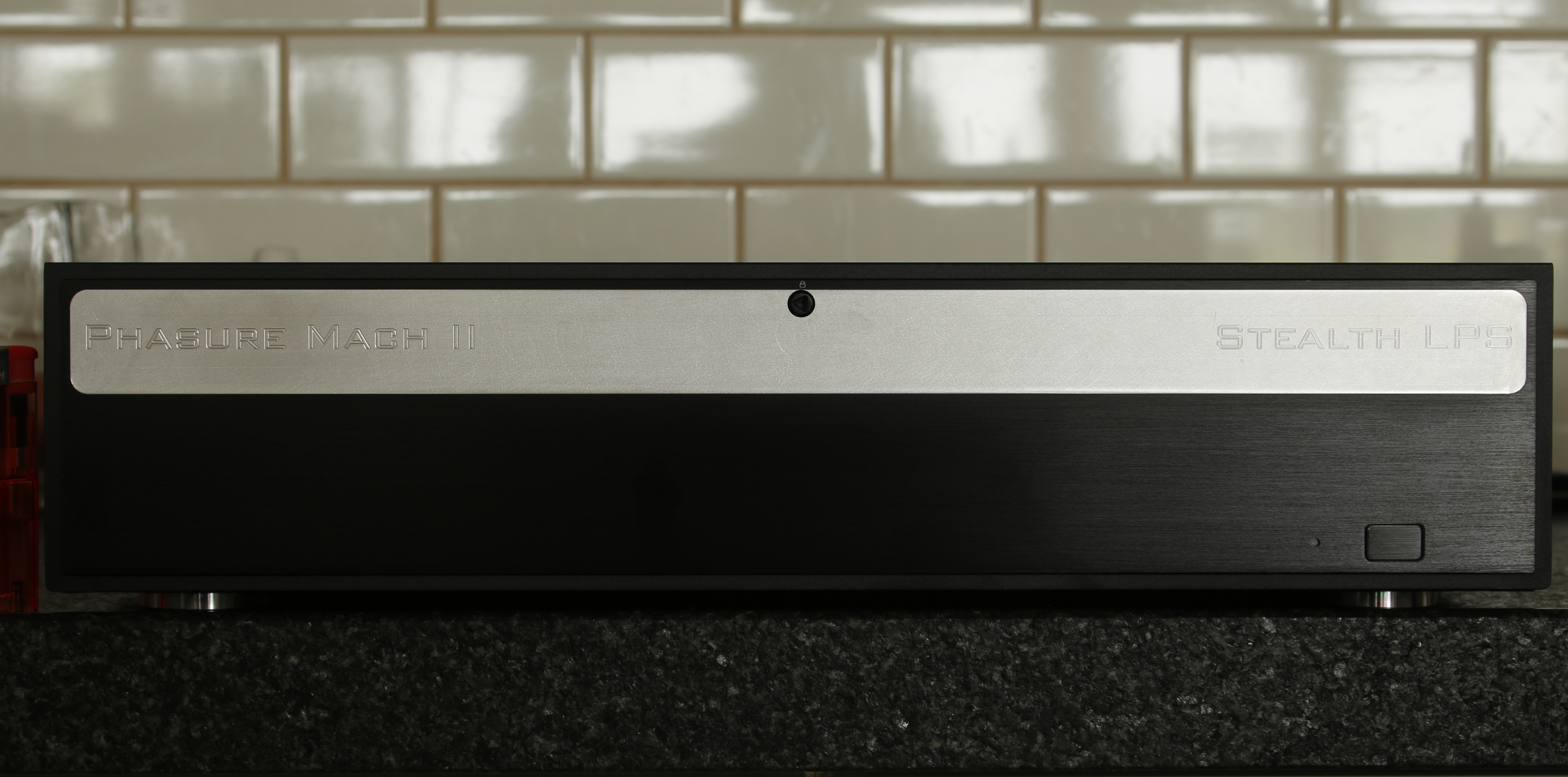

High Resolution link XXHighEnd MachII LPS 02

The Phasure Mach II Stealth LPS is an all passively cooled Audio PC with 10 core (20 core hyperthreaded) processor and which houses a Linear Power Supply. All in a case of only 10cm / 4" of height (that includes the footers). It is 43,5cm / 17.5" wide and 35cm / 14" deep.
24 core and 28 core is OK just the same, but the 24 core requires the (~16dBA) inaudibe CPU fan to run.

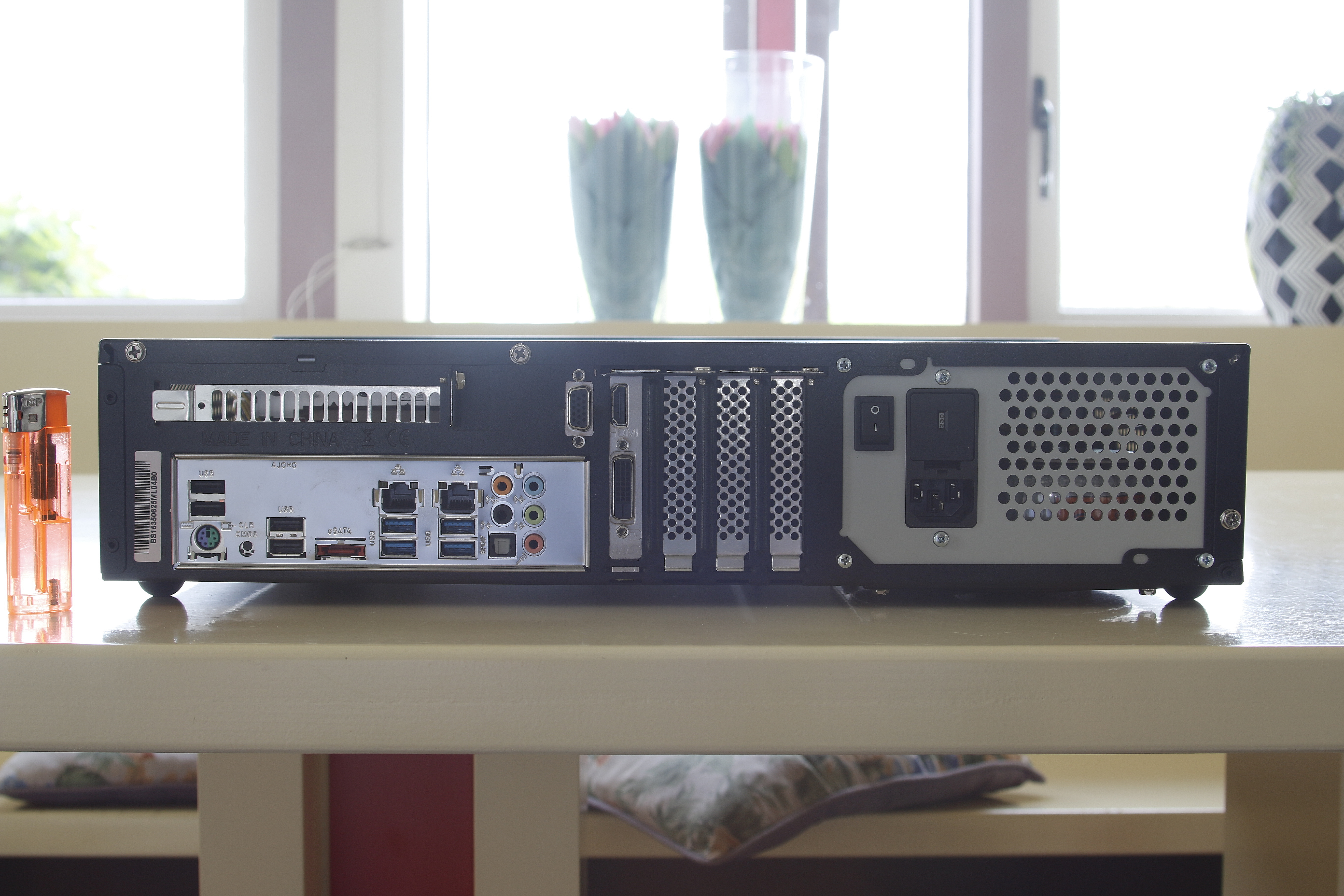

High Resolution link XXHighEnd MachII LPS 01

Behind the nicely machined bracket for the power inlet (115/230V switchable) and power switch there's a transformer and Linear Power Supply, delicately tuned for the best Sound Quality possible today.
This new Mach II Stealth LPS should be able to set the audio standard for the upcoming years;

The LPS is the result of the on-going expertise and motivation of us all and say that I have been there to finish it off with now 10 years of quite explicit "audio building" experience. This resulted in something which is well beyond a "XXHighEnd PC" as all this expertise is now packed into one small box, previously thought to be impossible.
Besides that, and of course is has been the sheer objective, this "box" changes the sound so drastically that it is once again beyond belief how it can happen.

There are no large heat sinks part of the case - there is no forced air cooling, there is nothing getting hot and there is a 20 core processor.
Minimum !

Like the first edition of the XXHighEnd PC, this one can be heavily underclocked in combination with the XXHighEnd software. And, although it has not been explored for SQ, the Mach II LPS can run at a ridiculously low 120MHz, which is too low to operate really (all is not responsive enough). For that reason XXHighEnd 2.06+ contains a "boost" feature which kicks in when needed (like with volume change), while after the operation of concern the pre-set playback frequency is automatically re-engaged.
And oh, I am also very proud and thankful that I got ASRock as far as adjusting the BIOS especially for Phasure. blush1




Specifications

Xeon processor, minimum 10 Core (minimum 20 Core Hyperthreaded) .

ASRock X99M Motherboard.

No running fans anywhere;
For unknown "emergency" situations a CPU Cooling fan can be switched on by means of an external switch (this just in case with the notice that we could not find such a situation) . This fan is completely silent (13dBA or so) and it will draw the heat from the case's internals as well.
When the fan is running, a led now will show so. We also added a thermal safety switch, which switches on the fan+led when the cpu cooler becomes 60C (140F); the fan then runs for maybe 60 seconds (this is estimated) and will have cooled all to 45C (113F) and then switches off again.
Side note : The real conditions could not be tested because there is no way to get the lot so warm that the fan kicks in. Of course all was tested, but in an oven.
The (white) led is assembled in the side of the case and is fairly bright. It is the idea that it will be visible when the fan is running because you can't hear it by any means. Still it could influence SQ so for this reason it is good to see it. Keep in mind though that the fan will never kick in in the first place. But what would we think when for safety it could be running while there would be no means to check it; we'd be restless. I thought that the extra 60 euros for this, is justified.

Without the emergency cooling fan running, the Internal case temperature is between 40C and 45C (104F and 113F), with the hottest component (outside the CPU) being 50C (122F). This is at an ambient temperature of ~24C (75F) and further normal operating conditions.
The heat generating components are rated at 170C (338F) at least, while the advised continuous max temperature of the CPU is 70C (158F).  In the Mach II environment, the CPU is ~59C (138F) max, during continuous playback of several hours (32 bit / 705.6 KHz, never interrupted).
When idle, the cpu is 54C (129F) or a bit less.

A hot-swap 2.5" drive bay is provided for the Operating System SSD, which is also provided (240GB) and pre-installed with the OS RAM Disk Operating Systems (for free for those who obtained the RAM OS Disk already - otherwise 200 euros extra).
Of course the SSD can be removed after the OS of choice has been booted into RAM.

The RAM OS SSD serves 14GB of "disk space" within the 32GB of provided internal Memory (this "disk space" is 5GB more than the standard RAM OS Disk).

A DVD drive is provided for the rare occasion it is needed.

Two LAN ports come to your convenience, so now the route to the WiFi access point (etc.) can exist in parallel to a NAS (while protected from the Interet).

There's one PS2 port for a shared Keyboard and Mouse connection (Y connector not provided, nor are keyboard, mouse and monitor).

There are USB2 and USB3 ports all over the place as well as a pile of SATAIII connectors and even Thunderbolt, but you won't need those.

The video card again comes with HDMI, DVI and VGA connector.
For again a vastly better SQ (this is serious), the video card can be taken out, so all will be "headless" and controlled by means of RDC. Notice that the multi-boot SSD can be controlled by XXHighEnd and that the boot of choice - and also shutdown can be controlled over RDC.

With no video card assembled during normal operation and with the RAM OS Disk (SSD) removed after booting, the power consumption is 30 Watts during (32/705600) playback.

It is assumed that you have a valid License for Windows 10 (Windows 7, 8 or 8.1 is also fine) with the clear notice that no Windows license is part of the standard package.
If you don't have a valid License or you are not sure about it, ~130 euros must be added to the price and a License will be provided.



Controlled environment

It will be obvious that this is not any normally "put together" PC as all would be too hot and no Linear Power Supply would be in there (by miles). Therefore it is to be noted that this PC can operate like it does (in sustained fashion !) because of the carefully selected components which closely co-operate and which all has been tested extensively. It is thus not so that, for example, the PC can be bought without its dedicated power supply, that it can be shipped with 16TB of harddisk inside (which btw sure would fit), that it can be shipped with a random untested processor, or that the Linear Power Supply can be provided as a separate unit;
Instead, it is a dedicated machine purely made for the best audio possible as how Phasure could create it.

This PC is to be used as an Audio Processor only - the music stored on the LAN somewhere (in another PC or NAS etc.). The PC is thus not meant to directly attach storage to via e.g. USB, or assemble that storage internally (via SATA). It is tested in empty condition, though with OS Disk (SSD) inserted (might you think this is more convenient to let it in always). Of course it has been tested with the Video card assembled, although the advice is thus to remove that for better SQ.

The PC has been tested and is guarandeed to sustain its capabilities regarding speed and temperature control for continuous playback and being idle - all under control of XXHighEnd - with an ambient temperature of 25C (77F) and with RAM OS Disk (SSD) and Video card in. This also incorporated stress testing for a reasonable period of time, under extreme non-controlled conditions, like operating at maximum processor speed for 10 minutes. This is without the readily assembled CPU cooling fan, which thus can be switched on when necessary.
The fact that this testing has been done with an ambient of 25C (77F) does not tell that all will break at a higher ambient, but because this has not been tested it can not be guaranteed. With CPU fan all will be OK always (say up to an ambient of 40C (104F) - but hey ...).



Pricing (ex VAT if liable to VAT, and shipping)

Edit January 1, 2017 : The price of each of the versions below had to increase with 150 euros. Also see here. This 150 is already incorporated in the prices you see below.
Edit October, 2017 : Price has to increase again (with 50 euros) because of by now crazy memory prices. This is again already incorporated in the prices below.


(pricing is subject to supplier pricing, obviously, which in the end also depends on euro - USD currency rates; with euro 1000+ costing processors this can wildly change in (near) future).

Price with 20 core Hyperthreaded 2.4GHz Xeon 2640v4 processor : 2510 euros.
This has been extensively tested/tuned for the best Sound Quality.

Price with 20 core Hyperthreaded 2.2GHz Xeon 2630v4 processor : 2260 euros.
After several days of listening it was decided that the 2630v4 is not the way to go really.
Re: Mach II XXHighEnd PC with Linear Power Supply.

Price with 24 core Hyperthreaded 2.2GHz Xeon 2650v4 processor : 2710 euros.
Edit June 9, 2016 : By now this processor has been extensively tested and it sounds better than the 2640v4. This can be explained by means of the presence of the aditional cores, which theoretically help SQ. To this regard, notice that this was tested with the due XXHighEnd 2.06 which supports 28 cores.
Downside : Apart from a more powerful Linear Power Supply (which was developed meanwhile), this needs the CPU fan to run. Without that it is ~9 minutes without fan followed by 90 seconds with fan, then again 9 minutes without, and so on (this goes automatically). So this is no way to go and the fan has to be on permanently.
Please notice that the fan is not PWM controlled (would be bad for SQ otherwise) and that the totally inaudible fan maintains the CPU temperature at 32C / 90F max, during playback. So really no problem at all.
Lastly, the SQ observation has been done with continuously running fan. This with the notice that I myself never heard a difference between with and without fan (consumes less than 0.5W), contrary to with and without video card (may consume 19W). So in my view really good to go.

Price with 28 core Hyperthreaded 2.0GHz Xeon 2660v4 processor : 3010 euros.
Edit Sept. 2016 : This processor now has been tested too and found to be very OK; contrary to the 2650, the 2660 does not require the CPU fan to run (it may switch on during more severe tasks the PC needs to process, but not during normal Audio playing).



Benefit of more processor cores : the more cores the less the audio processes "can" be interrupted by other processes in the PC (Operating System) which benefits SQ (largely).
Besides that, each core will load a track in parallel to other tracks, thus an e.g. 24 core processor will load an album of 24 tracks in the time of one track (about 1 second).

When you do not pocess the RAM OS Disk, 200 euros will be charged for that (the SSD will have 5 pre-installed Operating Systems, of which 4 can be booted from RAM - W10 10074, 10565 (edit Sept. 2016) 14393.0 and 10586.0 plus W8).
When you don't have an XXHighEnd License for your Household, 72 euros adds to the price.



Availability

Today ! However, each PC is build to order (first come first serve as always). Processor lead time can be immediate but can also be 2 weeks and far more at times (depending on supplier stock and/or world wide availability).



wacko
Peter
« Last Edit: October 20, 2017, 02:27:23 pm by PeterSt » Logged

For the Stealth III LPS PC :
W10-14393.0 - August 18, 2018 (2.10)
XXHighEnd Mach *III* Stealth LPS PC -> *Xeon Scalable 14/28 core* with Hyperthreading On (*set to 10/20 cores*) @~660MHz, 48GB, Windows 10 Pro 64 bit build 14393.0 from RAM, music on LAN / Engine#4 Adaptive Mode / Q1/-/3/4/5 = 30/-/1/1/1/ Q1Factor = 10 / Dev.Buffer = 4096 / ClockRes = 15ms / Memory = Straight Contiguous / Include Garbage Collect / SFS = *140.19*  (max 140.19) / not Invert / Phase Alignment Off / Playerprio = Low / ThreadPrio = Realtime / Scheme = Core 3-5 / Not Switch Processors during Playback = Off/ Playback Drive none (see OS from RAM) / UnAttended (Just Start) / Always Copy to XX Drive (see OS from RAM) / Stop Desktop, Remaining, WASAPI and W10 services / Use Remote Desktop / Keep LAN - Not Persist / WallPaper On / OSD Off (!) / Running Time Off / Minimize OS / XTweaks : Balanced Load = *35* / Nervous Rate = 10 / Cool when Idle = n.a / Provide Stable Power = 0 / Utilize Cores always = 1 / Time Performance Index = Optimal / Time Stability = Stable / *Arc Prediction Filtering (16x)* / Always Clear Proxy before Playback = On -> USB3 from MoBo -> *Lush^2 A: B-W & Y-R, B: B-W* USB 1m00 -> Phisolator 24/768 Phasure NOS1a/G3 75B (BNC Out) async USB DAC, Driver v1.0.4b (16ms) -> B'ASS Current Amplifier -> Blaxius Interlink -> Orelo MKII Active Open Baffle Horn Speakers.
Removed Switching Supplies from everywhere (also from the PC).

For a general PC :
W10-10586.0 - May 2016 (2.05+)
*XXHighEnd PC -> I7 3930k with Hyperthreading On (12 cores)* @~500MHz, 16GB, Windows 10 Pro 64 bit build 10586.0 from RAM, music on LAN / Engine#4 Adaptive Mode / Q1/-/3/4/5 = 14/-/1/1/1 / Q1Factor = 1 / Dev.Buffer = 4096 / ClockRes = 1ms / Memory = Straight Contiguous / Include Garbage Collect / SFS = 0.10  (max 60) / not Invert / Phase Alignment Off / Playerprio = Low / ThreadPrio = Realtime / Scheme = Core 3-5 / Not Switch Processors during Playback = Off/ Playback Drive none (see OS from RAM) / UnAttended (Just Start) / Always Copy to XX Drive (see OS from RAM) / All Services Off / Keep LAN - Not Persist / WallPaper On / OSD On / Running Time Off / Minimize OS / XTweaks : Balanced Load = *43* / Nervous Rate = 1 / Cool when Idle = 1 / Provide Stable Power = 1 / Utilize Cores always = 1 / Time Performance Index = *Optimal* / Time Stability = *Stable* / Custom Filter *Low* 705600 / -> USB3 *from MoBo* -> Clairixa USB 15cm -> Intona Isolator -> Clairixa USB 1m80 -> 24/768 Phasure NOS1a 75B (BNC Out) async USB DAC, Driver v1.0.4b (4ms) -> Blaxius BNC interlink *-> B'ASS Current Amplifier /w Level4 -> Blaxius Interlink* -> Orelo MKII Active Open Baffle Horn Speakers.
Removed Switching Supplies from everywhere.

Global Moderator
Arjan
Audio Enthusiast
**
Offline Offline

Posts: 213


View Profile Email
« Reply #1 on: May 15, 2016, 10:31:28 am »

Hi Peter,
That looks really nice! So the new LPS fits in a case like that.

One remark though, I tried a low profile in the past, but got noise issues with the CPU fan. It was to close to the top part of the case and made to much noise blowing through vent opening. More space between top vent opening and fan was needed.

Regards, Arjan
Logged

March, 2018 (2.10)
Music Server (old PC) RDC to Mach II Stealth 14393 RAM-OS / no videocard / Engine#4 Adaptive Mode / Q1/3/4/5 = 30/0/1/1/ Q1Factor = 40 (Dev.Buffer = 4096) / ClockRes = 0.5ms / SFS = 5.19 Mx = 120 Straight Contiguous / driver buffer 16ms / Playerprio = Low / ThreadPrio = High / Scheme = 3-5 / Unattended / Minimize OS / PeakExtend off / Arc Prediction / NO custom filter / 16x Upsampling / XTweaks 38 (turbo boost off in bios and cpu ratio 24!),1,-,0,1/with coverart / --> mobo USB --> The Lush 100 cm --> NOS1a 75B --> Blaxius --> bnc amps Jadis JA30 (modified and with the best tubes) --> Speakers
PeterSt
Administrator
High Grade Audiophile
*****
Offline Offline

Posts: 15242



View Profile Email
« Reply #2 on: May 15, 2016, 10:47:01 am »

Fan ? what fan ? ...

Quote
Stealth

whistle
Logged

For the Stealth III LPS PC :
W10-14393.0 - August 18, 2018 (2.10)
XXHighEnd Mach *III* Stealth LPS PC -> *Xeon Scalable 14/28 core* with Hyperthreading On (*set to 10/20 cores*) @~660MHz, 48GB, Windows 10 Pro 64 bit build 14393.0 from RAM, music on LAN / Engine#4 Adaptive Mode / Q1/-/3/4/5 = 30/-/1/1/1/ Q1Factor = 10 / Dev.Buffer = 4096 / ClockRes = 15ms / Memory = Straight Contiguous / Include Garbage Collect / SFS = *140.19*  (max 140.19) / not Invert / Phase Alignment Off / Playerprio = Low / ThreadPrio = Realtime / Scheme = Core 3-5 / Not Switch Processors during Playback = Off/ Playback Drive none (see OS from RAM) / UnAttended (Just Start) / Always Copy to XX Drive (see OS from RAM) / Stop Desktop, Remaining, WASAPI and W10 services / Use Remote Desktop / Keep LAN - Not Persist / WallPaper On / OSD Off (!) / Running Time Off / Minimize OS / XTweaks : Balanced Load = *35* / Nervous Rate = 10 / Cool when Idle = n.a / Provide Stable Power = 0 / Utilize Cores always = 1 / Time Performance Index = Optimal / Time Stability = Stable / *Arc Prediction Filtering (16x)* / Always Clear Proxy before Playback = On -> USB3 from MoBo -> *Lush^2 A: B-W & Y-R, B: B-W* USB 1m00 -> Phisolator 24/768 Phasure NOS1a/G3 75B (BNC Out) async USB DAC, Driver v1.0.4b (16ms) -> B'ASS Current Amplifier -> Blaxius Interlink -> Orelo MKII Active Open Baffle Horn Speakers.
Removed Switching Supplies from everywhere (also from the PC).

For a general PC :
W10-10586.0 - May 2016 (2.05+)
*XXHighEnd PC -> I7 3930k with Hyperthreading On (12 cores)* @~500MHz, 16GB, Windows 10 Pro 64 bit build 10586.0 from RAM, music on LAN / Engine#4 Adaptive Mode / Q1/-/3/4/5 = 14/-/1/1/1 / Q1Factor = 1 / Dev.Buffer = 4096 / ClockRes = 1ms / Memory = Straight Contiguous / Include Garbage Collect / SFS = 0.10  (max 60) / not Invert / Phase Alignment Off / Playerprio = Low / ThreadPrio = Realtime / Scheme = Core 3-5 / Not Switch Processors during Playback = Off/ Playback Drive none (see OS from RAM) / UnAttended (Just Start) / Always Copy to XX Drive (see OS from RAM) / All Services Off / Keep LAN - Not Persist / WallPaper On / OSD On / Running Time Off / Minimize OS / XTweaks : Balanced Load = *43* / Nervous Rate = 1 / Cool when Idle = 1 / Provide Stable Power = 1 / Utilize Cores always = 1 / Time Performance Index = *Optimal* / Time Stability = *Stable* / Custom Filter *Low* 705600 / -> USB3 *from MoBo* -> Clairixa USB 15cm -> Intona Isolator -> Clairixa USB 1m80 -> 24/768 Phasure NOS1a 75B (BNC Out) async USB DAC, Driver v1.0.4b (4ms) -> Blaxius BNC interlink *-> B'ASS Current Amplifier /w Level4 -> Blaxius Interlink* -> Orelo MKII Active Open Baffle Horn Speakers.
Removed Switching Supplies from everywhere.

Global Moderator
Gerard
Audio Addict
***
Offline Offline

Posts: 1064


WWG1WGA


View Profile
« Reply #3 on: May 15, 2016, 01:30:05 pm »

Is it let's build some hardware month  Wink promising it looks

Great  Happy
Logged

Januari 2017 XX 2.05
OriginAE x11v Home build HTCP ~ Asus x79 mobo 3930K 12 core underclock 500 MHz,
16GB, *Windows 10 Pro 64 bit build 14393.0* *from RAM*, music on music server / Engine#4 Adaptive Mode / Q1/-/3/4/5 = 14/-/1/1/1 / Q1Factor = 1 / Dev.Buffer = 4096 / ClockRes = 1ms / Memory = Straight Contiguous / Include Garbage Collect / SFS = *0.10*  (max 60) / not Invert / Phase Alignment Off / Playerprio = Low / ThreadPrio = Realtime / Scheme = Core *3-5* / Not Switch Processors during Playback = Off/ Playback Drive *none* (see OS from RAM) / UnAttended (Just Start) / Always Copy to XX Drive (see OS from RAM) / All Services Off / Keep LAN - Not Persist / WallPaper On / OSD On / Running Time Off / Minimize OS / XTweaks : Balanced Load = *43* / Nervous Rate = 1 / Cool when Idle = 1 / Provide Stable Power = 1 / Utilize Cores always = 1 / Time Performance Index = Not the best (OS from RAM issue) / Time Stability = Off (OS from RAM issue) / Custom Filter Mid 705600 / -> USB3 (Silverstone both sides isolated = Sw#3 of NOS1a = Up) -> *Clairixa USB 15cm* -> Intona Isolator -> Clairixa USB 0.70m -> 24/768 Phasure NOS1a 75B (BNC Out) async USB DAC, Driver v1.0.4b (4ms) -> Blaxius BNC interlink ->> Metrum Amps ->> Metrum Acoustics ESL Open Baffle.
AlainGr
Audio Addict
***
Offline Offline

Posts: 1130

Music for life

alain_gregoire@hotmail.com
View Profile Email
« Reply #4 on: May 15, 2016, 04:50:26 pm »

And it has an Esata connection at the rear ? Wonderful Happy I am eager to read about the specs (CPU, amount of RAM, etc...) Happy

 evil

Alain
Logged

Desktop with ASUS Sabertooth X79 motherboard,Intel 3930k 6 cores (+ 6) at 1.2 GHZ,32GB ram 1333Mhz,Win 10 pro build 14386 64 bit with no updates,OS + XXHE on external Sata III SSD (Esata), music (WAV) on external 5200 rpm drive through network, OS MInimized, XX with engine 4 adaptive,4096 (buffer size), CPU with scheme 3,Player = Low,Thread = RealTime, Q1 = 14,Q345 = 1,1,1,Q1x=1,Clock res = (variable),Stop Desktop Services,Stop Remaining Services,Stop Wasapi,,LAN on,persist = on,all OSD off,SFS = 2,PE off,PA off, Arc Prediction,x16 Upsample, Straight Contiguous,Lush USB  cable,Phasure NOS1a DAC,Meitner PA-6 preamp, Spectral Audio DMA-180  Power Amp, Tannoy System 15 DMT II, Tannoy St-100 supertweeters, Tannoy TS2.12 subwoofers (2). * On hiatus for a while...
Arjan
Audio Enthusiast
**
Offline Offline

Posts: 213


View Profile Email
« Reply #5 on: May 15, 2016, 06:21:31 pm »

Start guessing?

Regards
Logged

March, 2018 (2.10)
Music Server (old PC) RDC to Mach II Stealth 14393 RAM-OS / no videocard / Engine#4 Adaptive Mode / Q1/3/4/5 = 30/0/1/1/ Q1Factor = 40 (Dev.Buffer = 4096) / ClockRes = 0.5ms / SFS = 5.19 Mx = 120 Straight Contiguous / driver buffer 16ms / Playerprio = Low / ThreadPrio = High / Scheme = 3-5 / Unattended / Minimize OS / PeakExtend off / Arc Prediction / NO custom filter / 16x Upsampling / XTweaks 38 (turbo boost off in bios and cpu ratio 24!),1,-,0,1/with coverart / --> mobo USB --> The Lush 100 cm --> NOS1a 75B --> Blaxius --> bnc amps Jadis JA30 (modified and with the best tubes) --> Speakers
AlainGr
Audio Addict
***
Offline Offline

Posts: 1130

Music for life

alain_gregoire@hotmail.com
View Profile Email
« Reply #6 on: May 15, 2016, 07:00:45 pm »

Peter, do you still use an Asrock mobo with the same CPU ? I do not see any PCIe card for USB ?

Alain
Logged

Desktop with ASUS Sabertooth X79 motherboard,Intel 3930k 6 cores (+ 6) at 1.2 GHZ,32GB ram 1333Mhz,Win 10 pro build 14386 64 bit with no updates,OS + XXHE on external Sata III SSD (Esata), music (WAV) on external 5200 rpm drive through network, OS MInimized, XX with engine 4 adaptive,4096 (buffer size), CPU with scheme 3,Player = Low,Thread = RealTime, Q1 = 14,Q345 = 1,1,1,Q1x=1,Clock res = (variable),Stop Desktop Services,Stop Remaining Services,Stop Wasapi,,LAN on,persist = on,all OSD off,SFS = 2,PE off,PA off, Arc Prediction,x16 Upsample, Straight Contiguous,Lush USB  cable,Phasure NOS1a DAC,Meitner PA-6 preamp, Spectral Audio DMA-180  Power Amp, Tannoy System 15 DMT II, Tannoy St-100 supertweeters, Tannoy TS2.12 subwoofers (2). * On hiatus for a while...
PaulF70
Audio Loudspeaker
*
Offline Offline

Posts: 43


View Profile
« Reply #7 on: May 15, 2016, 11:05:17 pm »

At first I thought those two vases in the background were two DHTs poking up out of the case ala Modwright, etc. Happy  Peter, if you built a "DHT-PC", you'd be guaranteed to sell a ton of them... it doesn't matter what (if anything) the DHTs would do...
Logged
christoffe
Audio Addict
***
Offline Offline

Posts: 756


View Profile Email
« Reply #8 on: May 16, 2016, 03:50:01 am »

Hi,

the computer casing/chassis is a Silverstone ML04.

Motherboard is an Asrock X99M Extreme4 with a LGA2011 v3 socket for a XEON CPU, and 16GB DDR4 RAM chips, I bet.
Same mobo type which Michael uses.

Joachim
Logged
PeterSt
Administrator
High Grade Audiophile
*****
Offline Offline

Posts: 15242



View Profile Email
« Reply #9 on: May 16, 2016, 08:57:29 am »

Peter, do you still use an Asrock mobo with the same CPU ? I do not see any PCIe card for USB ?

Alain, like I told elsewhere, the Silverstone doesn't sound right any more with the Linear Power Supply.
But it can be in there all right.

Peter
Logged

For the Stealth III LPS PC :
W10-14393.0 - August 18, 2018 (2.10)
XXHighEnd Mach *III* Stealth LPS PC -> *Xeon Scalable 14/28 core* with Hyperthreading On (*set to 10/20 cores*) @~660MHz, 48GB, Windows 10 Pro 64 bit build 14393.0 from RAM, music on LAN / Engine#4 Adaptive Mode / Q1/-/3/4/5 = 30/-/1/1/1/ Q1Factor = 10 / Dev.Buffer = 4096 / ClockRes = 15ms / Memory = Straight Contiguous / Include Garbage Collect / SFS = *140.19*  (max 140.19) / not Invert / Phase Alignment Off / Playerprio = Low / ThreadPrio = Realtime / Scheme = Core 3-5 / Not Switch Processors during Playback = Off/ Playback Drive none (see OS from RAM) / UnAttended (Just Start) / Always Copy to XX Drive (see OS from RAM) / Stop Desktop, Remaining, WASAPI and W10 services / Use Remote Desktop / Keep LAN - Not Persist / WallPaper On / OSD Off (!) / Running Time Off / Minimize OS / XTweaks : Balanced Load = *35* / Nervous Rate = 10 / Cool when Idle = n.a / Provide Stable Power = 0 / Utilize Cores always = 1 / Time Performance Index = Optimal / Time Stability = Stable / *Arc Prediction Filtering (16x)* / Always Clear Proxy before Playback = On -> USB3 from MoBo -> *Lush^2 A: B-W & Y-R, B: B-W* USB 1m00 -> Phisolator 24/768 Phasure NOS1a/G3 75B (BNC Out) async USB DAC, Driver v1.0.4b (16ms) -> B'ASS Current Amplifier -> Blaxius Interlink -> Orelo MKII Active Open Baffle Horn Speakers.
Removed Switching Supplies from everywhere (also from the PC).

For a general PC :
W10-10586.0 - May 2016 (2.05+)
*XXHighEnd PC -> I7 3930k with Hyperthreading On (12 cores)* @~500MHz, 16GB, Windows 10 Pro 64 bit build 10586.0 from RAM, music on LAN / Engine#4 Adaptive Mode / Q1/-/3/4/5 = 14/-/1/1/1 / Q1Factor = 1 / Dev.Buffer = 4096 / ClockRes = 1ms / Memory = Straight Contiguous / Include Garbage Collect / SFS = 0.10  (max 60) / not Invert / Phase Alignment Off / Playerprio = Low / ThreadPrio = Realtime / Scheme = Core 3-5 / Not Switch Processors during Playback = Off/ Playback Drive none (see OS from RAM) / UnAttended (Just Start) / Always Copy to XX Drive (see OS from RAM) / All Services Off / Keep LAN - Not Persist / WallPaper On / OSD On / Running Time Off / Minimize OS / XTweaks : Balanced Load = *43* / Nervous Rate = 1 / Cool when Idle = 1 / Provide Stable Power = 1 / Utilize Cores always = 1 / Time Performance Index = *Optimal* / Time Stability = *Stable* / Custom Filter *Low* 705600 / -> USB3 *from MoBo* -> Clairixa USB 15cm -> Intona Isolator -> Clairixa USB 1m80 -> 24/768 Phasure NOS1a 75B (BNC Out) async USB DAC, Driver v1.0.4b (4ms) -> Blaxius BNC interlink *-> B'ASS Current Amplifier /w Level4 -> Blaxius Interlink* -> Orelo MKII Active Open Baffle Horn Speakers.
Removed Switching Supplies from everywhere.

Global Moderator
PeterSt
Administrator
High Grade Audiophile
*****
Offline Offline

Posts: 15242



View Profile Email
« Reply #10 on: May 16, 2016, 09:11:44 am »

Quote
the Silverstone doesn't sound right any more with the Linear Power Supply.

Don't pin me down on such expressions which may even come across as statements. I have a whole new world to learn;
I regularly run into tracks where I hear things which make me say WHAT ? and next this sizzles after burning in my head of what is actually happening or broken or what. An example which hopefully speaks :

A few occasions I heard the feedback of a microphone in a loudspeaker which I never heard before. You know what I mean ? This is most often used by electric guitar players to create over tones and it even more will happen accidentally. So come too close with the pickup (which is microphone) of the guitar to the speaker playing that guitar and you have that sound.

https://www.youtube.com/watch?v=luURyH9fzhk
(just watch it out for the whole 4 minutes)
Want some goose bumps ?
https://www.youtube.com/watch?v=AOsgv_X_cV8
(this is the song the guy mentions in the first video)

If I listen to a track which I regularly listen to and suddenly I hear such a blast of "overtone" then it seriously feels that something is broken. It just seems to much of something which did not occur at all, earlier on.

Peter
Logged

For the Stealth III LPS PC :
W10-14393.0 - August 18, 2018 (2.10)
XXHighEnd Mach *III* Stealth LPS PC -> *Xeon Scalable 14/28 core* with Hyperthreading On (*set to 10/20 cores*) @~660MHz, 48GB, Windows 10 Pro 64 bit build 14393.0 from RAM, music on LAN / Engine#4 Adaptive Mode / Q1/-/3/4/5 = 30/-/1/1/1/ Q1Factor = 10 / Dev.Buffer = 4096 / ClockRes = 15ms / Memory = Straight Contiguous / Include Garbage Collect / SFS = *140.19*  (max 140.19) / not Invert / Phase Alignment Off / Playerprio = Low / ThreadPrio = Realtime / Scheme = Core 3-5 / Not Switch Processors during Playback = Off/ Playback Drive none (see OS from RAM) / UnAttended (Just Start) / Always Copy to XX Drive (see OS from RAM) / Stop Desktop, Remaining, WASAPI and W10 services / Use Remote Desktop / Keep LAN - Not Persist / WallPaper On / OSD Off (!) / Running Time Off / Minimize OS / XTweaks : Balanced Load = *35* / Nervous Rate = 10 / Cool when Idle = n.a / Provide Stable Power = 0 / Utilize Cores always = 1 / Time Performance Index = Optimal / Time Stability = Stable / *Arc Prediction Filtering (16x)* / Always Clear Proxy before Playback = On -> USB3 from MoBo -> *Lush^2 A: B-W & Y-R, B: B-W* USB 1m00 -> Phisolator 24/768 Phasure NOS1a/G3 75B (BNC Out) async USB DAC, Driver v1.0.4b (16ms) -> B'ASS Current Amplifier -> Blaxius Interlink -> Orelo MKII Active Open Baffle Horn Speakers.
Removed Switching Supplies from everywhere (also from the PC).

For a general PC :
W10-10586.0 - May 2016 (2.05+)
*XXHighEnd PC -> I7 3930k with Hyperthreading On (12 cores)* @~500MHz, 16GB, Windows 10 Pro 64 bit build 10586.0 from RAM, music on LAN / Engine#4 Adaptive Mode / Q1/-/3/4/5 = 14/-/1/1/1 / Q1Factor = 1 / Dev.Buffer = 4096 / ClockRes = 1ms / Memory = Straight Contiguous / Include Garbage Collect / SFS = 0.10  (max 60) / not Invert / Phase Alignment Off / Playerprio = Low / ThreadPrio = Realtime / Scheme = Core 3-5 / Not Switch Processors during Playback = Off/ Playback Drive none (see OS from RAM) / UnAttended (Just Start) / Always Copy to XX Drive (see OS from RAM) / All Services Off / Keep LAN - Not Persist / WallPaper On / OSD On / Running Time Off / Minimize OS / XTweaks : Balanced Load = *43* / Nervous Rate = 1 / Cool when Idle = 1 / Provide Stable Power = 1 / Utilize Cores always = 1 / Time Performance Index = *Optimal* / Time Stability = *Stable* / Custom Filter *Low* 705600 / -> USB3 *from MoBo* -> Clairixa USB 15cm -> Intona Isolator -> Clairixa USB 1m80 -> 24/768 Phasure NOS1a 75B (BNC Out) async USB DAC, Driver v1.0.4b (4ms) -> Blaxius BNC interlink *-> B'ASS Current Amplifier /w Level4 -> Blaxius Interlink* -> Orelo MKII Active Open Baffle Horn Speakers.
Removed Switching Supplies from everywhere.

Global Moderator
AlainGr
Audio Addict
***
Offline Offline

Posts: 1130

Music for life

alain_gregoire@hotmail.com
View Profile Email
« Reply #11 on: May 16, 2016, 11:48:37 am »

Peter, do you still use an Asrock mobo with the same CPU ? I do not see any PCIe card for USB ?

Alain, like I told elsewhere, the Silverstone doesn't sound right any more with the Linear Power Supply.
But it can be in there all right.

Peter
I did not mention any specific PCIe card... The Silverstome already sounds too extreme to me, so I am using my sotm PCIe card that was stored in a drawer. It allows me to use my linear power supply to inject clean power to the Intona... For the moment...

Alain
Logged

Desktop with ASUS Sabertooth X79 motherboard,Intel 3930k 6 cores (+ 6) at 1.2 GHZ,32GB ram 1333Mhz,Win 10 pro build 14386 64 bit with no updates,OS + XXHE on external Sata III SSD (Esata), music (WAV) on external 5200 rpm drive through network, OS MInimized, XX with engine 4 adaptive,4096 (buffer size), CPU with scheme 3,Player = Low,Thread = RealTime, Q1 = 14,Q345 = 1,1,1,Q1x=1,Clock res = (variable),Stop Desktop Services,Stop Remaining Services,Stop Wasapi,,LAN on,persist = on,all OSD off,SFS = 2,PE off,PA off, Arc Prediction,x16 Upsample, Straight Contiguous,Lush USB  cable,Phasure NOS1a DAC,Meitner PA-6 preamp, Spectral Audio DMA-180  Power Amp, Tannoy System 15 DMT II, Tannoy St-100 supertweeters, Tannoy TS2.12 subwoofers (2). * On hiatus for a while...
Arjan
Audio Enthusiast
**
Offline Offline

Posts: 213


View Profile Email
« Reply #12 on: May 16, 2016, 12:01:43 pm »

About the processor. I see that Michael is using a Xeon CPU. Maybe low wattage so it can be fanless? But still 8 cores?
Not sure but I would say that a e.g. 5930K CPU (140w) cannot be used fanless, unless we can be for sure it always run at low speeds.
What I remember is that Peter did stress tests at full CPU speeds for the LPS. To me that seems impossible with a 140w CPU and fanless....
I think the Noctua cooler is not that good. I could be wrong.

Arjan
Logged

March, 2018 (2.10)
Music Server (old PC) RDC to Mach II Stealth 14393 RAM-OS / no videocard / Engine#4 Adaptive Mode / Q1/3/4/5 = 30/0/1/1/ Q1Factor = 40 (Dev.Buffer = 4096) / ClockRes = 0.5ms / SFS = 5.19 Mx = 120 Straight Contiguous / driver buffer 16ms / Playerprio = Low / ThreadPrio = High / Scheme = 3-5 / Unattended / Minimize OS / PeakExtend off / Arc Prediction / NO custom filter / 16x Upsampling / XTweaks 38 (turbo boost off in bios and cpu ratio 24!),1,-,0,1/with coverart / --> mobo USB --> The Lush 100 cm --> NOS1a 75B --> Blaxius --> bnc amps Jadis JA30 (modified and with the best tubes) --> Speakers
AlainGr
Audio Addict
***
Offline Offline

Posts: 1130

Music for life

alain_gregoire@hotmail.com
View Profile Email
« Reply #13 on: May 16, 2016, 12:24:59 pm »

Interesting (the 2 videos) Happy

Alain
Logged

Desktop with ASUS Sabertooth X79 motherboard,Intel 3930k 6 cores (+ 6) at 1.2 GHZ,32GB ram 1333Mhz,Win 10 pro build 14386 64 bit with no updates,OS + XXHE on external Sata III SSD (Esata), music (WAV) on external 5200 rpm drive through network, OS MInimized, XX with engine 4 adaptive,4096 (buffer size), CPU with scheme 3,Player = Low,Thread = RealTime, Q1 = 14,Q345 = 1,1,1,Q1x=1,Clock res = (variable),Stop Desktop Services,Stop Remaining Services,Stop Wasapi,,LAN on,persist = on,all OSD off,SFS = 2,PE off,PA off, Arc Prediction,x16 Upsample, Straight Contiguous,Lush USB  cable,Phasure NOS1a DAC,Meitner PA-6 preamp, Spectral Audio DMA-180  Power Amp, Tannoy System 15 DMT II, Tannoy St-100 supertweeters, Tannoy TS2.12 subwoofers (2). * On hiatus for a while...
AlainGr
Audio Addict
***
Offline Offline

Posts: 1130

Music for life

alain_gregoire@hotmail.com
View Profile Email
« Reply #14 on: May 16, 2016, 12:25:48 pm »

Peter, does it affect the way voices are rendered ?

Alain
Logged

Desktop with ASUS Sabertooth X79 motherboard,Intel 3930k 6 cores (+ 6) at 1.2 GHZ,32GB ram 1333Mhz,Win 10 pro build 14386 64 bit with no updates,OS + XXHE on external Sata III SSD (Esata), music (WAV) on external 5200 rpm drive through network, OS MInimized, XX with engine 4 adaptive,4096 (buffer size), CPU with scheme 3,Player = Low,Thread = RealTime, Q1 = 14,Q345 = 1,1,1,Q1x=1,Clock res = (variable),Stop Desktop Services,Stop Remaining Services,Stop Wasapi,,LAN on,persist = on,all OSD off,SFS = 2,PE off,PA off, Arc Prediction,x16 Upsample, Straight Contiguous,Lush USB  cable,Phasure NOS1a DAC,Meitner PA-6 preamp, Spectral Audio DMA-180  Power Amp, Tannoy System 15 DMT II, Tannoy St-100 supertweeters, Tannoy TS2.12 subwoofers (2). * On hiatus for a while...
Pages: [1] 2 3 4 5 6 7 8  All
  Print

Jump to:

Powered by MySQL Powered by PHP Powered by SMF 1.1 RC2 | SMF © 2001-2005, Lewis Media Valid XHTML 1.0! Valid CSS!
Page created in 0.056 seconds with 19 queries.
