Author Topic: RAM OS Disk - Upgrade 10565 TRIAL  (Read 19960 times)
0 Members and 1 Guest are viewing this topic.
PeterSt
Administrator
High Grade Audiophile
*****
Offline Offline

Posts: 15851



View Profile Email
« on: July 14, 2016, 06:10:59 pm »

Windows 10 Build 10565 will expire July 29, 2016. Therefore it will be a good idea (for convenience) to upgrade it (in your RAM OS Disk to a newer version - one that does not expire meanwhile.

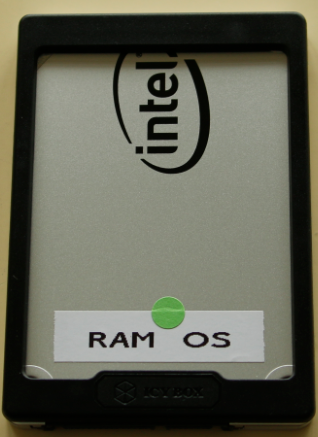

Important : When your RAM OS Disk has a green sticker like you see it below, over the RAM OS white sticker, this has already been done by us (shipments from of July 14, 2016).

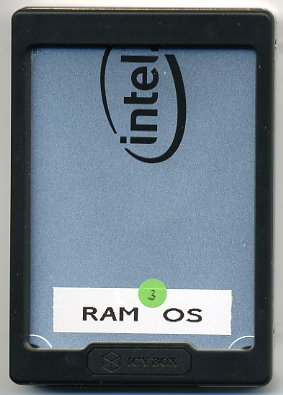

Edit Sept. 6, 2016 : When there's a "3" written on the green sticker, it means that you have a version with W10 14393.0 installed on it plus this 14393.0 and also 10586.0 have been adjusted for OS Timers set for optimal SQ when the OS is booted from RAM. Notice that from of XXHighEnd 2.07 this can be set by XXHighEnd.
W10 10565 BASE + RAM now have been removed. Notice that the screenshots more below do not reflect this.





Here's 14388 : Download.

After downloading, when you unpack it, you will also find the Windows 7 DVD DownloadTool in there;
Use the Windows 7 DVD DownloadTool to create a bootable USB Flash drive (pen/stick) of the ISO (you downloaded per the above). Watch out : Run this on a 64 bit computer or otherwise it won't work.

In XXHighEnd, boot into 10565 TRIAL.
However, make the PC go into the BIOS and in there change the date to a date before July 2016. Of course you can have changed the date prior to rebooting into 10565 TRIAL.

Put the USB flash drive in your PC and run the setup(.exe) in there.

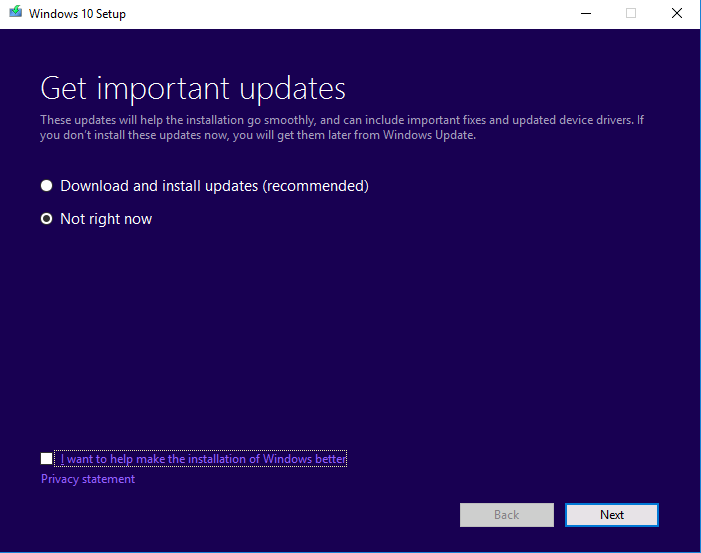

Answer to the screens as you see them below.




This first part can be initiated through RDC but when it is finished (~10 minutes) a reboot takes place and the remainder is to be done with normal keyboard, mouse and monitor (takes another ~20 minutes).

Let it run untill it finished and 14388 is up and running.

When XXHighEnd is now started, it can happen that a message appears that XXHighEnd does not run with Administrator privileges. A reboot solves this.
Then :

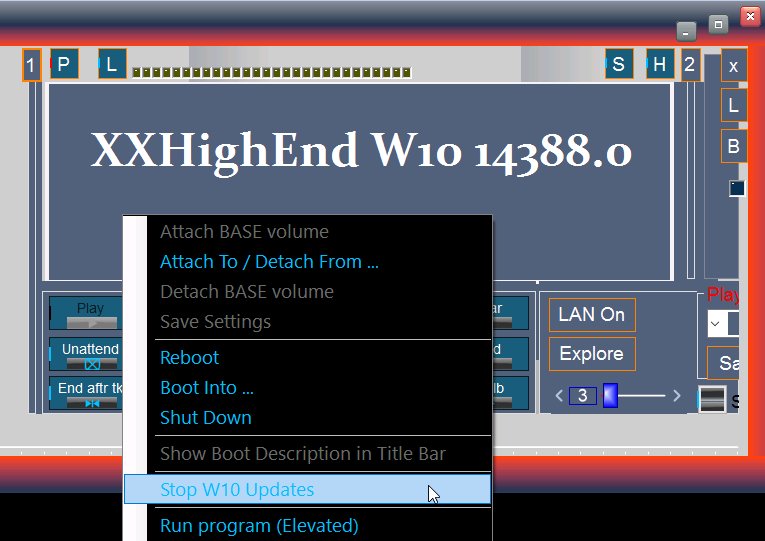

Start XXHighEnd, RightClick on Stop, choose Stop W10 Updates

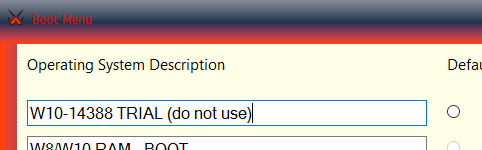

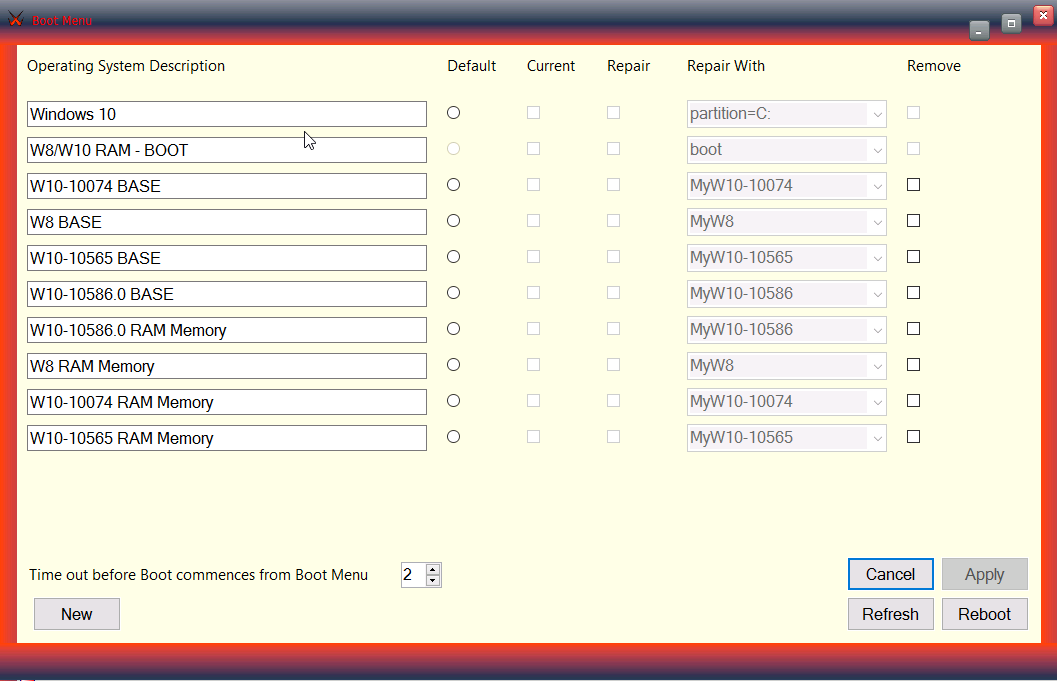

and next choose Boot Into; Change the "Windows 10" entry (the description of it) nicely into
"W10-14388 TRIAL (do not use)"
(don't forget to exit the field (like with Tab) and press Apply).





Lastly, boot back into the OS of your liking.

Your RAM OS Disk is now ready to be serviced by means of the new 14388 TRIAL OS, later. This will not expire.

« Last Edit: September 06, 2016, 11:33:02 am by PeterSt » Logged

For the Stealth III LPS PC :
W10-14393.0 - July 17, 2021 (2.11)
XXHighEnd Mach III Stealth LPS PC -> Xeon Scalable 14/28 core with Hyperthreading On (set to 14/28 cores in BIOS and set to 10/20 cores via Boot Menu) @~660MHz, 48GB, Windows 10 Pro 64 bit build 14393.0 from RAM, music on LAN / Engine#4 Adaptive Mode / Q1/-/3/4/5 = 14/-/0/0/*1*/ Q1Factor = *4* / Dev.Buffer = 4096 / ClockRes = *10ms* / Memory = Straight Contiguous / Include Garbage Collect / SFS = *10.13*  (max 10.13) / not Invert / Phase Alignment Off / Playerprio = Low / ThreadPrio = Realtime / Scheme = Core 3-5 / Not Switch Processors during Playback = Off/ Playback Drive none (see OS from RAM) / UnAttended (Just Start) / Always Copy to XX Drive (see OS from RAM) / Stop Desktop, Remaining, WASAPI and W10 services / Use Remote Desktop / Keep LAN - Not Persist / WallPaper On / OSD Off (!) / Running Time Off / Minimize OS / XTweaks : Balanced Load = *62* / Nervous Rate = *1* / Cool when Idle = n.a / Provide Stable Power = 1 / Utilize Cores always = 1 / Time Performance Index = Optimal / Time Stability = Stable / Custom Filtering *Low* (16x) / Always Clear Proxy before Playback = On -> USB3 from MoBo -> Lush^3
A: W-Y-R-G, B: *W-G* USB 1m00 -> Phisolator 24/768 Phasure NOS1a/G3 75B (BNC Out) async USB DAC, Driver v1.0.4b (16ms) -> B'ASS Current Amplifier -> Blaxius*^2.5* A:B-G, B:B-G Interlink -> Orelo MKII Active Open Baffle Horn Speakers. ET^2 Ethernet from Mach III to Music Server PC (RDC Control).
Removed Switching Supplies from everywhere (also from the PC).

For a general PC :
W10-10586.0 - May 2016 (2.05+)
*XXHighEnd PC -> I7 3930k with Hyperthreading On (12 cores)* @~500MHz, 16GB, Windows 10 Pro 64 bit build 10586.0 from RAM, music on LAN / Engine#4 Adaptive Mode / Q1/-/3/4/5 = 14/-/1/1/1 / Q1Factor = 1 / Dev.Buffer = 4096 / ClockRes = 1ms / Memory = Straight Contiguous / Include Garbage Collect / SFS = 0.10  (max 60) / not Invert / Phase Alignment Off / Playerprio = Low / ThreadPrio = Realtime / Scheme = Core 3-5 / Not Switch Processors during Playback = Off/ Playback Drive none (see OS from RAM) / UnAttended (Just Start) / Always Copy to XX Drive (see OS from RAM) / All Services Off / Keep LAN - Not Persist / WallPaper On / OSD On / Running Time Off / Minimize OS / XTweaks : Balanced Load = *43* / Nervous Rate = 1 / Cool when Idle = 1 / Provide Stable Power = 1 / Utilize Cores always = 1 / Time Performance Index = *Optimal* / Time Stability = *Stable* / Custom Filter *Low* 705600 / -> USB3 *from MoBo* -> Clairixa USB 15cm -> Intona Isolator -> Clairixa USB 1m80 -> 24/768 Phasure NOS1a 75B (BNC Out) async USB DAC, Driver v1.0.4b (4ms) -> Blaxius BNC interlink *-> B'ASS Current Amplifier /w Level4 -> Blaxius Interlink* -> Orelo MKII Active Open Baffle Horn Speakers.
Removed Switching Supplies from everywhere.

Global Moderator
Robert
Audio Enthusiast
**
Online Online

Posts: 442


View Profile Email
« Reply #1 on: July 14, 2016, 10:43:19 pm »

Peter,
After this process should one remove W10-10565 TRIAL(do not use) permanently from Ram OS. And reset Bios date to current date.

In fact remove W10-10565 Base and RAM also. I've only ever used 10586.

I can never get the Windows 7 DVD download tool to work on my 64 bit computer. I've been using isotousb.com freeware.

Robert




Logged

Mach III Stealth LPS PC -> Xeon Scalable 12/24 core with Hyperthreading On (set to 10/20 cores via Boot Menu) @~997MHz, 48GB, W10, Pro64, Ver 14393, No updates,
XXhighend Ver 2.11a, Ram OS, Settings:Q1/-/3/4/5 = *14*/-/*0*/*0*/*1*/ Q1Factor = *4* / Dev.Buffer = 4096 / ClockRes = *10ms* / Memory = Straight Contiguous / Include Garbage Collect / SFS = *10.13*  (max *10.13*) / Disable Cracks Off / not Invert / Phase Alignment Off / Playerprio = Low / ThreadPrio = Realtime / Scheme = Core 3-5 / Not Switch Processors during Playback = Off/ UnAttended / Stop Desktop, Remaining, WASAPI and W10 services / Use Remote Desktop / Keep LAN - Not Persist / WallPaper On / *OSD Off* / Running Time Off / Minimize OS / XTweaks : Balanced Load = 62 / Nervous Rate = 1 / Cool when Idle = 1 / Provide Stable Power = 1 / Utilize Cores always = 1 / Time Performance Index = Optimal / Time Stability = Stable / *Custom Filtering *Low* (16x)
Music on LAN, Phasure Lush^3 USB cable
Oppo 205 UDP Dac
Nordost Heimdall II interconnects and Nordost Heimdall II Power Cords, Audioquest power cords
Chriquet Active Electronic 2 way Crossover 80hz
Unity Audio Boulder MKI Active Monitors x 2
JLAudio 12 Active Subs x 2
PeterSt
Administrator
High Grade Audiophile
*****
Offline Offline

Posts: 15851



View Profile Email
« Reply #2 on: July 15, 2016, 07:55:12 am »

Hi Robert,

The 10565 TRIAL is removed automatically, because it is overwritten (it is the one you upgrade to 14388).

The 10565 BASE and RAM versions are completely unrelated to this upgrade activity. It is the same as with 10074; it is expired (10565 very soon now) but you can still use it, as known ...

If you want to remove those to free up disk space, you can;
Delete the entries in XXHighEnd (both BASE and RAM) and next deleted the files (+ Copy version).

Regards,
Peter

PS:
Quote
I've been using isotousb.com freeware.
Thank you for that tip.
Logged

For the Stealth III LPS PC :
W10-14393.0 - July 17, 2021 (2.11)
XXHighEnd Mach III Stealth LPS PC -> Xeon Scalable 14/28 core with Hyperthreading On (set to 14/28 cores in BIOS and set to 10/20 cores via Boot Menu) @~660MHz, 48GB, Windows 10 Pro 64 bit build 14393.0 from RAM, music on LAN / Engine#4 Adaptive Mode / Q1/-/3/4/5 = 14/-/0/0/*1*/ Q1Factor = *4* / Dev.Buffer = 4096 / ClockRes = *10ms* / Memory = Straight Contiguous / Include Garbage Collect / SFS = *10.13*  (max 10.13) / not Invert / Phase Alignment Off / Playerprio = Low / ThreadPrio = Realtime / Scheme = Core 3-5 / Not Switch Processors during Playback = Off/ Playback Drive none (see OS from RAM) / UnAttended (Just Start) / Always Copy to XX Drive (see OS from RAM) / Stop Desktop, Remaining, WASAPI and W10 services / Use Remote Desktop / Keep LAN - Not Persist / WallPaper On / OSD Off (!) / Running Time Off / Minimize OS / XTweaks : Balanced Load = *62* / Nervous Rate = *1* / Cool when Idle = n.a / Provide Stable Power = 1 / Utilize Cores always = 1 / Time Performance Index = Optimal / Time Stability = Stable / Custom Filtering *Low* (16x) / Always Clear Proxy before Playback = On -> USB3 from MoBo -> Lush^3
A: W-Y-R-G, B: *W-G* USB 1m00 -> Phisolator 24/768 Phasure NOS1a/G3 75B (BNC Out) async USB DAC, Driver v1.0.4b (16ms) -> B'ASS Current Amplifier -> Blaxius*^2.5* A:B-G, B:B-G Interlink -> Orelo MKII Active Open Baffle Horn Speakers. ET^2 Ethernet from Mach III to Music Server PC (RDC Control).
Removed Switching Supplies from everywhere (also from the PC).

For a general PC :
W10-10586.0 - May 2016 (2.05+)
*XXHighEnd PC -> I7 3930k with Hyperthreading On (12 cores)* @~500MHz, 16GB, Windows 10 Pro 64 bit build 10586.0 from RAM, music on LAN / Engine#4 Adaptive Mode / Q1/-/3/4/5 = 14/-/1/1/1 / Q1Factor = 1 / Dev.Buffer = 4096 / ClockRes = 1ms / Memory = Straight Contiguous / Include Garbage Collect / SFS = 0.10  (max 60) / not Invert / Phase Alignment Off / Playerprio = Low / ThreadPrio = Realtime / Scheme = Core 3-5 / Not Switch Processors during Playback = Off/ Playback Drive none (see OS from RAM) / UnAttended (Just Start) / Always Copy to XX Drive (see OS from RAM) / All Services Off / Keep LAN - Not Persist / WallPaper On / OSD On / Running Time Off / Minimize OS / XTweaks : Balanced Load = *43* / Nervous Rate = 1 / Cool when Idle = 1 / Provide Stable Power = 1 / Utilize Cores always = 1 / Time Performance Index = *Optimal* / Time Stability = *Stable* / Custom Filter *Low* 705600 / -> USB3 *from MoBo* -> Clairixa USB 15cm -> Intona Isolator -> Clairixa USB 1m80 -> 24/768 Phasure NOS1a 75B (BNC Out) async USB DAC, Driver v1.0.4b (4ms) -> Blaxius BNC interlink *-> B'ASS Current Amplifier /w Level4 -> Blaxius Interlink* -> Orelo MKII Active Open Baffle Horn Speakers.
Removed Switching Supplies from everywhere.

Global Moderator
Robert
Audio Enthusiast
**
Online Online

Posts: 442


View Profile Email
« Reply #3 on: July 16, 2016, 01:08:08 am »

All works perfectly as per your instructions. Thanks

Robert
Logged

Mach III Stealth LPS PC -> Xeon Scalable 12/24 core with Hyperthreading On (set to 10/20 cores via Boot Menu) @~997MHz, 48GB, W10, Pro64, Ver 14393, No updates,
XXhighend Ver 2.11a, Ram OS, Settings:Q1/-/3/4/5 = *14*/-/*0*/*0*/*1*/ Q1Factor = *4* / Dev.Buffer = 4096 / ClockRes = *10ms* / Memory = Straight Contiguous / Include Garbage Collect / SFS = *10.13*  (max *10.13*) / Disable Cracks Off / not Invert / Phase Alignment Off / Playerprio = Low / ThreadPrio = Realtime / Scheme = Core 3-5 / Not Switch Processors during Playback = Off/ UnAttended / Stop Desktop, Remaining, WASAPI and W10 services / Use Remote Desktop / Keep LAN - Not Persist / WallPaper On / *OSD Off* / Running Time Off / Minimize OS / XTweaks : Balanced Load = 62 / Nervous Rate = 1 / Cool when Idle = 1 / Provide Stable Power = 1 / Utilize Cores always = 1 / Time Performance Index = Optimal / Time Stability = Stable / *Custom Filtering *Low* (16x)
Music on LAN, Phasure Lush^3 USB cable
Oppo 205 UDP Dac
Nordost Heimdall II interconnects and Nordost Heimdall II Power Cords, Audioquest power cords
Chriquet Active Electronic 2 way Crossover 80hz
Unity Audio Boulder MKI Active Monitors x 2
JLAudio 12 Active Subs x 2
PeterSt
Administrator
High Grade Audiophile
*****
Offline Offline

Posts: 15851



View Profile Email
« Reply #4 on: July 16, 2016, 09:04:09 am »

Thank you for the feedback, Robert.

Peter
Logged

For the Stealth III LPS PC :
W10-14393.0 - July 17, 2021 (2.11)
XXHighEnd Mach III Stealth LPS PC -> Xeon Scalable 14/28 core with Hyperthreading On (set to 14/28 cores in BIOS and set to 10/20 cores via Boot Menu) @~660MHz, 48GB, Windows 10 Pro 64 bit build 14393.0 from RAM, music on LAN / Engine#4 Adaptive Mode / Q1/-/3/4/5 = 14/-/0/0/*1*/ Q1Factor = *4* / Dev.Buffer = 4096 / ClockRes = *10ms* / Memory = Straight Contiguous / Include Garbage Collect / SFS = *10.13*  (max 10.13) / not Invert / Phase Alignment Off / Playerprio = Low / ThreadPrio = Realtime / Scheme = Core 3-5 / Not Switch Processors during Playback = Off/ Playback Drive none (see OS from RAM) / UnAttended (Just Start) / Always Copy to XX Drive (see OS from RAM) / Stop Desktop, Remaining, WASAPI and W10 services / Use Remote Desktop / Keep LAN - Not Persist / WallPaper On / OSD Off (!) / Running Time Off / Minimize OS / XTweaks : Balanced Load = *62* / Nervous Rate = *1* / Cool when Idle = n.a / Provide Stable Power = 1 / Utilize Cores always = 1 / Time Performance Index = Optimal / Time Stability = Stable / Custom Filtering *Low* (16x) / Always Clear Proxy before Playback = On -> USB3 from MoBo -> Lush^3
A: W-Y-R-G, B: *W-G* USB 1m00 -> Phisolator 24/768 Phasure NOS1a/G3 75B (BNC Out) async USB DAC, Driver v1.0.4b (16ms) -> B'ASS Current Amplifier -> Blaxius*^2.5* A:B-G, B:B-G Interlink -> Orelo MKII Active Open Baffle Horn Speakers. ET^2 Ethernet from Mach III to Music Server PC (RDC Control).
Removed Switching Supplies from everywhere (also from the PC).

For a general PC :
W10-10586.0 - May 2016 (2.05+)
*XXHighEnd PC -> I7 3930k with Hyperthreading On (12 cores)* @~500MHz, 16GB, Windows 10 Pro 64 bit build 10586.0 from RAM, music on LAN / Engine#4 Adaptive Mode / Q1/-/3/4/5 = 14/-/1/1/1 / Q1Factor = 1 / Dev.Buffer = 4096 / ClockRes = 1ms / Memory = Straight Contiguous / Include Garbage Collect / SFS = 0.10  (max 60) / not Invert / Phase Alignment Off / Playerprio = Low / ThreadPrio = Realtime / Scheme = Core 3-5 / Not Switch Processors during Playback = Off/ Playback Drive none (see OS from RAM) / UnAttended (Just Start) / Always Copy to XX Drive (see OS from RAM) / All Services Off / Keep LAN - Not Persist / WallPaper On / OSD On / Running Time Off / Minimize OS / XTweaks : Balanced Load = *43* / Nervous Rate = 1 / Cool when Idle = 1 / Provide Stable Power = 1 / Utilize Cores always = 1 / Time Performance Index = *Optimal* / Time Stability = *Stable* / Custom Filter *Low* 705600 / -> USB3 *from MoBo* -> Clairixa USB 15cm -> Intona Isolator -> Clairixa USB 1m80 -> 24/768 Phasure NOS1a 75B (BNC Out) async USB DAC, Driver v1.0.4b (4ms) -> Blaxius BNC interlink *-> B'ASS Current Amplifier /w Level4 -> Blaxius Interlink* -> Orelo MKII Active Open Baffle Horn Speakers.
Removed Switching Supplies from everywhere.

Global Moderator
juanpmar
Crazy Audiophile
****
Offline Offline

Posts: 1234


View Profile Email
« Reply #5 on: July 19, 2016, 02:09:08 pm »

Peter, as I only use the 10586.0 version I wonder if it is necessary to upgrade for any other reason the 10565 TRIAL?

Thanks,
Juan
Logged

Audio Pc: Processor i7 970: 3200MHz (reduced to 1668MHz), 6+6 cores/ RAM Corsair DDR3, 24Gb, 1333MHz/ Mb Asus X58 Sabertooth/ OS and XXHE in Peter's RAM-Disk / The CPU fan is the only one in the Audio Pc: NF-S12A (600rpm/6.7db)/ No graphic card/ Power supply: Seasonic SS-400FL2, fanless.

Configuration and Updates in HOW I'VE BUILT MY NEW PC...http://www.phasure.com/index.php?topic=1673.0. This post is very old but maybe someone still find it useful

XXHighEnd: 2.11a. Windows 10 Pro 64 bit build 14393.0 from RAM, music on LAN/ KS:Phasure NOS1 Out 4.0/ #4 Engine/ Adaptive Mode/ Q1=10, Q3,4,5=1, xQ1=15/ Dev.Buffer: 4096/ ClockRes: 15ms/ Straight Contiguous/ SFS: 0.69 (max 0,69)/ Not Invert/ Phase Alignment Off/ Allow format change/ Decode HDCD/ Playerprio: Low/ ThreadPrio: Real Time/ Scheme: Core 3-5/ UnAttended/ Not Switch during Playback Off/ Playback Drive none/ UnAttended/ Include Garbage Collect/ Copy to XX Drive by standard/ Always clear Proxy before Playback/ Stop Desktop Services/ Stop Remaining Services/ Stop All Services: Off/ Keep LAN Services: On - Persist: Off/ Use Remote Desktop/ Minimize OS/ XTweaks : Balanced Load 35/ Nervous Rate 10/ Cool when Idle -/ Provide Stable Power 0/ Utilize Cores always 1/ Time Performance Index: Optimal / Time Stability: Stable / Arc Prediction/ Number of cores in use: 12 (máx. 6-12)

Music Server PC (W10) totally silent with OS (W10) in SSD and music inside in SSDs - RDC > Ethernet Gigabyte cable 3m > Audio Pc > 1m USB Lush cable directly from the USB3.0 in the motherboard > PHASURE NOS1a-75B-G3 (Driver v1.0.4) 16ms > Blaxius BNC interconnects > Genelec 1037B 3-Way Active speakers with BNC inputs
PeterSt
Administrator
High Grade Audiophile
*****
Offline Offline

Posts: 15851



View Profile Email
« Reply #6 on: July 19, 2016, 05:39:40 pm »

Juan,

I can't emphasize enough that this is not related to any of the BASE OSes;
The TRIAL is your maintenance OS. It is the owner of you harddisk (so to speak).

Side note : with tricks you can use the other OSes for maintenance too, but this really is too difficult for most if not all.
You you just need a running OS for that maintenance - just in case and never mind that at this moment you can't even imagine why or what. But if you need to boot into it, you should not be welcomed with a blue screen and a message that a crucial component it missing (which would be the proper date, but you won't really recognize that).

Regards,
Peter
Logged

For the Stealth III LPS PC :
W10-14393.0 - July 17, 2021 (2.11)
XXHighEnd Mach III Stealth LPS PC -> Xeon Scalable 14/28 core with Hyperthreading On (set to 14/28 cores in BIOS and set to 10/20 cores via Boot Menu) @~660MHz, 48GB, Windows 10 Pro 64 bit build 14393.0 from RAM, music on LAN / Engine#4 Adaptive Mode / Q1/-/3/4/5 = 14/-/0/0/*1*/ Q1Factor = *4* / Dev.Buffer = 4096 / ClockRes = *10ms* / Memory = Straight Contiguous / Include Garbage Collect / SFS = *10.13*  (max 10.13) / not Invert / Phase Alignment Off / Playerprio = Low / ThreadPrio = Realtime / Scheme = Core 3-5 / Not Switch Processors during Playback = Off/ Playback Drive none (see OS from RAM) / UnAttended (Just Start) / Always Copy to XX Drive (see OS from RAM) / Stop Desktop, Remaining, WASAPI and W10 services / Use Remote Desktop / Keep LAN - Not Persist / WallPaper On / OSD Off (!) / Running Time Off / Minimize OS / XTweaks : Balanced Load = *62* / Nervous Rate = *1* / Cool when Idle = n.a / Provide Stable Power = 1 / Utilize Cores always = 1 / Time Performance Index = Optimal / Time Stability = Stable / Custom Filtering *Low* (16x) / Always Clear Proxy before Playback = On -> USB3 from MoBo -> Lush^3
A: W-Y-R-G, B: *W-G* USB 1m00 -> Phisolator 24/768 Phasure NOS1a/G3 75B (BNC Out) async USB DAC, Driver v1.0.4b (16ms) -> B'ASS Current Amplifier -> Blaxius*^2.5* A:B-G, B:B-G Interlink -> Orelo MKII Active Open Baffle Horn Speakers. ET^2 Ethernet from Mach III to Music Server PC (RDC Control).
Removed Switching Supplies from everywhere (also from the PC).

For a general PC :
W10-10586.0 - May 2016 (2.05+)
*XXHighEnd PC -> I7 3930k with Hyperthreading On (12 cores)* @~500MHz, 16GB, Windows 10 Pro 64 bit build 10586.0 from RAM, music on LAN / Engine#4 Adaptive Mode / Q1/-/3/4/5 = 14/-/1/1/1 / Q1Factor = 1 / Dev.Buffer = 4096 / ClockRes = 1ms / Memory = Straight Contiguous / Include Garbage Collect / SFS = 0.10  (max 60) / not Invert / Phase Alignment Off / Playerprio = Low / ThreadPrio = Realtime / Scheme = Core 3-5 / Not Switch Processors during Playback = Off/ Playback Drive none (see OS from RAM) / UnAttended (Just Start) / Always Copy to XX Drive (see OS from RAM) / All Services Off / Keep LAN - Not Persist / WallPaper On / OSD On / Running Time Off / Minimize OS / XTweaks : Balanced Load = *43* / Nervous Rate = 1 / Cool when Idle = 1 / Provide Stable Power = 1 / Utilize Cores always = 1 / Time Performance Index = *Optimal* / Time Stability = *Stable* / Custom Filter *Low* 705600 / -> USB3 *from MoBo* -> Clairixa USB 15cm -> Intona Isolator -> Clairixa USB 1m80 -> 24/768 Phasure NOS1a 75B (BNC Out) async USB DAC, Driver v1.0.4b (4ms) -> Blaxius BNC interlink *-> B'ASS Current Amplifier /w Level4 -> Blaxius Interlink* -> Orelo MKII Active Open Baffle Horn Speakers.
Removed Switching Supplies from everywhere.

Global Moderator
juanpmar
Crazy Audiophile
****
Offline Offline

Posts: 1234


View Profile Email
« Reply #7 on: July 19, 2016, 11:42:54 pm »

I can't emphasize enough that this is not related to any of the BASE OSes;
The TRIAL is your maintenance OS.

Thanks Peter, I'm going to upgrade it, it's just that at first glance it seemed not an easy task.

Regards,
Juan
Logged

Audio Pc: Processor i7 970: 3200MHz (reduced to 1668MHz), 6+6 cores/ RAM Corsair DDR3, 24Gb, 1333MHz/ Mb Asus X58 Sabertooth/ OS and XXHE in Peter's RAM-Disk / The CPU fan is the only one in the Audio Pc: NF-S12A (600rpm/6.7db)/ No graphic card/ Power supply: Seasonic SS-400FL2, fanless.

Configuration and Updates in HOW I'VE BUILT MY NEW PC...http://www.phasure.com/index.php?topic=1673.0. This post is very old but maybe someone still find it useful

XXHighEnd: 2.11a. Windows 10 Pro 64 bit build 14393.0 from RAM, music on LAN/ KS:Phasure NOS1 Out 4.0/ #4 Engine/ Adaptive Mode/ Q1=10, Q3,4,5=1, xQ1=15/ Dev.Buffer: 4096/ ClockRes: 15ms/ Straight Contiguous/ SFS: 0.69 (max 0,69)/ Not Invert/ Phase Alignment Off/ Allow format change/ Decode HDCD/ Playerprio: Low/ ThreadPrio: Real Time/ Scheme: Core 3-5/ UnAttended/ Not Switch during Playback Off/ Playback Drive none/ UnAttended/ Include Garbage Collect/ Copy to XX Drive by standard/ Always clear Proxy before Playback/ Stop Desktop Services/ Stop Remaining Services/ Stop All Services: Off/ Keep LAN Services: On - Persist: Off/ Use Remote Desktop/ Minimize OS/ XTweaks : Balanced Load 35/ Nervous Rate 10/ Cool when Idle -/ Provide Stable Power 0/ Utilize Cores always 1/ Time Performance Index: Optimal / Time Stability: Stable / Arc Prediction/ Number of cores in use: 12 (máx. 6-12)

Music Server PC (W10) totally silent with OS (W10) in SSD and music inside in SSDs - RDC > Ethernet Gigabyte cable 3m > Audio Pc > 1m USB Lush cable directly from the USB3.0 in the motherboard > PHASURE NOS1a-75B-G3 (Driver v1.0.4) 16ms > Blaxius BNC interconnects > Genelec 1037B 3-Way Active speakers with BNC inputs
Robert
Audio Enthusiast
**
Online Online

Posts: 442


View Profile Email
« Reply #8 on: July 20, 2016, 12:49:38 am »

Juan,
It often appears more difficult than it is. And one is always anxious that we don't stuff it up and have no music, me included.

Follow Peter's instructions closely it works perfectly. I bring up Xxhighend instructions on my tablet which I have beside me and work through the settings on your audio computer.

I'm probably telling you something you already know. I have been printing out metres of Xxhighend instructions and decided recently to use my tablet. I'm over 60 so a bit slow to using new technology.

I used isotousb.com to setup ISO file in USB flashdrive.

Robert

Logged

Mach III Stealth LPS PC -> Xeon Scalable 12/24 core with Hyperthreading On (set to 10/20 cores via Boot Menu) @~997MHz, 48GB, W10, Pro64, Ver 14393, No updates,
XXhighend Ver 2.11a, Ram OS, Settings:Q1/-/3/4/5 = *14*/-/*0*/*0*/*1*/ Q1Factor = *4* / Dev.Buffer = 4096 / ClockRes = *10ms* / Memory = Straight Contiguous / Include Garbage Collect / SFS = *10.13*  (max *10.13*) / Disable Cracks Off / not Invert / Phase Alignment Off / Playerprio = Low / ThreadPrio = Realtime / Scheme = Core 3-5 / Not Switch Processors during Playback = Off/ UnAttended / Stop Desktop, Remaining, WASAPI and W10 services / Use Remote Desktop / Keep LAN - Not Persist / WallPaper On / *OSD Off* / Running Time Off / Minimize OS / XTweaks : Balanced Load = 62 / Nervous Rate = 1 / Cool when Idle = 1 / Provide Stable Power = 1 / Utilize Cores always = 1 / Time Performance Index = Optimal / Time Stability = Stable / *Custom Filtering *Low* (16x)
Music on LAN, Phasure Lush^3 USB cable
Oppo 205 UDP Dac
Nordost Heimdall II interconnects and Nordost Heimdall II Power Cords, Audioquest power cords
Chriquet Active Electronic 2 way Crossover 80hz
Unity Audio Boulder MKI Active Monitors x 2
JLAudio 12 Active Subs x 2
PeterSt
Administrator
High Grade Audiophile
*****
Offline Offline

Posts: 15851



View Profile Email
« Reply #9 on: July 20, 2016, 08:37:29 am »

We're all be over 60 soon. Happy
Logged

For the Stealth III LPS PC :
W10-14393.0 - July 17, 2021 (2.11)
XXHighEnd Mach III Stealth LPS PC -> Xeon Scalable 14/28 core with Hyperthreading On (set to 14/28 cores in BIOS and set to 10/20 cores via Boot Menu) @~660MHz, 48GB, Windows 10 Pro 64 bit build 14393.0 from RAM, music on LAN / Engine#4 Adaptive Mode / Q1/-/3/4/5 = 14/-/0/0/*1*/ Q1Factor = *4* / Dev.Buffer = 4096 / ClockRes = *10ms* / Memory = Straight Contiguous / Include Garbage Collect / SFS = *10.13*  (max 10.13) / not Invert / Phase Alignment Off / Playerprio = Low / ThreadPrio = Realtime / Scheme = Core 3-5 / Not Switch Processors during Playback = Off/ Playback Drive none (see OS from RAM) / UnAttended (Just Start) / Always Copy to XX Drive (see OS from RAM) / Stop Desktop, Remaining, WASAPI and W10 services / Use Remote Desktop / Keep LAN - Not Persist / WallPaper On / OSD Off (!) / Running Time Off / Minimize OS / XTweaks : Balanced Load = *62* / Nervous Rate = *1* / Cool when Idle = n.a / Provide Stable Power = 1 / Utilize Cores always = 1 / Time Performance Index = Optimal / Time Stability = Stable / Custom Filtering *Low* (16x) / Always Clear Proxy before Playback = On -> USB3 from MoBo -> Lush^3
A: W-Y-R-G, B: *W-G* USB 1m00 -> Phisolator 24/768 Phasure NOS1a/G3 75B (BNC Out) async USB DAC, Driver v1.0.4b (16ms) -> B'ASS Current Amplifier -> Blaxius*^2.5* A:B-G, B:B-G Interlink -> Orelo MKII Active Open Baffle Horn Speakers. ET^2 Ethernet from Mach III to Music Server PC (RDC Control).
Removed Switching Supplies from everywhere (also from the PC).

For a general PC :
W10-10586.0 - May 2016 (2.05+)
*XXHighEnd PC -> I7 3930k with Hyperthreading On (12 cores)* @~500MHz, 16GB, Windows 10 Pro 64 bit build 10586.0 from RAM, music on LAN / Engine#4 Adaptive Mode / Q1/-/3/4/5 = 14/-/1/1/1 / Q1Factor = 1 / Dev.Buffer = 4096 / ClockRes = 1ms / Memory = Straight Contiguous / Include Garbage Collect / SFS = 0.10  (max 60) / not Invert / Phase Alignment Off / Playerprio = Low / ThreadPrio = Realtime / Scheme = Core 3-5 / Not Switch Processors during Playback = Off/ Playback Drive none (see OS from RAM) / UnAttended (Just Start) / Always Copy to XX Drive (see OS from RAM) / All Services Off / Keep LAN - Not Persist / WallPaper On / OSD On / Running Time Off / Minimize OS / XTweaks : Balanced Load = *43* / Nervous Rate = 1 / Cool when Idle = 1 / Provide Stable Power = 1 / Utilize Cores always = 1 / Time Performance Index = *Optimal* / Time Stability = *Stable* / Custom Filter *Low* 705600 / -> USB3 *from MoBo* -> Clairixa USB 15cm -> Intona Isolator -> Clairixa USB 1m80 -> 24/768 Phasure NOS1a 75B (BNC Out) async USB DAC, Driver v1.0.4b (4ms) -> Blaxius BNC interlink *-> B'ASS Current Amplifier /w Level4 -> Blaxius Interlink* -> Orelo MKII Active Open Baffle Horn Speakers.
Removed Switching Supplies from everywhere.

Global Moderator
Tore
Audio Enthusiast
**
Offline Offline

Posts: 351


View Profile Email
« Reply #10 on: July 20, 2016, 08:58:46 am »

Peter,
i`m not home before 31. july  :-(

Tore
Logged

Phasure Mach III, 12/24 core (Win 14393.0 on RAM-OS / controlled by RDC, / connected directly to music server / XXHighEnd 2.11 / Minimize OS / Engine#4 Adaptive / DB=4096 / Q1=10 / xQ1=15 / Q3,4,5=1 / SFS=0.69 max=140,19 /XTweaks = 35, 10, 0, 0, 0 / Straight Contiguous / Clock Resolution = 15ms / Scheme 3-5 (low/realtime) / Unattended) mobo USB3 port -> Lush^3 -> Phasure NOS1a B75 G3 ->  Blaxius^2.5 , Crazy A monoblocs, Avantgarde Duo Omega
juanpmar
Crazy Audiophile
****
Offline Offline

Posts: 1234


View Profile Email
« Reply #11 on: July 20, 2016, 12:18:04 pm »

Thanks Robert for your advice, I tell you as I have done.

Regards,
Juan
Logged

Audio Pc: Processor i7 970: 3200MHz (reduced to 1668MHz), 6+6 cores/ RAM Corsair DDR3, 24Gb, 1333MHz/ Mb Asus X58 Sabertooth/ OS and XXHE in Peter's RAM-Disk / The CPU fan is the only one in the Audio Pc: NF-S12A (600rpm/6.7db)/ No graphic card/ Power supply: Seasonic SS-400FL2, fanless.

Configuration and Updates in HOW I'VE BUILT MY NEW PC...http://www.phasure.com/index.php?topic=1673.0. This post is very old but maybe someone still find it useful

XXHighEnd: 2.11a. Windows 10 Pro 64 bit build 14393.0 from RAM, music on LAN/ KS:Phasure NOS1 Out 4.0/ #4 Engine/ Adaptive Mode/ Q1=10, Q3,4,5=1, xQ1=15/ Dev.Buffer: 4096/ ClockRes: 15ms/ Straight Contiguous/ SFS: 0.69 (max 0,69)/ Not Invert/ Phase Alignment Off/ Allow format change/ Decode HDCD/ Playerprio: Low/ ThreadPrio: Real Time/ Scheme: Core 3-5/ UnAttended/ Not Switch during Playback Off/ Playback Drive none/ UnAttended/ Include Garbage Collect/ Copy to XX Drive by standard/ Always clear Proxy before Playback/ Stop Desktop Services/ Stop Remaining Services/ Stop All Services: Off/ Keep LAN Services: On - Persist: Off/ Use Remote Desktop/ Minimize OS/ XTweaks : Balanced Load 35/ Nervous Rate 10/ Cool when Idle -/ Provide Stable Power 0/ Utilize Cores always 1/ Time Performance Index: Optimal / Time Stability: Stable / Arc Prediction/ Number of cores in use: 12 (máx. 6-12)

Music Server PC (W10) totally silent with OS (W10) in SSD and music inside in SSDs - RDC > Ethernet Gigabyte cable 3m > Audio Pc > 1m USB Lush cable directly from the USB3.0 in the motherboard > PHASURE NOS1a-75B-G3 (Driver v1.0.4) 16ms > Blaxius BNC interconnects > Genelec 1037B 3-Way Active speakers with BNC inputs
PeterSt
Administrator
High Grade Audiophile
*****
Offline Offline

Posts: 15851



View Profile Email
« Reply #12 on: July 20, 2016, 12:47:51 pm »

i`m not home before 31. july  :-(

Tore, this is no problem at all. Just follow the guide and all will be fine.

Peter
Logged

For the Stealth III LPS PC :
W10-14393.0 - July 17, 2021 (2.11)
XXHighEnd Mach III Stealth LPS PC -> Xeon Scalable 14/28 core with Hyperthreading On (set to 14/28 cores in BIOS and set to 10/20 cores via Boot Menu) @~660MHz, 48GB, Windows 10 Pro 64 bit build 14393.0 from RAM, music on LAN / Engine#4 Adaptive Mode / Q1/-/3/4/5 = 14/-/0/0/*1*/ Q1Factor = *4* / Dev.Buffer = 4096 / ClockRes = *10ms* / Memory = Straight Contiguous / Include Garbage Collect / SFS = *10.13*  (max 10.13) / not Invert / Phase Alignment Off / Playerprio = Low / ThreadPrio = Realtime / Scheme = Core 3-5 / Not Switch Processors during Playback = Off/ Playback Drive none (see OS from RAM) / UnAttended (Just Start) / Always Copy to XX Drive (see OS from RAM) / Stop Desktop, Remaining, WASAPI and W10 services / Use Remote Desktop / Keep LAN - Not Persist / WallPaper On / OSD Off (!) / Running Time Off / Minimize OS / XTweaks : Balanced Load = *62* / Nervous Rate = *1* / Cool when Idle = n.a / Provide Stable Power = 1 / Utilize Cores always = 1 / Time Performance Index = Optimal / Time Stability = Stable / Custom Filtering *Low* (16x) / Always Clear Proxy before Playback = On -> USB3 from MoBo -> Lush^3
A: W-Y-R-G, B: *W-G* USB 1m00 -> Phisolator 24/768 Phasure NOS1a/G3 75B (BNC Out) async USB DAC, Driver v1.0.4b (16ms) -> B'ASS Current Amplifier -> Blaxius*^2.5* A:B-G, B:B-G Interlink -> Orelo MKII Active Open Baffle Horn Speakers. ET^2 Ethernet from Mach III to Music Server PC (RDC Control).
Removed Switching Supplies from everywhere (also from the PC).

For a general PC :
W10-10586.0 - May 2016 (2.05+)
*XXHighEnd PC -> I7 3930k with Hyperthreading On (12 cores)* @~500MHz, 16GB, Windows 10 Pro 64 bit build 10586.0 from RAM, music on LAN / Engine#4 Adaptive Mode / Q1/-/3/4/5 = 14/-/1/1/1 / Q1Factor = 1 / Dev.Buffer = 4096 / ClockRes = 1ms / Memory = Straight Contiguous / Include Garbage Collect / SFS = 0.10  (max 60) / not Invert / Phase Alignment Off / Playerprio = Low / ThreadPrio = Realtime / Scheme = Core 3-5 / Not Switch Processors during Playback = Off/ Playback Drive none (see OS from RAM) / UnAttended (Just Start) / Always Copy to XX Drive (see OS from RAM) / All Services Off / Keep LAN - Not Persist / WallPaper On / OSD On / Running Time Off / Minimize OS / XTweaks : Balanced Load = *43* / Nervous Rate = 1 / Cool when Idle = 1 / Provide Stable Power = 1 / Utilize Cores always = 1 / Time Performance Index = *Optimal* / Time Stability = *Stable* / Custom Filter *Low* 705600 / -> USB3 *from MoBo* -> Clairixa USB 15cm -> Intona Isolator -> Clairixa USB 1m80 -> 24/768 Phasure NOS1a 75B (BNC Out) async USB DAC, Driver v1.0.4b (4ms) -> Blaxius BNC interlink *-> B'ASS Current Amplifier /w Level4 -> Blaxius Interlink* -> Orelo MKII Active Open Baffle Horn Speakers.
Removed Switching Supplies from everywhere.

Global Moderator
juanpmar
Crazy Audiophile
****
Offline Offline

Posts: 1234


View Profile Email
« Reply #13 on: July 20, 2016, 02:00:47 pm »

Robert or Peter, what file system should I use to burn ISO to USB, exFAT, FAT32 or NTFS?

Thanks,
Juan
Logged

Audio Pc: Processor i7 970: 3200MHz (reduced to 1668MHz), 6+6 cores/ RAM Corsair DDR3, 24Gb, 1333MHz/ Mb Asus X58 Sabertooth/ OS and XXHE in Peter's RAM-Disk / The CPU fan is the only one in the Audio Pc: NF-S12A (600rpm/6.7db)/ No graphic card/ Power supply: Seasonic SS-400FL2, fanless.

Configuration and Updates in HOW I'VE BUILT MY NEW PC...http://www.phasure.com/index.php?topic=1673.0. This post is very old but maybe someone still find it useful

XXHighEnd: 2.11a. Windows 10 Pro 64 bit build 14393.0 from RAM, music on LAN/ KS:Phasure NOS1 Out 4.0/ #4 Engine/ Adaptive Mode/ Q1=10, Q3,4,5=1, xQ1=15/ Dev.Buffer: 4096/ ClockRes: 15ms/ Straight Contiguous/ SFS: 0.69 (max 0,69)/ Not Invert/ Phase Alignment Off/ Allow format change/ Decode HDCD/ Playerprio: Low/ ThreadPrio: Real Time/ Scheme: Core 3-5/ UnAttended/ Not Switch during Playback Off/ Playback Drive none/ UnAttended/ Include Garbage Collect/ Copy to XX Drive by standard/ Always clear Proxy before Playback/ Stop Desktop Services/ Stop Remaining Services/ Stop All Services: Off/ Keep LAN Services: On - Persist: Off/ Use Remote Desktop/ Minimize OS/ XTweaks : Balanced Load 35/ Nervous Rate 10/ Cool when Idle -/ Provide Stable Power 0/ Utilize Cores always 1/ Time Performance Index: Optimal / Time Stability: Stable / Arc Prediction/ Number of cores in use: 12 (máx. 6-12)

Music Server PC (W10) totally silent with OS (W10) in SSD and music inside in SSDs - RDC > Ethernet Gigabyte cable 3m > Audio Pc > 1m USB Lush cable directly from the USB3.0 in the motherboard > PHASURE NOS1a-75B-G3 (Driver v1.0.4) 16ms > Blaxius BNC interconnects > Genelec 1037B 3-Way Active speakers with BNC inputs
PeterSt
Administrator
High Grade Audiophile
*****
Offline Offline

Posts: 15851



View Profile Email
« Reply #14 on: July 20, 2016, 02:09:01 pm »

Juan, leave all to default when using the DVD DownloadTool.
(I can't even imagine that it asks for that and if not indeed, where you get your question from Happy).

Regards,
Peter
Logged

For the Stealth III LPS PC :
W10-14393.0 - July 17, 2021 (2.11)
XXHighEnd Mach III Stealth LPS PC -> Xeon Scalable 14/28 core with Hyperthreading On (set to 14/28 cores in BIOS and set to 10/20 cores via Boot Menu) @~660MHz, 48GB, Windows 10 Pro 64 bit build 14393.0 from RAM, music on LAN / Engine#4 Adaptive Mode / Q1/-/3/4/5 = 14/-/0/0/*1*/ Q1Factor = *4* / Dev.Buffer = 4096 / ClockRes = *10ms* / Memory = Straight Contiguous / Include Garbage Collect / SFS = *10.13*  (max 10.13) / not Invert / Phase Alignment Off / Playerprio = Low / ThreadPrio = Realtime / Scheme = Core 3-5 / Not Switch Processors during Playback = Off/ Playback Drive none (see OS from RAM) / UnAttended (Just Start) / Always Copy to XX Drive (see OS from RAM) / Stop Desktop, Remaining, WASAPI and W10 services / Use Remote Desktop / Keep LAN - Not Persist / WallPaper On / OSD Off (!) / Running Time Off / Minimize OS / XTweaks : Balanced Load = *62* / Nervous Rate = *1* / Cool when Idle = n.a / Provide Stable Power = 1 / Utilize Cores always = 1 / Time Performance Index = Optimal / Time Stability = Stable / Custom Filtering *Low* (16x) / Always Clear Proxy before Playback = On -> USB3 from MoBo -> Lush^3
A: W-Y-R-G, B: *W-G* USB 1m00 -> Phisolator 24/768 Phasure NOS1a/G3 75B (BNC Out) async USB DAC, Driver v1.0.4b (16ms) -> B'ASS Current Amplifier -> Blaxius*^2.5* A:B-G, B:B-G Interlink -> Orelo MKII Active Open Baffle Horn Speakers. ET^2 Ethernet from Mach III to Music Server PC (RDC Control).
Removed Switching Supplies from everywhere (also from the PC).

For a general PC :
W10-10586.0 - May 2016 (2.05+)
*XXHighEnd PC -> I7 3930k with Hyperthreading On (12 cores)* @~500MHz, 16GB, Windows 10 Pro 64 bit build 10586.0 from RAM, music on LAN / Engine#4 Adaptive Mode / Q1/-/3/4/5 = 14/-/1/1/1 / Q1Factor = 1 / Dev.Buffer = 4096 / ClockRes = 1ms / Memory = Straight Contiguous / Include Garbage Collect / SFS = 0.10  (max 60) / not Invert / Phase Alignment Off / Playerprio = Low / ThreadPrio = Realtime / Scheme = Core 3-5 / Not Switch Processors during Playback = Off/ Playback Drive none (see OS from RAM) / UnAttended (Just Start) / Always Copy to XX Drive (see OS from RAM) / All Services Off / Keep LAN - Not Persist / WallPaper On / OSD On / Running Time Off / Minimize OS / XTweaks : Balanced Load = *43* / Nervous Rate = 1 / Cool when Idle = 1 / Provide Stable Power = 1 / Utilize Cores always = 1 / Time Performance Index = *Optimal* / Time Stability = *Stable* / Custom Filter *Low* 705600 / -> USB3 *from MoBo* -> Clairixa USB 15cm -> Intona Isolator -> Clairixa USB 1m80 -> 24/768 Phasure NOS1a 75B (BNC Out) async USB DAC, Driver v1.0.4b (4ms) -> Blaxius BNC interlink *-> B'ASS Current Amplifier /w Level4 -> Blaxius Interlink* -> Orelo MKII Active Open Baffle Horn Speakers.
Removed Switching Supplies from everywhere.

Global Moderator
Pages: [1] 2  All
  Print

Jump to:

Powered by MySQL Powered by PHP Powered by SMF 1.1 RC2 | SMF © 2001-2005, Lewis Media Valid XHTML 1.0! Valid CSS!
Page created in 0.111 seconds with 19 queries.
