Author Topic: One Root For All and All for One  (Read 376 times)
0 Members and 0 Guests are viewing this topic.
keithtaruski
Audio Loudspeaker
*
Offline Offline

Posts: 2


View Profile Email
« on: February 28, 2019, 03:14:29 pm »

Peter is it possible to have one Root for 3 different hard drives on one computer? If so how?I have 3 different Hard drives because I have so much music. They are D, F and G. How can I make one root to work for them all without changing the root each time I wish to play music from a different Drive? How can I play 1 song on my playlist from Drive D than another song on the playlist from Drive F and then Drive G and so on? Thankyou
Logged
PeterSt
Administrator
High Grade Audiophile
*****
Offline Offline

Posts: 15398



View Profile Email
« Reply #1 on: February 28, 2019, 06:50:11 pm »

Hi there Keith,

First off, get yourself a fast SSD (something which reads 550MB/sec is good enough). Assemble that in the Music Server PC (the PC where the music is attached to - your drive D:, F: and G:).

Format that SSD with the smallest cluster size (512 bytes).
You can give it a Drive Letter of Z: (others are allowed just the same, if you only don't use D: or X: in combination with the RAM-OS Disk (in your Audio PC - Stealth III in your case).

On the SSD, in the root, create a folder with a nice name, e.g. \Galleries.

Take very good care that you have the organization of your "Original Music Data" in the way XXHighEnd prescribes it. I'm saying this because after this post it will not as easy to change folder structures as prior to reading it. Happy Main rule : have a main root folder in each of your music drives (like MyMusic).

Now go to one of your music drives, select the Library Area (via the [ L ] button in the top of XXHighEnd) and select a few albums for a test. Right click on one of the now selected albums and choose Add to Gallery :


When you click Select you will see a screen similar to this :

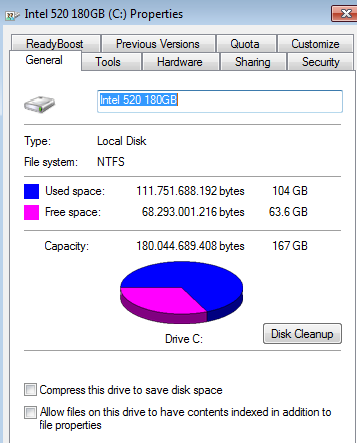

... with the notice that in my case the Z: drive as a see it from the Audio PC (Stealth) refers to a C: drive in the Music Server PC (\\ST02 in my case) which in your case will be Z: as well (because that's what your new SSD will be named as per the above instructions).

Done ? then from here on you could set your Music Root in Settings like this :

and when you now refresh the Library Area, you will see appear the few test albums you just put to the \Gallery folder. Notice that the [ M ] button at the mouse pointer below, selects the Music Root.


Watch out : I assume no further structure in your music folders and which is not necessary either. However, you woould have the chance "today" to apply this structure, by making e.g. a subfolder in your Z:\Galleries : \Folk. Above you see that I did that. Now you could select per genre in your pile of music, and put it in a Folk folder. And Rock. And Classical and ... everything. Here :


which you'll find back in the left pane of XXHighEnd (Library Area active) :

Now, NOT assumed that you are going to do this, this will be your further procedure :

1. Make a complete volume (Drive) with music data appear in the Library Area;
2. Select all the Items in there;
3. Put them to your Z:\Gallery\ Gallery Folder;
4. Undoubtedly be hopelessly confronted with many things wrong in yout folder structure (the system will give messages BUT ALSO observe your XX Log File with errors !!); work through it until no errors appear and you'l have all nicely organized after it, meanwhile.
5. Back to #1 for the next volume/drive with music.

Notice that #3 can be re-done for a same selection when needed (it may be tough to find where you were at the hassle with #4).

When all has been worked through, you will have all your music accessible under one Music Root.

Watch out once more before you start :
It will be very good behavior when you make this general root like e.g. this :
Z:\Galleries\General\
why ? well, because later you WILL be using way more facilities with sub Gallery Folders. Like Demo and Nice Stuff which is where the other Root Buttons are for.


with here a glimps of a new feature in the next version, which is very cool and which makes all super-fast accessible ... *if* you define a few more things ...


... but then of course your must have the Gallery Structure a kind of structured and have a structure like (e.g.)
Z:\Galleries\General\
Z:\Galleries\AIF\
Z:\Galleries\Ambient\
Z:\Galleries\Audio Tests\
and not at the same level as where the latter 3 are, also all your music. Read : keep your Gallery Root clean.

Take good care with trying this all out and know that all can be manipulated back and forth but only through XXHighEnd. E.g.:


IOW, doing things behind the back of XXHighEnd and you will destroy the "database" (whle there isn't any) and things will mix up hopelessly (I myself would not be able to repair it).

Eh, have fun ?
Peter
Logged

For the Stealth III LPS PC :
W10-14393.0 - Oct 31, 2018 (2.10)
XXHighEnd Mach III Stealth LPS PC -> Xeon Scalable 14/28 core with Hyperthreading On (set to 10/20 cores) @~660MHz, 48GB, Windows 10 Pro 64 bit build 14393.0 from RAM, music on LAN / Engine#4 Adaptive Mode / Q1/-/3/4/5 = 30/-/1/1/1/ Q1Factor = 10 / Dev.Buffer = 4096 / ClockRes = 15ms / Memory = Straight Contiguous / Include Garbage Collect / SFS = 140.19  (max 140.19) / not Invert / Phase Alignment Off / Playerprio = Low / ThreadPrio = Realtime / Scheme = Core 3-5 / Not Switch Processors during Playback = Off/ Playback Drive none (see OS from RAM) / UnAttended (Just Start) / Always Copy to XX Drive (see OS from RAM) / Stop Desktop, Remaining, WASAPI and W10 services / Use Remote Desktop / Keep LAN - Not Persist / WallPaper On / OSD Off (!) / Running Time Off / Minimize OS / XTweaks : Balanced Load = 35 / Nervous Rate = 10 / Cool when Idle = n.a / Provide Stable Power = 0 / Utilize Cores always = 1 / Time Performance Index = Optimal / Time Stability = Stable / *Arc Prediction Filtering (16x)* / Always Clear Proxy before Playback = On -> USB3 from MoBo -> Lush^2*A:B-W-Y-R, B:B-W-R* USB 1m00 -> Phisolator 24/768 Phasure NOS1a/G3 75B (BNC Out) async USB DAC, Driver v1.0.4b (16ms) -> B'ASS Current Amplifier -> *Blaxius^2 A:B-R, B:B-R* Interlink -> Orelo MKII Active Open Baffle Horn Speakers.
Removed Switching Supplies from everywhere (also from the PC).

For a general PC :
W10-10586.0 - May 2016 (2.05+)
*XXHighEnd PC -> I7 3930k with Hyperthreading On (12 cores)* @~500MHz, 16GB, Windows 10 Pro 64 bit build 10586.0 from RAM, music on LAN / Engine#4 Adaptive Mode / Q1/-/3/4/5 = 14/-/1/1/1 / Q1Factor = 1 / Dev.Buffer = 4096 / ClockRes = 1ms / Memory = Straight Contiguous / Include Garbage Collect / SFS = 0.10  (max 60) / not Invert / Phase Alignment Off / Playerprio = Low / ThreadPrio = Realtime / Scheme = Core 3-5 / Not Switch Processors during Playback = Off/ Playback Drive none (see OS from RAM) / UnAttended (Just Start) / Always Copy to XX Drive (see OS from RAM) / All Services Off / Keep LAN - Not Persist / WallPaper On / OSD On / Running Time Off / Minimize OS / XTweaks : Balanced Load = *43* / Nervous Rate = 1 / Cool when Idle = 1 / Provide Stable Power = 1 / Utilize Cores always = 1 / Time Performance Index = *Optimal* / Time Stability = *Stable* / Custom Filter *Low* 705600 / -> USB3 *from MoBo* -> Clairixa USB 15cm -> Intona Isolator -> Clairixa USB 1m80 -> 24/768 Phasure NOS1a 75B (BNC Out) async USB DAC, Driver v1.0.4b (4ms) -> Blaxius BNC interlink *-> B'ASS Current Amplifier /w Level4 -> Blaxius Interlink* -> Orelo MKII Active Open Baffle Horn Speakers.
Removed Switching Supplies from everywhere.

Global Moderator
acg
Audio Addict
***
Offline Offline

Posts: 734


View Profile
« Reply #2 on: March 01, 2019, 12:36:54 am »

Hi Peter,

This is all quite timely Peter, as I was about to start rearranging things in my MusicServer.  However, as I've never used XXHE Galleries I was going to go a different way by either combining volumes  or creating a storage space which are two tools available in W10 for effectively combining multiple drives.  To be honest I had not looked too far into which way I was going to go but now you have these Gallery instructions and I am not sure.

Have you seen those two W10 features before Peter and would you recommend them at all in the name of simplification or should I just forget about it?


Cheers,

Anthony

PS:  You've been quiet lately...I bet you are up to something new...haha.
Logged

Audio PC
Stealth Mach II with Xeon E5 2698 v4 20 Core 2GHz  with Hyperthreading On [40 cores]/ 32GB Ram / RAM-OS / mobo USB port

XXHighEnd 2.09 RAM-OS (W14393 RAM)
Engine#4 Adaptive Mode / Buffer 4096 / Q1/3/4/5 = 14/1/1/1 / xQ1 = 1 / Processor Core Appointment Scheme = Core 1-3 / PlayerPrio = Low / ThreadPrio = RealTime / ClockRes = 1ms / Not Switch during playback = off / Xtweaks Balanced Load = 43 / Nervous Rate = 100 / Cool when idle = 1 / Provide stable power = 0 / Utilize cores always = 1 / Time Stability = Stable / Time Performance Index = Optimal / SFS 0.90MB Max 120MB / Straight Contiguous / Include Garbage Collect = on / Start Playback during conversion = off / Do not start playback at all = off / Copy to XX-drive by standard = on / Always clear Proxy before Playback = on / Stop Remaining Desktop Services = on / Stop Desktop Services = on / Stop Remaining Services = on / Stop WASAPI Services = on / Stop W10 Services = off / Keep LAN Services = on / Persist = off / Use Remote Desktop = on/ Arc Predict / Minimize OS = on / Peak Extend = off / Unattended

Audio Chain
Stealth MachII PC >> Lush USB 1.5m >> NOS1a G3 B75, Driver v1.0.4 (4ms) >> Placette Active Linestage >> 6 way active horn speakers (Single Ended Triodes)
PeterSt
Administrator
High Grade Audiophile
*****
Offline Offline

Posts: 15398



View Profile Email
« Reply #3 on: March 01, 2019, 05:03:04 am »

Hey Anthony,

Storage Spaces (Direct) might do similar for twice the amount of disks/SSDs. At the same time (but in the end its objective) it is RAID-1 (mirror) or (IIRC) RAID-4 (RAID-1 with parity, that requiring more disks/SSDs again but never mind this).

Storage Spaces (Direct - which is from WS2019) is cool in the sense of that it really works under the hood for safety (say that it is 100% transparent to you, the user) and is all software based (like normal Mirroring via Manage - Disk Manager). Storage Spaces Direct goes way further because of how it exploits ReFS (but it can use NTFS just the same), how fast it is (I don't really notice write latency) and how it can utilize storage media of any type and size or format at the same time, unlike normal mirorring (normal RAID-1).

The only thing Storage Spaces provides for you (apart from safety in general) would be the one logical drive (which you can make afterwards on to / over your current disks - combine e.g. G: and H: (and more) into one S:), but you will lack all of the other Gallery functions (eh, obviously). Also, working with the meta data (which is what XXHighEnd's Galleries are) allows you to put that on a fast SSD (up to ultra fast like with NVMe) that in itself providing super speed for everything, because really everything works on Galleries, except for loading the real tracks after search/selection and copying Original Music Data (because these obviously require the real music data). A derived example would be that where I use my "fast SSD" for 10 years or so by now, today I could replace it with 5 times faster NVMe (or 10 times or 20 times when I'd arrange that in an array of SSDs with striping etc.) and all it requires is copying the (in my case) 120 GB of mata data and happily continue one hour later, now at super speed.

The latter does have an example in Storage Spaces because if I would be able to add the extra storage required for it (double the original size you have, see beginning of this post), you a. just add the disk(s) (which Storage spaces will fill for you from the ones you added as the original half) and b. Storage Spaces will always use the fastest means at retrieval - which will be your newly added modern disks. Additionally (but it would be the same thing) if you in 10 years of time replace your old original slow disks with again faster means (just take out the old and put in the new with some definition changes), Storage Spaces (or Windows if you want) will start to use that, automatically.

On a side note, I would never use a Spanned or Striped volume (which exists since ancient history) for critical data, because which you lose one disk, you'll lose them all right away (with Spanned you may survive the remaining one(s)). This is asking for trouble. But then I also never used more than RAID-1 in my life, just because it is slower up to ultra-more slower on the write times. This reflects my objection against NASes as well. RAID-1 is faster, especially with the proper (RAID) hardware. Storage Spaces Direct is also faster for the same reasons, especially if you'd apply a Three-Way mirror (now you need 6 disks instead of your original 1).

There's really fun in exploring this all in the realm of SSDs instead of HDDs because of a. no "Elevator Seeking" applies to SSDs (which is why we'd "duplex" HDD's) while SSDs really allow for parallel access if the Controller allows for it OR when the data lines to the CPU are direct (not via e.g. C600 chip set) and each processor core/thread deals with it in parallel (totally useless with HDDs).

I recall this (performance stuff) is my specialty and actually my life. Happy And regarding this I may tell that XXHighEnd not using a database whatsoever (serving my 54K albums) has been deliberate right from the start (see if I could do it).
And of course ... very first ERP system on networked PC's ... (1987, 12MHz XTs (120 of them for the first implementation) on two 33MHz AT File Servers).
OK, I better stop. Fishy

Peter
Logged

For the Stealth III LPS PC :
W10-14393.0 - Oct 31, 2018 (2.10)
XXHighEnd Mach III Stealth LPS PC -> Xeon Scalable 14/28 core with Hyperthreading On (set to 10/20 cores) @~660MHz, 48GB, Windows 10 Pro 64 bit build 14393.0 from RAM, music on LAN / Engine#4 Adaptive Mode / Q1/-/3/4/5 = 30/-/1/1/1/ Q1Factor = 10 / Dev.Buffer = 4096 / ClockRes = 15ms / Memory = Straight Contiguous / Include Garbage Collect / SFS = 140.19  (max 140.19) / not Invert / Phase Alignment Off / Playerprio = Low / ThreadPrio = Realtime / Scheme = Core 3-5 / Not Switch Processors during Playback = Off/ Playback Drive none (see OS from RAM) / UnAttended (Just Start) / Always Copy to XX Drive (see OS from RAM) / Stop Desktop, Remaining, WASAPI and W10 services / Use Remote Desktop / Keep LAN - Not Persist / WallPaper On / OSD Off (!) / Running Time Off / Minimize OS / XTweaks : Balanced Load = 35 / Nervous Rate = 10 / Cool when Idle = n.a / Provide Stable Power = 0 / Utilize Cores always = 1 / Time Performance Index = Optimal / Time Stability = Stable / *Arc Prediction Filtering (16x)* / Always Clear Proxy before Playback = On -> USB3 from MoBo -> Lush^2*A:B-W-Y-R, B:B-W-R* USB 1m00 -> Phisolator 24/768 Phasure NOS1a/G3 75B (BNC Out) async USB DAC, Driver v1.0.4b (16ms) -> B'ASS Current Amplifier -> *Blaxius^2 A:B-R, B:B-R* Interlink -> Orelo MKII Active Open Baffle Horn Speakers.
Removed Switching Supplies from everywhere (also from the PC).

For a general PC :
W10-10586.0 - May 2016 (2.05+)
*XXHighEnd PC -> I7 3930k with Hyperthreading On (12 cores)* @~500MHz, 16GB, Windows 10 Pro 64 bit build 10586.0 from RAM, music on LAN / Engine#4 Adaptive Mode / Q1/-/3/4/5 = 14/-/1/1/1 / Q1Factor = 1 / Dev.Buffer = 4096 / ClockRes = 1ms / Memory = Straight Contiguous / Include Garbage Collect / SFS = 0.10  (max 60) / not Invert / Phase Alignment Off / Playerprio = Low / ThreadPrio = Realtime / Scheme = Core 3-5 / Not Switch Processors during Playback = Off/ Playback Drive none (see OS from RAM) / UnAttended (Just Start) / Always Copy to XX Drive (see OS from RAM) / All Services Off / Keep LAN - Not Persist / WallPaper On / OSD On / Running Time Off / Minimize OS / XTweaks : Balanced Load = *43* / Nervous Rate = 1 / Cool when Idle = 1 / Provide Stable Power = 1 / Utilize Cores always = 1 / Time Performance Index = *Optimal* / Time Stability = *Stable* / Custom Filter *Low* 705600 / -> USB3 *from MoBo* -> Clairixa USB 15cm -> Intona Isolator -> Clairixa USB 1m80 -> 24/768 Phasure NOS1a 75B (BNC Out) async USB DAC, Driver v1.0.4b (4ms) -> Blaxius BNC interlink *-> B'ASS Current Amplifier /w Level4 -> Blaxius Interlink* -> Orelo MKII Active Open Baffle Horn Speakers.
Removed Switching Supplies from everywhere.

Global Moderator
acg
Audio Addict
***
Offline Offline

Posts: 734


View Profile
« Reply #4 on: March 02, 2019, 10:20:36 am »

Hi Peter,

Thanks for all this information, I really appreciate it.  It will be processed shortly when I get a bit of time, but it looks like a good time to jump into galleries considering the next XXHE version snippet that you showed.

Regards,

Anthony
Logged

Audio PC
Stealth Mach II with Xeon E5 2698 v4 20 Core 2GHz  with Hyperthreading On [40 cores]/ 32GB Ram / RAM-OS / mobo USB port

XXHighEnd 2.09 RAM-OS (W14393 RAM)
Engine#4 Adaptive Mode / Buffer 4096 / Q1/3/4/5 = 14/1/1/1 / xQ1 = 1 / Processor Core Appointment Scheme = Core 1-3 / PlayerPrio = Low / ThreadPrio = RealTime / ClockRes = 1ms / Not Switch during playback = off / Xtweaks Balanced Load = 43 / Nervous Rate = 100 / Cool when idle = 1 / Provide stable power = 0 / Utilize cores always = 1 / Time Stability = Stable / Time Performance Index = Optimal / SFS 0.90MB Max 120MB / Straight Contiguous / Include Garbage Collect = on / Start Playback during conversion = off / Do not start playback at all = off / Copy to XX-drive by standard = on / Always clear Proxy before Playback = on / Stop Remaining Desktop Services = on / Stop Desktop Services = on / Stop Remaining Services = on / Stop WASAPI Services = on / Stop W10 Services = off / Keep LAN Services = on / Persist = off / Use Remote Desktop = on/ Arc Predict / Minimize OS = on / Peak Extend = off / Unattended

Audio Chain
Stealth MachII PC >> Lush USB 1.5m >> NOS1a G3 B75, Driver v1.0.4 (4ms) >> Placette Active Linestage >> 6 way active horn speakers (Single Ended Triodes)
