Author Topic: A secure way to prevent Windows 10 , updates on the audio PC  (Read 45511 times)
0 Members and 0 Guests are viewing this topic.
Rmalits
Audio Loudspeaker
*
Offline Offline

Posts: 105


View Profile
« on: November 19, 2016, 12:09:49 pm »

Hi folks,

it was this June when we, Willi, the sysadmin guy in my software company and me found a very good way to prevent Windows 10 from do updates, even when the PC is fully connected to your home network.

In this configuration the audio PC is directly connected to the LAN/Wifi router with a LAN cable and loads the music files directly from my Synology NAS.
So there is no peer2peer LAN cable needed between the music PC and the audio PC. Actually there is not even a music PC needed! The Microsoft Surface notebook, which I use in this setup, is just working as a control with Remote Desktop for XXHE, which runs on the audio PC.
Since almost 2 month this notebook is doing its job even through Wifi, so there is not even a LAN cable needed for the control PC.

So the point to do it this way is to make sure for 100%, that the audio PC will not do any Windows updating, what would bring it into the known troubles.

As all is running perfectly that eay for month now, I want to share it to the community. It is pretty easy to do it, as you will see in my next post. (I don't want to make this one too long).

Kind regards
Richard
Logged

XXHighEnd Mach III Stealth LPS PC, Windows 10 Pro 64 bit build 14393.0 from RAM, music on LAN / Engine#4 Adaptive Mode / Q1/-/3/4/5 = 15/-/1/1/1/ Q1Factor = 20 / Dev.Buffer = 4096 / ClockRes = 15ms / Memory = Straight Contiguous / Include Garbage Collect / SFS = 0.69 (max 120) / not Invert / Phase Alignment Off / Playerprio = Low / ThreadPrio = Realtime / Scheme = Core 3-5 / Use Remote Desktop / Keep LAN - Not Persist / WallPaper On / OSD Off / Running Time Off / Minimize OS / XTweaks : Balanced Load = 35 / Nervous Rate = 12 / Arc Prediction Filtering (16x)
PeterSt
Administrator
High Grade Audiophile
*****
Offline Offline

Posts: 16854



View Profile Email
« Reply #1 on: November 19, 2016, 12:29:53 pm »

Richard, this is super.
(of course I knew you were working on this)

Please continue with that post(s), but allow me to announce this :

Only just yesterday I finished the means to do it programmatically, from XXHighEnd. Of course this already was in there, but this was not a definite means (other programs could re-activate the updating). Now, after I forgot how many hours of research and trying, we can prevent the Updates for real.
So, lately I am saying that 2.07 is close, but this was one of the things I wanted in there (and took me forever), and this is now accomplished.

The way Richard physically arranges for it is as interesting, because more secure and above all : I could not understand or make it up (I'm sure). This is how I am very greatful that Richard is going to explain the setup.

Thanks !
Peter

Logged

For the Stealth III LPS PC :
W10-14393.0 - July 17, 2021 (2.11)
XXHighEnd Mach III Stealth LPS PC -> Xeon Scalable 14/28 core with Hyperthreading On (set to 14/28 cores in BIOS and set to 10/20 cores via Boot Menu) @~660MHz, 48GB, Windows 10 Pro 64 bit build 14393.0 from RAM, music on LAN / Engine#4 Adaptive Mode / Q1/-/3/4/5 = 14/-/0/0/*1*/ Q1Factor = *4* / Dev.Buffer = 4096 / ClockRes = *10ms* / Memory = Straight Contiguous / Include Garbage Collect / SFS = *10.13*  (max 10.13) / not Invert / Phase Alignment Off / Playerprio = Low / ThreadPrio = Realtime / Scheme = Core 3-5 / Not Switch Processors during Playback = Off/ Playback Drive none (see OS from RAM) / UnAttended (Just Start) / Always Copy to XX Drive (see OS from RAM) / Stop Desktop, Remaining, WASAPI and W10 services / Use Remote Desktop / Keep LAN - Not Persist / WallPaper On / OSD Off (!) / Running Time Off / Minimize OS / XTweaks : Balanced Load = *62* / Nervous Rate = *1* / Cool when Idle = n.a / Provide Stable Power = 1 / Utilize Cores always = 1 / Time Performance Index = Optimal / Time Stability = Stable / Custom Filtering *Low* (16x) / Always Clear Proxy before Playback = On -> USB3 from MoBo -> Lush^3
A: W-Y-R-G, B: *W-G* USB 1m00 -> Phisolator 24/768 Phasure NOS1a/G3 75B (BNC Out) async USB DAC, Driver v1.0.4b (16ms) -> B'ASS Current Amplifier -> Blaxius*^2.5* A:B-G, B:B-G Interlink -> Orelo MKII Active Open Baffle Horn Speakers. ET^2 Ethernet from Mach III to Music Server PC (RDC Control).
Removed Switching Supplies from everywhere (also from the PC).

For a general PC :
W10-10586.0 - May 2016 (2.05+)
*XXHighEnd PC -> I7 3930k with Hyperthreading On (12 cores)* @~500MHz, 16GB, Windows 10 Pro 64 bit build 10586.0 from RAM, music on LAN / Engine#4 Adaptive Mode / Q1/-/3/4/5 = 14/-/1/1/1 / Q1Factor = 1 / Dev.Buffer = 4096 / ClockRes = 1ms / Memory = Straight Contiguous / Include Garbage Collect / SFS = 0.10  (max 60) / not Invert / Phase Alignment Off / Playerprio = Low / ThreadPrio = Realtime / Scheme = Core 3-5 / Not Switch Processors during Playback = Off/ Playback Drive none (see OS from RAM) / UnAttended (Just Start) / Always Copy to XX Drive (see OS from RAM) / All Services Off / Keep LAN - Not Persist / WallPaper On / OSD On / Running Time Off / Minimize OS / XTweaks : Balanced Load = *43* / Nervous Rate = 1 / Cool when Idle = 1 / Provide Stable Power = 1 / Utilize Cores always = 1 / Time Performance Index = *Optimal* / Time Stability = *Stable* / Custom Filter *Low* 705600 / -> USB3 *from MoBo* -> Clairixa USB 15cm -> Intona Isolator -> Clairixa USB 1m80 -> 24/768 Phasure NOS1a 75B (BNC Out) async USB DAC, Driver v1.0.4b (4ms) -> Blaxius BNC interlink *-> B'ASS Current Amplifier /w Level4 -> Blaxius Interlink* -> Orelo MKII Active Open Baffle Horn Speakers.
Removed Switching Supplies from everywhere.

Global Moderator
fmanheck
Audio Loudspeaker
*
Offline Offline

Posts: 69


View Profile Email
« Reply #2 on: November 19, 2016, 12:36:19 pm »

you have my attention Done it !!
Logged

MACH lll PC 14/28 / RAM OS 10493/ 2.10 Phasure NOS1a G3 24/768 USB DAC KS mode -Adaptive/Device buffer -4096/DAC is 32bits 768khz/DAC needs -32bits/Phase Alignment - NO/Format Change - enable/ Decode HDCD ON/Processor Core Appointment 3-5/Player Prio LOW/Thread Prio Real Time/Clock Res 15ms/Xtweaks 64,1,1,0,1/ SFS 5.19 MAX 120/Include garbage collect ON/Copy to XXdrive by standard ON/Stop Desktop ON/Stop Remaining ON/Stop Wasapi ON/Keep LAN ON/Use remote desktop ON/Persist ON/OSD ON/Coverart show Wallpaper, show back, at attended, show mirror back/ Q1,3,4,5,xQ1-30,1,1,0,1/40/ Amp: Music Reference RM200 HC version / Speakers Omega HO Alnico Monitors with Audio Smile Super Tweeters  Bass augmented by 2 GR Research OB subwoofers
Rmalits
Audio Loudspeaker
*
Offline Offline

Posts: 105


View Profile
« Reply #3 on: November 19, 2016, 12:49:36 pm »

I am working on it...

I am tried to post a screenshot here (graphics file) and failed to do that with my iPad. So I loged in again with my notebook to do that.

Let's see, if it works...



I try to post this now ans see if the image appears.
Logged

XXHighEnd Mach III Stealth LPS PC, Windows 10 Pro 64 bit build 14393.0 from RAM, music on LAN / Engine#4 Adaptive Mode / Q1/-/3/4/5 = 15/-/1/1/1/ Q1Factor = 20 / Dev.Buffer = 4096 / ClockRes = 15ms / Memory = Straight Contiguous / Include Garbage Collect / SFS = 0.69 (max 120) / not Invert / Phase Alignment Off / Playerprio = Low / ThreadPrio = Realtime / Scheme = Core 3-5 / Use Remote Desktop / Keep LAN - Not Persist / WallPaper On / OSD Off / Running Time Off / Minimize OS / XTweaks : Balanced Load = 35 / Nervous Rate = 12 / Arc Prediction Filtering (16x)
Rmalits
Audio Loudspeaker
*
Offline Offline

Posts: 105


View Profile
« Reply #4 on: November 19, 2016, 12:57:00 pm »

so that did not work...

I pressed the "insert Image" button and inserted the file name including path.
It is a JPG file.
Shouldn't it work that way?
Logged

XXHighEnd Mach III Stealth LPS PC, Windows 10 Pro 64 bit build 14393.0 from RAM, music on LAN / Engine#4 Adaptive Mode / Q1/-/3/4/5 = 15/-/1/1/1/ Q1Factor = 20 / Dev.Buffer = 4096 / ClockRes = 15ms / Memory = Straight Contiguous / Include Garbage Collect / SFS = 0.69 (max 120) / not Invert / Phase Alignment Off / Playerprio = Low / ThreadPrio = Realtime / Scheme = Core 3-5 / Use Remote Desktop / Keep LAN - Not Persist / WallPaper On / OSD Off / Running Time Off / Minimize OS / XTweaks : Balanced Load = 35 / Nervous Rate = 12 / Arc Prediction Filtering (16x)
PeterSt
Administrator
High Grade Audiophile
*****
Offline Offline

Posts: 16854



View Profile Email
« Reply #5 on: November 19, 2016, 12:58:10 pm »

Richard,

You can only post pictures like you attempt it, when uploaded to a server somewhere. And then link to that.
Otherwise you can put pictures to Attachments of posts. See at the bottom when making a post and "Additional Options". But this is probably not convenient because those attachments can only show at the bottom. Nice for "one" picture, but not with several and adjacent outlay.

If necessary you can put them in like you tried, next send them to me by email and I can upload them to our server and put them where you planned them. No big deal for me.

Peter
Logged

For the Stealth III LPS PC :
W10-14393.0 - July 17, 2021 (2.11)
XXHighEnd Mach III Stealth LPS PC -> Xeon Scalable 14/28 core with Hyperthreading On (set to 14/28 cores in BIOS and set to 10/20 cores via Boot Menu) @~660MHz, 48GB, Windows 10 Pro 64 bit build 14393.0 from RAM, music on LAN / Engine#4 Adaptive Mode / Q1/-/3/4/5 = 14/-/0/0/*1*/ Q1Factor = *4* / Dev.Buffer = 4096 / ClockRes = *10ms* / Memory = Straight Contiguous / Include Garbage Collect / SFS = *10.13*  (max 10.13) / not Invert / Phase Alignment Off / Playerprio = Low / ThreadPrio = Realtime / Scheme = Core 3-5 / Not Switch Processors during Playback = Off/ Playback Drive none (see OS from RAM) / UnAttended (Just Start) / Always Copy to XX Drive (see OS from RAM) / Stop Desktop, Remaining, WASAPI and W10 services / Use Remote Desktop / Keep LAN - Not Persist / WallPaper On / OSD Off (!) / Running Time Off / Minimize OS / XTweaks : Balanced Load = *62* / Nervous Rate = *1* / Cool when Idle = n.a / Provide Stable Power = 1 / Utilize Cores always = 1 / Time Performance Index = Optimal / Time Stability = Stable / Custom Filtering *Low* (16x) / Always Clear Proxy before Playback = On -> USB3 from MoBo -> Lush^3
A: W-Y-R-G, B: *W-G* USB 1m00 -> Phisolator 24/768 Phasure NOS1a/G3 75B (BNC Out) async USB DAC, Driver v1.0.4b (16ms) -> B'ASS Current Amplifier -> Blaxius*^2.5* A:B-G, B:B-G Interlink -> Orelo MKII Active Open Baffle Horn Speakers. ET^2 Ethernet from Mach III to Music Server PC (RDC Control).
Removed Switching Supplies from everywhere (also from the PC).

For a general PC :
W10-10586.0 - May 2016 (2.05+)
*XXHighEnd PC -> I7 3930k with Hyperthreading On (12 cores)* @~500MHz, 16GB, Windows 10 Pro 64 bit build 10586.0 from RAM, music on LAN / Engine#4 Adaptive Mode / Q1/-/3/4/5 = 14/-/1/1/1 / Q1Factor = 1 / Dev.Buffer = 4096 / ClockRes = 1ms / Memory = Straight Contiguous / Include Garbage Collect / SFS = 0.10  (max 60) / not Invert / Phase Alignment Off / Playerprio = Low / ThreadPrio = Realtime / Scheme = Core 3-5 / Not Switch Processors during Playback = Off/ Playback Drive none (see OS from RAM) / UnAttended (Just Start) / Always Copy to XX Drive (see OS from RAM) / All Services Off / Keep LAN - Not Persist / WallPaper On / OSD On / Running Time Off / Minimize OS / XTweaks : Balanced Load = *43* / Nervous Rate = 1 / Cool when Idle = 1 / Provide Stable Power = 1 / Utilize Cores always = 1 / Time Performance Index = *Optimal* / Time Stability = *Stable* / Custom Filter *Low* 705600 / -> USB3 *from MoBo* -> Clairixa USB 15cm -> Intona Isolator -> Clairixa USB 1m80 -> 24/768 Phasure NOS1a 75B (BNC Out) async USB DAC, Driver v1.0.4b (4ms) -> Blaxius BNC interlink *-> B'ASS Current Amplifier /w Level4 -> Blaxius Interlink* -> Orelo MKII Active Open Baffle Horn Speakers.
Removed Switching Supplies from everywhere.

Global Moderator
Rmalits
Audio Loudspeaker
*
Offline Offline

Posts: 105


View Profile
« Reply #6 on: November 19, 2016, 01:00:20 pm »

one more try:

Logged

XXHighEnd Mach III Stealth LPS PC, Windows 10 Pro 64 bit build 14393.0 from RAM, music on LAN / Engine#4 Adaptive Mode / Q1/-/3/4/5 = 15/-/1/1/1/ Q1Factor = 20 / Dev.Buffer = 4096 / ClockRes = 15ms / Memory = Straight Contiguous / Include Garbage Collect / SFS = 0.69 (max 120) / not Invert / Phase Alignment Off / Playerprio = Low / ThreadPrio = Realtime / Scheme = Core 3-5 / Use Remote Desktop / Keep LAN - Not Persist / WallPaper On / OSD Off / Running Time Off / Minimize OS / XTweaks : Balanced Load = 35 / Nervous Rate = 12 / Arc Prediction Filtering (16x)
PeterSt
Administrator
High Grade Audiophile
*****
Offline Offline

Posts: 16854



View Profile Email
« Reply #7 on: November 19, 2016, 01:00:37 pm »

So for example from your attempt :

Code:
[img]http://C:\Users\RMalits\Downloads\screenshot-network-settings.JPG[/img]

Just let that be but send the (all of them) .JPG to me by email.

Logged

For the Stealth III LPS PC :
W10-14393.0 - July 17, 2021 (2.11)
XXHighEnd Mach III Stealth LPS PC -> Xeon Scalable 14/28 core with Hyperthreading On (set to 14/28 cores in BIOS and set to 10/20 cores via Boot Menu) @~660MHz, 48GB, Windows 10 Pro 64 bit build 14393.0 from RAM, music on LAN / Engine#4 Adaptive Mode / Q1/-/3/4/5 = 14/-/0/0/*1*/ Q1Factor = *4* / Dev.Buffer = 4096 / ClockRes = *10ms* / Memory = Straight Contiguous / Include Garbage Collect / SFS = *10.13*  (max 10.13) / not Invert / Phase Alignment Off / Playerprio = Low / ThreadPrio = Realtime / Scheme = Core 3-5 / Not Switch Processors during Playback = Off/ Playback Drive none (see OS from RAM) / UnAttended (Just Start) / Always Copy to XX Drive (see OS from RAM) / Stop Desktop, Remaining, WASAPI and W10 services / Use Remote Desktop / Keep LAN - Not Persist / WallPaper On / OSD Off (!) / Running Time Off / Minimize OS / XTweaks : Balanced Load = *62* / Nervous Rate = *1* / Cool when Idle = n.a / Provide Stable Power = 1 / Utilize Cores always = 1 / Time Performance Index = Optimal / Time Stability = Stable / Custom Filtering *Low* (16x) / Always Clear Proxy before Playback = On -> USB3 from MoBo -> Lush^3
A: W-Y-R-G, B: *W-G* USB 1m00 -> Phisolator 24/768 Phasure NOS1a/G3 75B (BNC Out) async USB DAC, Driver v1.0.4b (16ms) -> B'ASS Current Amplifier -> Blaxius*^2.5* A:B-G, B:B-G Interlink -> Orelo MKII Active Open Baffle Horn Speakers. ET^2 Ethernet from Mach III to Music Server PC (RDC Control).
Removed Switching Supplies from everywhere (also from the PC).

For a general PC :
W10-10586.0 - May 2016 (2.05+)
*XXHighEnd PC -> I7 3930k with Hyperthreading On (12 cores)* @~500MHz, 16GB, Windows 10 Pro 64 bit build 10586.0 from RAM, music on LAN / Engine#4 Adaptive Mode / Q1/-/3/4/5 = 14/-/1/1/1 / Q1Factor = 1 / Dev.Buffer = 4096 / ClockRes = 1ms / Memory = Straight Contiguous / Include Garbage Collect / SFS = 0.10  (max 60) / not Invert / Phase Alignment Off / Playerprio = Low / ThreadPrio = Realtime / Scheme = Core 3-5 / Not Switch Processors during Playback = Off/ Playback Drive none (see OS from RAM) / UnAttended (Just Start) / Always Copy to XX Drive (see OS from RAM) / All Services Off / Keep LAN - Not Persist / WallPaper On / OSD On / Running Time Off / Minimize OS / XTweaks : Balanced Load = *43* / Nervous Rate = 1 / Cool when Idle = 1 / Provide Stable Power = 1 / Utilize Cores always = 1 / Time Performance Index = *Optimal* / Time Stability = *Stable* / Custom Filter *Low* 705600 / -> USB3 *from MoBo* -> Clairixa USB 15cm -> Intona Isolator -> Clairixa USB 1m80 -> 24/768 Phasure NOS1a 75B (BNC Out) async USB DAC, Driver v1.0.4b (4ms) -> Blaxius BNC interlink *-> B'ASS Current Amplifier /w Level4 -> Blaxius Interlink* -> Orelo MKII Active Open Baffle Horn Speakers.
Removed Switching Supplies from everywhere.

Global Moderator
Rmalits
Audio Loudspeaker
*
Offline Offline

Posts: 105


View Profile
« Reply #8 on: November 19, 2016, 01:03:12 pm »

It is only one Picture, so i do it with an attachmant now.


* screenshot-network-settings-a.JPG (113.59 KB, 800x598 - viewed 1778 times.)

* screenshot-network-settings.JPG (695.59 KB, 2168x1620 - viewed 1876 times.)
« Last Edit: November 19, 2016, 01:28:07 pm by PeterSt » Logged

XXHighEnd Mach III Stealth LPS PC, Windows 10 Pro 64 bit build 14393.0 from RAM, music on LAN / Engine#4 Adaptive Mode / Q1/-/3/4/5 = 15/-/1/1/1/ Q1Factor = 20 / Dev.Buffer = 4096 / ClockRes = 15ms / Memory = Straight Contiguous / Include Garbage Collect / SFS = 0.69 (max 120) / not Invert / Phase Alignment Off / Playerprio = Low / ThreadPrio = Realtime / Scheme = Core 3-5 / Use Remote Desktop / Keep LAN - Not Persist / WallPaper On / OSD Off / Running Time Off / Minimize OS / XTweaks : Balanced Load = 35 / Nervous Rate = 12 / Arc Prediction Filtering (16x)
PeterSt
Administrator
High Grade Audiophile
*****
Offline Offline

Posts: 16854



View Profile Email
« Reply #9 on: November 19, 2016, 01:23:49 pm »

Richard,

The picture you originally had in there is too large; people will not be able to get the idea because they always need to scroll.

Additionally, the screen resolution you use is too high. Thus, when I now made it normal size, all is too small to read (thank you for nothing ! you will now say, haha).

Lastly, the photo you make is not sharp enough, but when the screen resolution is low enoug (like 1600x1200 or so) that might work. What then will not work is that you squeeze all into one picture.
That in itself leads to more pictures and that ...

Happy Happy

I hope this does not destroy your day.
Peter
Logged

For the Stealth III LPS PC :
W10-14393.0 - July 17, 2021 (2.11)
XXHighEnd Mach III Stealth LPS PC -> Xeon Scalable 14/28 core with Hyperthreading On (set to 14/28 cores in BIOS and set to 10/20 cores via Boot Menu) @~660MHz, 48GB, Windows 10 Pro 64 bit build 14393.0 from RAM, music on LAN / Engine#4 Adaptive Mode / Q1/-/3/4/5 = 14/-/0/0/*1*/ Q1Factor = *4* / Dev.Buffer = 4096 / ClockRes = *10ms* / Memory = Straight Contiguous / Include Garbage Collect / SFS = *10.13*  (max 10.13) / not Invert / Phase Alignment Off / Playerprio = Low / ThreadPrio = Realtime / Scheme = Core 3-5 / Not Switch Processors during Playback = Off/ Playback Drive none (see OS from RAM) / UnAttended (Just Start) / Always Copy to XX Drive (see OS from RAM) / Stop Desktop, Remaining, WASAPI and W10 services / Use Remote Desktop / Keep LAN - Not Persist / WallPaper On / OSD Off (!) / Running Time Off / Minimize OS / XTweaks : Balanced Load = *62* / Nervous Rate = *1* / Cool when Idle = n.a / Provide Stable Power = 1 / Utilize Cores always = 1 / Time Performance Index = Optimal / Time Stability = Stable / Custom Filtering *Low* (16x) / Always Clear Proxy before Playback = On -> USB3 from MoBo -> Lush^3
A: W-Y-R-G, B: *W-G* USB 1m00 -> Phisolator 24/768 Phasure NOS1a/G3 75B (BNC Out) async USB DAC, Driver v1.0.4b (16ms) -> B'ASS Current Amplifier -> Blaxius*^2.5* A:B-G, B:B-G Interlink -> Orelo MKII Active Open Baffle Horn Speakers. ET^2 Ethernet from Mach III to Music Server PC (RDC Control).
Removed Switching Supplies from everywhere (also from the PC).

For a general PC :
W10-10586.0 - May 2016 (2.05+)
*XXHighEnd PC -> I7 3930k with Hyperthreading On (12 cores)* @~500MHz, 16GB, Windows 10 Pro 64 bit build 10586.0 from RAM, music on LAN / Engine#4 Adaptive Mode / Q1/-/3/4/5 = 14/-/1/1/1 / Q1Factor = 1 / Dev.Buffer = 4096 / ClockRes = 1ms / Memory = Straight Contiguous / Include Garbage Collect / SFS = 0.10  (max 60) / not Invert / Phase Alignment Off / Playerprio = Low / ThreadPrio = Realtime / Scheme = Core 3-5 / Not Switch Processors during Playback = Off/ Playback Drive none (see OS from RAM) / UnAttended (Just Start) / Always Copy to XX Drive (see OS from RAM) / All Services Off / Keep LAN - Not Persist / WallPaper On / OSD On / Running Time Off / Minimize OS / XTweaks : Balanced Load = *43* / Nervous Rate = 1 / Cool when Idle = 1 / Provide Stable Power = 1 / Utilize Cores always = 1 / Time Performance Index = *Optimal* / Time Stability = *Stable* / Custom Filter *Low* 705600 / -> USB3 *from MoBo* -> Clairixa USB 15cm -> Intona Isolator -> Clairixa USB 1m80 -> 24/768 Phasure NOS1a 75B (BNC Out) async USB DAC, Driver v1.0.4b (4ms) -> Blaxius BNC interlink *-> B'ASS Current Amplifier /w Level4 -> Blaxius Interlink* -> Orelo MKII Active Open Baffle Horn Speakers.
Removed Switching Supplies from everywhere.

Global Moderator
Rmalits
Audio Loudspeaker
*
Offline Offline

Posts: 105


View Profile
« Reply #10 on: November 19, 2016, 01:34:41 pm »

Yes now it is here, even twice
Peter, could you delete one of them please.

So I go on explaining...

Probably many of you have been already doing this kind of network setup on Windows before.

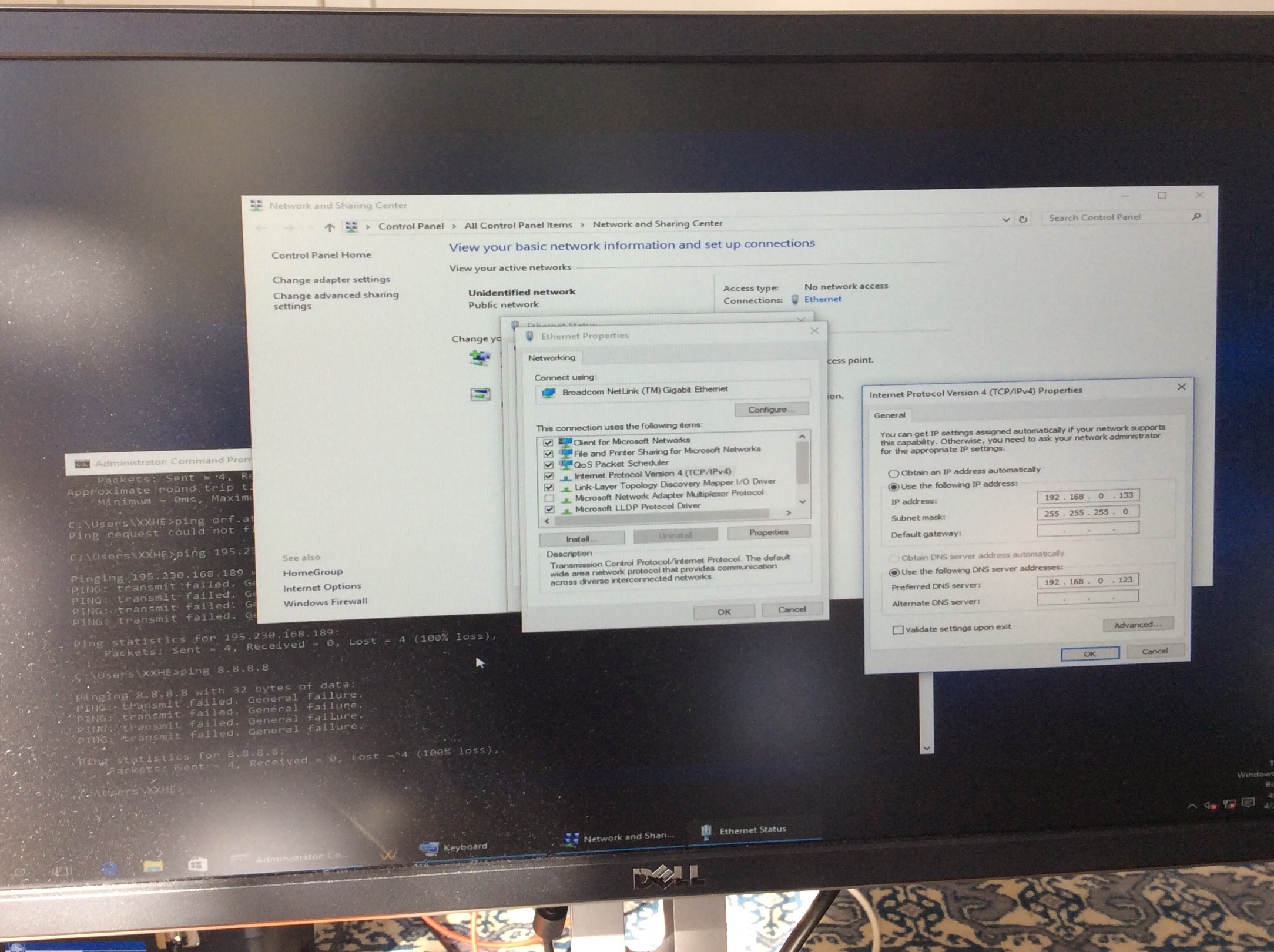

On the right side you see the Dialog to give the PC a fixed IP adress. That's good to do in various ocasions anyway.

When you do that, there is also the Default Gateway to fill in (below subnet mask).

So the point is:
IF THE DEFAULT GATEWAY IS LEFT COMPLETLY EMPTY (as you can see in the screenshot), THE PC CANNOT GET INTO ANY CONTACT TO ANY WEBSITES IN THE INTERNET.
So not even microsoft.com can be contacted.

In my home network I did configure some additional stuff, like an additional internal DNS Server, but that's acctually not needed to prevent Windows 10 from updating.
And, if you adress the devices in your home network through the IP number (what's better anyway), no DNS Service is needed.

So, to do this configuration it is good to disconnect your home network from the Internet for some minutes, e.g. switch your modem off or similar.
Then:
- start the Windows Explorer
- rightclick "network"
- click "Properties"
- click "Change adapter Settings"
- now rightclick your LAN Connection and again choose "properties"
- Now you have to doubleclick "Internet Protocol Version 4(TCP/IPv4)"
- Now click "Use the following IP adress" and choose a propriate number for your home network. In my case it is: 192.168.0.133
Now important: DELETE the "Default Gateway". This fields have to be empty.
- OK and so on to save this configuraion.
- You are done.

To check, if it really works, connect again to the Internet (modem or so...) and open the Internet Explorer on this PC. Whatever Website you try to access, it should fail now.
That's it.

Kind regards
Richard


Logged

XXHighEnd Mach III Stealth LPS PC, Windows 10 Pro 64 bit build 14393.0 from RAM, music on LAN / Engine#4 Adaptive Mode / Q1/-/3/4/5 = 15/-/1/1/1/ Q1Factor = 20 / Dev.Buffer = 4096 / ClockRes = 15ms / Memory = Straight Contiguous / Include Garbage Collect / SFS = 0.69 (max 120) / not Invert / Phase Alignment Off / Playerprio = Low / ThreadPrio = Realtime / Scheme = Core 3-5 / Use Remote Desktop / Keep LAN - Not Persist / WallPaper On / OSD Off / Running Time Off / Minimize OS / XTweaks : Balanced Load = 35 / Nervous Rate = 12 / Arc Prediction Filtering (16x)
PeterSt
Administrator
High Grade Audiophile
*****
Offline Offline

Posts: 16854



View Profile Email
« Reply #11 on: November 19, 2016, 01:44:47 pm »

I hope this does not destroy your day.

It is fine as it is !

Quote
Yes now it is here, even twice
Peter, could you delete one of them please.

I made a smaller one but this is too small and put back in the larger one. I think this really is good enough.
Sorry for being confusing in my previous post.

Peter
Logged

For the Stealth III LPS PC :
W10-14393.0 - July 17, 2021 (2.11)
XXHighEnd Mach III Stealth LPS PC -> Xeon Scalable 14/28 core with Hyperthreading On (set to 14/28 cores in BIOS and set to 10/20 cores via Boot Menu) @~660MHz, 48GB, Windows 10 Pro 64 bit build 14393.0 from RAM, music on LAN / Engine#4 Adaptive Mode / Q1/-/3/4/5 = 14/-/0/0/*1*/ Q1Factor = *4* / Dev.Buffer = 4096 / ClockRes = *10ms* / Memory = Straight Contiguous / Include Garbage Collect / SFS = *10.13*  (max 10.13) / not Invert / Phase Alignment Off / Playerprio = Low / ThreadPrio = Realtime / Scheme = Core 3-5 / Not Switch Processors during Playback = Off/ Playback Drive none (see OS from RAM) / UnAttended (Just Start) / Always Copy to XX Drive (see OS from RAM) / Stop Desktop, Remaining, WASAPI and W10 services / Use Remote Desktop / Keep LAN - Not Persist / WallPaper On / OSD Off (!) / Running Time Off / Minimize OS / XTweaks : Balanced Load = *62* / Nervous Rate = *1* / Cool when Idle = n.a / Provide Stable Power = 1 / Utilize Cores always = 1 / Time Performance Index = Optimal / Time Stability = Stable / Custom Filtering *Low* (16x) / Always Clear Proxy before Playback = On -> USB3 from MoBo -> Lush^3
A: W-Y-R-G, B: *W-G* USB 1m00 -> Phisolator 24/768 Phasure NOS1a/G3 75B (BNC Out) async USB DAC, Driver v1.0.4b (16ms) -> B'ASS Current Amplifier -> Blaxius*^2.5* A:B-G, B:B-G Interlink -> Orelo MKII Active Open Baffle Horn Speakers. ET^2 Ethernet from Mach III to Music Server PC (RDC Control).
Removed Switching Supplies from everywhere (also from the PC).

For a general PC :
W10-10586.0 - May 2016 (2.05+)
*XXHighEnd PC -> I7 3930k with Hyperthreading On (12 cores)* @~500MHz, 16GB, Windows 10 Pro 64 bit build 10586.0 from RAM, music on LAN / Engine#4 Adaptive Mode / Q1/-/3/4/5 = 14/-/1/1/1 / Q1Factor = 1 / Dev.Buffer = 4096 / ClockRes = 1ms / Memory = Straight Contiguous / Include Garbage Collect / SFS = 0.10  (max 60) / not Invert / Phase Alignment Off / Playerprio = Low / ThreadPrio = Realtime / Scheme = Core 3-5 / Not Switch Processors during Playback = Off/ Playback Drive none (see OS from RAM) / UnAttended (Just Start) / Always Copy to XX Drive (see OS from RAM) / All Services Off / Keep LAN - Not Persist / WallPaper On / OSD On / Running Time Off / Minimize OS / XTweaks : Balanced Load = *43* / Nervous Rate = 1 / Cool when Idle = 1 / Provide Stable Power = 1 / Utilize Cores always = 1 / Time Performance Index = *Optimal* / Time Stability = *Stable* / Custom Filter *Low* 705600 / -> USB3 *from MoBo* -> Clairixa USB 15cm -> Intona Isolator -> Clairixa USB 1m80 -> 24/768 Phasure NOS1a 75B (BNC Out) async USB DAC, Driver v1.0.4b (4ms) -> Blaxius BNC interlink *-> B'ASS Current Amplifier /w Level4 -> Blaxius Interlink* -> Orelo MKII Active Open Baffle Horn Speakers.
Removed Switching Supplies from everywhere.

Global Moderator
Rmalits
Audio Loudspeaker
*
Offline Offline

Posts: 105


View Profile
« Reply #12 on: November 19, 2016, 02:56:00 pm »

ADDITIONAL INFOS:

my post above describes, how Windows 10 PCs can be prevented from receiving updates from the internet.

Since version 10 Windows is able to download updates not only from the Microsoft servers but optionally from other PCs, which already have these updates installed.
I myself have no experience with this kind of updating, but I recommend that this option should be switch off. This could be important, in case you have other PCs with Windows 10 running in your home network, because the audio PC could (maybe) get the updates from there, as it has access to all devices inside the home network.

There are various posts in the web how to do that, e.g.:
http://www.digitalcitizen.life/how-set-windows-10-get-updates-local-network-internet

Kind regards
Richard
Logged

XXHighEnd Mach III Stealth LPS PC, Windows 10 Pro 64 bit build 14393.0 from RAM, music on LAN / Engine#4 Adaptive Mode / Q1/-/3/4/5 = 15/-/1/1/1/ Q1Factor = 20 / Dev.Buffer = 4096 / ClockRes = 15ms / Memory = Straight Contiguous / Include Garbage Collect / SFS = 0.69 (max 120) / not Invert / Phase Alignment Off / Playerprio = Low / ThreadPrio = Realtime / Scheme = Core 3-5 / Use Remote Desktop / Keep LAN - Not Persist / WallPaper On / OSD Off / Running Time Off / Minimize OS / XTweaks : Balanced Load = 35 / Nervous Rate = 12 / Arc Prediction Filtering (16x)
hvdh
Audio Loudspeaker
*
Offline Offline

Posts: 44


View Profile Email
« Reply #13 on: November 19, 2016, 07:19:50 pm »

I'm a bit surprised by this post.

I've solved this problem in Februari (see http://www.phasure.com/index.php?topic=3550.msg38037#msg38037)

I just checked using winver, I'm still on 10586.0.

And both my PC's are directly connected to the router...

Hope this helps?
Logged

Win10 14393.0 / music on LAN /  / Q1/-/3/4/5 = 30/-/1/1/1 / xQ1 = 40 / Dev.Buffer = 4096 / ClockRes = 15ms / Memory = Straight Contiguous / Not Include Garbage Collect / SFS = 20.19  (max 60) / not Invert / Phase Alignment Off / Playerprio = Low / ThreadPrio = Realtime / Scheme = Core 3-5 / Not Switch Processors during Playback = Off/  / UnAttended (Just Start) / Always Copy to XX Drive / Stop Desktop-Remaining-WASAPI-W10 Services / Keep LAN - Persist / WallPaper On / OSD On / Running Time Off / Minimize OS / XTweaks : Balanced Load = 42 / Nervous Rate = 100 / Cool when Idle = 1 / Provide Stable Power = 1 / Utilize Cores always = 1 / Time Performance Index = Optimal / Time Stability = Stable / Arc Predict -> Clairixa USB 0.80 meter -> 24/768 Phasure NOS1a DAC With B'ass and Phisolator -> BAlanced interlink -> Apogee Grand loudspeakers, using STAX dma-x2 (midrange ribbon) / Krell FPB600C (bass ribbon)

If it flies, Don't ground it!
PeterSt
Administrator
High Grade Audiophile
*****
Offline Offline

Posts: 16854



View Profile Email
« Reply #14 on: November 20, 2016, 03:23:56 am »

Hi Henk,

I am sorry if I forgot something. But it could be similar to Richard's situation which I just did not know (or could understand) until his outlay in this topic. So now I know (that one) ...

Quote
I've solved this problem in Februari (see http://www.phasure.com/index.php?topic=3550.msg38037#msg38037)

Your solution I still don't know because if I see correctly, the topic you link to is about something else. Happy

Best regards,
Peter
Logged

For the Stealth III LPS PC :
W10-14393.0 - July 17, 2021 (2.11)
XXHighEnd Mach III Stealth LPS PC -> Xeon Scalable 14/28 core with Hyperthreading On (set to 14/28 cores in BIOS and set to 10/20 cores via Boot Menu) @~660MHz, 48GB, Windows 10 Pro 64 bit build 14393.0 from RAM, music on LAN / Engine#4 Adaptive Mode / Q1/-/3/4/5 = 14/-/0/0/*1*/ Q1Factor = *4* / Dev.Buffer = 4096 / ClockRes = *10ms* / Memory = Straight Contiguous / Include Garbage Collect / SFS = *10.13*  (max 10.13) / not Invert / Phase Alignment Off / Playerprio = Low / ThreadPrio = Realtime / Scheme = Core 3-5 / Not Switch Processors during Playback = Off/ Playback Drive none (see OS from RAM) / UnAttended (Just Start) / Always Copy to XX Drive (see OS from RAM) / Stop Desktop, Remaining, WASAPI and W10 services / Use Remote Desktop / Keep LAN - Not Persist / WallPaper On / OSD Off (!) / Running Time Off / Minimize OS / XTweaks : Balanced Load = *62* / Nervous Rate = *1* / Cool when Idle = n.a / Provide Stable Power = 1 / Utilize Cores always = 1 / Time Performance Index = Optimal / Time Stability = Stable / Custom Filtering *Low* (16x) / Always Clear Proxy before Playback = On -> USB3 from MoBo -> Lush^3
A: W-Y-R-G, B: *W-G* USB 1m00 -> Phisolator 24/768 Phasure NOS1a/G3 75B (BNC Out) async USB DAC, Driver v1.0.4b (16ms) -> B'ASS Current Amplifier -> Blaxius*^2.5* A:B-G, B:B-G Interlink -> Orelo MKII Active Open Baffle Horn Speakers. ET^2 Ethernet from Mach III to Music Server PC (RDC Control).
Removed Switching Supplies from everywhere (also from the PC).

For a general PC :
W10-10586.0 - May 2016 (2.05+)
*XXHighEnd PC -> I7 3930k with Hyperthreading On (12 cores)* @~500MHz, 16GB, Windows 10 Pro 64 bit build 10586.0 from RAM, music on LAN / Engine#4 Adaptive Mode / Q1/-/3/4/5 = 14/-/1/1/1 / Q1Factor = 1 / Dev.Buffer = 4096 / ClockRes = 1ms / Memory = Straight Contiguous / Include Garbage Collect / SFS = 0.10  (max 60) / not Invert / Phase Alignment Off / Playerprio = Low / ThreadPrio = Realtime / Scheme = Core 3-5 / Not Switch Processors during Playback = Off/ Playback Drive none (see OS from RAM) / UnAttended (Just Start) / Always Copy to XX Drive (see OS from RAM) / All Services Off / Keep LAN - Not Persist / WallPaper On / OSD On / Running Time Off / Minimize OS / XTweaks : Balanced Load = *43* / Nervous Rate = 1 / Cool when Idle = 1 / Provide Stable Power = 1 / Utilize Cores always = 1 / Time Performance Index = *Optimal* / Time Stability = *Stable* / Custom Filter *Low* 705600 / -> USB3 *from MoBo* -> Clairixa USB 15cm -> Intona Isolator -> Clairixa USB 1m80 -> 24/768 Phasure NOS1a 75B (BNC Out) async USB DAC, Driver v1.0.4b (4ms) -> Blaxius BNC interlink *-> B'ASS Current Amplifier /w Level4 -> Blaxius Interlink* -> Orelo MKII Active Open Baffle Horn Speakers.
Removed Switching Supplies from everywhere.

Global Moderator
