Author Topic: USB Cables... again  (Read 87199 times)
0 Members and 0 Guests are viewing this topic.
manisandher
Crazy Audiophile
****
Offline Offline

Posts: 2112

from-first-principles.com


View Profile WWW Email
« Reply #15 on: September 04, 2013, 04:02:06 pm »

Hi Coen, I'll back to you once I've tried a few things.

Meanwhile, I've just taken my office music PC into my main listening room and given it a go. Firstly, the 'USB noise' is identical. With a regular USB cable, I can hear the crackling noise. This increases whenever I move the mouse. It's at a level pretty much identical to that of Le Monster. When I use the new USB cable with only the data line connected, the noise is totally eliminated.

I use identical XX settings in both PCs - both have powerful CPUs and 16GB of fast RAM. But I much prefer the sound of Le Monster. This is probably down to the fact that it has a HDD and my office music PC has an SDD. In any event, it looks like Le Monster's mobo is absolutely fine (hope you're reading Brian) and also that my long USB run is absolutely fine.

No doubt it's my amp that's allowing me to hear the noise coming through the USB cable. As I've said before, it's a strange design - DC-coupled, with the ground connected to its PE. This complicates matters of course. I've attached a couple of circuit diagrams for anyone who's interested (good luck with them - they're totally beyond me!).

Mani.

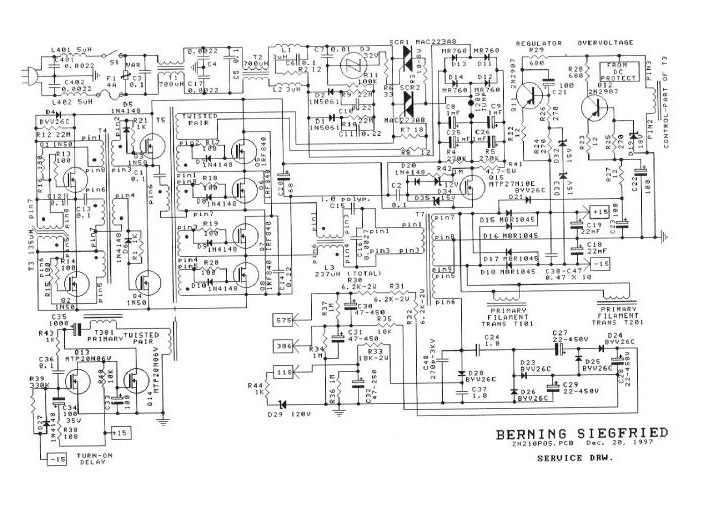

* Circuit Diagram 1.JPG (122.29 KB, 746x542 - viewed 2201 times.)

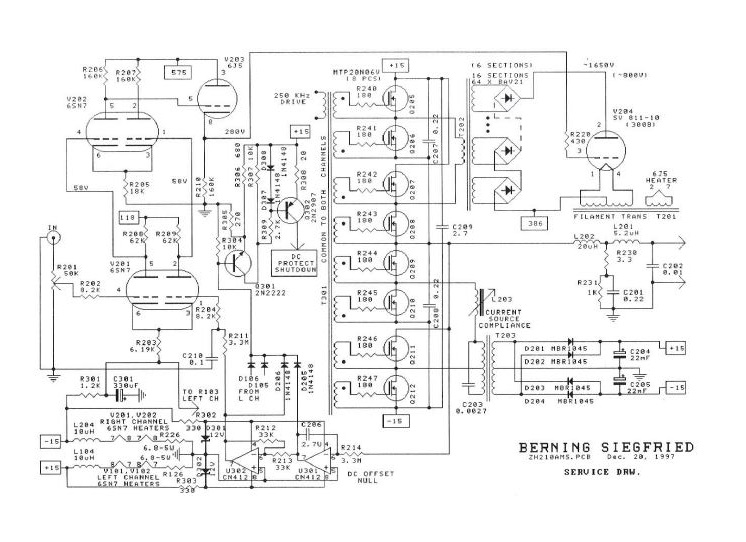

* Circuit Diagram 2.JPG (144.88 KB, 715x520 - viewed 3686 times.)
Logged

Main System:
Phasure Mach III (Win 14393.0 on RAM-OS / controlled by RDC, / connected directly to music server / XXHighEnd 2.11 / Minimize OS / Engine#4 Adaptive / DB=4096 / Q1=10 / xQ1=15 / Q3,4,5=1 / SFS=4.00 / XTweaks = 34, 10, 0, 0, 0 / Straight Contiguous / Clock Resolution = 15ms / Scheme 3-5 (low/realtime) / 8x Arc Prediction / switch #5 'up/off' / Unattended) mobo USB3 port -> Lush^3 -> Phasure NOS1a B75 G3 -> 8m Blaxius^2 -> First Watt F5 mono amps -> Tune Audio Anima horn speakers
Office System:
Phasure Stealth II -> Lush^2 -> RME ADI-2 Pro FS R -> Neurochrome 286 mono amps -> Tune Audio Marvel horn speakers
CoenP
Audio Addict
***
Offline Offline

Posts: 818


View Profile
« Reply #16 on: September 04, 2013, 04:38:58 pm »

Just got some more ramblings in my fingertips...

I realise I forgot one important thing and that is the whole point of earth referencing is to NOT have currents flow through them that are generated by the circuitry; it is just creating a "silent" point for your circuit towards all other voltages are referenced. they don't change their relative values. It is what it is: a reference. This is where the refrencing the usb at two points goes astray: the groundrefs 2 and 3 are able to and will carry a signal.

Than there is the matter of radio energy that has a potential to the earth and as such can induce currents in conducting objects (wires, casings etc) to earth, closing the loop from the antenna to ground. So here the ground ref has a completely different function: getting the radio energy out of the circuit (or let it stay in the box... Wink). For this you only have to ground the casing that contains of the circuitry.

So my common sense says: or wire 1 or wire 2, no 3 and no connection between the case and circuit of the poweramp would be optimal.

Regards, Coen
Logged

Settings: Qn: , SFS: , timeres: XT tweaks: , buf: 4096, driver: 8 ms,

Audio PC (jan 19): XXHE PC v1 with RAMdisk w.o. videocard and 1 of 2 cpu fans + BRIX/USB3 storage musicserver. ETN to Fibre converters (linear supplies), 500m SFP modules & 5m OM4 cable. Power cable PE not connected, together with nos1 and poweramp in separate "audio" powerstrip.

Clarixa set + Intona (or Lush 1m), Phasure NOS1a-75B G3 USB (buf 16 ms)-> Blaxius ->SE EL95 (0,8W triode) + cheap link to Abaqus 300W plateamps> Bastanis cable-> Bastanis Sagarmatha Duo ("DIY").

[other sources: TD124/3009SII-i/Grace F9/lounge LCR phono; Rega Planet 1997 vintage]
CoenP
Audio Addict
***
Offline Offline

Posts: 818


View Profile
« Reply #17 on: September 04, 2013, 04:57:16 pm »

Hi Mani,

Hi Coen, I'll back to you once I've tried a few things.

Meanwhile, I've just taken my office music PC into my main listening room and given it a go. Firstly, the 'USB noise' is identical. With a regular USB cable, I can hear the crackling noise. This increases whenever I move the mouse. It's at a level pretty much identical to that of Le Monster. When I use the new USB cable with only the data line connected, the noise is totally eliminated.


This sounds awfully familiar. I had a similar experice some time ago, but I never changed the stock USB cable. I could hear everything from the pc, mouse, hdd, cpu with distinct noise patterns. Annoyingly loud with horns. Afaik i toyed around with pc powercables (with/without PE connected, different powerstrips) and with the cabling in my amp. It is solved but not by usb but either by amp rewiring or powercable optimisation or new power supply(?). Have to remember a lttle harder how I did it...

Afaik the usb powerwire isn't connected to anything in the NOS1, except maybe the spike protection chip at the input of the USB. I'm not shure about that, but if correct noise from there can enter the circuitry.

I've been studying the Berning a couple of years ago. A very interesting, very, very clever design. But you have to realise it works like an AM  radio with the output transformer as sending and receiving antenna. The whole high voltage is modulated at a high frequency at the 300B side. Allways wondered how this works out for RF.

Regards, Coen

Logged

Settings: Qn: , SFS: , timeres: XT tweaks: , buf: 4096, driver: 8 ms,

Audio PC (jan 19): XXHE PC v1 with RAMdisk w.o. videocard and 1 of 2 cpu fans + BRIX/USB3 storage musicserver. ETN to Fibre converters (linear supplies), 500m SFP modules & 5m OM4 cable. Power cable PE not connected, together with nos1 and poweramp in separate "audio" powerstrip.

Clarixa set + Intona (or Lush 1m), Phasure NOS1a-75B G3 USB (buf 16 ms)-> Blaxius ->SE EL95 (0,8W triode) + cheap link to Abaqus 300W plateamps> Bastanis cable-> Bastanis Sagarmatha Duo ("DIY").

[other sources: TD124/3009SII-i/Grace F9/lounge LCR phono; Rega Planet 1997 vintage]
juanpmar
Crazy Audiophile
****
Offline Offline

Posts: 1236


View Profile Email
« Reply #18 on: September 04, 2013, 09:00:29 pm »

3) The USB noise has only now become an issue because until very recently I've been using balanced connections between the NOS1 and power amp. With balanced connections, there is absolutely no USB noise, irrespective of USB cable type or length.

Hi Mani, with balance connections you don´t have that noise but any difference in SQ with the Ridge Street Enopias USB cable versus the stock cable using in both cases xlr connections?

Juan
Logged

Audio Pc: Processor i7 970: 3200MHz (reduced to 1668MHz), 6+6 cores/ RAM Corsair DDR3, 24Gb, 1333MHz/ Mb Asus X58 Sabertooth/ OS and XXHE in Peter's RAM-Disk / The CPU fan is the only one in the Audio Pc: NF-S12A (600rpm/6.7db)/ No graphic card/ Power supply: Seasonic SS-400FL2, fanless.

Configuration and Updates in HOW I'VE BUILT MY NEW PC...http://www.phasure.com/index.php?topic=1673.0. This post is very old but maybe someone still find it useful

XXHighEnd: 2.11a. Windows 10 Pro 64 bit build 14393.0 from RAM, music on LAN/ KS:Phasure NOS1 Out 4.0/ #4 Engine/ Adaptive Mode/ Q1=10, Q3,4,5=1, xQ1=15/ Dev.Buffer: 4096/ ClockRes: 15ms/ Straight Contiguous/ SFS: 0.69 (max 0,69)/ Not Invert/ Phase Alignment Off/ Allow format change/ Decode HDCD/ Playerprio: Low/ ThreadPrio: Real Time/ Scheme: Core 3-5/ UnAttended/ Not Switch during Playback Off/ Playback Drive none/ UnAttended/ Include Garbage Collect/ Copy to XX Drive by standard/ Always clear Proxy before Playback/ Stop Desktop Services/ Stop Remaining Services/ Stop All Services: Off/ Keep LAN Services: On - Persist: Off/ Use Remote Desktop/ Minimize OS/ XTweaks : Balanced Load 35/ Nervous Rate 10/ Cool when Idle -/ Provide Stable Power 0/ Utilize Cores always 1/ Time Performance Index: Optimal / Time Stability: Stable / Arc Prediction/ Number of cores in use: 12 (máx. 6-12)

Music Server PC (W10) totally silent with OS (W10) in SSD and music inside in SSDs - RDC > Ethernet Gigabyte cable 3m > Audio Pc > 1m USB Lush cable directly from the USB3.0 in the motherboard > PHASURE NOS1a-75B-G3 (Driver v1.0.4) 16ms > Blaxius BNC interconnects > Genelec 1037B 3-Way Active speakers with BNC inputs
CoenP
Audio Addict
***
Offline Offline

Posts: 818


View Profile
« Reply #19 on: September 05, 2013, 08:37:03 am »

Hi,

The 5V of the USB cable is internally protected by the ESD protection chip in the NOS1. So it is connected. I can imagine some mechnisms that noise from the 5V line will be entering the NOS circuit, but those will be fairly small.

I toyed around with powercables, powerstrips en earthing (as far as possible here), but the system remains silent in all cases, that is the PC noise (if present) is swamped by the noise of the amp that is allready quite low.

In the time I had a flawed psu that distroyed -according to my measurements and theory- the internal NOS1 ESD protection chip. So I switched PSU to Seasonic X-400 and got a repair from Peter (actually Cisca!). Can't remember ever having any noise problems after that. That is with the regular USB cable.

My hunch is that the noise on the usb 5V is able to enter your NOS1 circuitry as a result of damage. In my view this noise problem could point to a half blown ESD protection chip; the result of one experiment too many (and I also use a tube amp...). I could very well be that my power connection arrangement was the culrpit of the blown ESD chip rather than the PC PSU. Since I am only partially familiar with the internals of the NOS1, it is hard to reason how such a thing could happen and wether it happened to you.

Regards, Coen
Logged

Settings: Qn: , SFS: , timeres: XT tweaks: , buf: 4096, driver: 8 ms,

Audio PC (jan 19): XXHE PC v1 with RAMdisk w.o. videocard and 1 of 2 cpu fans + BRIX/USB3 storage musicserver. ETN to Fibre converters (linear supplies), 500m SFP modules & 5m OM4 cable. Power cable PE not connected, together with nos1 and poweramp in separate "audio" powerstrip.

Clarixa set + Intona (or Lush 1m), Phasure NOS1a-75B G3 USB (buf 16 ms)-> Blaxius ->SE EL95 (0,8W triode) + cheap link to Abaqus 300W plateamps> Bastanis cable-> Bastanis Sagarmatha Duo ("DIY").

[other sources: TD124/3009SII-i/Grace F9/lounge LCR phono; Rega Planet 1997 vintage]
PeterSt
Administrator
High Grade Audiophile
*****
Offline Offline

Posts: 16827



View Profile Email
« Reply #20 on: September 05, 2013, 09:45:00 am »

Maybe a bright guy is able to solve this puzzle... Peter? Anyone?

Not me. Your outlays (also following the post I just quoted from) are quite thorough. It's only that no real rules can be applied because we are not on control of the devices themselves (and how they connect to PE, up to even needing that for some).

USB is just a nasty thing, and I myself don't understand it. This is about how it is organized in the PC which I think is "a standard" and how it runs its gnd over PE as far as I can see.
When the PC is not connected to PE (Protective Earth - your third pin on the mains cord) this is never for the better. Not in my case (all kinds of noise pickup occur, generally only measurable but can also turn into audible noise).

[ I added all sorts of explanations about connections, but it got too complicated so I removed those ]

Now, back to the "Not me" I started out with;

So I have a new set of amps and after some twiggling I was able to have it completely noise free (I didn't measure that, but audibly is enough for me, for now).
In the mean time I am measuring loudspeakers and for that it needs another USB connection to the amplifiers (to program the DSP in there for the bass drivers). So what I have is an audio PC with USB to the NOS1 and USB to the amp. There's another connection through Ethernet to another PC; this is inherently isolated.
No problem anywhere that I can see.

Then I changed the DSP programming from the audio PC to that other PC, because that is more convenient for me. The only thing changed was removing the additional USB connection from the audio PC to the amp, which now changed to a connection from that other PC to the amp.
Both PCs are in the same mains outlet (which is also where all the audio is connected to).

Now I receive a buzzing noise (something like over half of a second) just before music starts, plus when the monitor switches off or on I hear it through the speakers (a small tick). This is just already the "soft" switch off/on implied by software - not the hardware button.
The buzzing noise I also had when there was audible noise through the speakers. I don't know about the ticks. So, solved that noise (XOver filter pickup that was), but now the same is back by my different "USB path".

And now you think that I know how to solve this ?
I can't even reason out where this buzzing noise comes from. Looks like something is hammering on the monitor and tells "shut off man !" and it keeps on doing that until it doesn't respond anymore. The tick too feels like coming from just software usage.
Anyway I can test this by not letting switch off the monitor (I am thinking just now). But still, if that is the source, I would not know a single means to solve it.

And might Brian read this : Brian, that buzz could well be the same you reported about.

I don't think mouse movement causes any audibilities in my situation. However, I am using PS/2 connections for that which is of course on purpose. Mani, you ?

One thing should be clear : this whole sh*t is so complicated that it only lets solve itself by trial and error. A little base knowlegde is a good idea but in the end not enough.
And when all is solved you should regard yourself lucky. The very best thing though would be to have that reference, like KNOWING that your situation can be noise and tick etc. free. Like in my situation. Without that - like years ago - I would not even start looking. "Belongs to it" I would think.

Peter
