Author Topic: Cables with BNC Connectors/Adapters Are Generating A Superoir SQ  (Read 270439 times)
0 Members and 3 Guests are viewing this topic.
PeterSt
Administrator
High Grade Audiophile
*****
Offline Offline

Posts: 15498



View Profile Email
« Reply #270 on: October 08, 2014, 06:58:03 pm »

Hi,
I am live near Peter. I already have good results with 1$ coax cables plus cheap bnc-rca adapters. I would like to volunteer to get my nos1a changed. If that is a good suggestion. (Remark: would like to have the nos1a terminals lower, now they conflict with the usb port.)

But I use separate amplifiers (Jadis JA30). I could ask my shop to change the terminals if needed. They did a replacement of the rca to new rca terminals some years ago. Or I stick to the bnc-rca adapter for now. Not sure if replacing of these terminals at the amplifiers are mandatory?
regards, Arjan

Thank you Arjan, that is very kind of you. Btw, *this* is a job you can wait for (small hour).
Whether it will work out with your USB cable is something else because the output terminals can't be at the bottom for the "a" version. Notice though that you were the very first to receive the NOS1a (second one sent out though) and that right after that we started to ask people "where do you want which output terminals ?".
So they can be in the whole of the top row, but also in the left most bottom position seen from the back. So/but for example, when you'd use the two left most (top and bottom) seen from the back, the mains cable might be in the way.
All depending on how thick you guys manage to have your USB and/or mains cable.

Do notice that this "Blaxius" is just over 10mm thick.

Regards,
Peter
Logged

For the Stealth III LPS PC :
W10-14393.0 - Oct 31, 2018 (2.10)
XXHighEnd Mach III Stealth LPS PC ->Xeon Scalable 14/28 core with Hyperthreading On (set to 10/20 cores) @~660MHz, 48GB, Windows 10 Pro 64 bit build 14393.0 from RAM, music on LAN / Engine#4 Adaptive Mode / Q1/-/3/4/5 = 30/-/1/1/1/ Q1Factor = 10 / Dev.Buffer = 4096 / ClockRes = 15ms / Memory = Straight Contiguous / Include Garbage Collect / SFS = 140.19 (max 140.19) / not Invert / Phase Alignment Off / Playerprio = Low / ThreadPrio = Realtime / Scheme = Core 3-5 / Not Switch Processors during Playback = Off/ Playback Drive none (see OS from RAM) / UnAttended (Just Start) / Always Copy to XX Drive (see OS from RAM) / Stop Desktop, Remaining, WASAPI and W10 services / Use Remote Desktop / Keep LAN - Not Persist / WallPaper On / OSD Off (!) / Running Time Off / Minimize OS / XTweaks : Balanced Load = 35 / Nervous Rate = 10 / Cool when Idle = n.a / Provide Stable Power = 0 / Utilize Cores always = 1 / Time Performance Index = Optimal / Time Stability = Stable / *Arc Prediction Filtering (16x)* / Always Clear Proxy before Playback = On -> USB3 from MoBo -> Lush^2*A:B-W-Y-R, B:B-W-R* USB 1m00 -> Phisolator 24/768 Phasure NOS1a/G3 75B (BNC Out) async USB DAC, Driver v1.0.4b (16ms) -> B'ASS Current Amplifier -> *Blaxius^2 A:B-R, B:B-R* Interlink -> Orelo MKII Active Open Baffle Horn Speakers.
Removed Switching Supplies from everywhere (also from the PC).

For a general PC :
W10-10586.0 - May 2016 (2.05+)
*XXHighEnd PC -> I7 3930k with Hyperthreading On (12 cores)* @~500MHz, 16GB, Windows 10 Pro 64 bit build 10586.0 from RAM, music on LAN / Engine#4 Adaptive Mode / Q1/-/3/4/5 = 14/-/1/1/1 / Q1Factor = 1 / Dev.Buffer = 4096 / ClockRes = 1ms / Memory = Straight Contiguous / Include Garbage Collect / SFS = 0.10 (max 60) / not Invert / Phase Alignment Off / Playerprio = Low / ThreadPrio = Realtime / Scheme = Core 3-5 / Not Switch Processors during Playback = Off/ Playback Drive none (see OS from RAM) / UnAttended (Just Start) / Always Copy to XX Drive (see OS from RAM) / All Services Off / Keep LAN - Not Persist / WallPaper On / OSD On / Running Time Off / Minimize OS / XTweaks : Balanced Load = *43* / Nervous Rate = 1 / Cool when Idle = 1 / Provide Stable Power = 1 / Utilize Cores always = 1 / Time Performance Index = *Optimal* / Time Stability = *Stable* / Custom Filter *Low* 705600 / -> USB3 *from MoBo* -> Clairixa USB 15cm -> Intona Isolator -> Clairixa USB 1m80 -> 24/768 Phasure NOS1a 75B (BNC Out) async USB DAC, Driver v1.0.4b (4ms) -> Blaxius BNC interlink *-> B'ASS Current Amplifier /w Level4 -> Blaxius Interlink* -> Orelo MKII Active Open Baffle Horn Speakers.
Removed Switching Supplies from everywhere.

Global Moderator
Arjan
Audio Enthusiast
**
Offline Offline

Posts: 213


View Profile Email
« Reply #271 on: October 09, 2014, 01:49:46 pm »

Hi Peter,

Let us make an appointment! Shall we PM for that?

Small remark on bnc connectors. Yesterday I got an high pitching sound. Came out that the bnc connection was not properly connected anymore. They seems to be a bit easy to disconnect. Would tnc, if possible, be a better alternative? I would try tnc if I got a hold of tnc-rca adapters. But they seems to be rare. Or just some glue on the connector?

regards, Arjan
Logged

March, 2018 (2.10)
Music Server (old PC) RDC to Mach II Stealth 14393 RAM-OS / no videocard / Engine#4 Adaptive Mode / Q1/3/4/5 = 30/0/1/1/ Q1Factor = 40 (Dev.Buffer = 4096) / ClockRes = 0.5ms / SFS = 5.19 Mx = 120 Straight Contiguous / driver buffer 16ms / Playerprio = Low / ThreadPrio = High / Scheme = 3-5 / Unattended / Minimize OS / PeakExtend off / Arc Prediction / NO custom filter / 16x Upsampling / XTweaks 38 (turbo boost off in bios and cpu ratio 24!),1,-,0,1/with coverart / --> mobo USB --> The Lush 100 cm --> NOS1a 75B --> Blaxius --> bnc amps Jadis JA30 (modified and with the best tubes) --> Speakers
boleary
Crazy Audiophile
****
Offline Offline

Posts: 1233


View Profile Email
« Reply #272 on: October 09, 2014, 02:56:18 pm »

Hey Arjan, I've had that happen too. If the connection is the least bit loose, or not entirely "twisted in", its lights out for HF static.
Logged

XX2.07/MB: ASRock Extreme 4M , i7-3930K @ 0.5GHz/ RAM-OS W10586/32 Gigs 1600 DDR3/ Clarixa usb cable  /Q1,3,4,5 = *14*/1/1/*1* / *Q1Factor = 1* / Peak Extension: Off/Dev.Buffer = 4096 / ClockRes = *.5ms* / Straight Contiguous / SFS = *.02,/ Do Nothing With Cover Art / not Invert / *(Phase Alignment Off  / Playerprio = Low / ThreadPrio = Real Time / Scheme = 3-5 / UnAttended (Just Start) / *All* Services Off except LAN & RDC/ Persist off/No OSD / No Running Time / Minimize OS / Boost on/XTweaks : Balanced Load = *40* / Nervous Rate = 1/ Cool when Idle = NA / Provide Stable Power = 0 / Utilize Cores always = 1 / Time Performance Index = Best/ Time Stability = On/ No Up-sampling/R-2R DAC
christoffe
Audio Addict
***
Offline Offline

Posts: 760


View Profile Email
« Reply #273 on: October 09, 2014, 03:25:14 pm »

Hey Arjan, I've had that happen too. If the connection is the least bit loose, or not entirely "twisted in", its lights out for HF static.

Hi,

I'm using this adapters and the connection is "dead certain" ( in German "bombenfest")

Joachim

http://www.lindy.co.uk/bnc-female-to-phono-male-adapter-3-pack-p5734 for GB and

http://www.lindy-usa.com/bnc-female-to-phono-male-adapter-3-pack-35536.html in the US
Logged
Arjan
Audio Enthusiast
**
Offline Offline

Posts: 213


View Profile Email
« Reply #274 on: October 09, 2014, 04:37:32 pm »

Thanks Joachim, will have a look at these!

Arjan
Logged

March, 2018 (2.10)
Music Server (old PC) RDC to Mach II Stealth 14393 RAM-OS / no videocard / Engine#4 Adaptive Mode / Q1/3/4/5 = 30/0/1/1/ Q1Factor = 40 (Dev.Buffer = 4096) / ClockRes = 0.5ms / SFS = 5.19 Mx = 120 Straight Contiguous / driver buffer 16ms / Playerprio = Low / ThreadPrio = High / Scheme = 3-5 / Unattended / Minimize OS / PeakExtend off / Arc Prediction / NO custom filter / 16x Upsampling / XTweaks 38 (turbo boost off in bios and cpu ratio 24!),1,-,0,1/with coverart / --> mobo USB --> The Lush 100 cm --> NOS1a 75B --> Blaxius --> bnc amps Jadis JA30 (modified and with the best tubes) --> Speakers
PeterSt
Administrator
High Grade Audiophile
*****
Offline Offline

Posts: 15498



View Profile Email
« Reply #275 on: October 10, 2014, 08:15:56 am »

Let us make an appointment! Shall we PM for that?

OK ...

Quote
Would tnc, if possible, be a better alternative? I would try tnc if I got a hold of tnc-rca adapters. But they seems to be rare.

Almost all of the others (dozens exist) are better from the "tight" connection point of view. Think for example F-connector (this is for satelite cable - 75 Ohm) where the connection is screwed. F to RCA exists.

If your BNC connection gets loose automatically then something is wrong. However, I can imagine that if you put (twisted) tension on a stiff cable that you can disconnect it by means of you twisting the cabe, holding that at a meter distance. In other words, don't put that tension on it. And do notice that the connectors bajonet ring must twist when putting it on and not the cable itself. Ehm, if that ring can twist. But understand ? If the tension is there anyway, cause it to be 180 degrees in the good direction so it will auto-twist itself ON insteds of off.
Bit difficult to explain.

Regards,
Peter
Logged

For the Stealth III LPS PC :
W10-14393.0 - Oct 31, 2018 (2.10)
XXHighEnd Mach III Stealth LPS PC ->Xeon Scalable 14/28 core with Hyperthreading On (set to 10/20 cores) @~660MHz, 48GB, Windows 10 Pro 64 bit build 14393.0 from RAM, music on LAN / Engine#4 Adaptive Mode / Q1/-/3/4/5 = 30/-/1/1/1/ Q1Factor = 10 / Dev.Buffer = 4096 / ClockRes = 15ms / Memory = Straight Contiguous / Include Garbage Collect / SFS = 140.19 (max 140.19) / not Invert / Phase Alignment Off / Playerprio = Low / ThreadPrio = Realtime / Scheme = Core 3-5 / Not Switch Processors during Playback = Off/ Playback Drive none (see OS from RAM) / UnAttended (Just Start) / Always Copy to XX Drive (see OS from RAM) / Stop Desktop, Remaining, WASAPI and W10 services / Use Remote Desktop / Keep LAN - Not Persist / WallPaper On / OSD Off (!) / Running Time Off / Minimize OS / XTweaks : Balanced Load = 35 / Nervous Rate = 10 / Cool when Idle = n.a / Provide Stable Power = 0 / Utilize Cores always = 1 / Time Performance Index = Optimal / Time Stability = Stable / *Arc Prediction Filtering (16x)* / Always Clear Proxy before Playback = On -> USB3 from MoBo -> Lush^2*A:B-W-Y-R, B:B-W-R* USB 1m00 -> Phisolator 24/768 Phasure NOS1a/G3 75B (BNC Out) async USB DAC, Driver v1.0.4b (16ms) -> B'ASS Current Amplifier -> *Blaxius^2 A:B-R, B:B-R* Interlink -> Orelo MKII Active Open Baffle Horn Speakers.
Removed Switching Supplies from everywhere (also from the PC).

For a general PC :
W10-10586.0 - May 2016 (2.05+)
*XXHighEnd PC -> I7 3930k with Hyperthreading On (12 cores)* @~500MHz, 16GB, Windows 10 Pro 64 bit build 10586.0 from RAM, music on LAN / Engine#4 Adaptive Mode / Q1/-/3/4/5 = 14/-/1/1/1 / Q1Factor = 1 / Dev.Buffer = 4096 / ClockRes = 1ms / Memory = Straight Contiguous / Include Garbage Collect / SFS = 0.10 (max 60) / not Invert / Phase Alignment Off / Playerprio = Low / ThreadPrio = Realtime / Scheme = Core 3-5 / Not Switch Processors during Playback = Off/ Playback Drive none (see OS from RAM) / UnAttended (Just Start) / Always Copy to XX Drive (see OS from RAM) / All Services Off / Keep LAN - Not Persist / WallPaper On / OSD On / Running Time Off / Minimize OS / XTweaks : Balanced Load = *43* / Nervous Rate = 1 / Cool when Idle = 1 / Provide Stable Power = 1 / Utilize Cores always = 1 / Time Performance Index = *Optimal* / Time Stability = *Stable* / Custom Filter *Low* 705600 / -> USB3 *from MoBo* -> Clairixa USB 15cm -> Intona Isolator -> Clairixa USB 1m80 -> 24/768 Phasure NOS1a 75B (BNC Out) async USB DAC, Driver v1.0.4b (4ms) -> Blaxius BNC interlink *-> B'ASS Current Amplifier /w Level4 -> Blaxius Interlink* -> Orelo MKII Active Open Baffle Horn Speakers.
Removed Switching Supplies from everywhere.

Global Moderator
Arjan
Audio Enthusiast
**
Offline Offline

Posts: 213


View Profile Email
« Reply #276 on: October 10, 2014, 12:26:09 pm »

Hi Peter,

The cables are a bit to long, so somewhat twisted. Although the bajonet can twist (in relation to the cable) the connection to the rca adapter is more loose. So twisting the cable loosen the connection. I am aware of that now! Ordered some adapters as Joachim suggested, maybe that will make the connection more tight on the amplifier side.

regards, Arjan
Logged

March, 2018 (2.10)
Music Server (old PC) RDC to Mach II Stealth 14393 RAM-OS / no videocard / Engine#4 Adaptive Mode / Q1/3/4/5 = 30/0/1/1/ Q1Factor = 40 (Dev.Buffer = 4096) / ClockRes = 0.5ms / SFS = 5.19 Mx = 120 Straight Contiguous / driver buffer 16ms / Playerprio = Low / ThreadPrio = High / Scheme = 3-5 / Unattended / Minimize OS / PeakExtend off / Arc Prediction / NO custom filter / 16x Upsampling / XTweaks 38 (turbo boost off in bios and cpu ratio 24!),1,-,0,1/with coverart / --> mobo USB --> The Lush 100 cm --> NOS1a 75B --> Blaxius --> bnc amps Jadis JA30 (modified and with the best tubes) --> Speakers
boleary
Crazy Audiophile
****
Offline Offline

Posts: 1233


View Profile Email
« Reply #277 on: October 10, 2014, 02:19:39 pm »

The one time I had a loose connection was when I was A-B'ing my RCA and BNC interconnects. The bnc/rca adapter become loose from repeatedly pulling it out of the amp and I didn't notice. I've never had it happen "automatically."
Logged

XX2.07/MB: ASRock Extreme 4M , i7-3930K @ 0.5GHz/ RAM-OS W10586/32 Gigs 1600 DDR3/ Clarixa usb cable  /Q1,3,4,5 = *14*/1/1/*1* / *Q1Factor = 1* / Peak Extension: Off/Dev.Buffer = 4096 / ClockRes = *.5ms* / Straight Contiguous / SFS = *.02,/ Do Nothing With Cover Art / not Invert / *(Phase Alignment Off  / Playerprio = Low / ThreadPrio = Real Time / Scheme = 3-5 / UnAttended (Just Start) / *All* Services Off except LAN & RDC/ Persist off/No OSD / No Running Time / Minimize OS / Boost on/XTweaks : Balanced Load = *40* / Nervous Rate = 1/ Cool when Idle = NA / Provide Stable Power = 0 / Utilize Cores always = 1 / Time Performance Index = Best/ Time Stability = On/ No Up-sampling/R-2R DAC
PeterSt
Administrator
High Grade Audiophile
*****
Offline Offline

Posts: 15498



View Profile Email
« Reply #278 on: October 11, 2014, 12:24:05 pm »

What's in a title.
So up to the Saturday morning blah blah (if I can do otherwise at all) ...

So a few days back I reported about Ciska "being able to" express about "so beautiful !". I left out the few times more she said that because two times was enough. But apparently something "switched" in her and it looks like another audiophile has been born. Mind you, this is about somone who by now has been listening to something like 21900 hours of my music, assumed each day 3 hours on average and no vacations etc. So a few hours less it will be. wacko

Yesterday something was changed in the system again, and at listening to some track she suddenly tells me "hey, I can imagine track XYZ to sound such and so now". So I said "oh, and since when can YOU do this ??".

At that moment we were listening to Rare Earth's Get Ready which is played each 4-5 months since I finally found it on CD (two years or so ago). This is from 1969 and one of the "key stones" from my younger years. It is a kind of a tough album to play, or better, that 20 minute "Get Ready" track. It is from that era, say the beginning of (Pro-)Rock and the recording means were a kind of special (say 1967 - 1972). I *know* that from that era the best recordings emerged (my view of course) but it now depends very much on the performance of the system. Can sound more poor and hollow, can sound too light and dynamical. And everything in between. If things work well you'll "hear" the messages, often present in ProRock (btw, I don't call this Rare Earth specifically ProRock, but it has some properties of it). Those "messages" are only brought across when you can see the intension of the singer, or when you envision the band on a podium doing the performance. All at ease, just representing their era and what all happens around them. That kind of thing.

Yesterday it worked like never before. All fit and all in proper balance. Besides that, a "today's very well done recording".
This is how Ciska now was urged to hear back one of these tracks we played a couple of days back with that message "I can envision now ...". So huh ?
It got worse, because it became a subject in itself and we talked about it somewhat (like I found another pal) and in the end there was a "yea, but that Wicked Game from Chris Isaak is really tear drawing, you know". Okay, I must have missed that this other day. Only the "so beautiful" I noticed. Hmm ...

In advance of this we talked about "more analogue" with my more or less tough explanation what that would be. Actually I said "more analogue but with all the highs sustained from 'digital'". If I would have said this 5 years ago it would have been more clear, but at today's standards the borders are vague to begin with. So, hard to make clear.

And so Wicked Game was put up again;
For me it did what I expected of it, but in 2 fold or maybe 3. There was no ultimate super crystal clear guitar as the first to notice, and there was no super clear beautiful voice as the second. I said "at least the guy is not gay anymore" and you know what ?? after playing this one this few days ago, the next one I put up was George Michael. So go figure how our mind works, because no way I appreciated Chris Isaak as gay. Still it must have been in my mind, and yesterday my expression was "not gay any more !" ?? So I *did* know.

But next there was *her* expression, and while my "more analogue" in advance didn't come across really, she made a "gay he was never, but now it is more NATURAL".
Oh.

The change is so big compared to few days back that I would say the whole recording shifted down an octave. I am serious.
But now I must tell you about the one "minus" I found with this cable fairly much right form the start. Mind you, as how it was before yesterday ...

You can say there's a kind of "bells" in them as a general character. High frequency "belling" which we better call ringing. At least that is what I can think of, were it (all) about reflections. But notice : there is no way that I judge this ringing as something I can't live with, ALTHOUGH it would be my foremost deep down negative if I hear such a thing throughout tracks and albums. Mere point here is : this expresses in rock only (that I noticed) but it also has a sheer upside : singing. And, this is clearly the "vrbrance" I talked about. So wonder oh wonder, day before yesterday I tried Foreigner and Boston and that kind of soft rock bands, which so far never really worked out. Now they play as intended : full with harmonics and this "singing" throughout from the distortion guitars and full sound. So it works, but can be overkill once you only listen to this kind of music because it wil start to be apparent to you that there's a flavor. Still, the only thing on my mind was about what YOU would think about this, might I prepare such a set of interlinks for you. So say a bit scary, but for me I think it would be okay; 99% of music I play will not show it anyway *and* you must be able to recognize it in the first place. But, you could be better at that then me, so still a bit scary.

Hoping that you're still with me and didn't die of the blahblah, now up to yesterday's change ...



See below picture. See or know how totally illegal it is what has been done there; have an interlink that acts as a coil, implying inductance. IL-LE-GAL.
Still I did it out of curiosity, plus I maybe didn't know how to put this 7 meters too long cable otherwise easily. So this is Mani's cable at ~10m40 while my own is 3m15. You can see it in the back ground. Thus, 7 meters of coil there.

This interesting part of this could be that inductance and capacitance are linearly related. With the emphasis on me now knowing exactly how all works out, this should tell something like : when the inductance gets higher because of this coil format, the capacitance will be lower. Okayyy, it could even be that the net result of the inductance is lower because of this format, and if that is so then the capacitance is higher. Or something quite else may happen.
What I sure know though is that both capacitance and inductance of such a cable should be as low as possible. This now can never be achieved because whatever is done to achieve the lower capacitance will higher the inductance. And the other way around. One thing I (thus) do not know, and this is whether this applies "within the cable('s properties)" only, and whether external influences may disobey this rule. In this case the cable itself being a coil could be such an external influence and who knows now both capacitance and inductance lowered (if you'd (could) add the both values of them).

Point is, this setup changes the sound drastically AGAIN.
swoon

Of course this has been a few hours listening only so any final judgement is a few days away as always, but this ringing is not be there any more. What came in place of that is "more grey" but with my emphasis that grey is relative and all what happens (I think) is that the false harmonic "bells" disappeared and probably no Foreigner will work again. So no false vibrance and "singing". This seems also how a Chris Isaak's voice shifts down an octave.

The whole perception is also one of more laid back. This is a bit of a strange form of it because it isn't much about flat or farther away, but merely about "ease". And I am fairly sure it is this which makes me say "more analoge". Someone else makes that "more natural".
The least what it does is once again give all more body but I am not sure yet what the real cause is. So, if an octave from Chris Isaak is remove at the upper side, the lower side which does not need to change a bit gets more profound automatically. So, more body. The Get Ready is not "smashing dynamical" at all. We explicitly observed the now infinitely possible loudness. Notice that this is about 20 minutes of hitting a snare drum on the same beat and when that too dynamically renedered at some stage you'll get crazy of it.

I also played "Who do we think we are" from Deep Purple which I always play when things drastically changed; The cymbals in there seem to be of "DSP'd" quality hence abnormally good for Rock. I listened to it yesterday and I tried to observe where the so much more laid back of it was for the better or worse. And well, whatever I tried I could not see where it was wrong, no matter so different. All was there and more profouind than ever before, but all so super silky that it seems impossible that it has been in there all the time. And yes, what is the most apparent to ME and relative to the past 6 days with my own cable, is that extra layer of ringing not being there. Al so normal ...
Some say natural.
swoonswoon

The danger I could see at this moment is that I can run into a perceived lack of power because that is how it feels initially. Not because of the lack of slam (no way) but because of a possible lack of dynamics. But then I have been used to crazy dynamics for a long time, and all what happens with these changes for the better is that it gradually gets less and less. This is not about high frequency detail, but somewhere in the (higher ?) mid that makes a snare drum hurt from realism as how it was before - or jut not enough because too much rounded as how it is now. This is why again more days will be needed to judge this from various types of music. So that not only Get Ready works from now on.

So ... Nice story perhaps, but what actually happened ?
I put a cable in coil form and one should never do that. But I also used a 10m40 cable instead of 3m15. What does actually which ?
A longer cable, theoretically, is never for the better. This is now not about a too high capacitance and too much HF roll off, but about the longer the worse the reflections. Still I feel it went the other way around unless the ringing is now rolled off because the high frequencies are somewhat. Thus what I try to tell is that the highest frequencies causing the mere "bell" sound are actually reflections after all, but now those frequencies are rolled off to some extend because the length of the able itself. Notice that this should be about 30 meters for one "ring" (echo). So amp reflects back to DAC which reflects back towards amp and is played through the speaker. And that assumed one time of reflection. In my 3m15 case it would be about 9 meters. Or, because it is shorter a next reflection comes through before being rolled off too much.
All hard to say and still assumed reflections do this in the first place. So what about the filter which is time domain oriented ? I mean, it just as well can be so that this more false high frequencies can now finally be heard well. Thus nothing about reflections. And *now* all what happens is that the longer cable may roll off *that*.

What the coil thing does can be tested. Just un-coil it. So I guess I will do that today. Will be a bit messy in the room but with one more audiophile present there's more who cares less.

Peter


* IMG_1352a.JPG (312.16 KB, 550x825 - viewed 742 times.)
Logged

For the Stealth III LPS PC :
W10-14393.0 - Oct 31, 2018 (2.10)
XXHighEnd Mach III Stealth LPS PC ->Xeon Scalable 14/28 core with Hyperthreading On (set to 10/20 cores) @~660MHz, 48GB, Windows 10 Pro 64 bit build 14393.0 from RAM, music on LAN / Engine#4 Adaptive Mode / Q1/-/3/4/5 = 30/-/1/1/1/ Q1Factor = 10 / Dev.Buffer = 4096 / ClockRes = 15ms / Memory = Straight Contiguous / Include Garbage Collect / SFS = 140.19 (max 140.19) / not Invert / Phase Alignment Off / Playerprio = Low / ThreadPrio = Realtime / Scheme = Core 3-5 / Not Switch Processors during Playback = Off/ Playback Drive none (see OS from RAM) / UnAttended (Just Start) / Always Copy to XX Drive (see OS from RAM) / Stop Desktop, Remaining, WASAPI and W10 services / Use Remote Desktop / Keep LAN - Not Persist / WallPaper On / OSD Off (!) / Running Time Off / Minimize OS / XTweaks : Balanced Load = 35 / Nervous Rate = 10 / Cool when Idle = n.a / Provide Stable Power = 0 / Utilize Cores always = 1 / Time Performance Index = Optimal / Time Stability = Stable / *Arc Prediction Filtering (16x)* / Always Clear Proxy before Playback = On -> USB3 from MoBo -> Lush^2*A:B-W-Y-R, B:B-W-R* USB 1m00 -> Phisolator 24/768 Phasure NOS1a/G3 75B (BNC Out) async USB DAC, Driver v1.0.4b (16ms) -> B'ASS Current Amplifier -> *Blaxius^2 A:B-R, B:B-R* Interlink -> Orelo MKII Active Open Baffle Horn Speakers.
Removed Switching Supplies from everywhere (also from the PC).

For a general PC :
W10-10586.0 - May 2016 (2.05+)
*XXHighEnd PC -> I7 3930k with Hyperthreading On (12 cores)* @~500MHz, 16GB, Windows 10 Pro 64 bit build 10586.0 from RAM, music on LAN / Engine#4 Adaptive Mode / Q1/-/3/4/5 = 14/-/1/1/1 / Q1Factor = 1 / Dev.Buffer = 4096 / ClockRes = 1ms / Memory = Straight Contiguous / Include Garbage Collect / SFS = 0.10 (max 60) / not Invert / Phase Alignment Off / Playerprio = Low / ThreadPrio = Realtime / Scheme = Core 3-5 / Not Switch Processors during Playback = Off/ Playback Drive none (see OS from RAM) / UnAttended (Just Start) / Always Copy to XX Drive (see OS from RAM) / All Services Off / Keep LAN - Not Persist / WallPaper On / OSD On / Running Time Off / Minimize OS / XTweaks : Balanced Load = *43* / Nervous Rate = 1 / Cool when Idle = 1 / Provide Stable Power = 1 / Utilize Cores always = 1 / Time Performance Index = *Optimal* / Time Stability = *Stable* / Custom Filter *Low* 705600 / -> USB3 *from MoBo* -> Clairixa USB 15cm -> Intona Isolator -> Clairixa USB 1m80 -> 24/768 Phasure NOS1a 75B (BNC Out) async USB DAC, Driver v1.0.4b (4ms) -> Blaxius BNC interlink *-> B'ASS Current Amplifier /w Level4 -> Blaxius Interlink* -> Orelo MKII Active Open Baffle Horn Speakers.
Removed Switching Supplies from everywhere.

Global Moderator
PeterSt
Administrator
High Grade Audiophile
*****
Offline Offline

Posts: 15498



View Profile Email
« Reply #279 on: October 11, 2014, 01:10:51 pm »

PS:

What I did not tell, but what was in my mind as "the" subject this morning, was this :

*If* this coil thing does something and it does it for the better, we will be totally lost for the next 6 months because we may find ourselves trying various windings of this coil. And then not to speak about the total length which makes the variations infinite to begin with. But outside that we can have smaller and larger windings, two "sets" of them or even three and all should do something else.
Mine is put flat on the floor, but putting it upright will imply other resulting properties. Let it float ...

So just saying ... we better hope that "un-coiling" this gives a better result or otherwise we addicts will all get crazy.

Peter
Logged

For the Stealth III LPS PC :
W10-14393.0 - Oct 31, 2018 (2.10)
XXHighEnd Mach III Stealth LPS PC ->Xeon Scalable 14/28 core with Hyperthreading On (set to 10/20 cores) @~660MHz, 48GB, Windows 10 Pro 64 bit build 14393.0 from RAM, music on LAN / Engine#4 Adaptive Mode / Q1/-/3/4/5 = 30/-/1/1/1/ Q1Factor = 10 / Dev.Buffer = 4096 / ClockRes = 15ms / Memory = Straight Contiguous / Include Garbage Collect / SFS = 140.19 (max 140.19) / not Invert / Phase Alignment Off / Playerprio = Low / ThreadPrio = Realtime / Scheme = Core 3-5 / Not Switch Processors during Playback = Off/ Playback Drive none (see OS from RAM) / UnAttended (Just Start) / Always Copy to XX Drive (see OS from RAM) / Stop Desktop, Remaining, WASAPI and W10 services / Use Remote Desktop / Keep LAN - Not Persist / WallPaper On / OSD Off (!) / Running Time Off / Minimize OS / XTweaks : Balanced Load = 35 / Nervous Rate = 10 / Cool when Idle = n.a / Provide Stable Power = 0 / Utilize Cores always = 1 / Time Performance Index = Optimal / Time Stability = Stable / *Arc Prediction Filtering (16x)* / Always Clear Proxy before Playback = On -> USB3 from MoBo -> Lush^2*A:B-W-Y-R, B:B-W-R* USB 1m00 -> Phisolator 24/768 Phasure NOS1a/G3 75B (BNC Out) async USB DAC, Driver v1.0.4b (16ms) -> B'ASS Current Amplifier -> *Blaxius^2 A:B-R, B:B-R* Interlink -> Orelo MKII Active Open Baffle Horn Speakers.
Removed Switching Supplies from everywhere (also from the PC).

For a general PC :
W10-10586.0 - May 2016 (2.05+)
*XXHighEnd PC -> I7 3930k with Hyperthreading On (12 cores)* @~500MHz, 16GB, Windows 10 Pro 64 bit build 10586.0 from RAM, music on LAN / Engine#4 Adaptive Mode / Q1/-/3/4/5 = 14/-/1/1/1 / Q1Factor = 1 / Dev.Buffer = 4096 / ClockRes = 1ms / Memory = Straight Contiguous / Include Garbage Collect / SFS = 0.10 (max 60) / not Invert / Phase Alignment Off / Playerprio = Low / ThreadPrio = Realtime / Scheme = Core 3-5 / Not Switch Processors during Playback = Off/ Playback Drive none (see OS from RAM) / UnAttended (Just Start) / Always Copy to XX Drive (see OS from RAM) / All Services Off / Keep LAN - Not Persist / WallPaper On / OSD On / Running Time Off / Minimize OS / XTweaks : Balanced Load = *43* / Nervous Rate = 1 / Cool when Idle = 1 / Provide Stable Power = 1 / Utilize Cores always = 1 / Time Performance Index = *Optimal* / Time Stability = *Stable* / Custom Filter *Low* 705600 / -> USB3 *from MoBo* -> Clairixa USB 15cm -> Intona Isolator -> Clairixa USB 1m80 -> 24/768 Phasure NOS1a 75B (BNC Out) async USB DAC, Driver v1.0.4b (4ms) -> Blaxius BNC interlink *-> B'ASS Current Amplifier /w Level4 -> Blaxius Interlink* -> Orelo MKII Active Open Baffle Horn Speakers.
Removed Switching Supplies from everywhere.

Global Moderator
christoffe
Audio Addict
***
Offline Offline

Posts: 760


View Profile Email
« Reply #280 on: October 11, 2014, 03:32:17 pm »

PS:

What I did not tell, but what was in my mind as "the" subject this morning, was this :

*If* this coil thing does something and it does it for the better, we will be totally lost for the next 6 months because we may find ourselves trying various windings of this coil. And then not to speak about the total length which makes the variations infinite to begin with. But outside that we can have smaller and larger windings, two "sets" of them or even three and all should do something else.
Mine is put flat on the floor, but putting it upright will imply other resulting properties. Let it float ...

So just saying ... we better hope that "un-coiling" this gives a better result or otherwise we addicts will all get crazy.

Peter

Hi,

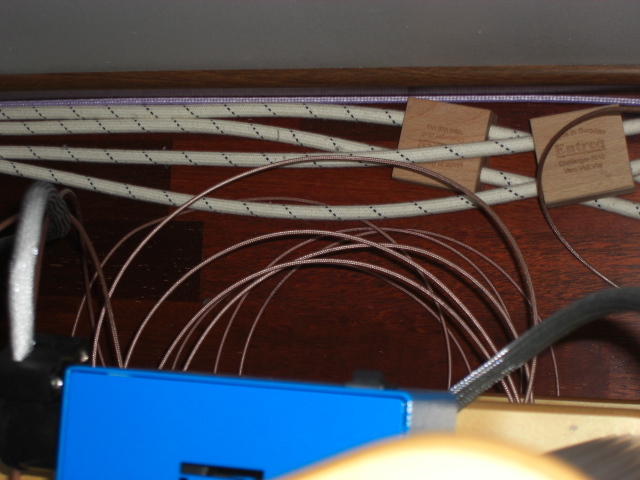

funny, this coil was in my "arrangement" since the beginning, and I always considered this as a disadvantage.

Refer voices.

The song "Roxanne" by George Michael is from somewhere else now.


http://www.amazon.co.uk/Songs-Last-Century-George-Michael/dp/B00003CK6Z/ref=sr_1_1?s=music&ie=UTF8&qid=1413033738&sr=1-1&keywords=george+michael+songs+from+the+last+century

Joachim




* BNC.JPG (225.34 KB, 640x480 - viewed 674 times.)
Logged
PeterSt
Administrator
High Grade Audiophile
*****
Offline Offline

Posts: 15498



View Profile Email
« Reply #281 on: October 11, 2014, 03:59:47 pm »

Joachim, "from somewhere else" ?
Logged

For the Stealth III LPS PC :
W10-14393.0 - Oct 31, 2018 (2.10)
XXHighEnd Mach III Stealth LPS PC ->Xeon Scalable 14/28 core with Hyperthreading On (set to 10/20 cores) @~660MHz, 48GB, Windows 10 Pro 64 bit build 14393.0 from RAM, music on LAN / Engine#4 Adaptive Mode / Q1/-/3/4/5 = 30/-/1/1/1/ Q1Factor = 10 / Dev.Buffer = 4096 / ClockRes = 15ms / Memory = Straight Contiguous / Include Garbage Collect / SFS = 140.19 (max 140.19) / not Invert / Phase Alignment Off / Playerprio = Low / ThreadPrio = Realtime / Scheme = Core 3-5 / Not Switch Processors during Playback = Off/ Playback Drive none (see OS from RAM) / UnAttended (Just Start) / Always Copy to XX Drive (see OS from RAM) / Stop Desktop, Remaining, WASAPI and W10 services / Use Remote Desktop / Keep LAN - Not Persist / WallPaper On / OSD Off (!) / Running Time Off / Minimize OS / XTweaks : Balanced Load = 35 / Nervous Rate = 10 / Cool when Idle = n.a / Provide Stable Power = 0 / Utilize Cores always = 1 / Time Performance Index = Optimal / Time Stability = Stable / *Arc Prediction Filtering (16x)* / Always Clear Proxy before Playback = On -> USB3 from MoBo -> Lush^2*A:B-W-Y-R, B:B-W-R* USB 1m00 -> Phisolator 24/768 Phasure NOS1a/G3 75B (BNC Out) async USB DAC, Driver v1.0.4b (16ms) -> B'ASS Current Amplifier -> *Blaxius^2 A:B-R, B:B-R* Interlink -> Orelo MKII Active Open Baffle Horn Speakers.
Removed Switching Supplies from everywhere (also from the PC).

For a general PC :
W10-10586.0 - May 2016 (2.05+)
*XXHighEnd PC -> I7 3930k with Hyperthreading On (12 cores)* @~500MHz, 16GB, Windows 10 Pro 64 bit build 10586.0 from RAM, music on LAN / Engine#4 Adaptive Mode / Q1/-/3/4/5 = 14/-/1/1/1 / Q1Factor = 1 / Dev.Buffer = 4096 / ClockRes = 1ms / Memory = Straight Contiguous / Include Garbage Collect / SFS = 0.10 (max 60) / not Invert / Phase Alignment Off / Playerprio = Low / ThreadPrio = Realtime / Scheme = Core 3-5 / Not Switch Processors during Playback = Off/ Playback Drive none (see OS from RAM) / UnAttended (Just Start) / Always Copy to XX Drive (see OS from RAM) / All Services Off / Keep LAN - Not Persist / WallPaper On / OSD On / Running Time Off / Minimize OS / XTweaks : Balanced Load = *43* / Nervous Rate = 1 / Cool when Idle = 1 / Provide Stable Power = 1 / Utilize Cores always = 1 / Time Performance Index = *Optimal* / Time Stability = *Stable* / Custom Filter *Low* 705600 / -> USB3 *from MoBo* -> Clairixa USB 15cm -> Intona Isolator -> Clairixa USB 1m80 -> 24/768 Phasure NOS1a 75B (BNC Out) async USB DAC, Driver v1.0.4b (4ms) -> Blaxius BNC interlink *-> B'ASS Current Amplifier /w Level4 -> Blaxius Interlink* -> Orelo MKII Active Open Baffle Horn Speakers.
Removed Switching Supplies from everywhere.

Global Moderator
christoffe
Audio Addict
***
Offline Offline

Posts: 760


View Profile Email
« Reply #282 on: October 11, 2014, 05:42:38 pm »

Joachim, "from somewhere else" ?

or "as never heard it before" - amazing voice and bass.

Joachim

P.S. How long did you hear with the coiled cable? The change of the SQ came just after the connection between the DAC and amps?

Edit: between both alternatives of my "mini (un)coiled" 4m cables I hear no substantial differences. ***Perfectly recoiled***



Logged
PeterSt
Administrator
High Grade Audiophile
*****
Offline Offline

Posts: 15498



View Profile Email
« Reply #283 on: October 11, 2014, 07:15:17 pm »

Quote
P.S. How long did you hear with the coiled cable? The change of the SQ came just after the connection between the DAC and amps?

Yes. And easily audible.

Quote
Edit: between both alternatives of my "mini (un)coiled" 4m cables I hear no substantial differences.

Notice that there will be a difference between your "lousy" coil and a more neat one (mine Wink).

Now they are all over the place. Easy difference *again* ...
And for the better. yes

Peter

Logged

For the Stealth III LPS PC :
W10-14393.0 - Oct 31, 2018 (2.10)
XXHighEnd Mach III Stealth LPS PC ->Xeon Scalable 14/28 core with Hyperthreading On (set to 10/20 cores) @~660MHz, 48GB, Windows 10 Pro 64 bit build 14393.0 from RAM, music on LAN / Engine#4 Adaptive Mode / Q1/-/3/4/5 = 30/-/1/1/1/ Q1Factor = 10 / Dev.Buffer = 4096 / ClockRes = 15ms / Memory = Straight Contiguous / Include Garbage Collect / SFS = 140.19 (max 140.19) / not Invert / Phase Alignment Off / Playerprio = Low / ThreadPrio = Realtime / Scheme = Core 3-5 / Not Switch Processors during Playback = Off/ Playback Drive none (see OS from RAM) / UnAttended (Just Start) / Always Copy to XX Drive (see OS from RAM) / Stop Desktop, Remaining, WASAPI and W10 services / Use Remote Desktop / Keep LAN - Not Persist / WallPaper On / OSD Off (!) / Running Time Off / Minimize OS / XTweaks : Balanced Load = 35 / Nervous Rate = 10 / Cool when Idle = n.a / Provide Stable Power = 0 / Utilize Cores always = 1 / Time Performance Index = Optimal / Time Stability = Stable / *Arc Prediction Filtering (16x)* / Always Clear Proxy before Playback = On -> USB3 from MoBo -> Lush^2*A:B-W-Y-R, B:B-W-R* USB 1m00 -> Phisolator 24/768 Phasure NOS1a/G3 75B (BNC Out) async USB DAC, Driver v1.0.4b (16ms) -> B'ASS Current Amplifier -> *Blaxius^2 A:B-R, B:B-R* Interlink -> Orelo MKII Active Open Baffle Horn Speakers.
Removed Switching Supplies from everywhere (also from the PC).

For a general PC :
W10-10586.0 - May 2016 (2.05+)
*XXHighEnd PC -> I7 3930k with Hyperthreading On (12 cores)* @~500MHz, 16GB, Windows 10 Pro 64 bit build 10586.0 from RAM, music on LAN / Engine#4 Adaptive Mode / Q1/-/3/4/5 = 14/-/1/1/1 / Q1Factor = 1 / Dev.Buffer = 4096 / ClockRes = 1ms / Memory = Straight Contiguous / Include Garbage Collect / SFS = 0.10 (max 60) / not Invert / Phase Alignment Off / Playerprio = Low / ThreadPrio = Realtime / Scheme = Core 3-5 / Not Switch Processors during Playback = Off/ Playback Drive none (see OS from RAM) / UnAttended (Just Start) / Always Copy to XX Drive (see OS from RAM) / All Services Off / Keep LAN - Not Persist / WallPaper On / OSD On / Running Time Off / Minimize OS / XTweaks : Balanced Load = *43* / Nervous Rate = 1 / Cool when Idle = 1 / Provide Stable Power = 1 / Utilize Cores always = 1 / Time Performance Index = *Optimal* / Time Stability = *Stable* / Custom Filter *Low* 705600 / -> USB3 *from MoBo* -> Clairixa USB 15cm -> Intona Isolator -> Clairixa USB 1m80 -> 24/768 Phasure NOS1a 75B (BNC Out) async USB DAC, Driver v1.0.4b (4ms) -> Blaxius BNC interlink *-> B'ASS Current Amplifier /w Level4 -> Blaxius Interlink* -> Orelo MKII Active Open Baffle Horn Speakers.
Removed Switching Supplies from everywhere.

Global Moderator
christoffe
Audio Addict
***
Offline Offline

Posts: 760


View Profile Email
« Reply #284 on: October 11, 2014, 07:46:04 pm »


Now they are all over the place. Easy difference *again* ...
And for the better. yes

Peter

So "NO COIL" is an advantage. Right?

****
Hi Peter,
no answer is an answer.
I have interpretation problems with "they are all over the place" , because it was your intention to uncoil the cable for a comparision.

You still have Mani's 10m cables. Do you have the possibility to test the "old Orelo MKII" loop. (DAC 33 Ohm RCA, your 75Ohm cable and the old RCA connection at your active speakers, with and without coiled cables)

I think we, with "normal" speakers", have to look for other cables. I will try a 50 Ohm BNC cable with a solid copper wire, double shielded, and the dielectric mat'l is PE foam. The length is ???? due to open test results with "coiled" cables.

The dia of the cable is 10,2mm. A German manuf. is selling such a cable for 100,00 per 25m.

Or do you have another proposal for us "outsiders" Grin

Joachim
****
Logged
Pages: 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 [19] 20 21 22 23 24 25 26 27 28 29 30  All
Print
Jump to:

Powered by MySQL Powered by PHP Powered by SMF 1.1 RC2 | SMF © 2001-2005, Lewis Media Valid XHTML 1.0! Valid CSS!
Page created in 0.097 seconds with 19 queries.
